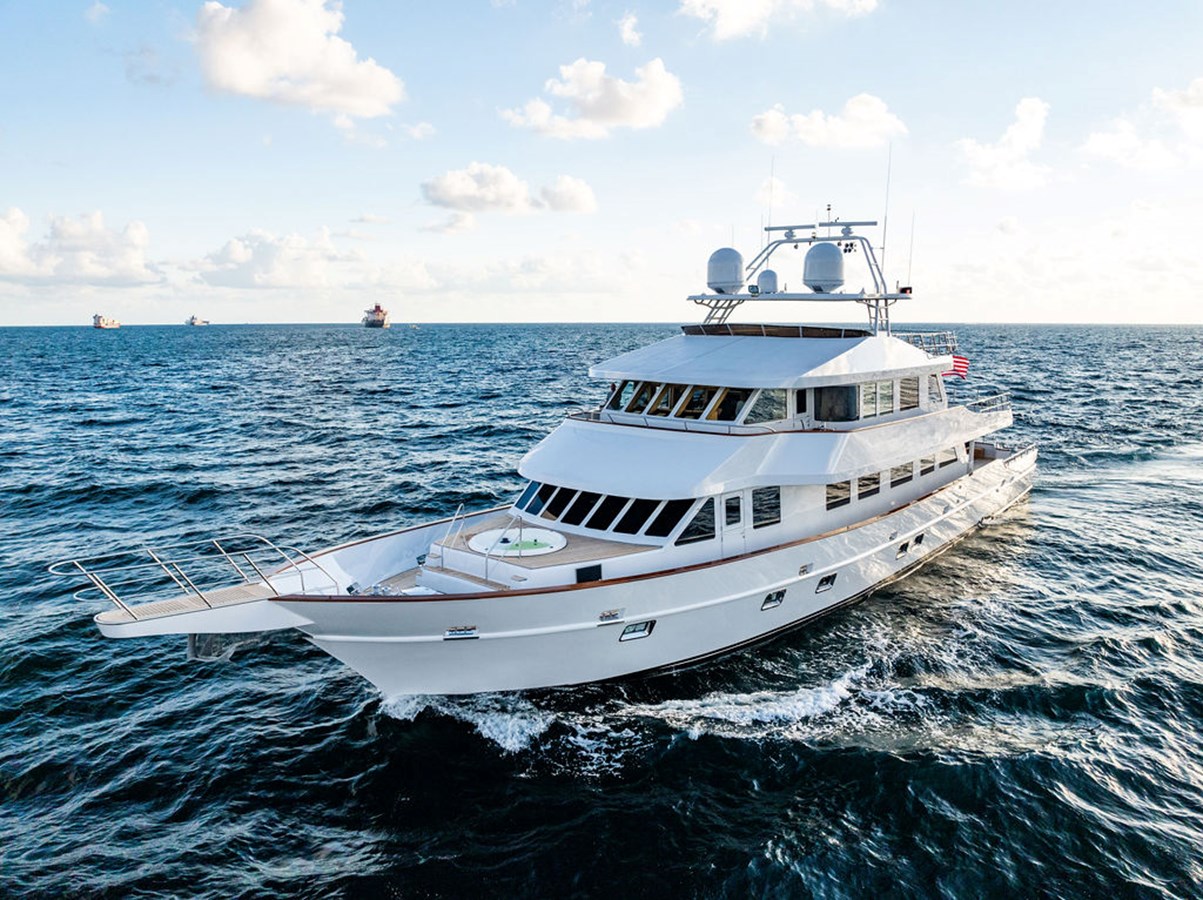

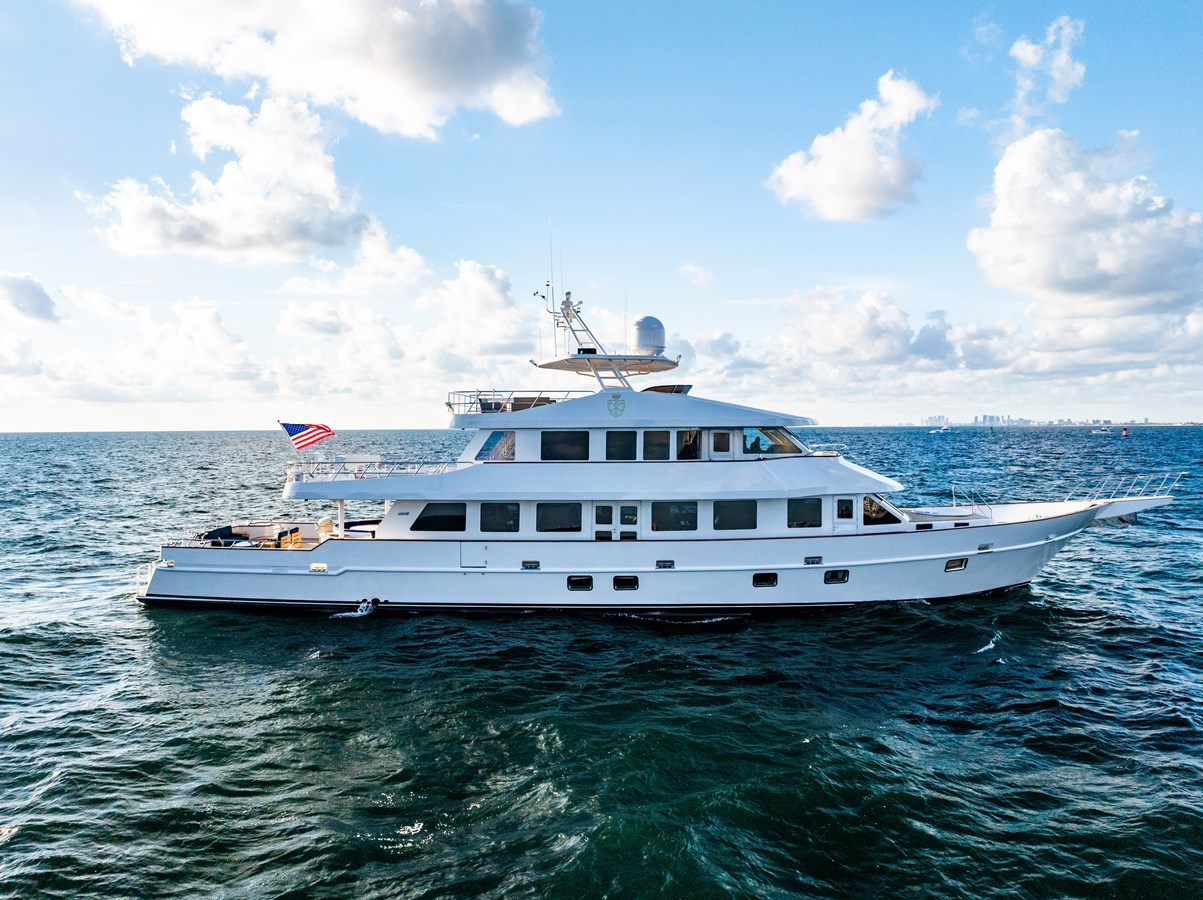

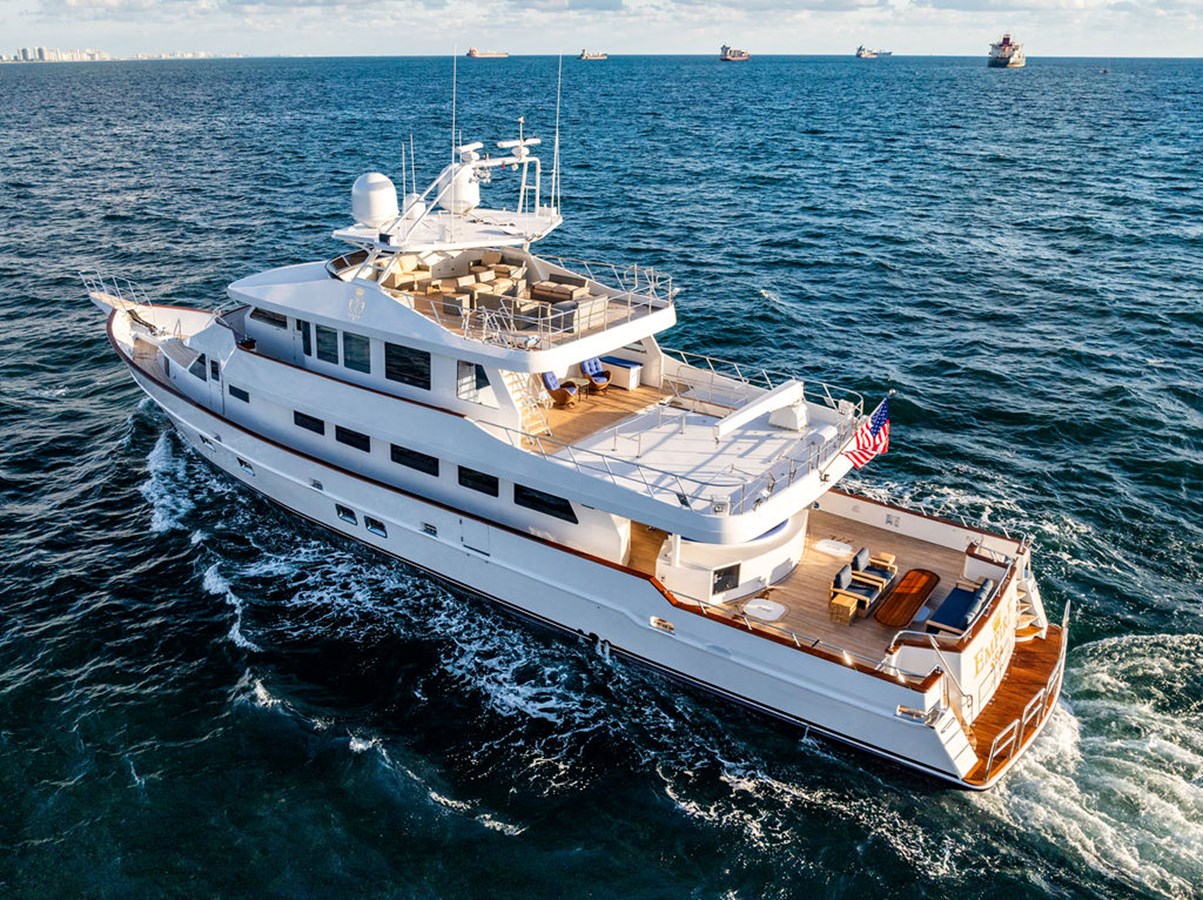

EMPIRE SEA
117' (35.66m) CRYSTAL YACHT
LOA: 117' (35.66m)
Beam: 28' 6" (8.69m)
Draft: 7' 6" (2.29m)
Speed:
12 Knots
14 Knots
Location: Florida United States
Year: 2009
Builder: CRYSTAL YACHT
Type:
Motor Yacht
Enclosed Bridge
Price: $2,900,000 USD
Additional Specifications For EMPIRE SEA:
LOA: 117' (35.66m)
Beam: 28' 6" (8.69m)
Max Draft: 7' 6" (2.29m)
Hull Material: Steel
Tonnage:
209.00
Range At Cruise: 2750
Range At Max: 2000
Speed:
Cruising 12 Knots
Max 14 Knots
Fuel Capacity: 13366 Gal
Water Capacity: 1278 Gal
Flag: USA
Location: Florida, United States
Price: $2,900,000 USD
Delivery/Model Year: 2009
Year Built: 2009
Refit Year: 2023
Builder: CRYSTAL YACHT
Type:
Motor Yacht
Enclosed Bridge
Engines: 1400 HP,Twin, Inboard, Diesel, Caterpillar, 3412,
Staterooms: 4
Sleeps: 8
Crew Quarters: 3
Captain Cabin: No
Classifications:
CONSTRUCTION
Steel hull and superstructure, teak decks
DIMENSIONS

General
Length Overall (L.O.A.):

  • 117.08 feet
  • (35.69 meters)

Length at Waterline (L.W.L.):

  • 101.00 feet
  • (30.78 meters)

Beam (molded):

  • 28.50 feet
  • (8.68 meters)

Draft (loaded):

  • 7.50 feet
  •  (  2.34 meters)

Tonnage:

  • 208 gross
  • 78 net

Capacities
Fuel Capacity:

  • 13,366 US Gallons
  • (50,596 liters)

Water Capacity:

  • 1,278 US Gallons
  • (4,838 liters)

Black Water:

  • 1,420 US Gallons
  • (5,405 liters)

Lube Oil:

  • 328 US Gallons
  • (1,241 liters)

Waste Oil:

  • 166 US Gallons
  • ( 628 liters)

Speed
Maximum:

  • 14.0 knots
  • 78 US Gallons /hr
  • 2,000 nm

Cruising:

  • 12.0 knots
  • 51 US Gallons /hr
  • 2,750 nm

 Economical:

  • 10.0 knots
  • 36 US Gallons /hr
  • 3,241 nm

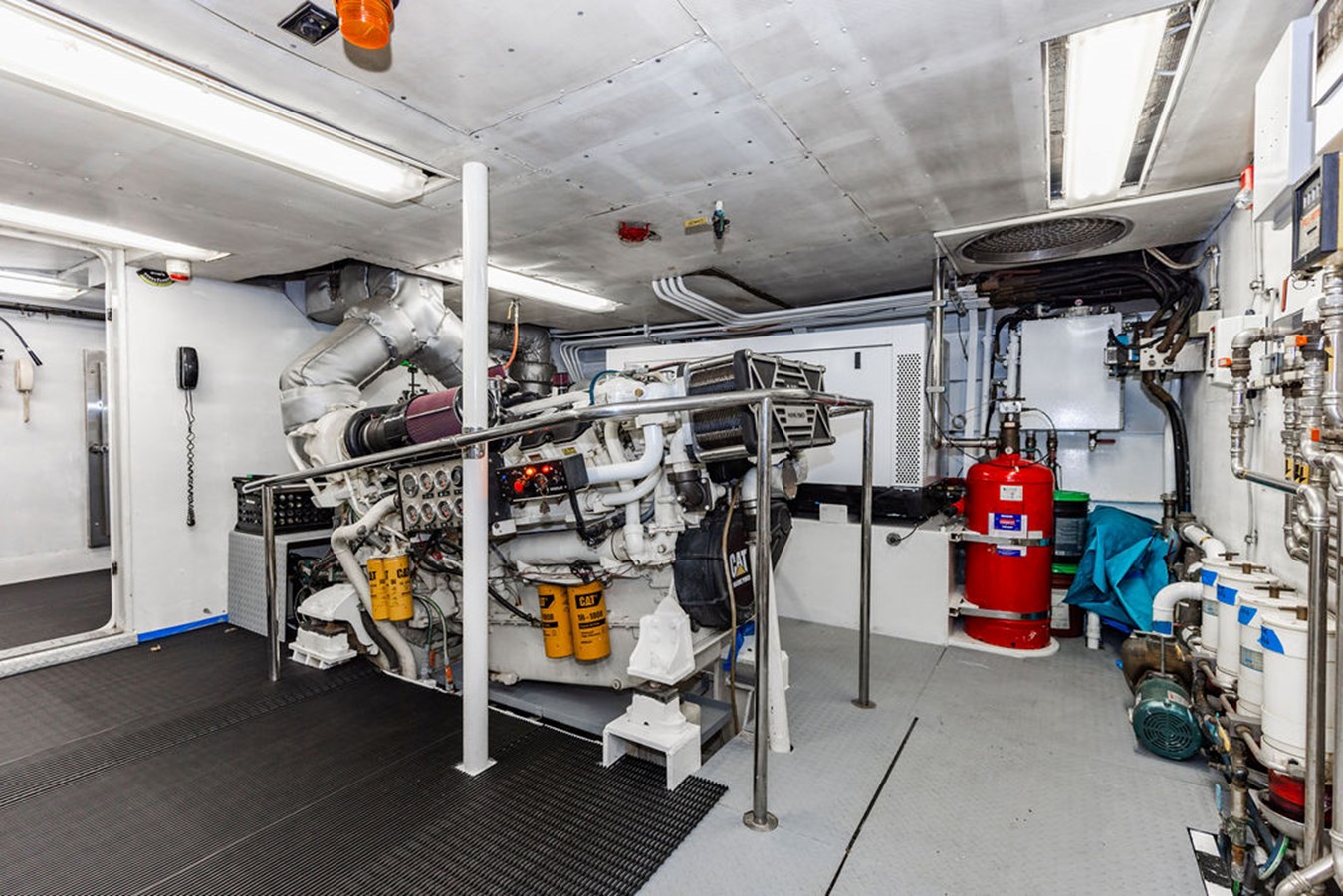

MACHINERY

Main Engines
Engine Type:

  • (2) Caterpillar 3412, @ 1,400 Hp each
  •  Fully serviced by Anchors of America June 2024
  • Walker Airsep turbo intake filters

Gearboxes for Main Engines: (2) Twin Disc MG-6556DC Ratio 3-1
Drive: (2)  4-bladed skewed 34”

Generators & Electricity
Generators:

  •  (2) Norpo Marine 84 Kw generators
  • Port fully serviced June 2024
  • Starboard fully serviced 2022 in shipyard

Air Conditioning
Type:  2 units- 120,000BTU and 90,000BTU

Other Machinery
Watermakers: (2) offshore Marine lab 2,600 gpd total
Trim Tabs/Stabilizers: Wesmar 1600 2- Fin
Bow Thruster: Wesmar 40HP with Two propellors
Steering System: Hydraulic
Sewage System:

  • Headhunter HMX- USCG approved
  • Jet Vacuum heads, fresh water
COMMUNICATION, NAVIGATION & ENTERTAINMENT SYSTEMS

Communication Systems
SATcom:G6 unit/gyro Trac
Telephone System: V11- HTS Dual Mode (voice/data)
VHF:  ICOM M604
Cellular Phone System:  digital 4000
WIFI: Wi-Fi access throughout for Owner, guests, crew, A/V equipment, Data from single panel Marine Starlink
LoudHailer: Furuno LH3000 to Engine room / forward & aft

Navigation Systems
Radar: (2) Furuno 1964c 12kw and 25kw
AIS:Furuno F-150
Sonar: Furuno CH250BB 88Kz
Gyrocompass: Simrad RGL 50
Auto Pilot:  Simrad AP50
Depth Sounder: Furuno dual frequency 2kw
GPS:Furuno Navnet GPS32B receiver
Chart Plotter:Timezero electronic chart plotting system
Wind/Speed Log:  B&G Hydra H1000 Wind Anemometer

Entertainment System:

  • Sound and Video is fed throughout the boat on RTI T3X Wi-Fi enable remote controllers in each zone, there are also RTI KX3 wall controllers throughout for SONOS sound feed, streaming and DirectTV feed.
  • Audio speakers throughout vessel
GALLEY & LAUNDRY EQUIPMENT

Main Galley Equipment
Cooking Equipment:    •    GE profile SS 4-burner glass cooktop
•    GE profile Microwave/convection oven
•    Samsung microwave oven

Refrigeration/Freezer:

  • Leib Herr refrigeration/freezer
  • Perlick freezer
  • (2) 180 cubic feet walk in refrigerator & freezer
  • (1) 122 cubic feet walk in center refer in engineering aft compartment
  • Scotsman Icemaker

Dishwasher: Fisher Pikel dishwasher

Additional Galley Equipment
Cooking Equipment: Force 10 propane BBQ (deck)
Refrigeration/Freezer: Various icemaker/refers

Laundry Equipment
Main Laundry Equipment: Whirlpool Duet stacking washer/dryer

DECK EQUIPMENT

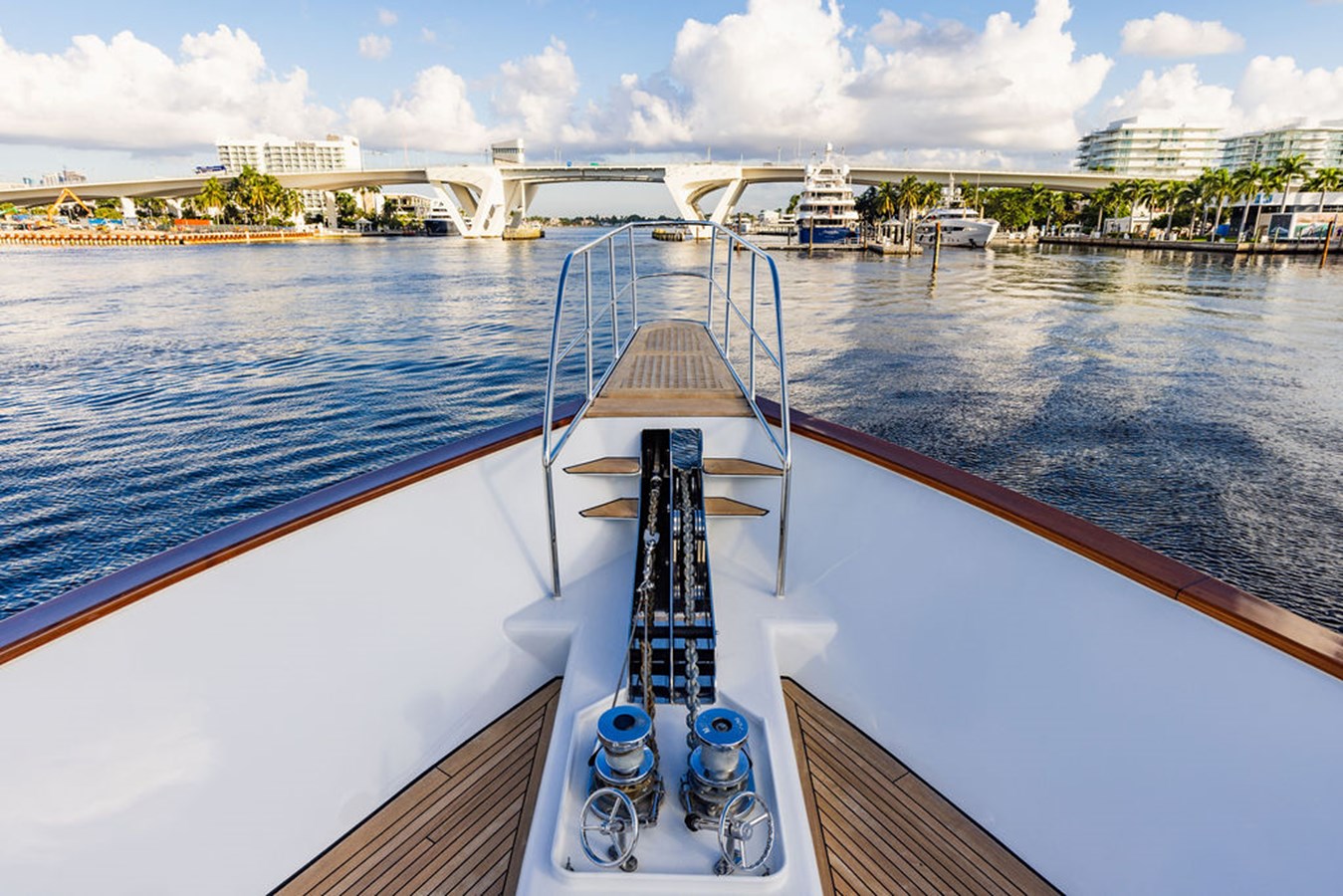

Anchor Windlass System: (2) Muir Model 4500 Vertical
Anchors:   (1) 80 KG BRUCE type
Anchor Chain:

  • (1) 5-shots (450’) chain port
  • (1)  5-shots (450’) starboard

Bridge deck Davit: Steelhead Marine CT3500

Swimming Platform:  With removable railing stanchions

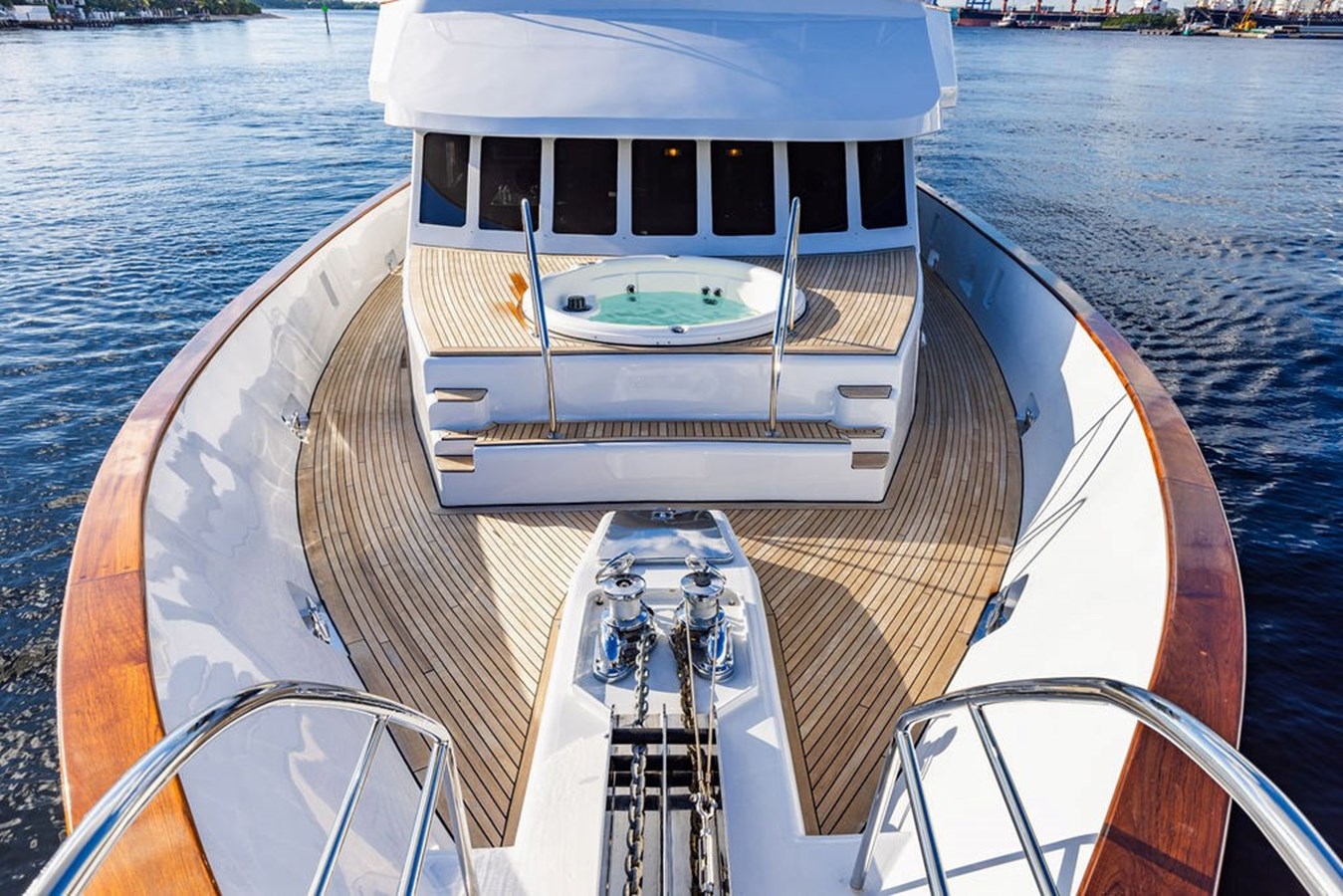

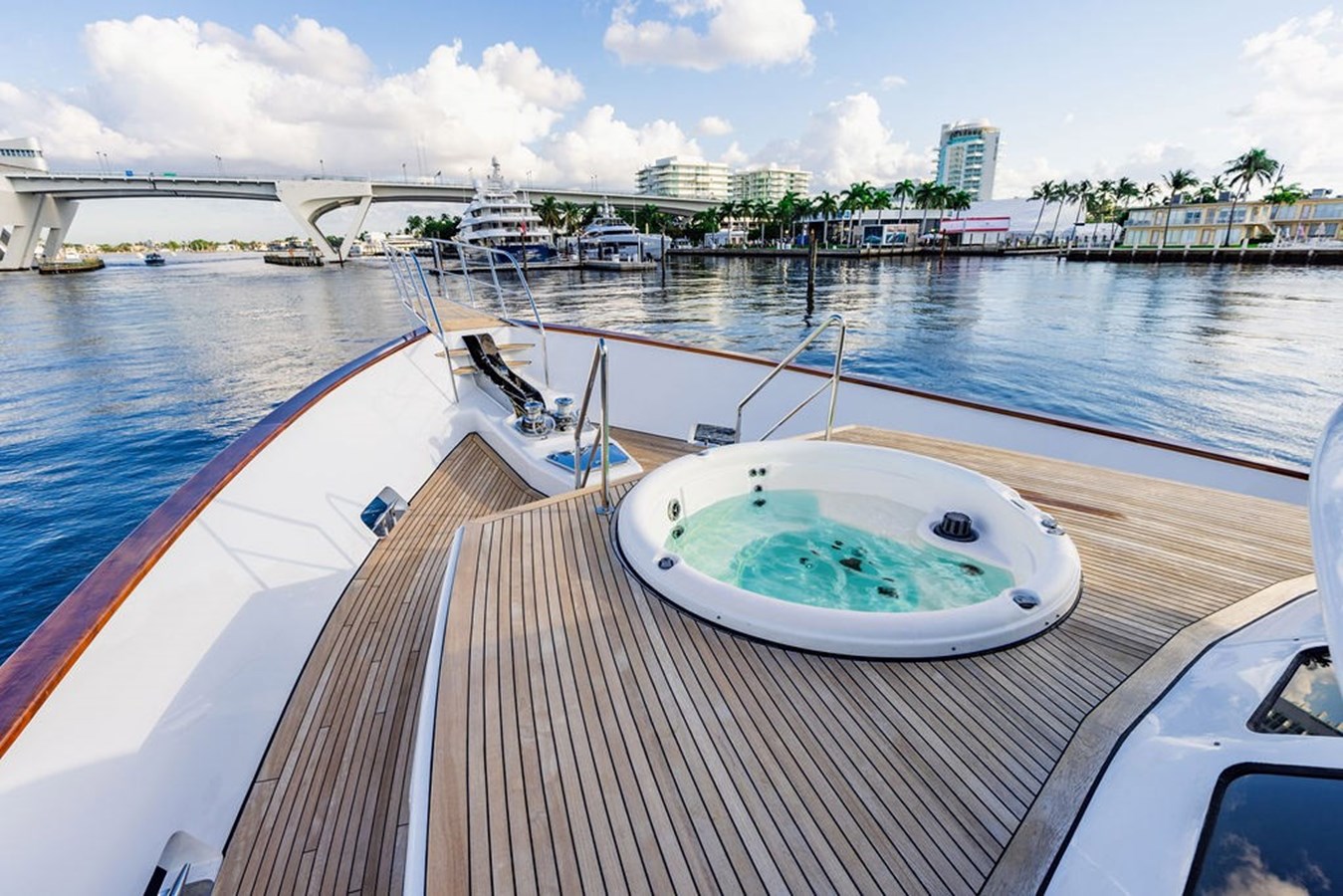

Jacuzzi: Foredeck (4-persons)

SECURITY, FIRE FIGHTING & SAFETY EQUIPMENT

Security Equipment
CCTV System:Panasonic Digital Video Multiplexer WJFS
Cameras: (4)
Monitors: (5) 18” Green Marine color

Fire Fighting Equipment
Fire Control System: Seafire FM-200 fire extinguish (engine room)
Fire Extinguishers:  (16)
Other:  Seafire FM-200 fire extinguish (engine room)

Safety Equipment
Life Rafts:  2) Viking 12 Person life rafts
Life Rings:  (2)
Life Vests:   (30) USCG approved life vests
EPIRBS: (1)
Medical Equipment: Yes

ACCOMADATIONS

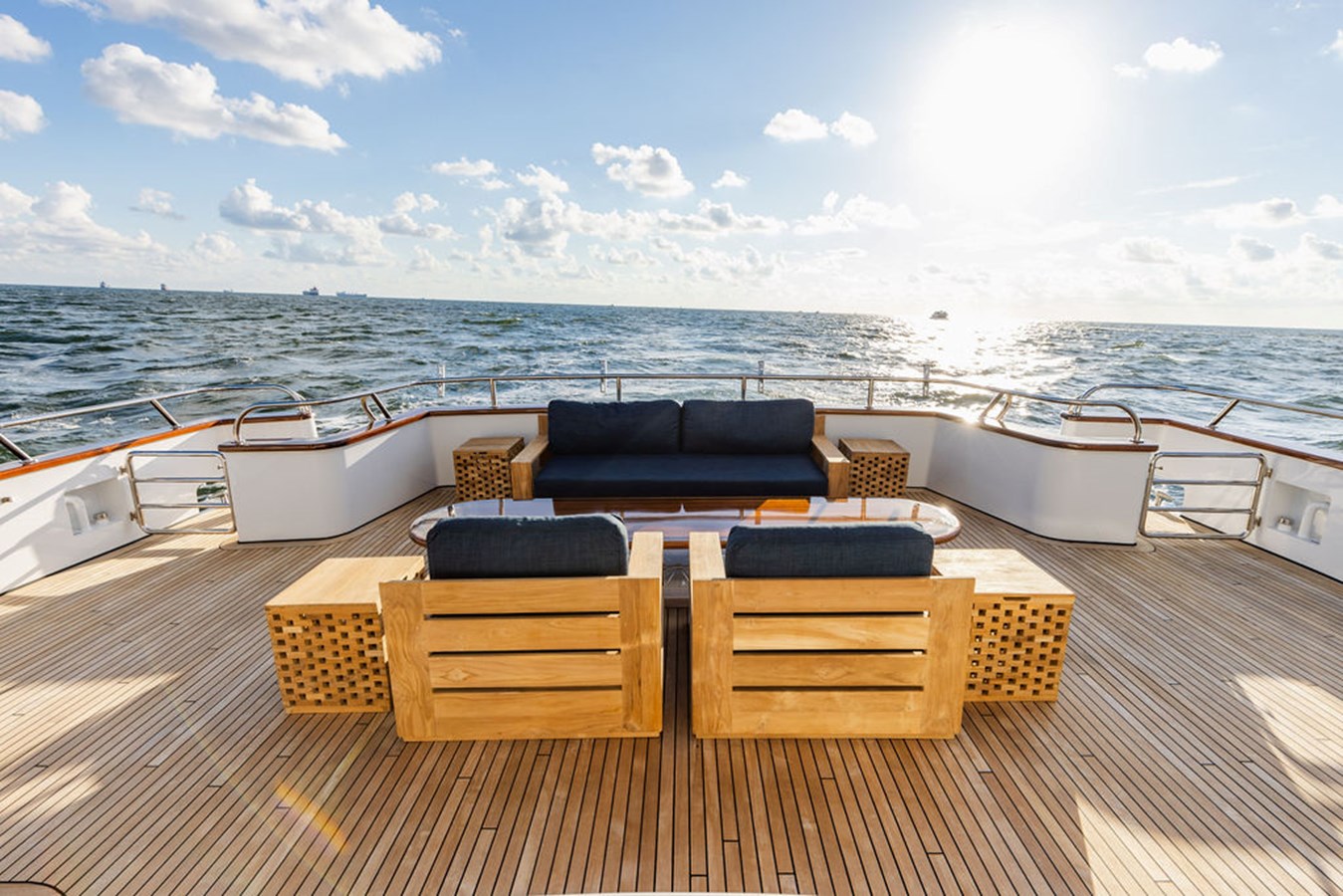

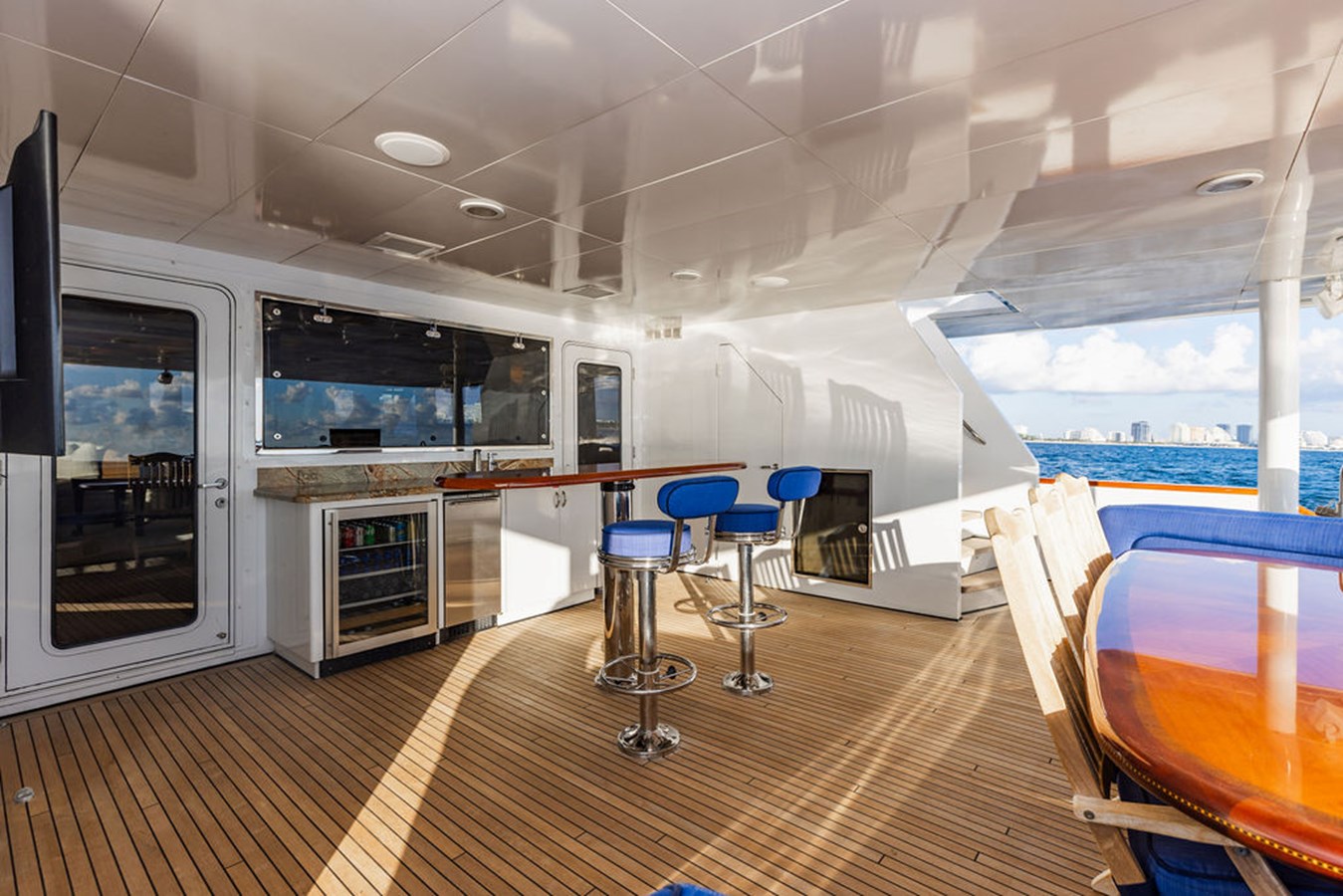

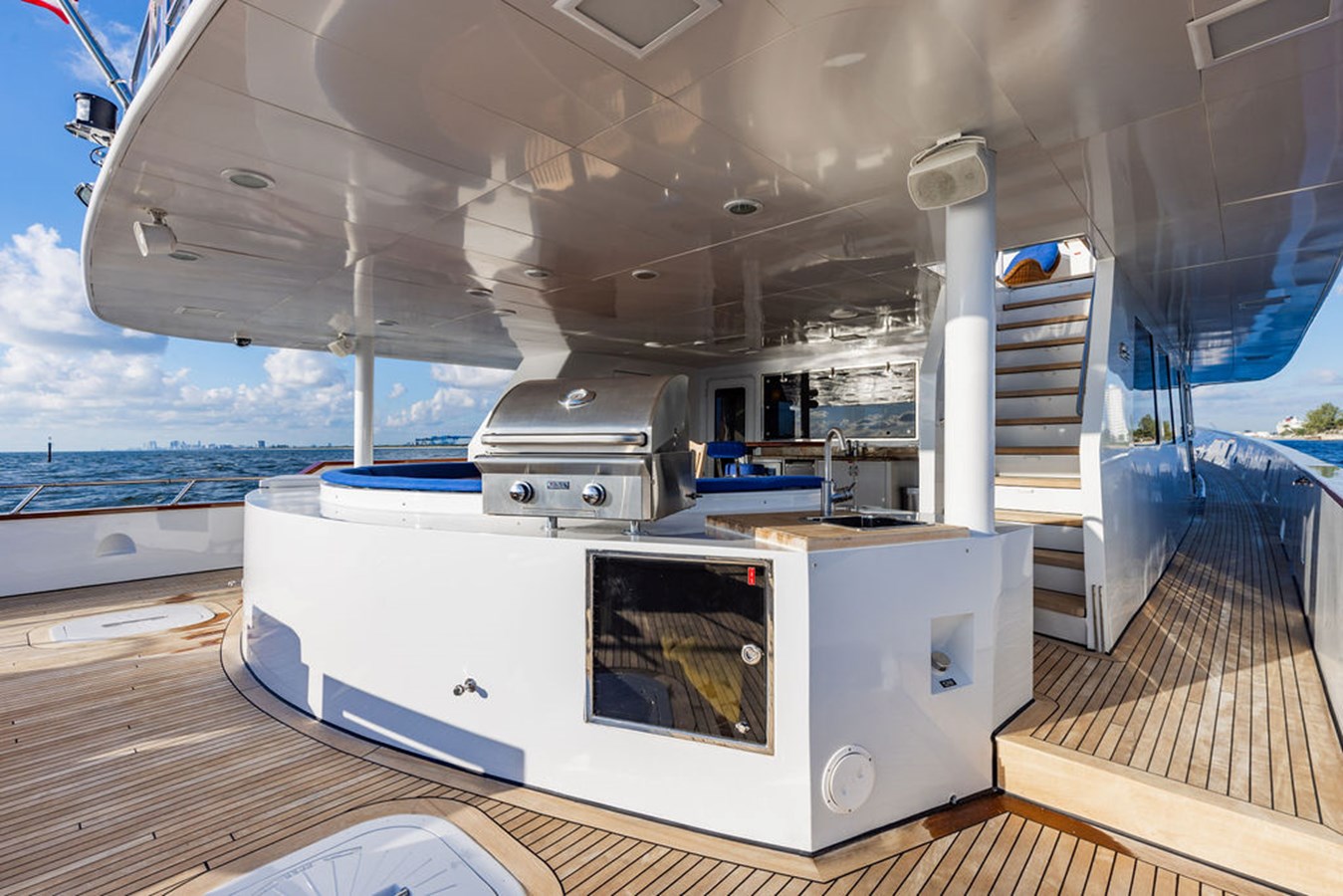

MAIN DECK AFT

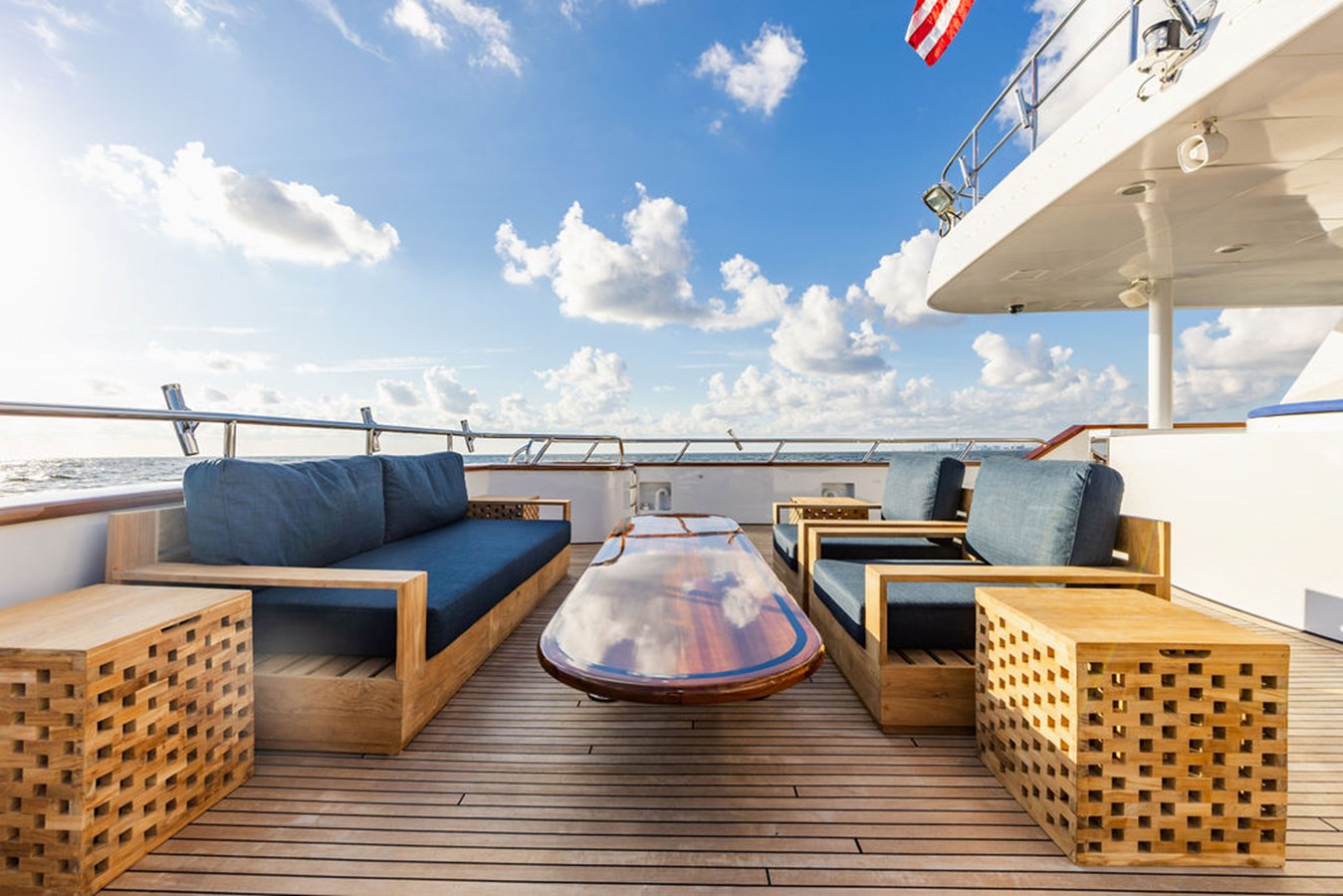

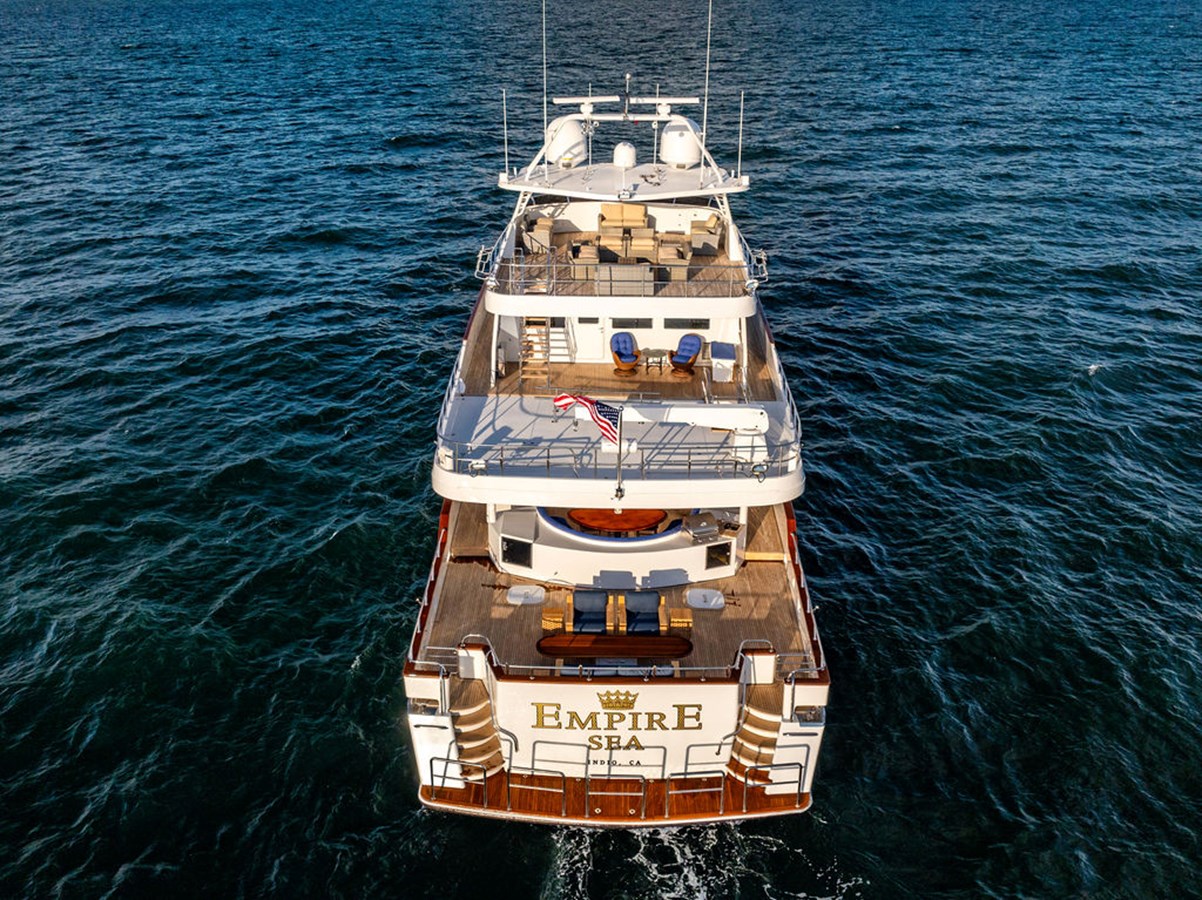

Empire Seas partially covered after deck is comfortably furnished with U-shaped settee and cocktail table centerline forward. There is also an exterior wet bar with marble top, refer, BBQ aft and day head. There are stairs to the large aft open deck aft that has been used for fighting chair and sportfishing, access to the dive lazarette and watersports storage is in the center of deck. There are also two large fish wells under the deck. The swim platform is aft on centerline with port and starboard stairs

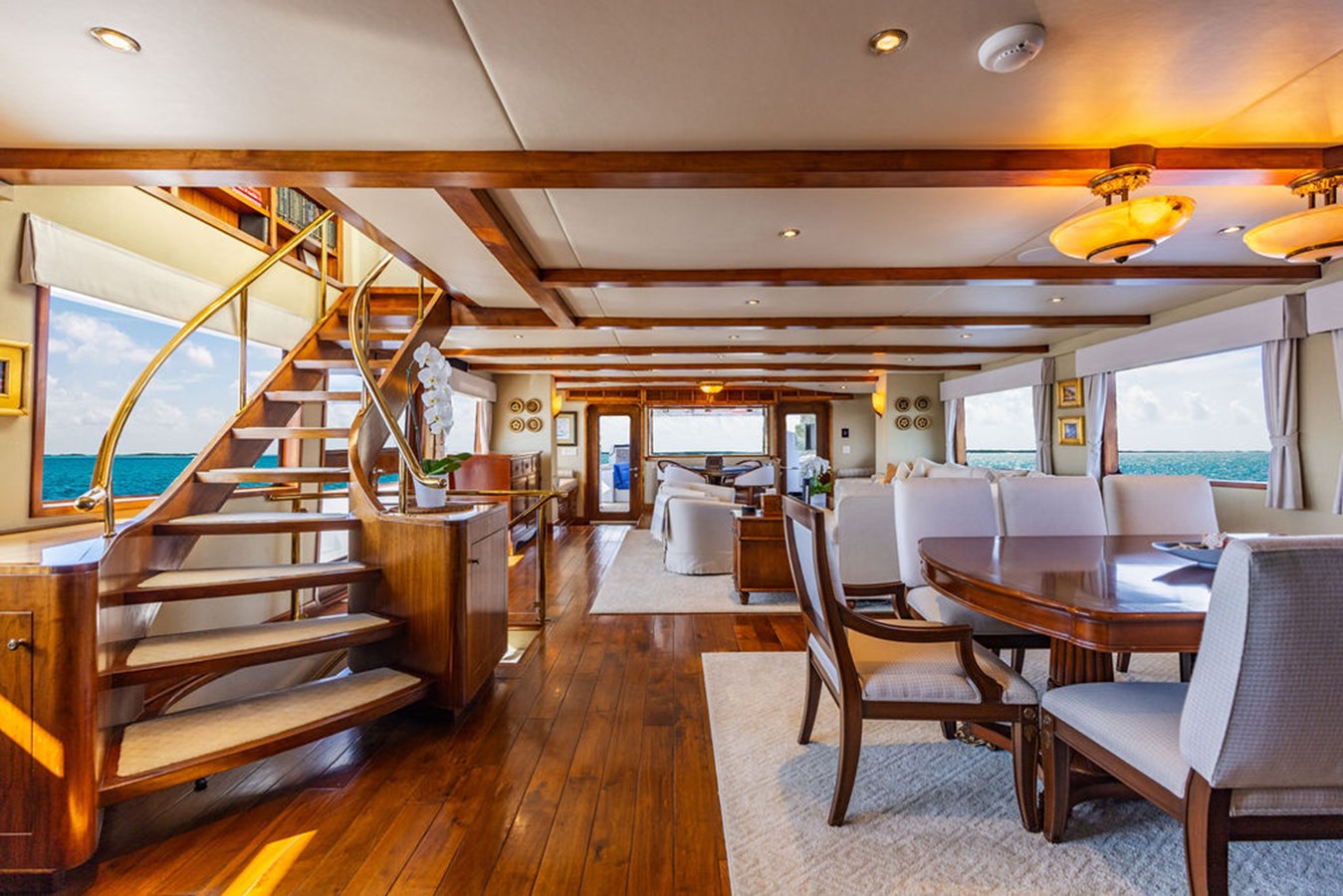

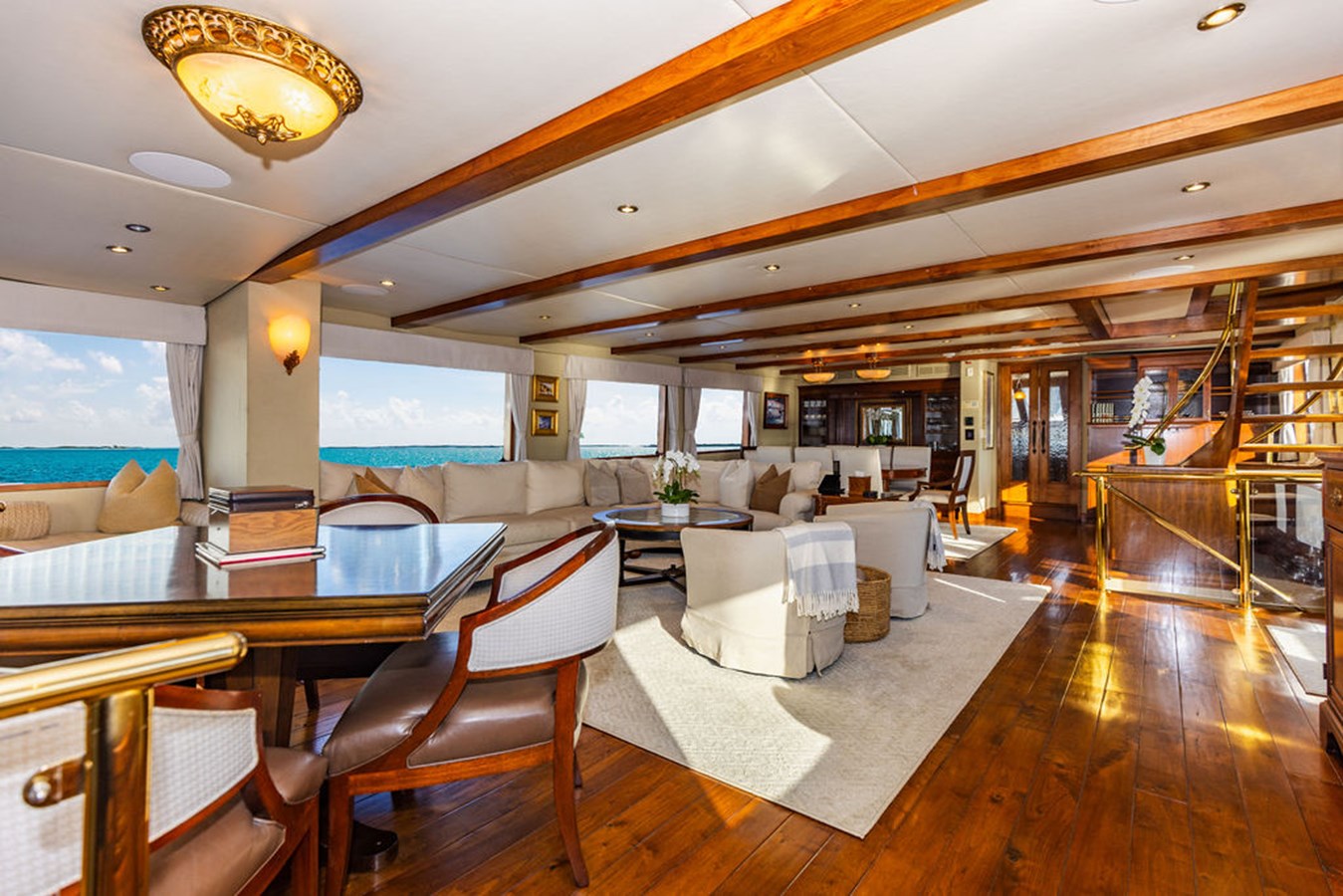

MAIN DECK SALON

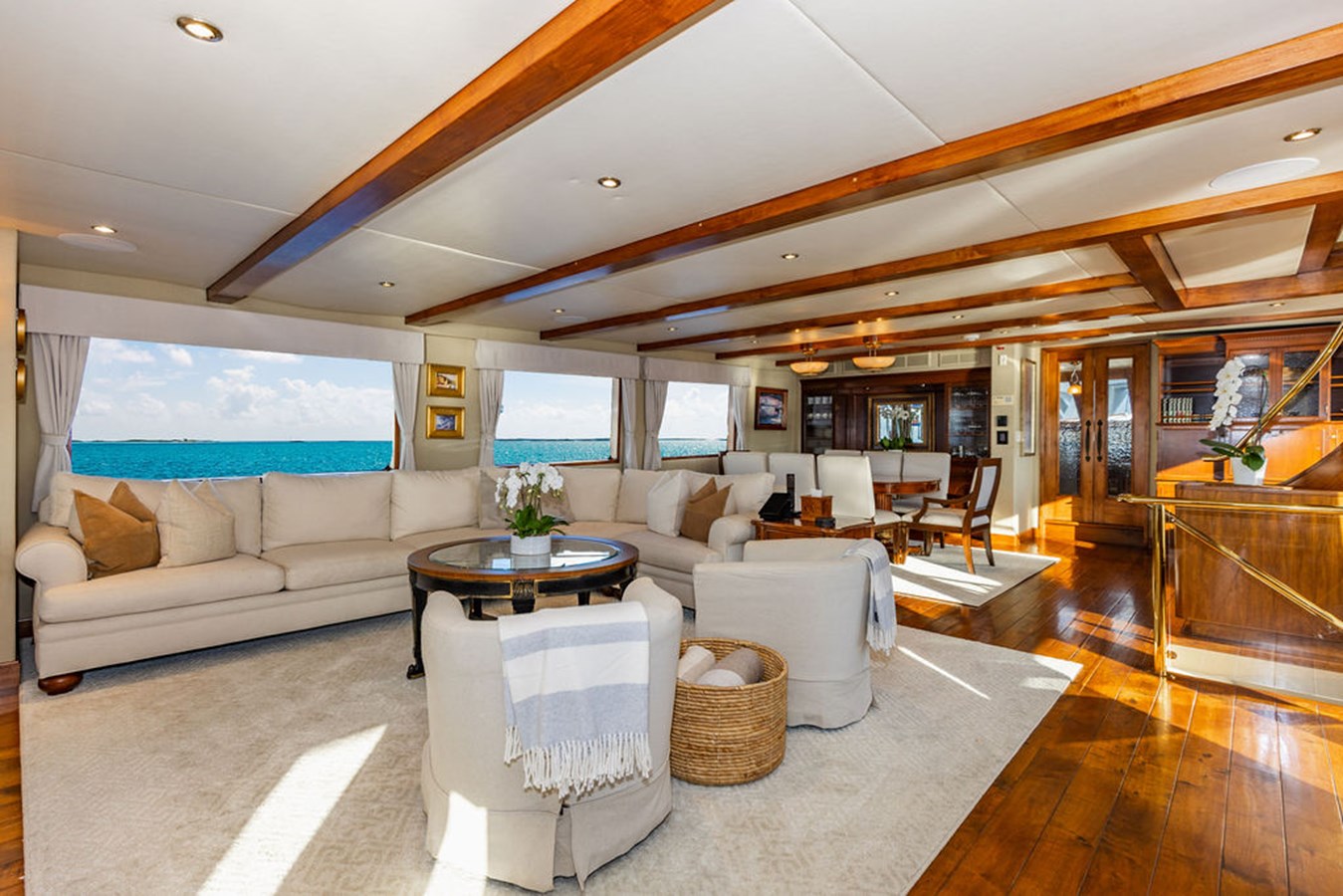

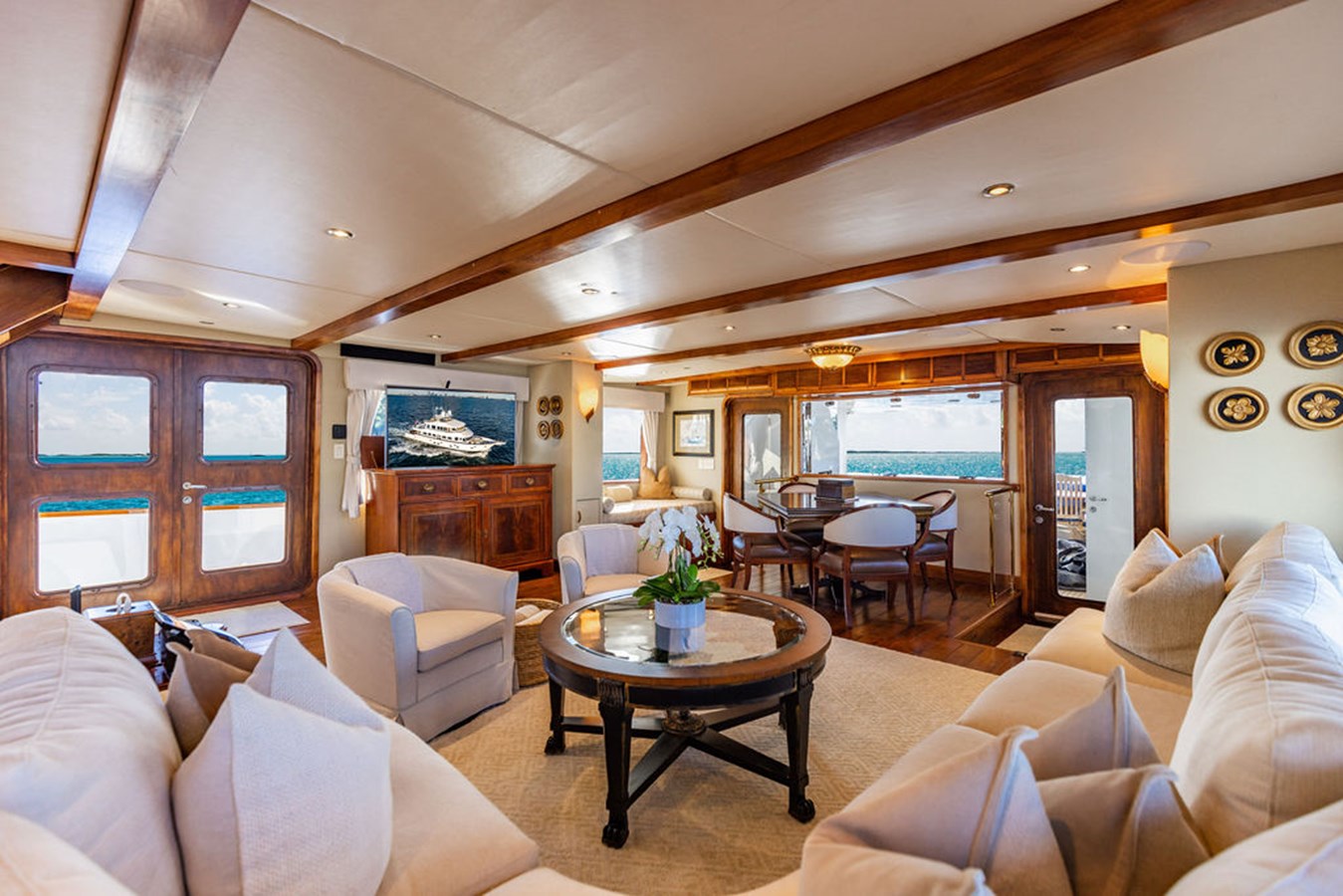

Entry to the Main Salon is port and starboard aft, opening to the full beam entertaining area aft, with oversize windows port and starboard for panoramic views of every port of call. The open arrangement comes with a large L-shaped couch, game table, dining table and additional comfortable seating encouraging relaxing interaction in a elegantly casual environment. There is a large television that is on lift that comes out of starboard side cabinet aft of the starboard side double entry doors.

MAIN DECK DINING

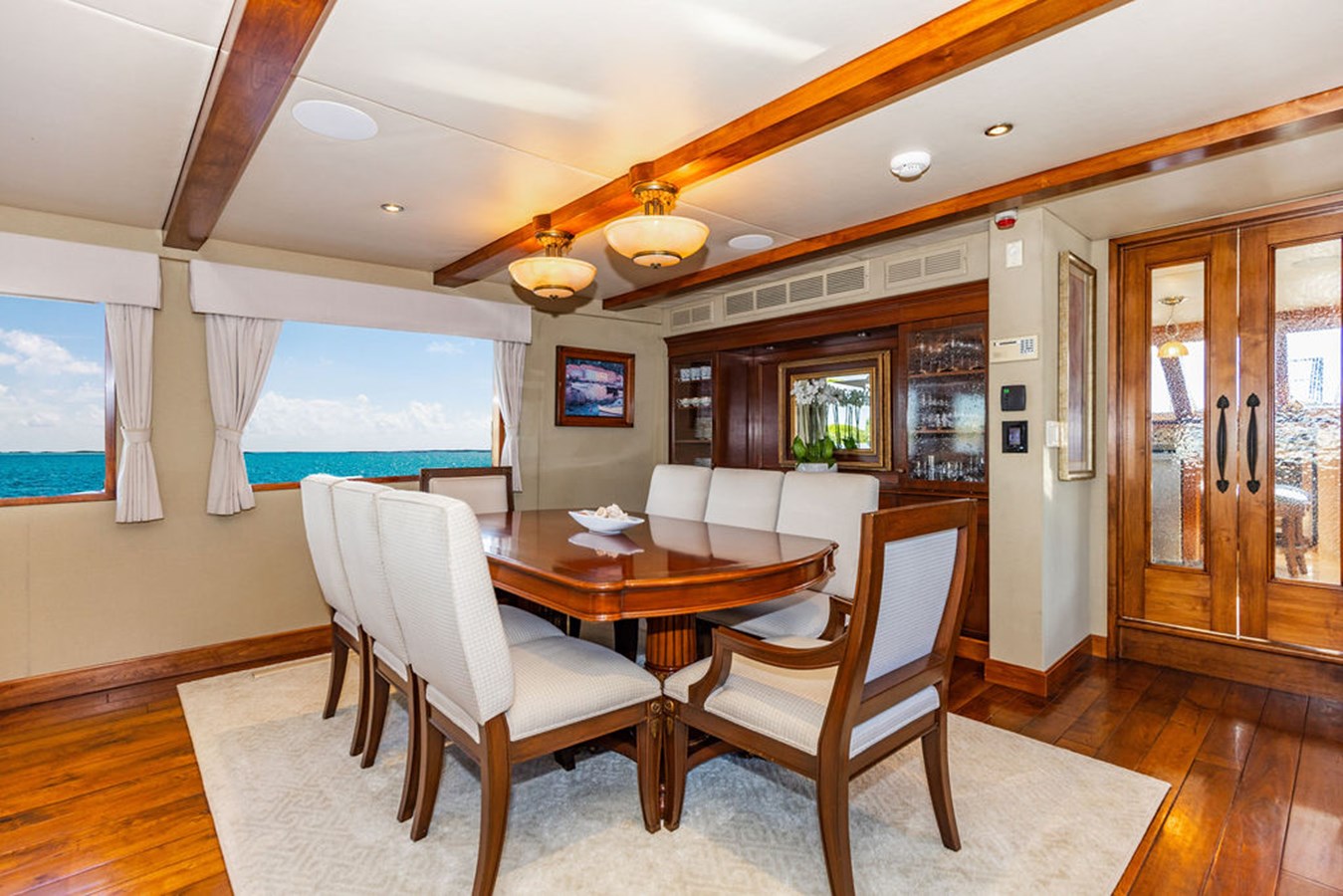

The open Dining Salon adjoins the Main Salon forward, with a rectangle dining table for eight guests. Mid Salon starboard is the entry foyer which opens to the deck companionway, the dining area to starboard joins the main staircase to the bridge and owner’s stateroom and access to the galley forward.

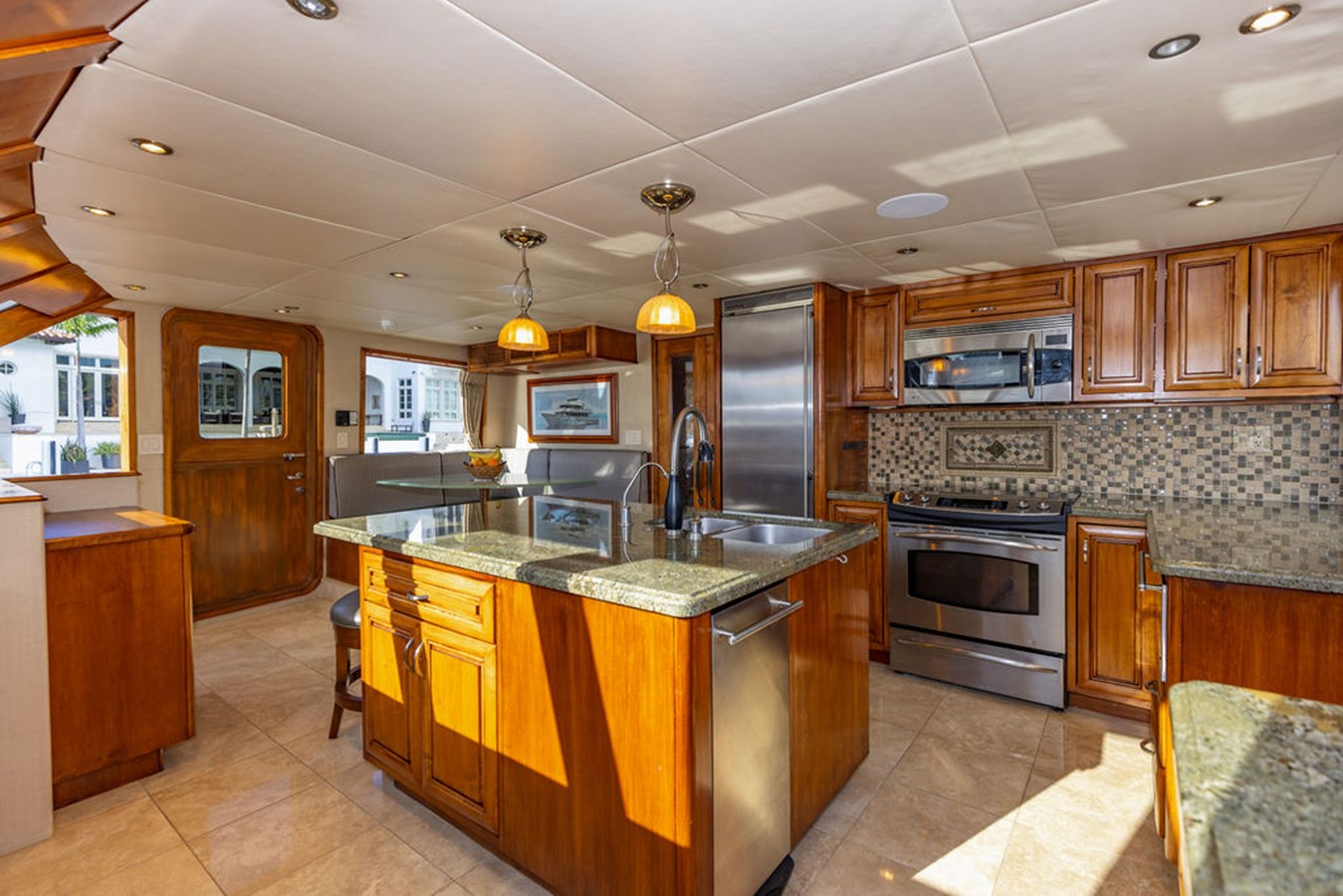

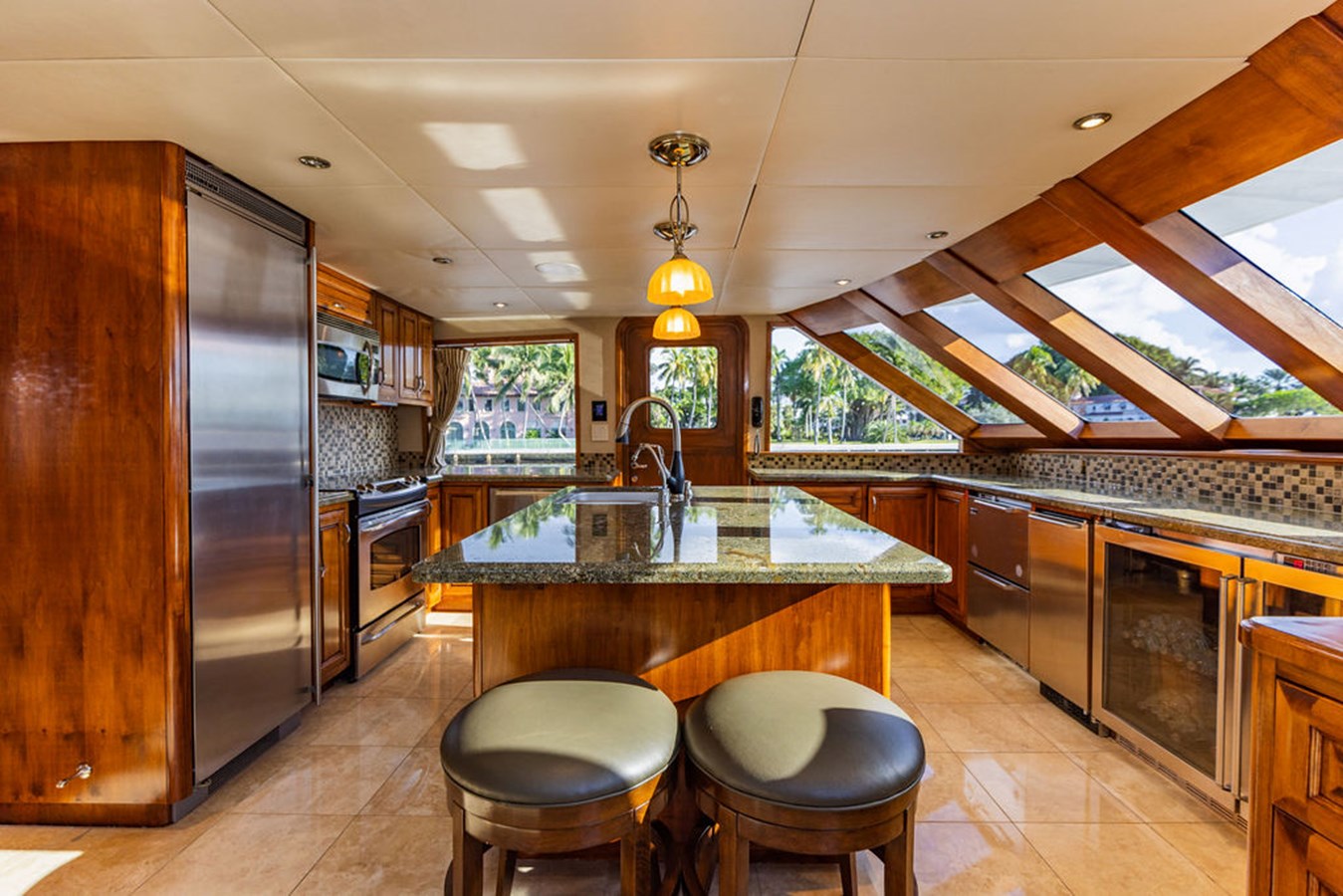

MAIN DECK GALLEY
The Galley is on the main deck forward of the dining area, with central island and large pantry adjoining doors are aft which is perfect for seamless service. The galley features huge windows—a chef’s dream. Port and starboard deck access further facilitating ease of service.

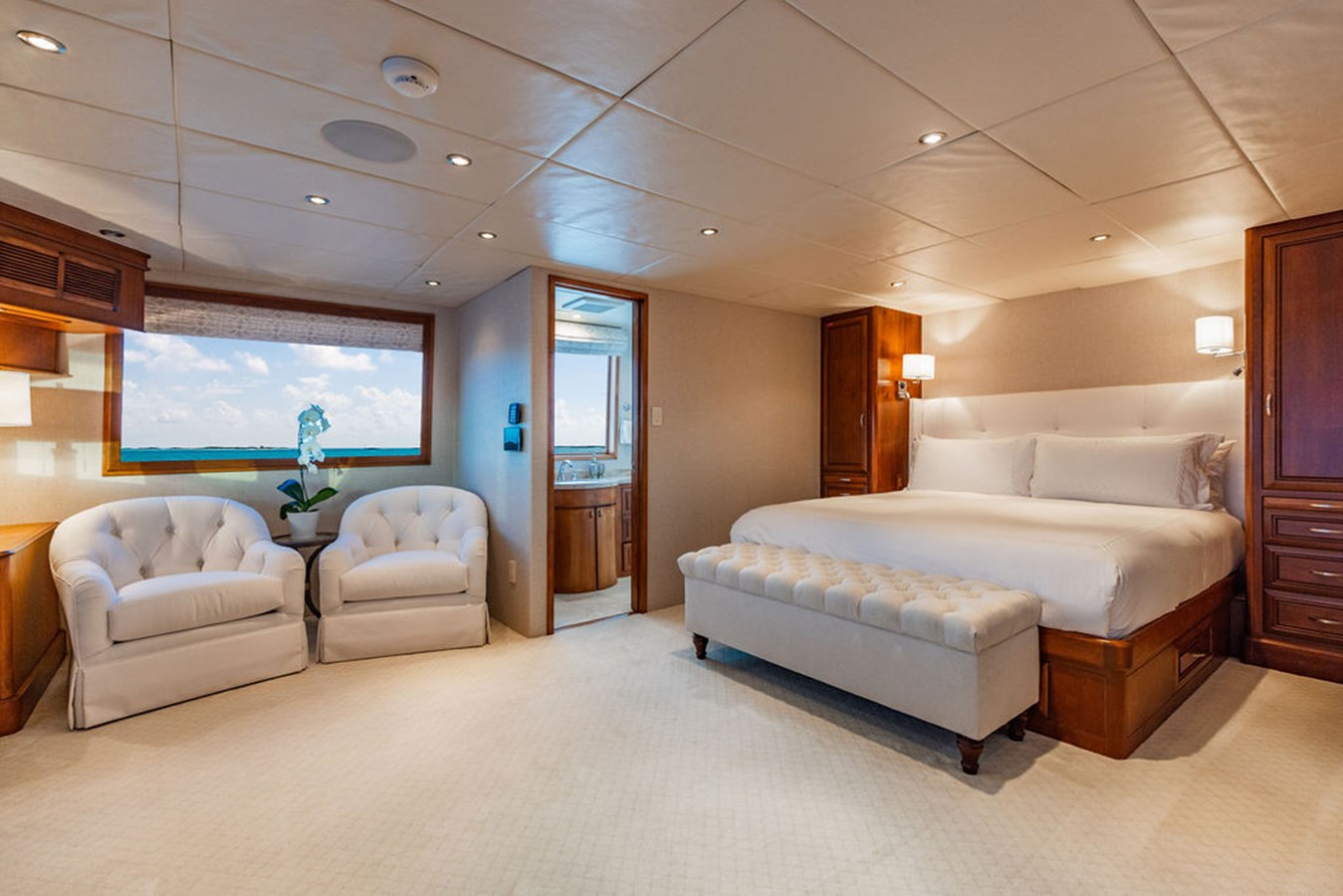

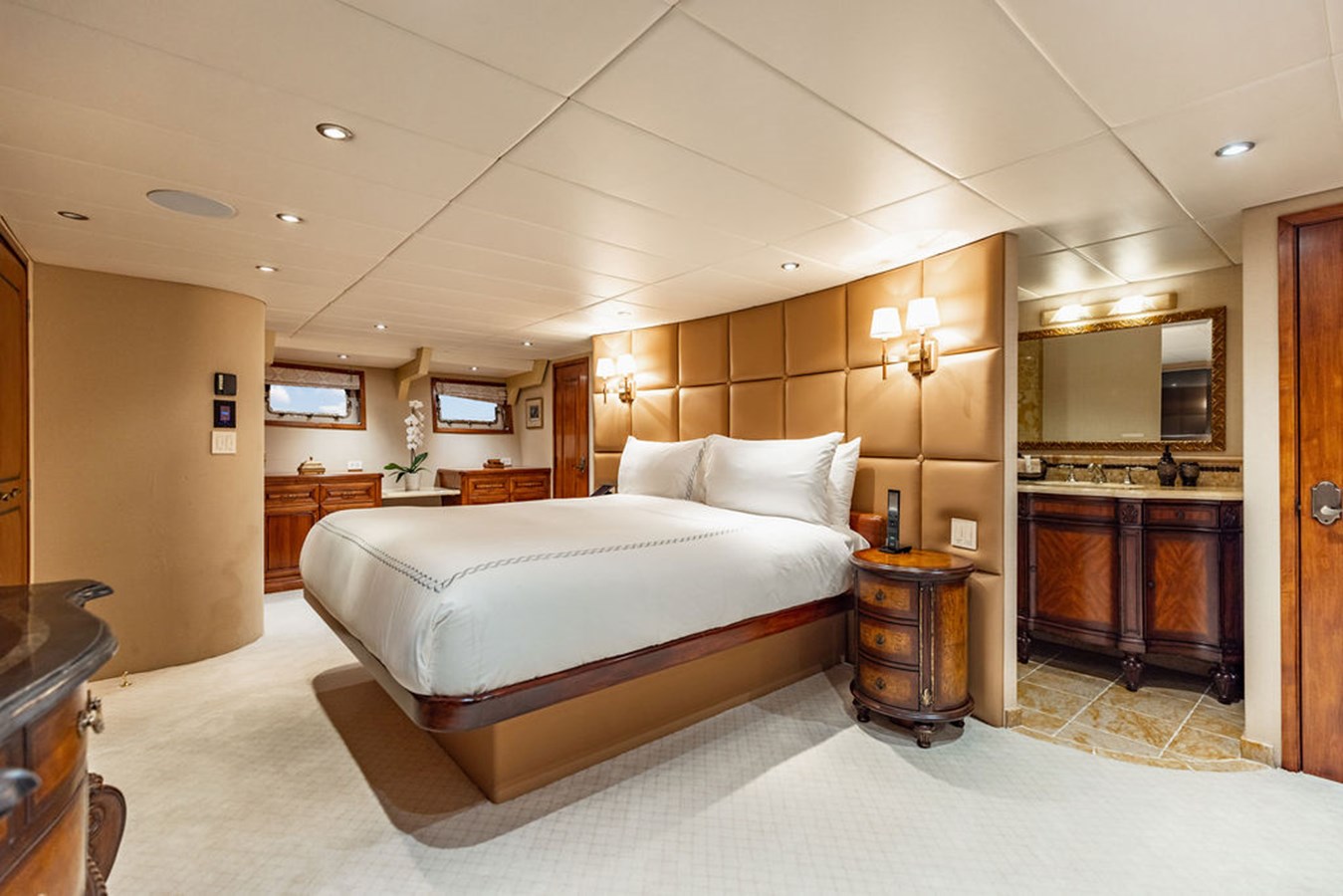

BRIDGE DECK MASTER STATEROOM

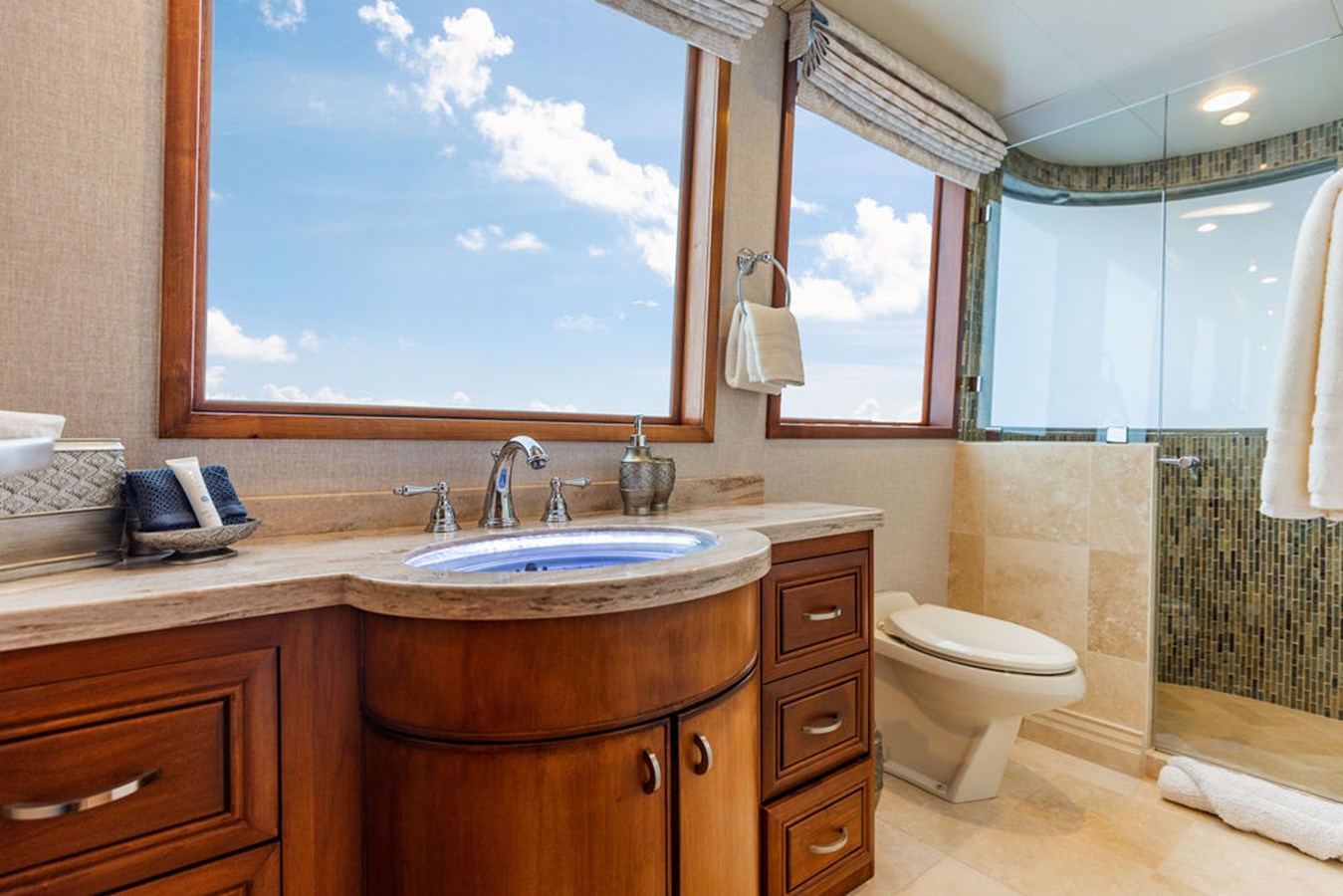

Empire Sea features a large Master suite aft on the bridge deck aft with King bed, extensive storage, couch and chaise lounge area with expansive windows to further enhance the spaciousness of the stateroom. The ensuite Master Bathroom has a large glass shower with electric opaque windows and electric blinds

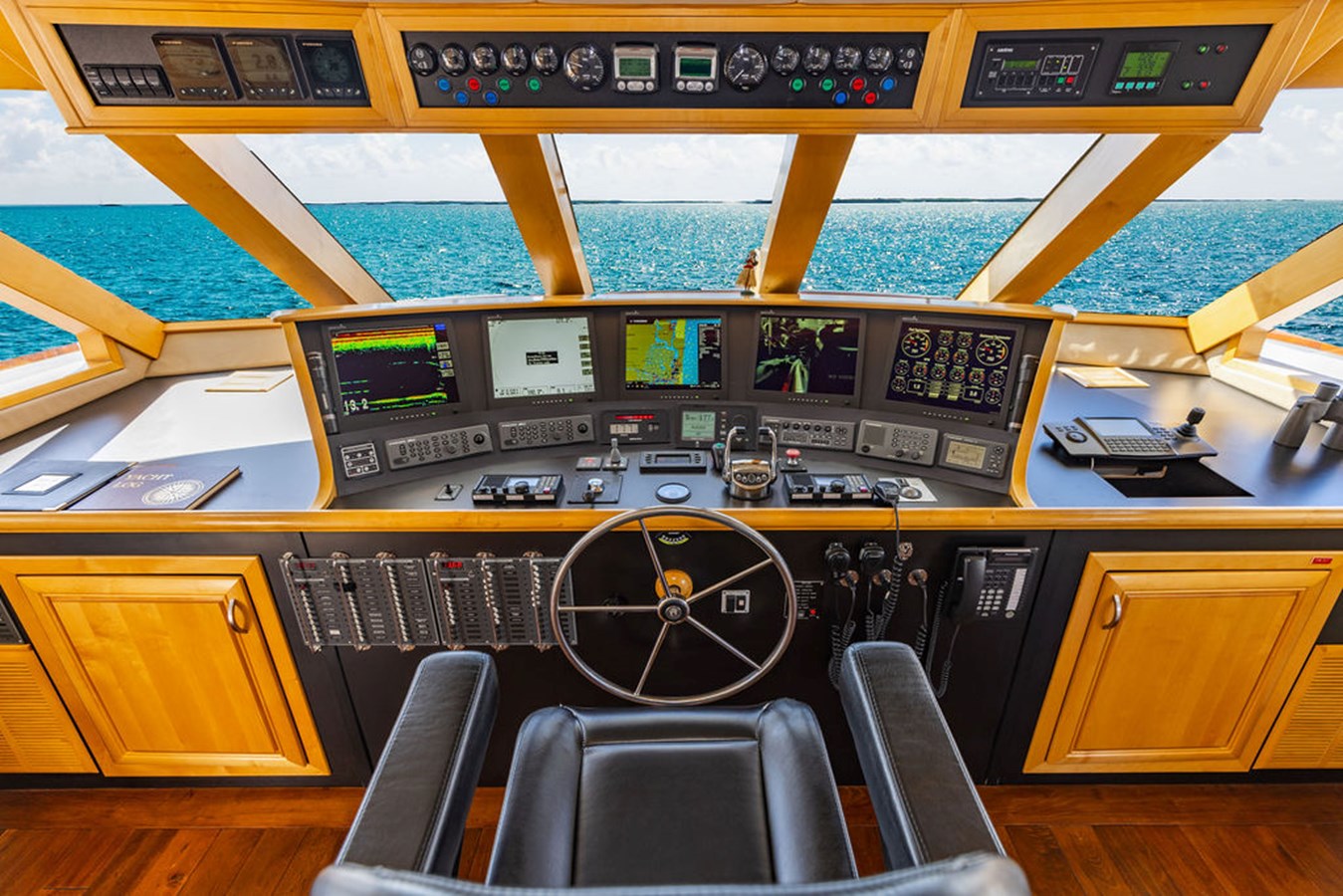

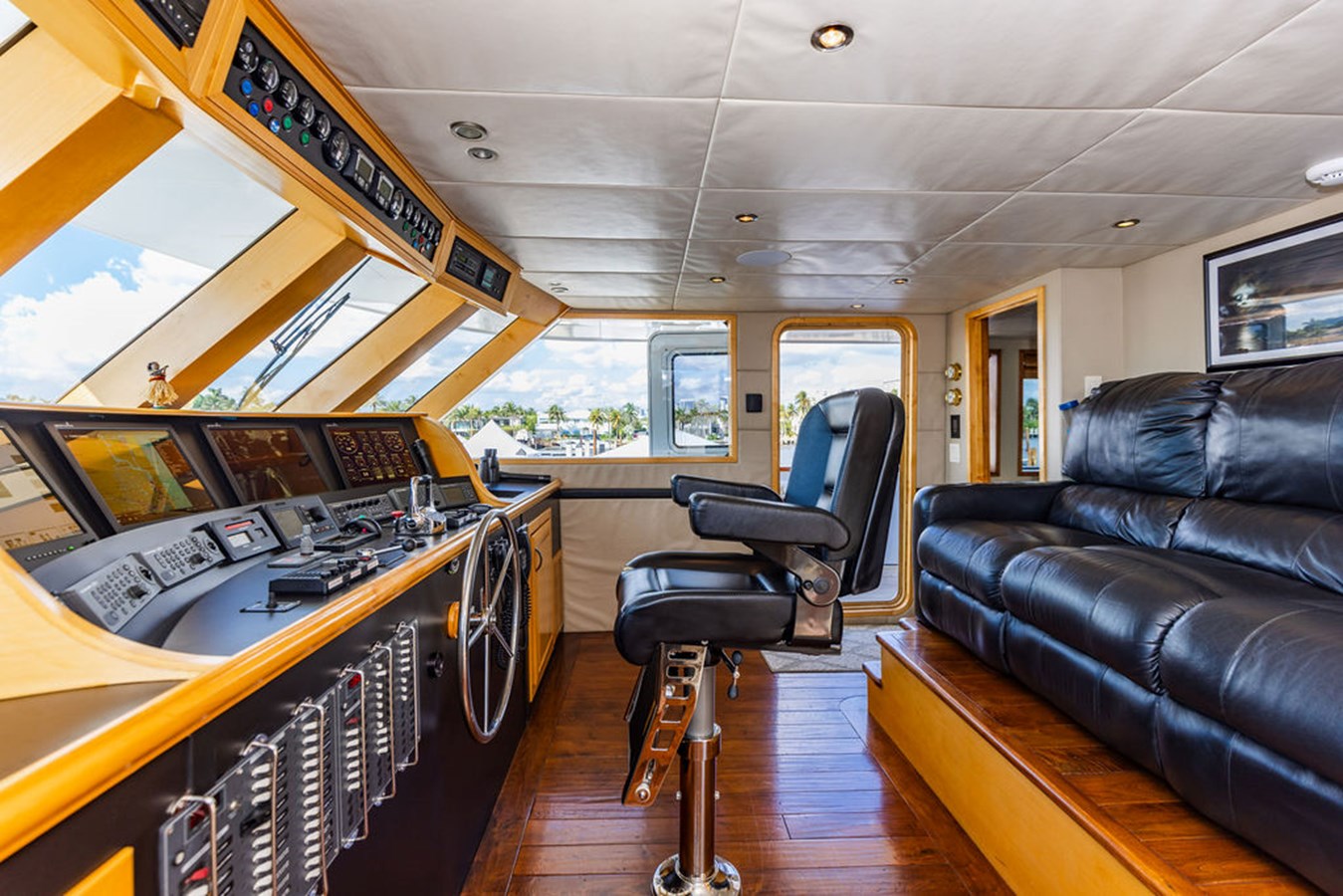

    WHEELHOUSE/BRIDGE DECK
Forward on the Bridge deck, the Wheelhouse has a complete navigation arrangement with a large couch aft for cruising extensively and with the oversized windows it is very comfortable for all with its centerline Stidd helm chair.

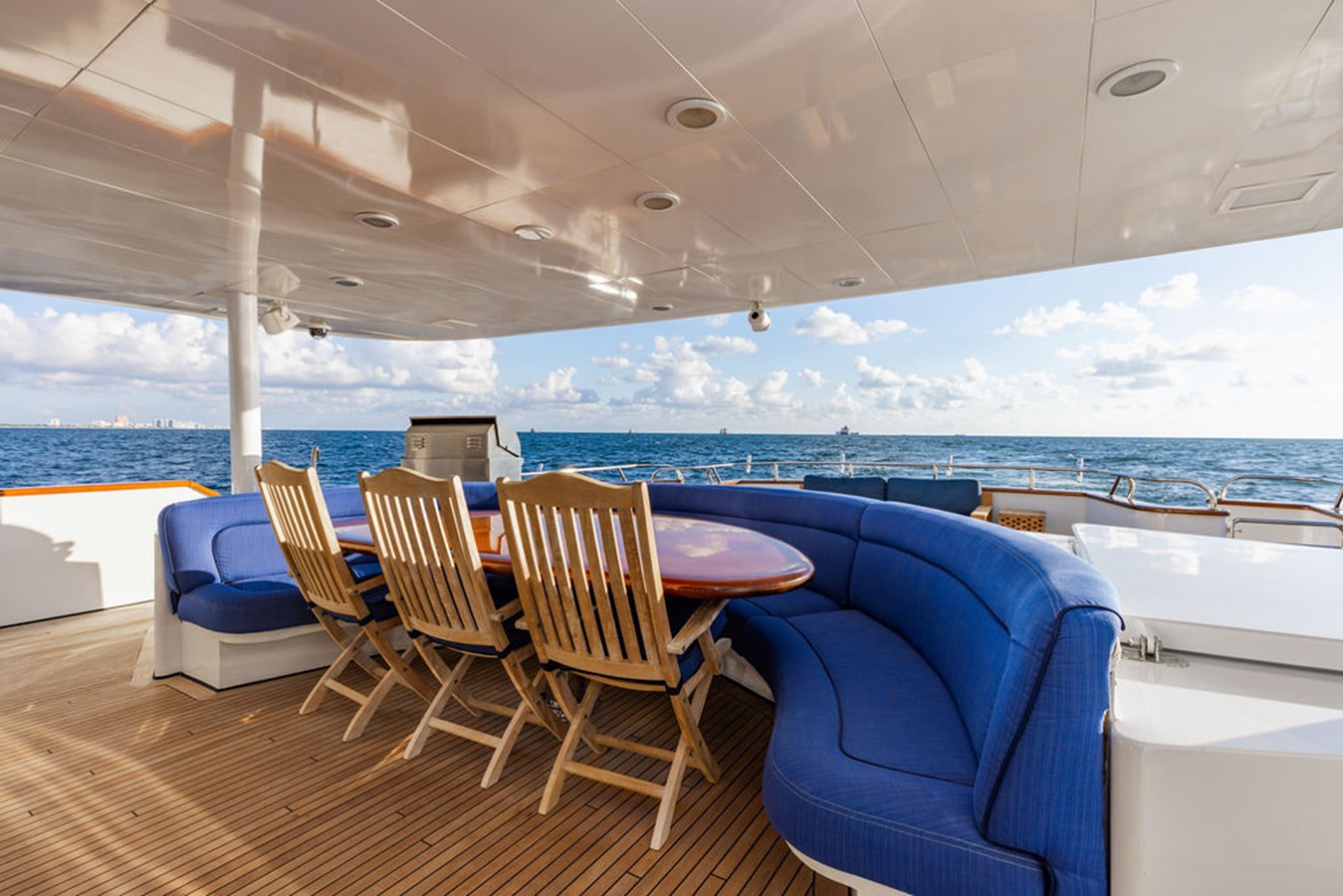

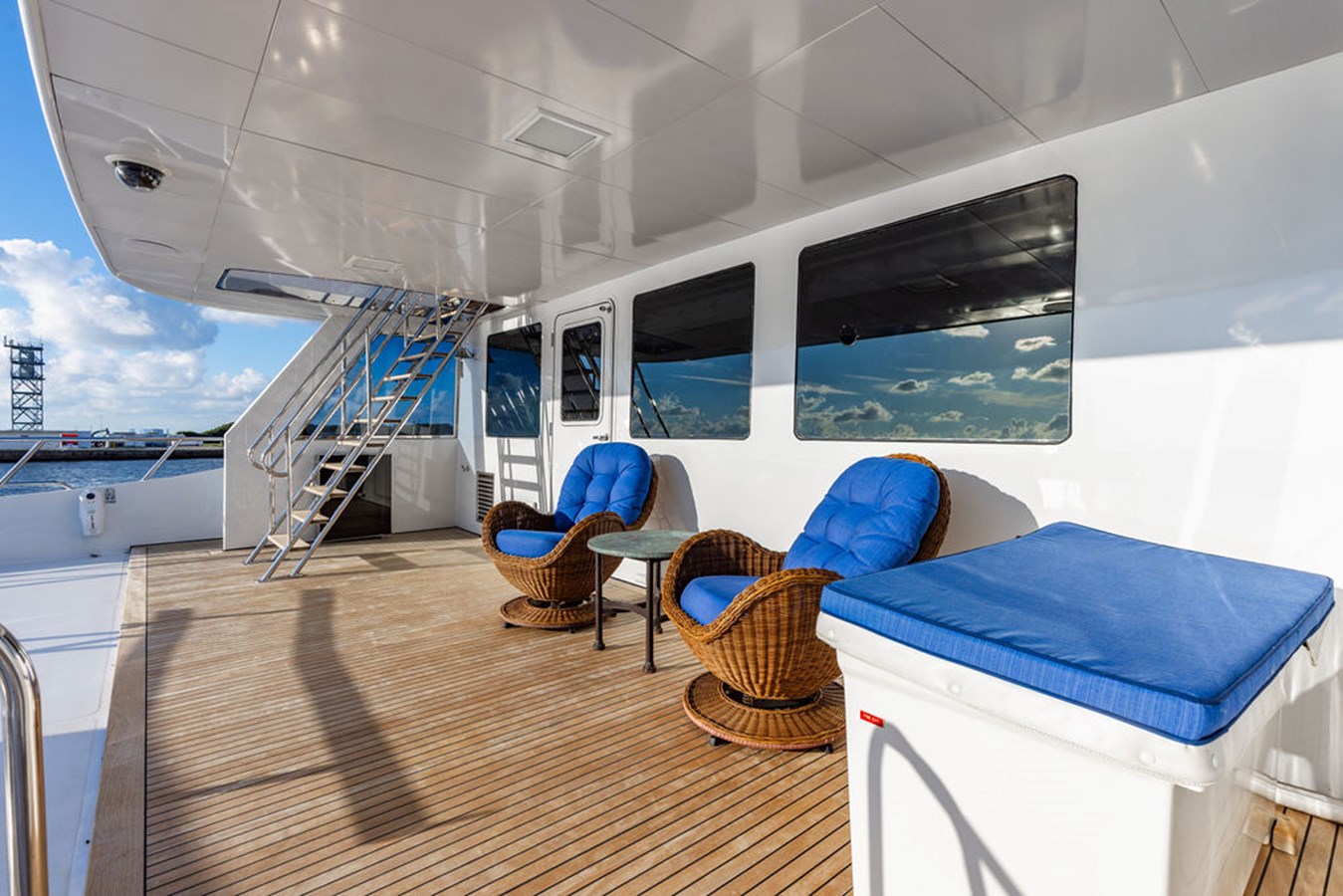

BRIDGE DECK AFT

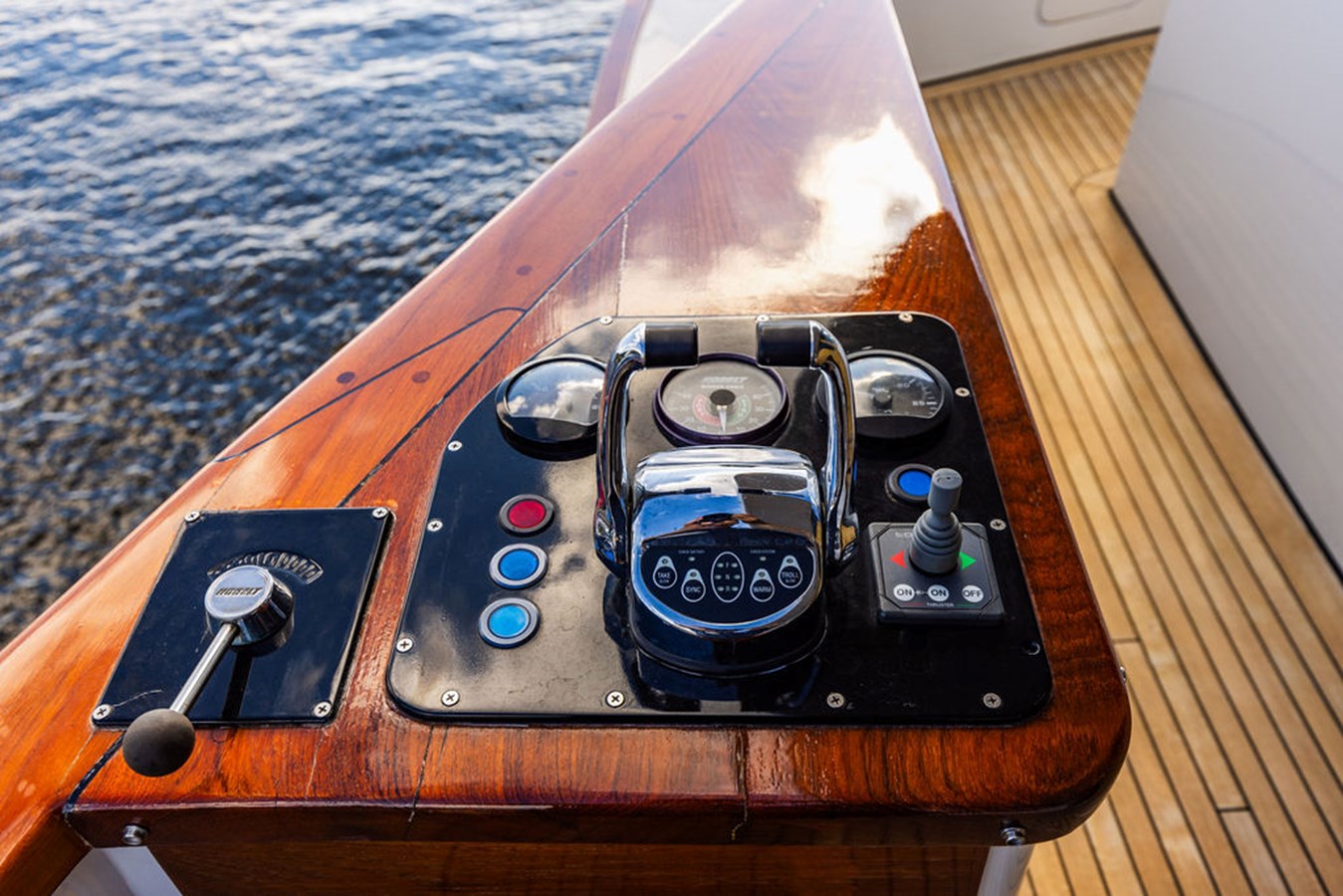

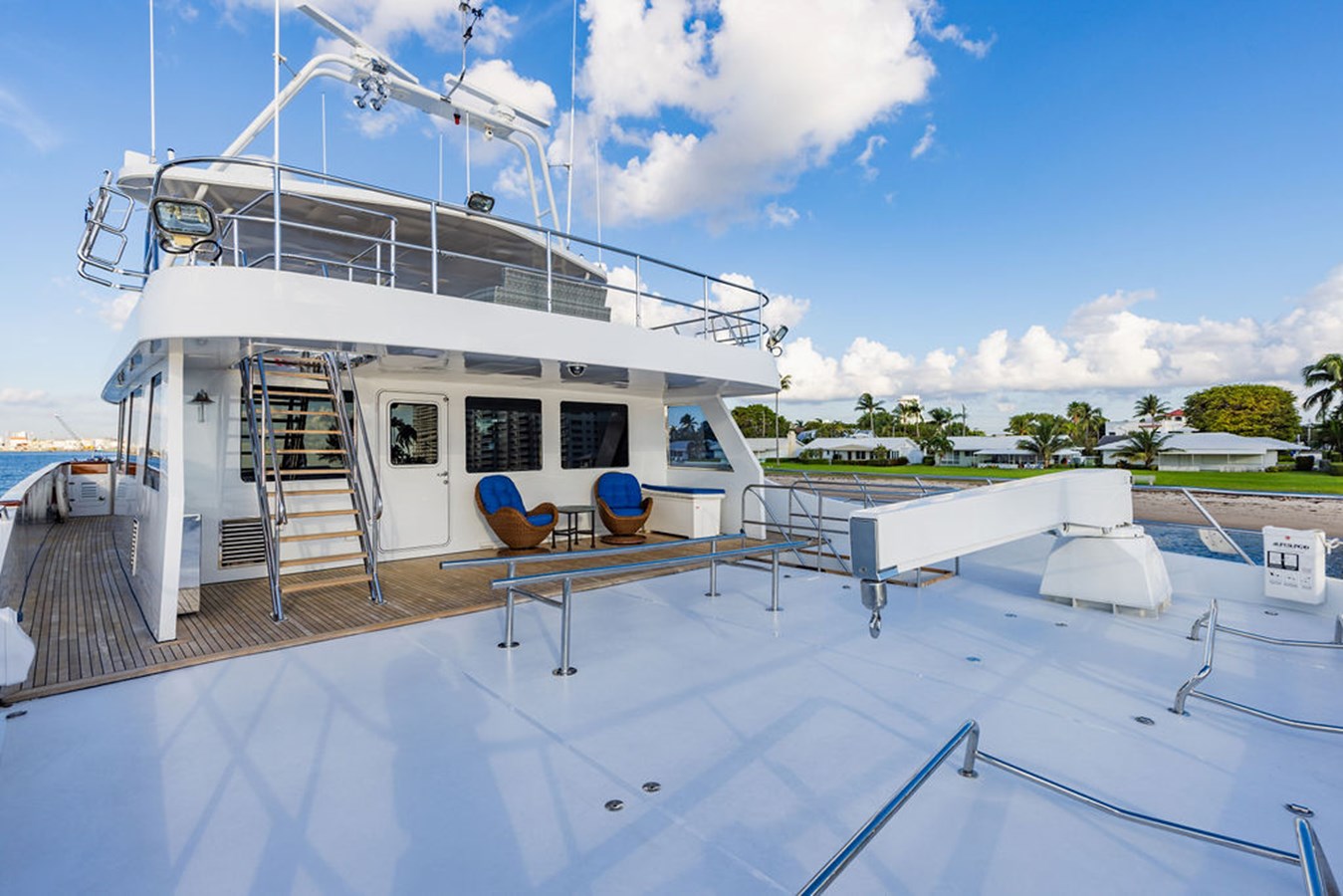

With comfortable portable aft facing seating out the master stateroom this a great area to enjoy your anchorage. The area aft is a large tender and toy storage deck with crane, with the tenders/toys removed for the day this area makes a great sun lounging or entertainment deck. There is also full control box for maneuvering or fishing aft

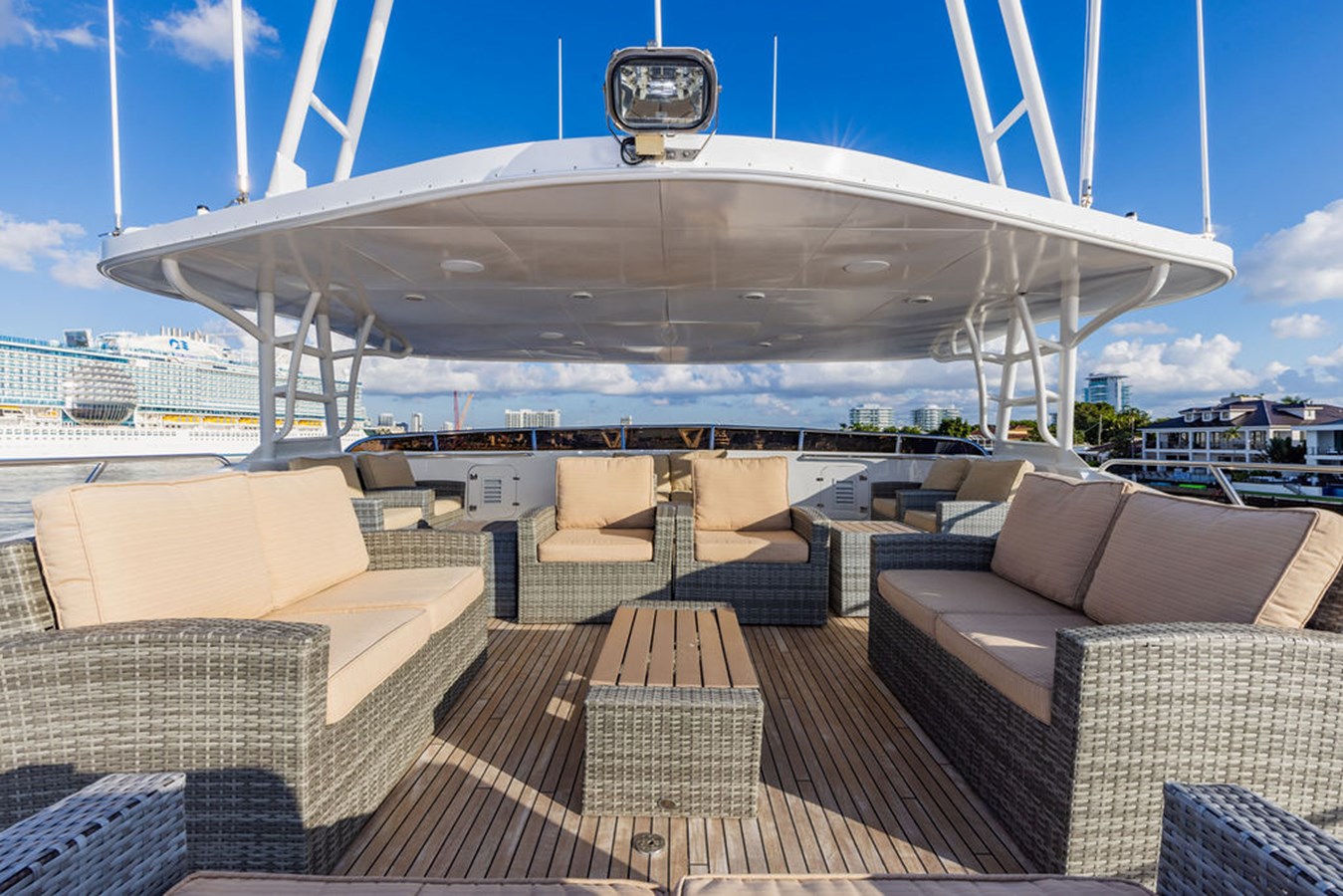

SUNDECK / FLYBRIDGE

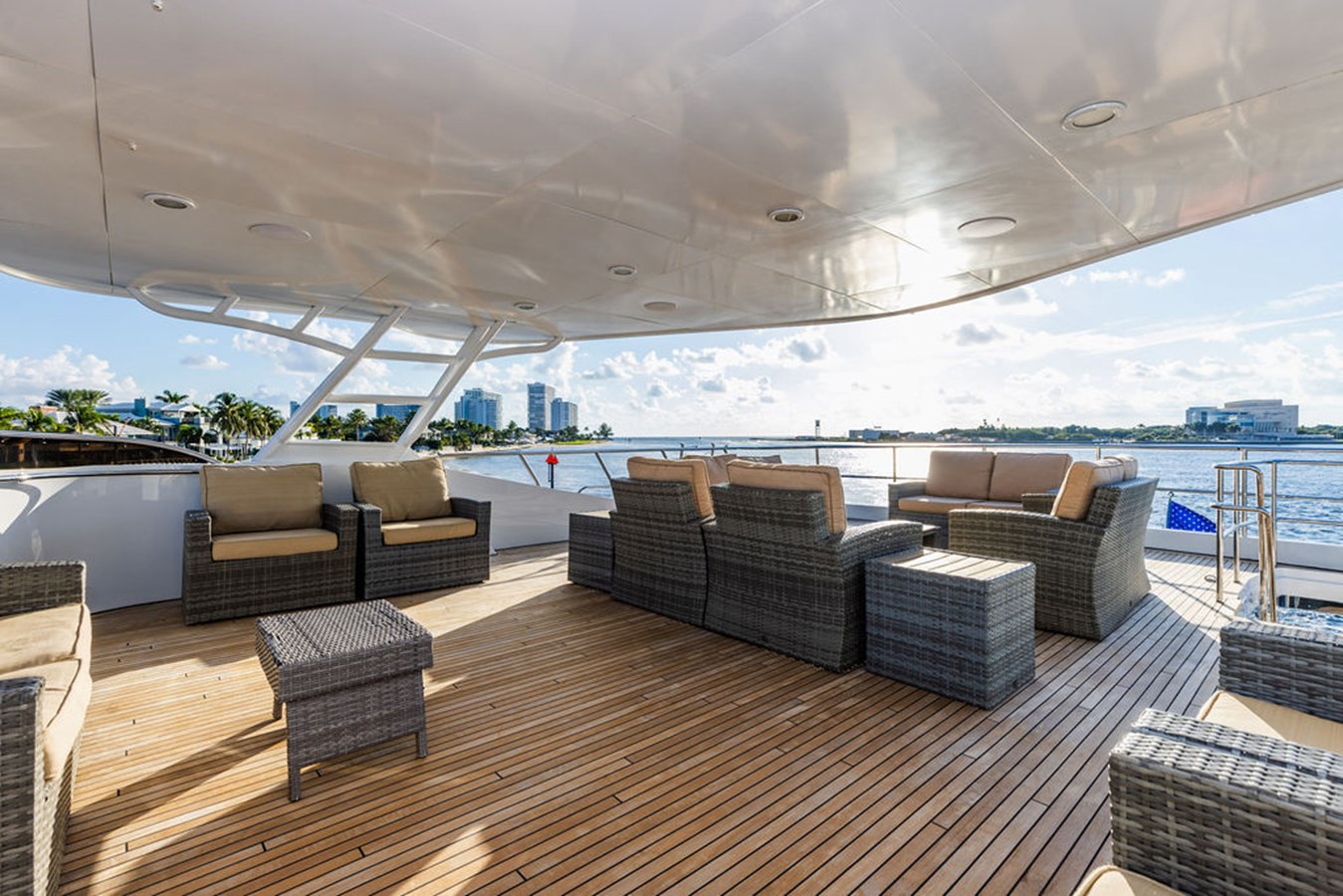

This is the guest’s favorite area to lounge, sunbathe, and arrive into ports in style. The sundeck can be used as gym area in addition to the endless wicker furniture configurations that can be utilized under the cover of the mast and overhead cover. There is also space and ability to store additional water toys on this deck.

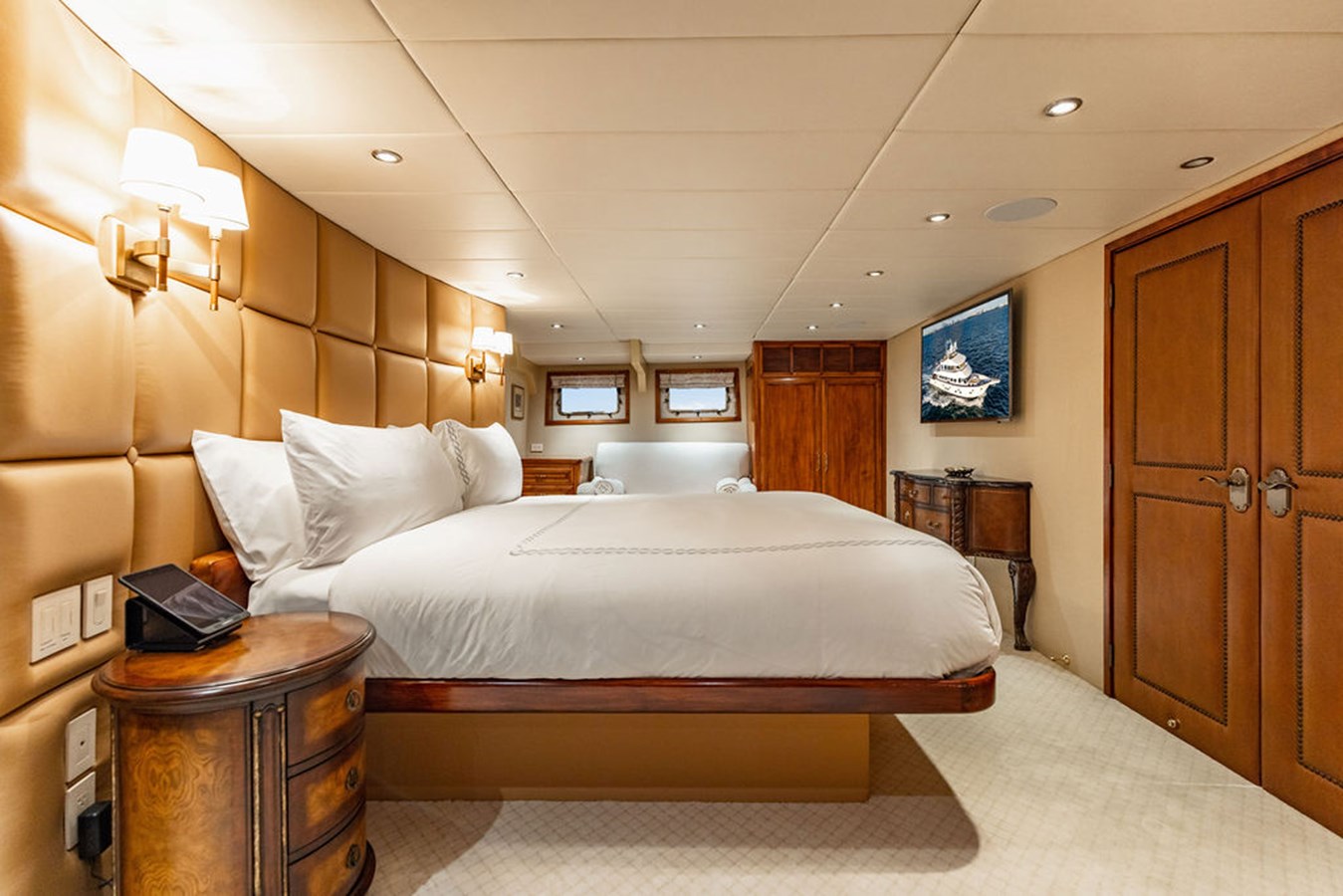

GUEST STATEROOMS

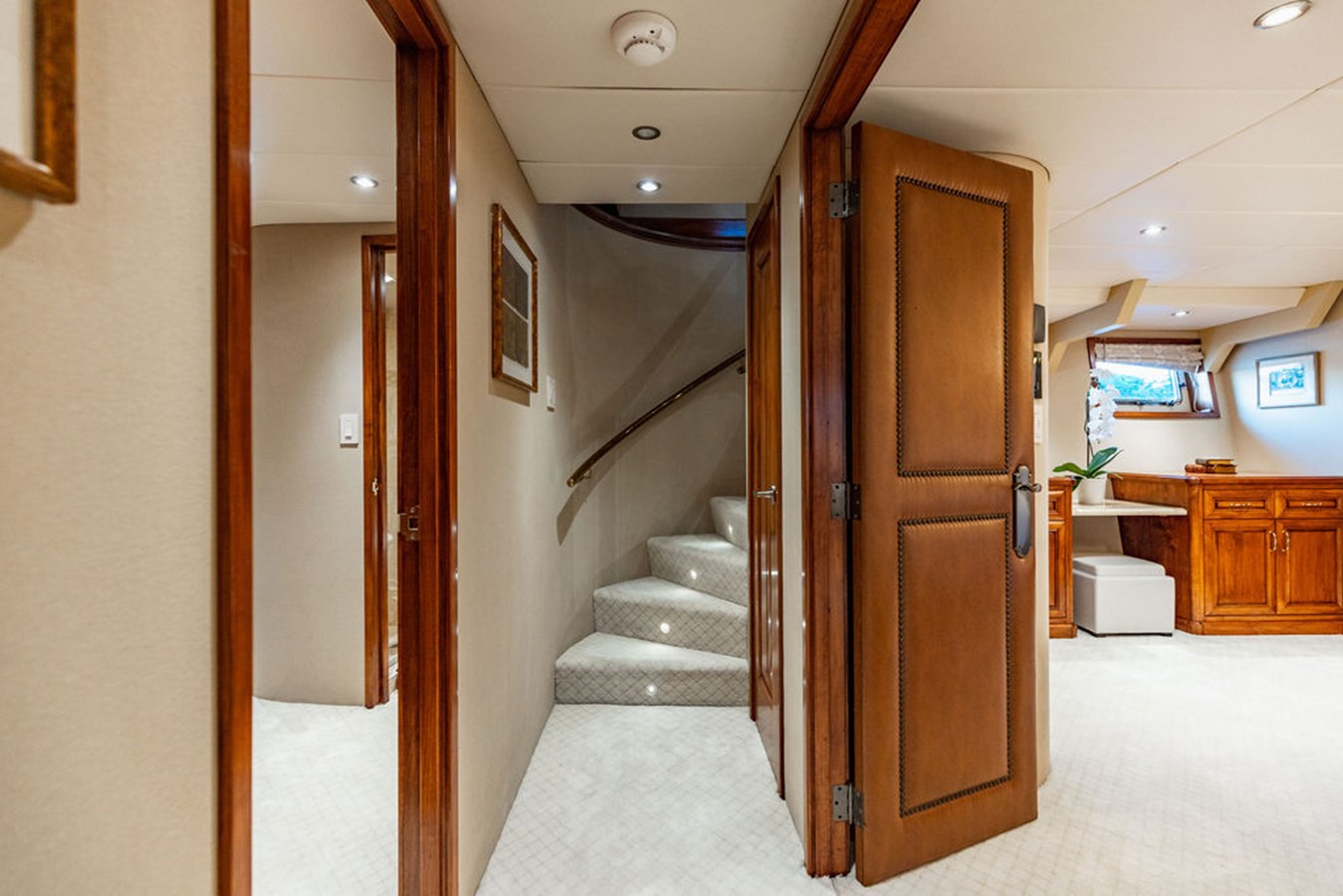

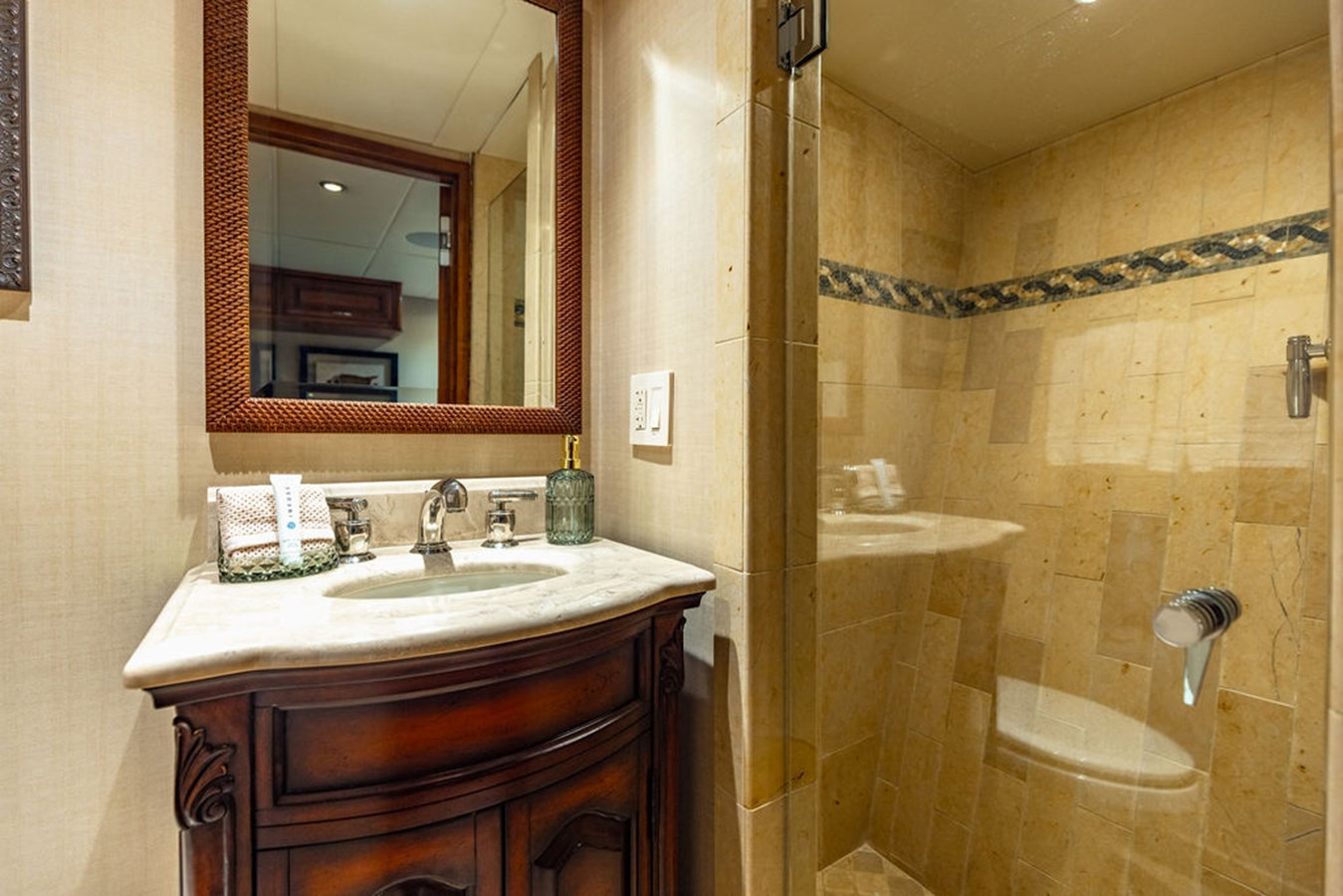

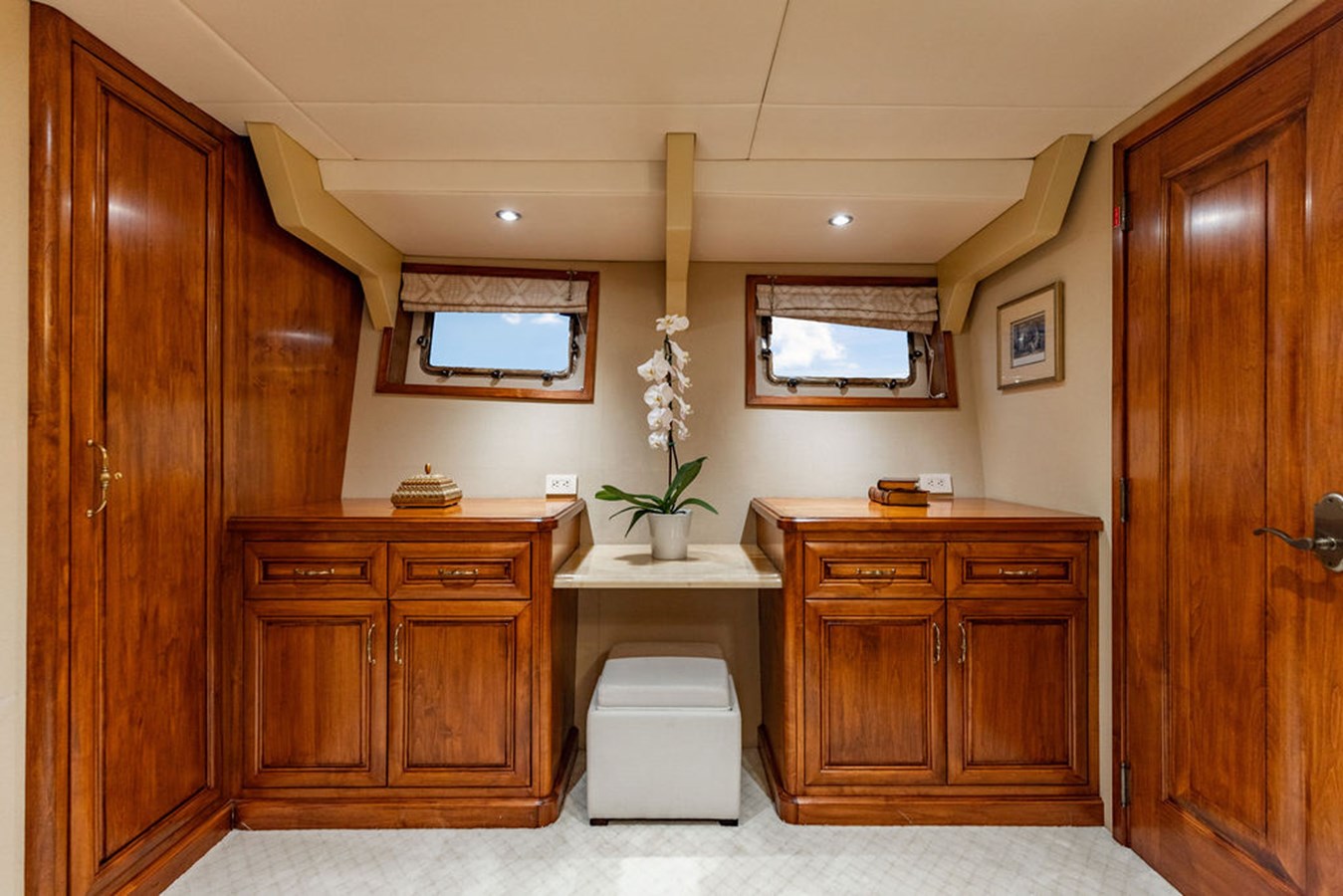

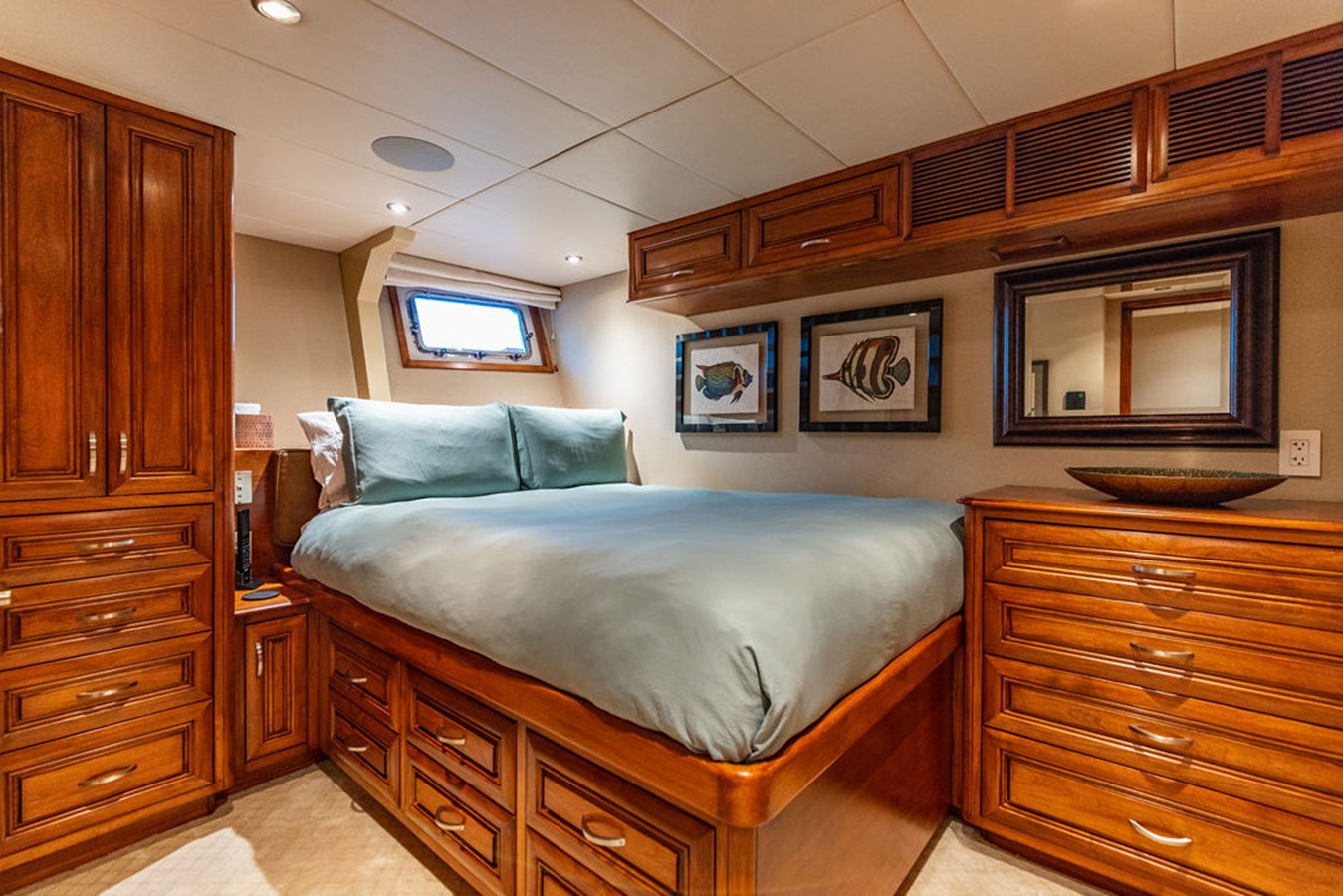

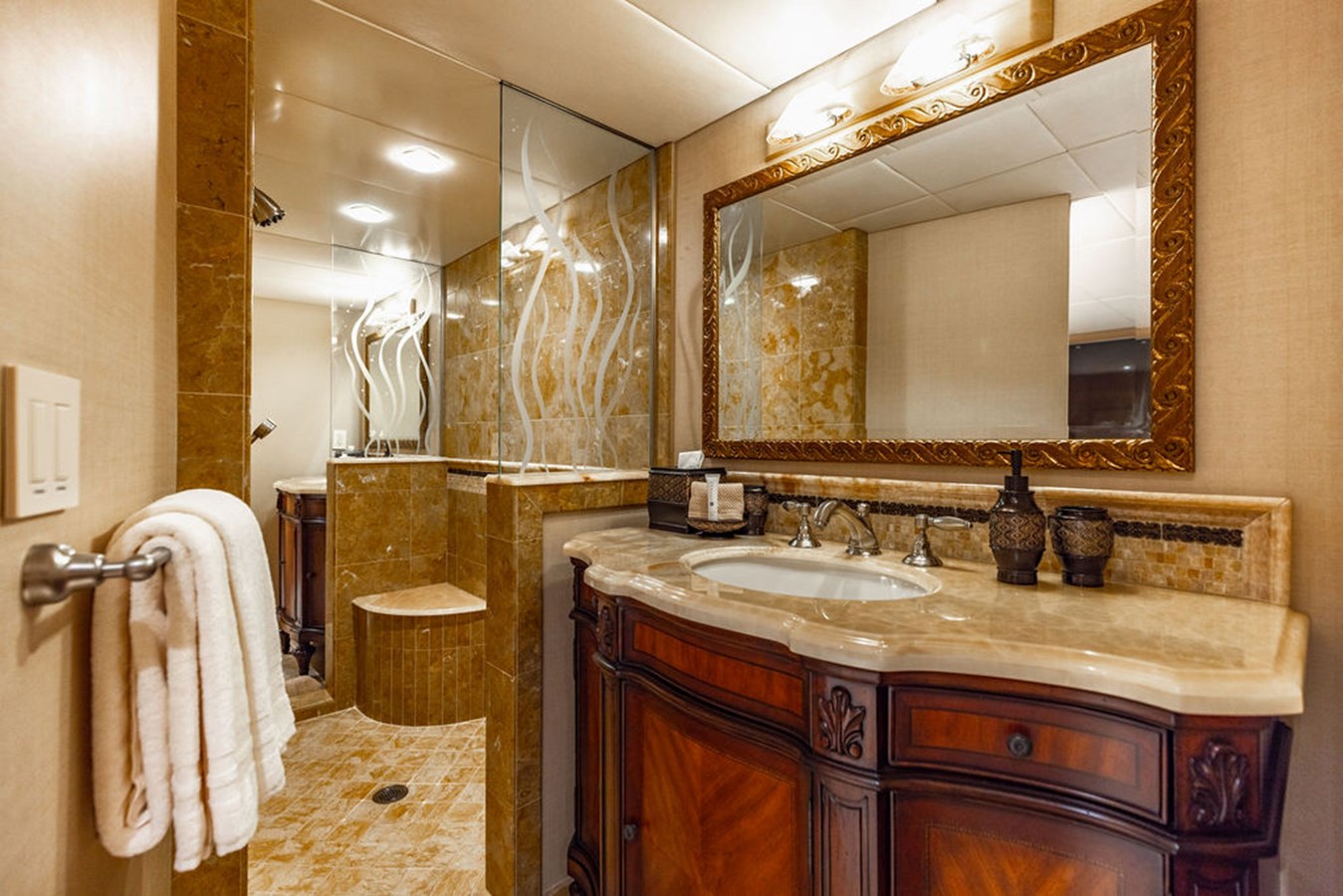

Below deck are three guest staterooms with complimentary styling, clean lines, and the elegant, designed millwork seen throughout the yacht. There are two queen staterooms with ensuite bathrooms with showers. There is also one additional large VIP stateroom with lounge area and makeup desk as well as an ensuite bathroom with a walk-through shower stall complete with high finishes and luxurious marble work throughout and a separate water closet. All staterooms have entertainment systems, individual A/C controls, and safes for guest security.

CAPTAIN & CREW
Empire Sea can accommodate up to 5 crew in 3 cabins, including a Captain’s cabin and two additional crew cabins. Each crew cabin includes an ensuite bathroom, AC controls, and entertainment system

COMMENTS

EMPIRE SEA has been meticulously maintained by the same captain for the past 8 years with essentially no budgetary constraints. Recently, the yacht made a journey from Southern California through the Panama Canal, before heading to Florida for sale due to personal reasons. Over the past 8 years, the yacht has undergone annual shipyard maintenance, and the machinery has seen light use, with just under 6,000 hours on her Caterpillar main engines.

KEY FEATURES:

  • Designed for long-range cruising
  • Expansive, open deck spaces
  • Equipped for fishing
  • High capacity for tender storage
  • Powerful main engines capable of towing a large tender
  • Excellent ownership history: eight years with the current owner, seven years with the previous
  • Low crew requirements for easy management
  • Large portholes below the main deck for ample natural light
  • Exclusively used for private purposes
  • Strong potential for chartering
  • US-built for straightforward registration and operation
REFIT & MAINTENANCE SUMMARY

REFIT 2018/2021/22/24:

  • Rudders dropped, rudder shafts addressed, new bearings, new seals,
  • Main engine Port and Starboard shafts removed; straightened/ new bearings/seals installed
  • Sandblast entire underwater area back to bare steel
  • Bilge and hull areas steel audio gauged in depth- Thickness measurement report shows hull in great condition
  • Repair- two locations of hull steel repaired per the 2024 Audio Gauge report.
  • Bottom completely refurbished 3 x coats of steel primer and underwater antifouling
  • Renewed all hull zincs
  • Comprehensive exterior paint refinishing
  • Additional corrosion removal work topside
  • Teak decks replaced and serviced; margin boards refitted
  • Corrosion in most bilges addressed
  • New Alfa Laval Centrifuge MB-103
  • Anchor bow pulpit added on bow to hold 2 anchors (2023)
  • 2nd anchor windlass installed with chain (2023)
  • New Jacuzzi
  • Exterior varnish stripped and renewed
  • Teak replaced on various decks
  • Replacement of 10 Fan Coil Units of the A/C System
  • New Anchor Chains – 5 shackles per side (450’ each)
  • Master cabin added to bridge deck level behind wheelhouse
