Hull, Deck & Superstructure Construction:

• Hull and deck; vinylester resin Divinycell foam core… 1 14” deck… 1 7/8” hull.
• Carbon stringers 6” X 2”.
• Resin infused (scrimp system) hull and deck.
• PPG epoxy and linear polyurethane paint system.
• Aluminium pilothouse, 1/4” plating and framing, spray foam polyurethane insulation.
• Vessel was heavily constructed and insulated for Northern latitude cruising.

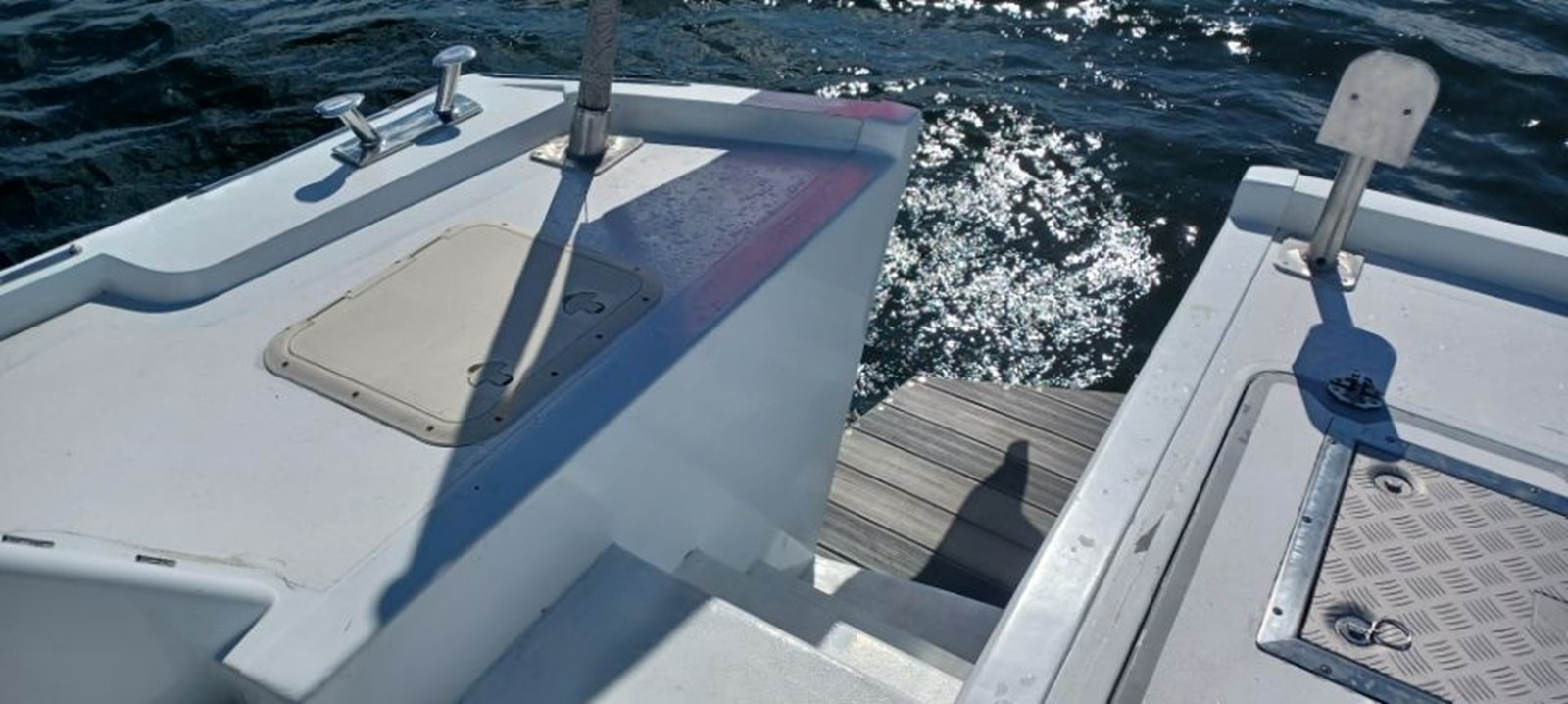

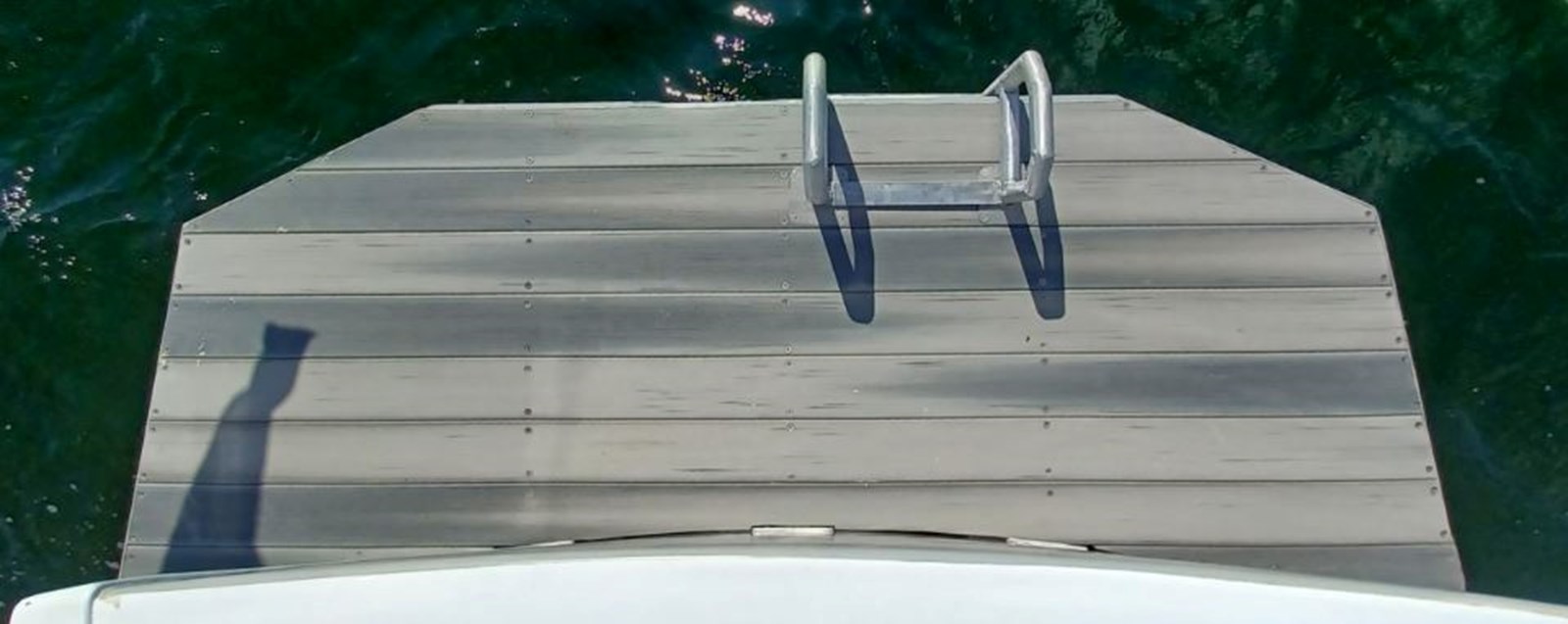

• Aluminium swim-platform with composite deck, swim ladder, and dinghy dock.
• Hard poly rub rail w/ stainless half round.

Keel & Rudder:

• 3” solid rudder shafts with Kobelt tiller arms and steering ram and tie-bar (shafting above rudder bearing machined to 2”) double lip shaft seals and heavy upper thrust roller bearing.

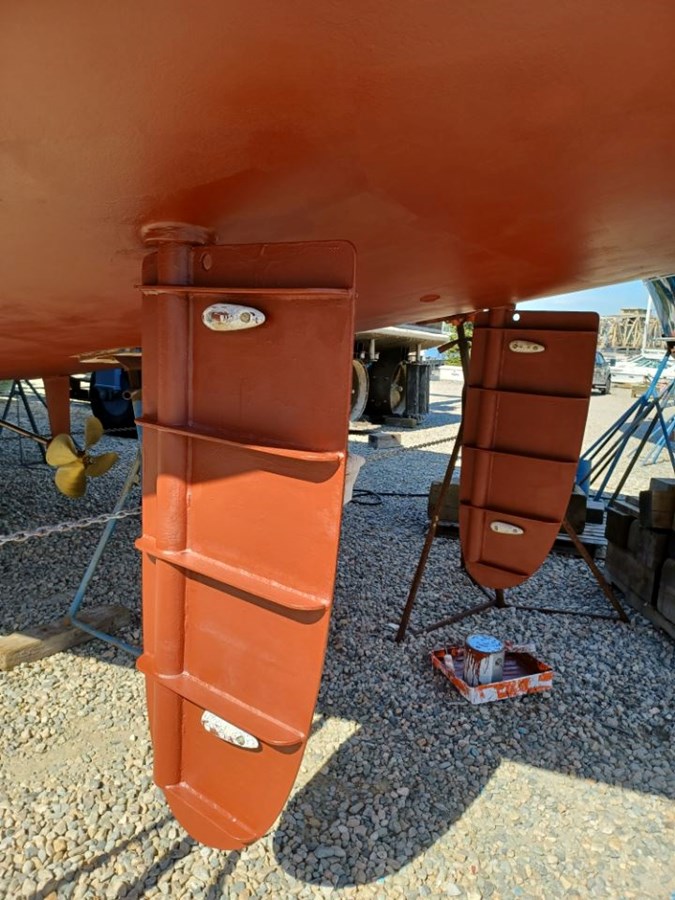

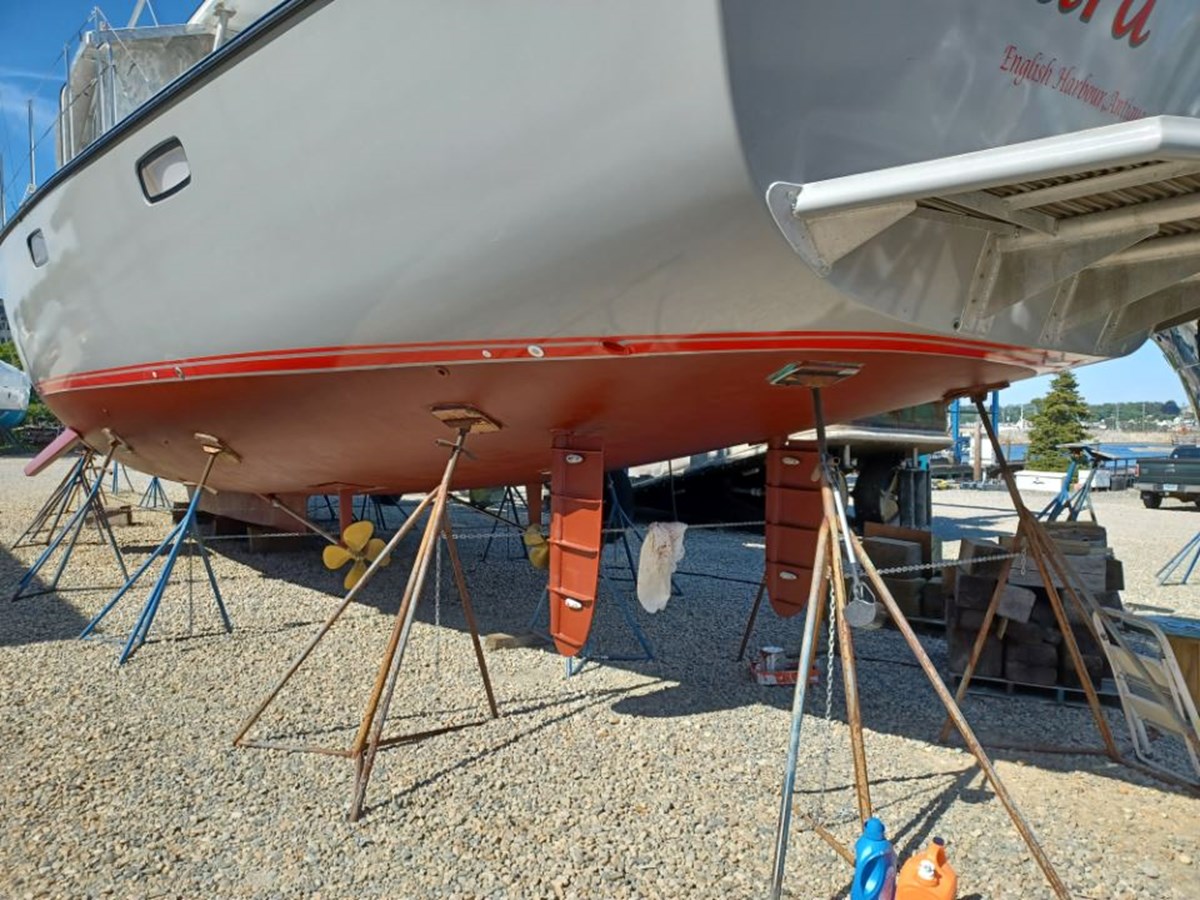

• Heavy welded steel plate rudders.

Engine & Gearboxes:

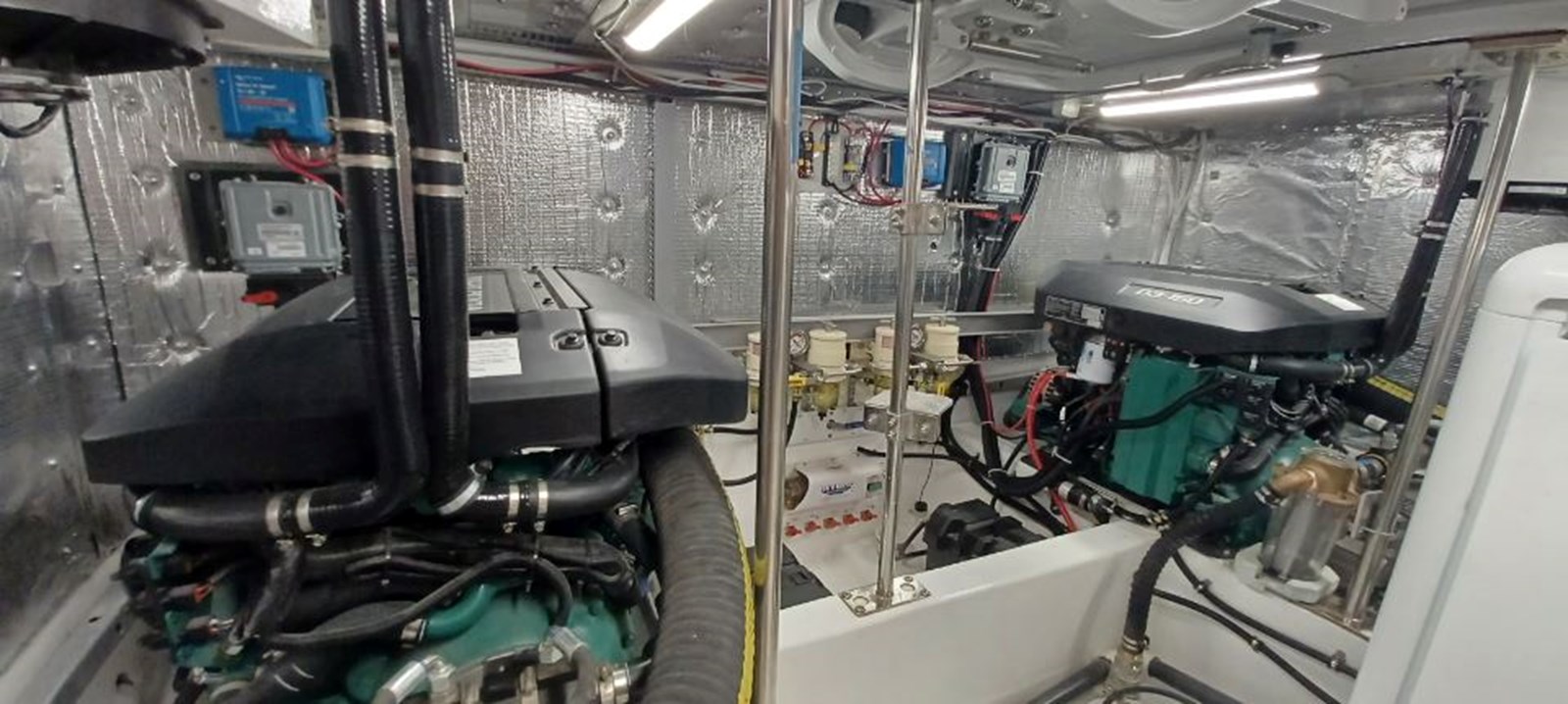

• Twin Volvo D3-150hp (112kw) EPA tier II engines.
• Volvo engine control system.
• Dual Racor for each engine with/crossover.
• Reverso oil change pump 24 VDC (not plumbed).

Maintenance & Performance:

• Range: 1400nm.
• Efficient and economical cruising speed: 8.5 kts at 3.3 Ga/hr (12 l/hr) or 2.5 nm/gallon, (.7 nm/l).

Propulsion & Steering:

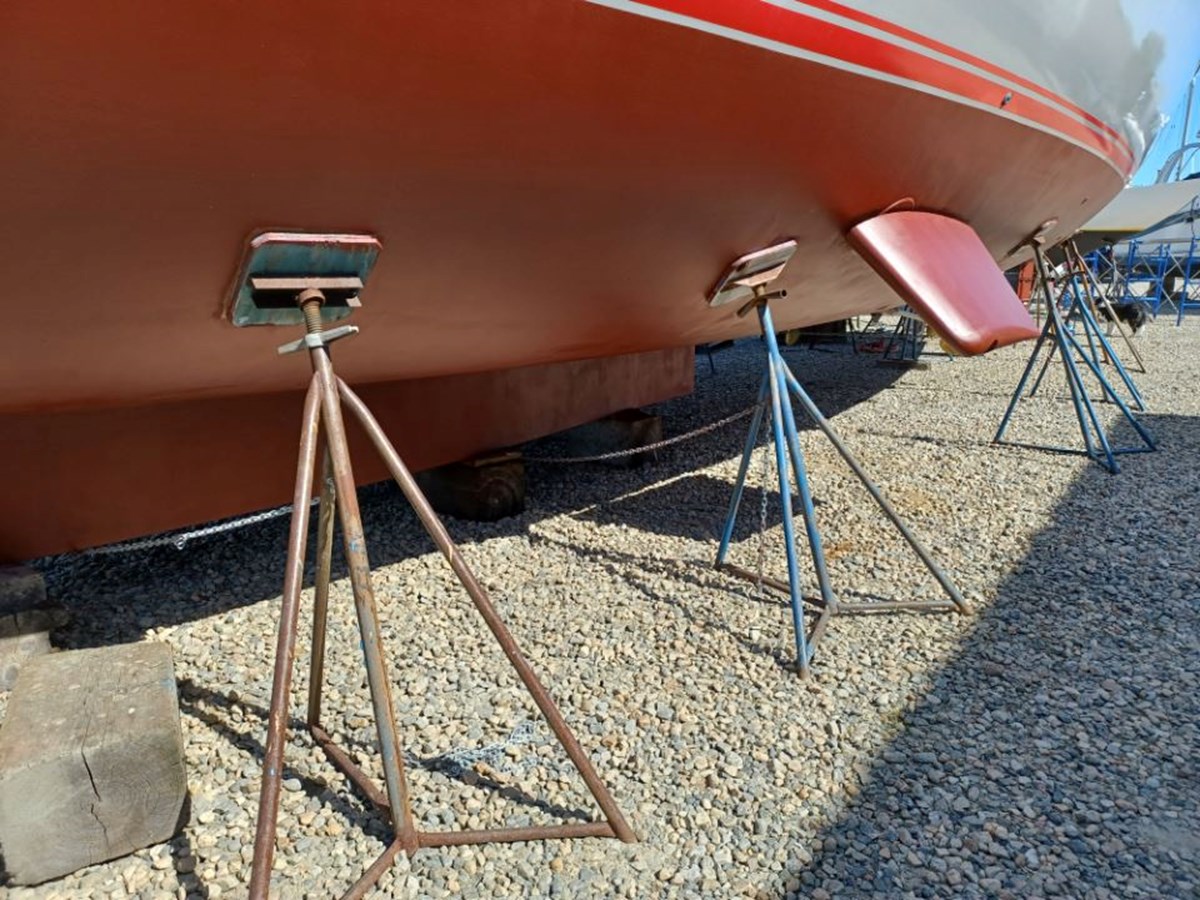

• Active hydraulic stabilization: Kobelt actuators with 7.5 sq. ft fins, powered by generator mounted 10ga/minute hydraulic pump with 24 VDC Ogura clutch, an 8-gallon reserve oil tank with filter and sight gauge.
• 10” Side-power thruster 24 VDC with 2 x 240amp/hr dedicated AGM batteries for thruster and windlass, charged by 30amp/120vac Simplex dedicated charger.

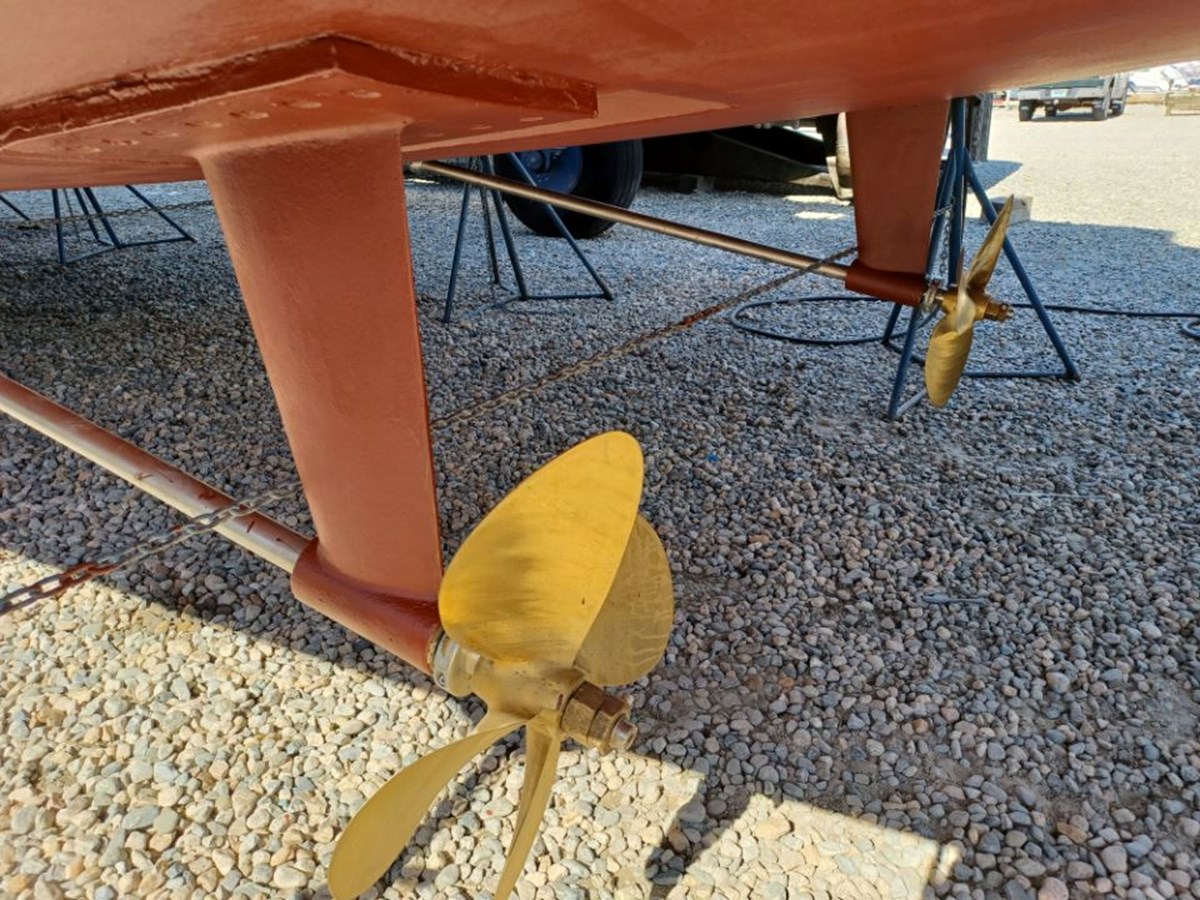

• 4 blade Michigan DQ propellers on 1/34” Aquamat shafts.
• Kobelt 24 VDC HPU200 with 24 VDC autopilot solenoid for power steering and upper helm Kobelt 7005 manual steering pump with a 3-gallon reserve oil tank with filter and sight gauge, plus a Lewmar steering wheel.
• Dual control station w/ wheel at upper station and Kobelt joystick steering at upper and lower station.

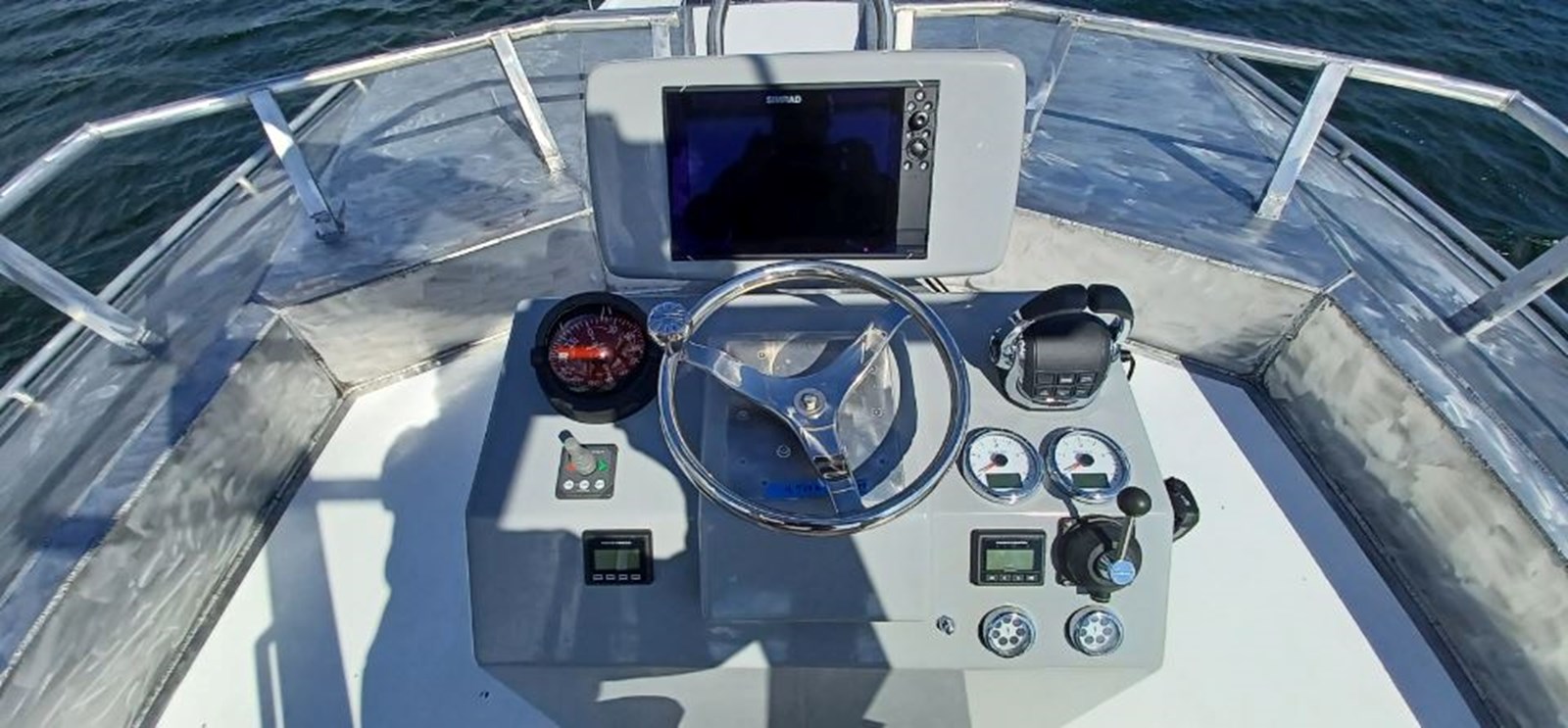

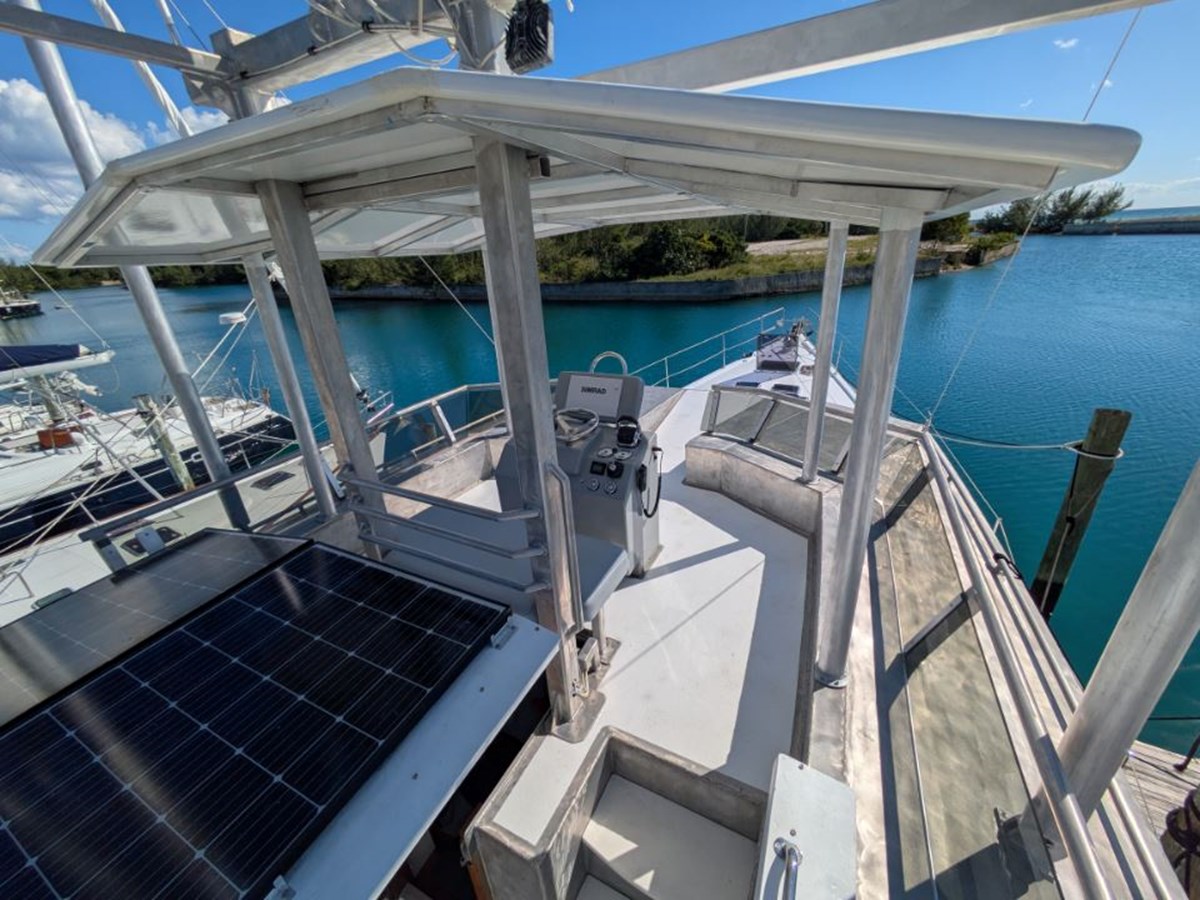

• Flybridge: 9’ X 9” with a composite console/helm station. 2-person helm seat and awning.

Voltage Systems:

• 120/240 1 phase 60hz system.

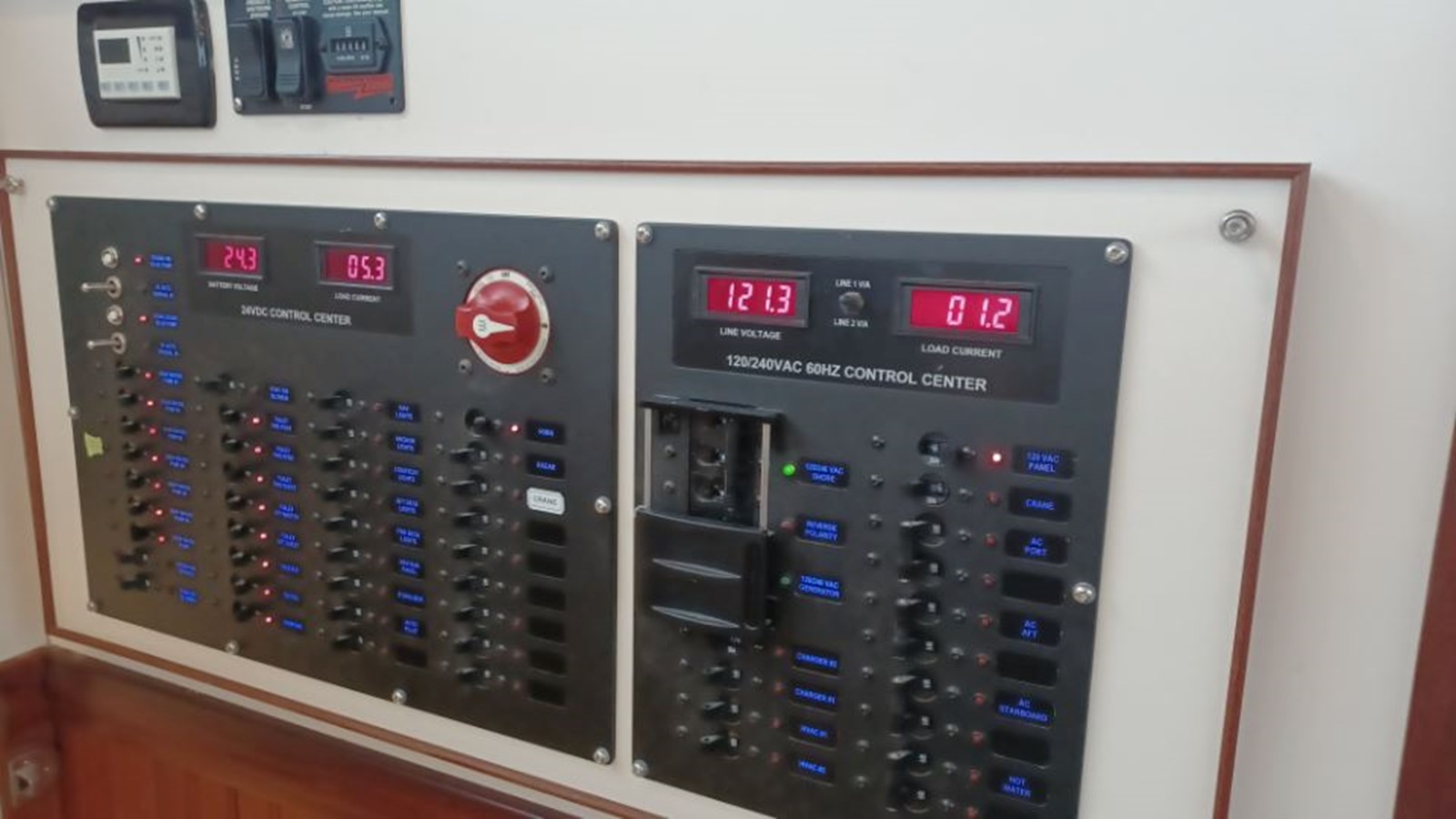

• Custom dedicated electrical distribution panels w/ fibre optic lighting, isolated 110V inverter distribution panel.
• Mastervolt distribution and monitoring system.

Battery Banks:

• House batteries: 8 X 460 amp/hr 6vdc ROLLs L/16 lead acid.
• 2nd house bank (isolated) 4 200amp/hr Lithium phosphate batteries.
• Dedicated start batteries for each main engine and generator and anchor windlass/thruster.

Battery Chargers:

• 2 x Inverter Chargers: dual Magnum 4000watt inverter from 24vdc and 120vac 120amp battery charger.

Alternators:

• Dual 110 amp/12vdc.

Generator:

• 16kw Northern Lights (mechanical).

Shore Power:

• 50-amp shore power with 50’ cable.

Other Electrical:

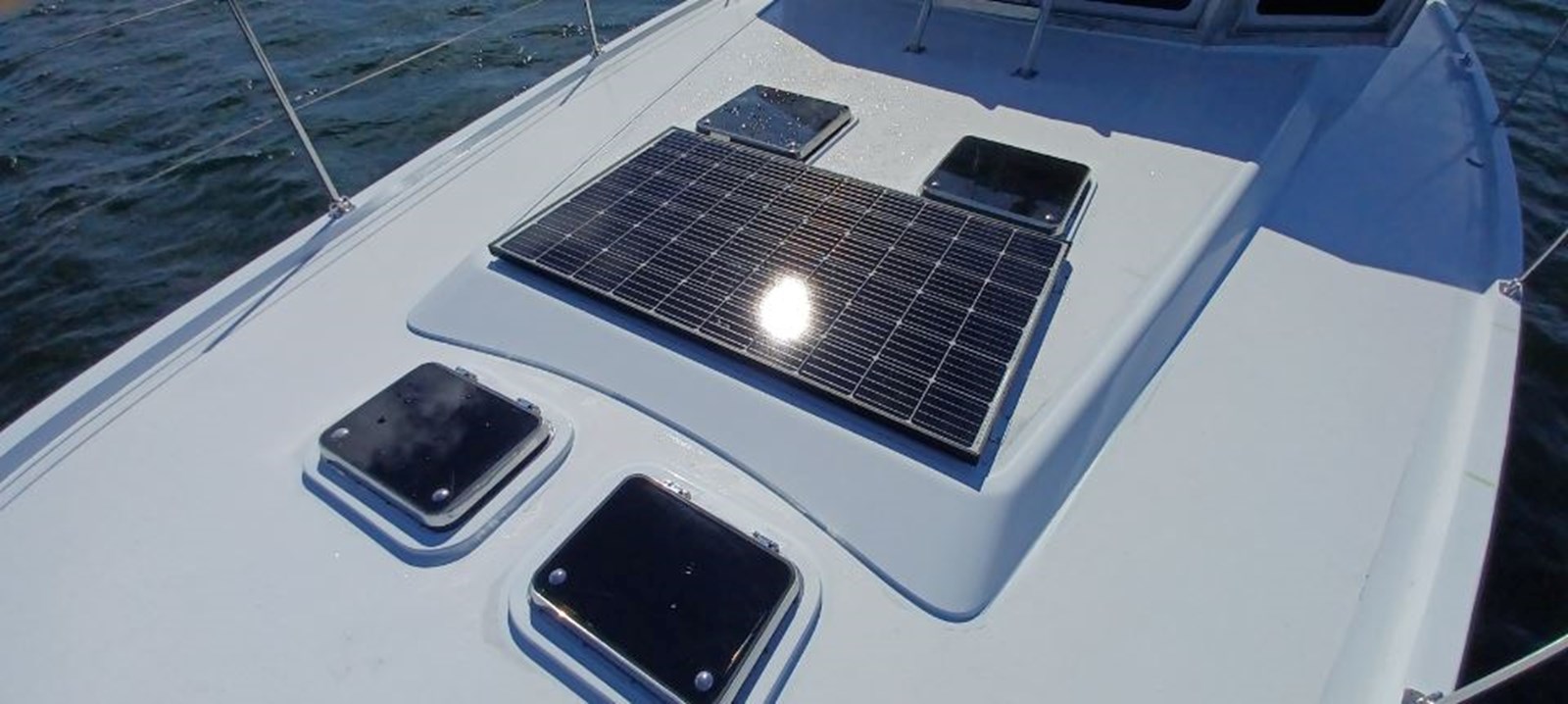

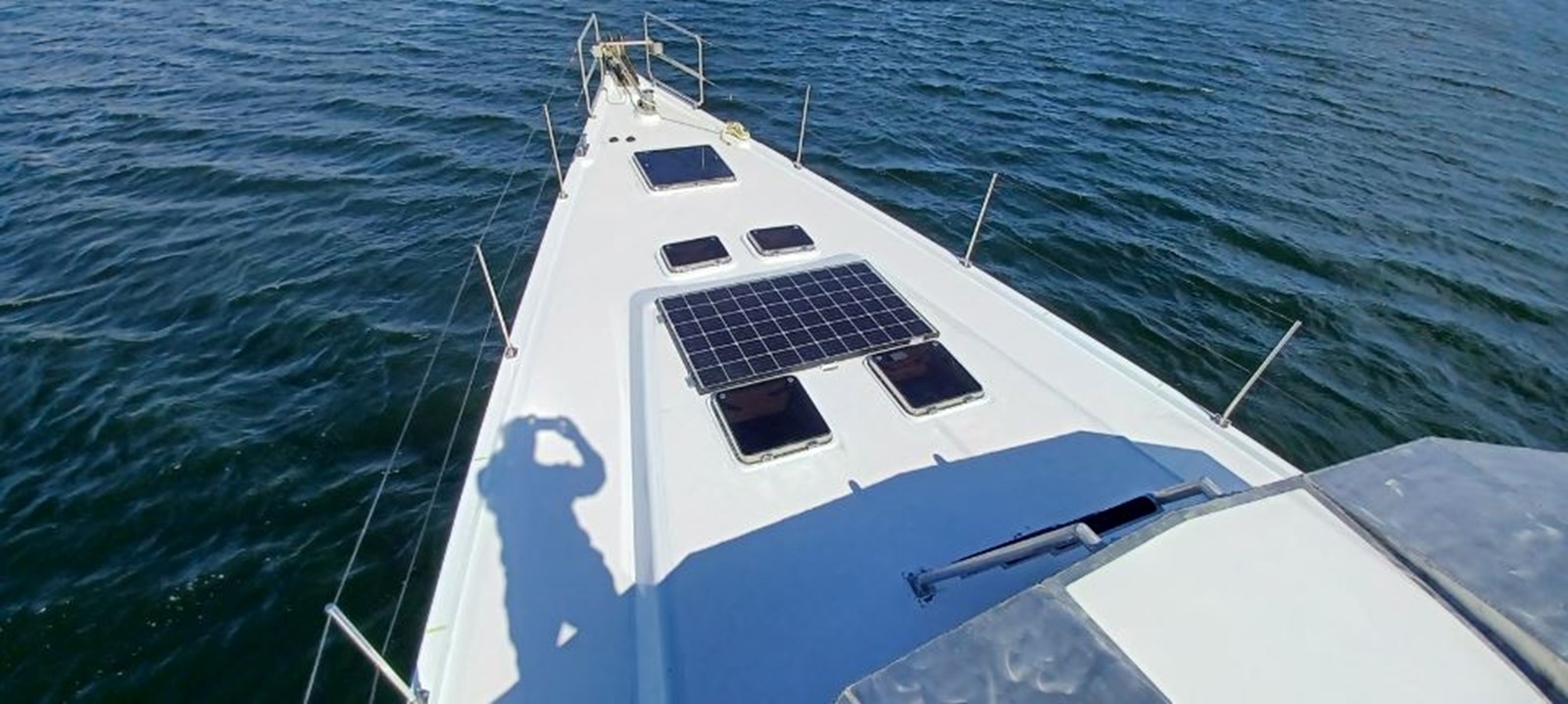

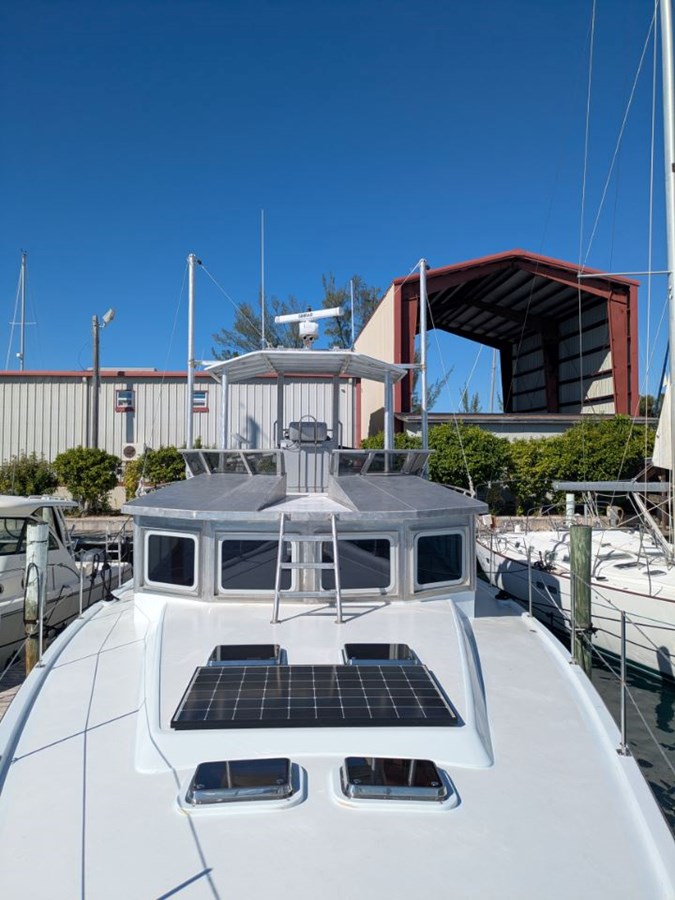

• Solar system: 2000-watt system with circuit protected joiner box, consisting of 5 x 320-watt panels on the sun awning, and 1 additional 320-watt panel on the foredeck. Capable of 75 amps at 24 vdc at peak power. Basically, will run all domestic functions except hot water and HVAC in most weather conditions.
• Outback 80-amp solar controller.

Fresh Water & Water Heating System:

• Dual 24 VDC fresh water pumps with pressure tank.
• On port 30-gallon 240 VAC stainless hot water heaters.

Watermaker:

• 400 ga/day spectra 24vdc watermaker.

Bilge Pumps:

• 3 x Rule 3700 GPH 24vdc.

Fuel:

• 640 gallons (2,425 litres) in two aluminium 1/4” tanks.
• Aluminium fuel tanks ¼ inches plate.

Fresh Water:

• 560 gallons (2,220 litres) in 4 heavy 3/8” polyethylene tanks.
• 4 x 3/8” polyethylene water tanks.

Grey/Blackwater Holding Tanks:

• 3 x Black water tanks (40 gallons each) with Whale discharge pumps for pump out.

Gas:

• Dual large LPG tanks with crossover valve, galley remote solenoid control, and vented LPG storage.

• 16” Simrad EVO 3 plotter with integrated autopilot, chirp sounder, and Halo radar.
• 12” Simrad EVO 3 plotter with integrated autopilot, chirp sounder, and Halo radar.
• Simrad halo 64mi radar.
• Simrad AIS class B.
• Wireless bilge alarm.
• ACR global fix Epirb.
• Kobelt colour stabilizer control/display.
• Icom m242g GPS.
• VHF Icom with flybridge remote.
• Dual Kobelt joystick steering.
• Dual side power joystick thruster controls.
• 2 x Plastimo compass.

• Splendid washer/dryer to lazarette.

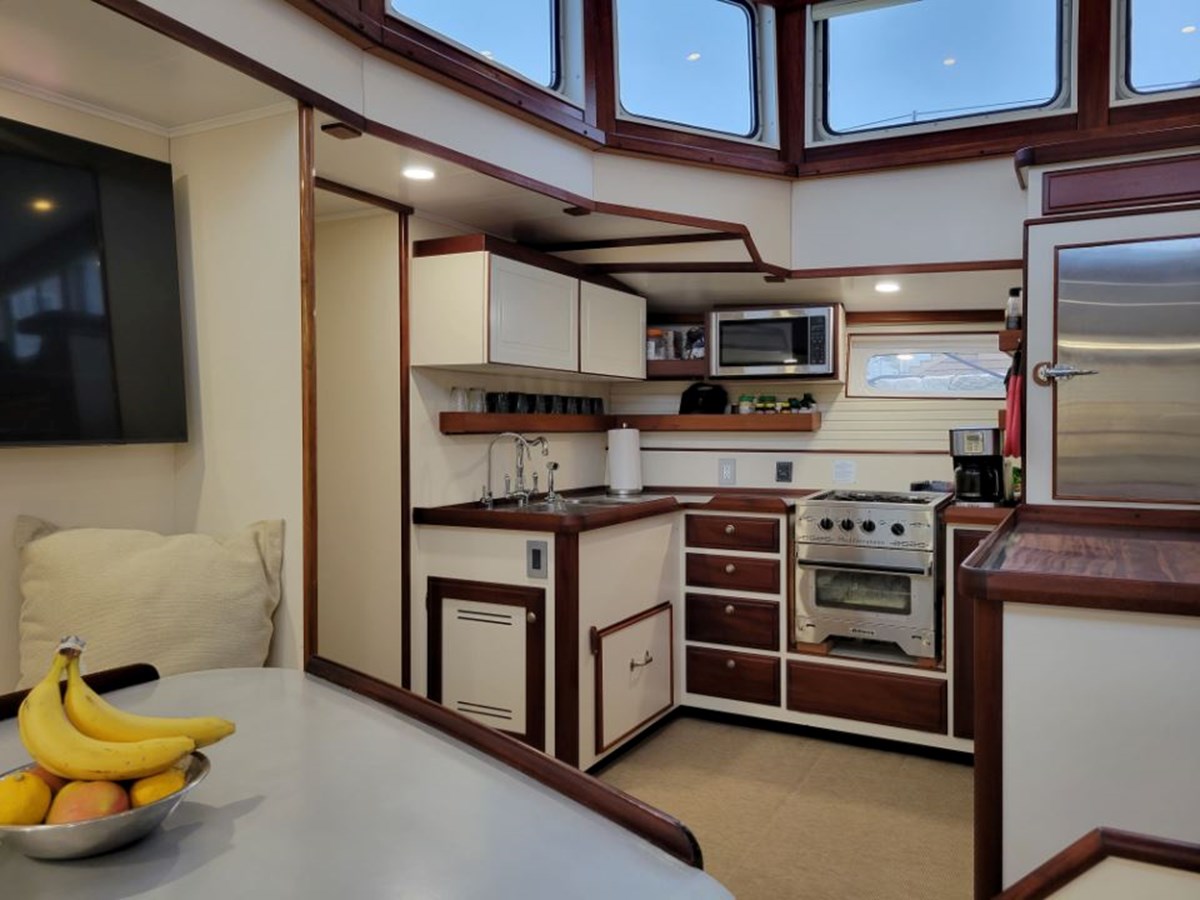

Galley:

• Double stainless-steel sink with carbon filter drinking water faucet.
• Dickinson stainless steel LPG stove with oven and broiler, 3 burners.
• Sea frost 24vdc refrigerator with custom stainless box and plastic shelves.
• Dometic 24vdc freezer with custom stainless box and custom cutting board top.
• Microwave Panasonic.

Heads/Showers:

• 3 x Heads compartments with separate showers.

Heating & Ventilation:

• 5 x Dometic reverse cycle marine air conditioners.
• 2/12,000 btu, 2/6,000 btu, 1/10,000 btu with 4 Cal Pump cooling pumps.

Entertainment:

• TV 55’ Samsung to dinette.

Lighting:

• Interior and exterior is 100% LED lighting.

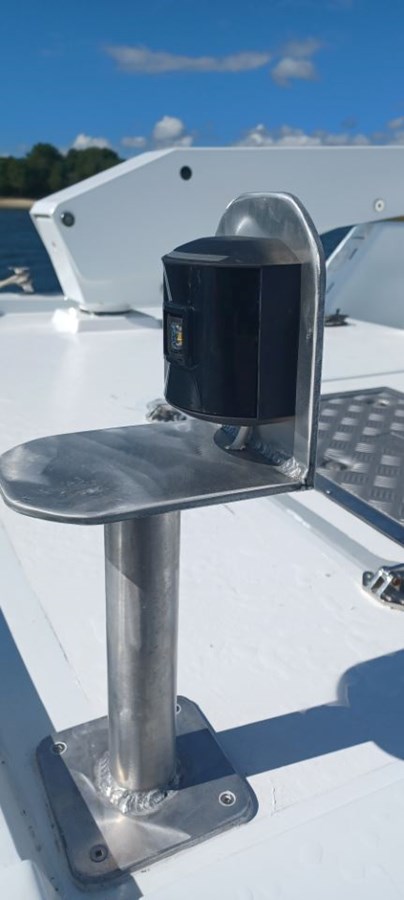

• LED navigation lights.

Summary of Accommodation:

• Interior “Antique white” composite, with Dark African mahogany joinery.
• Composite panel ceilings.
• Vinyl sisal carpets throughout (entirely removable and washable).
• Roomy, light, spacious interior design with high ceilings, well insulated, and quiet.
• Interior furnishing was designed with ventilation a non-air-conditioned interior if desired, capable of great variation of temperatures, cool in tropics, warm in high latitudes.

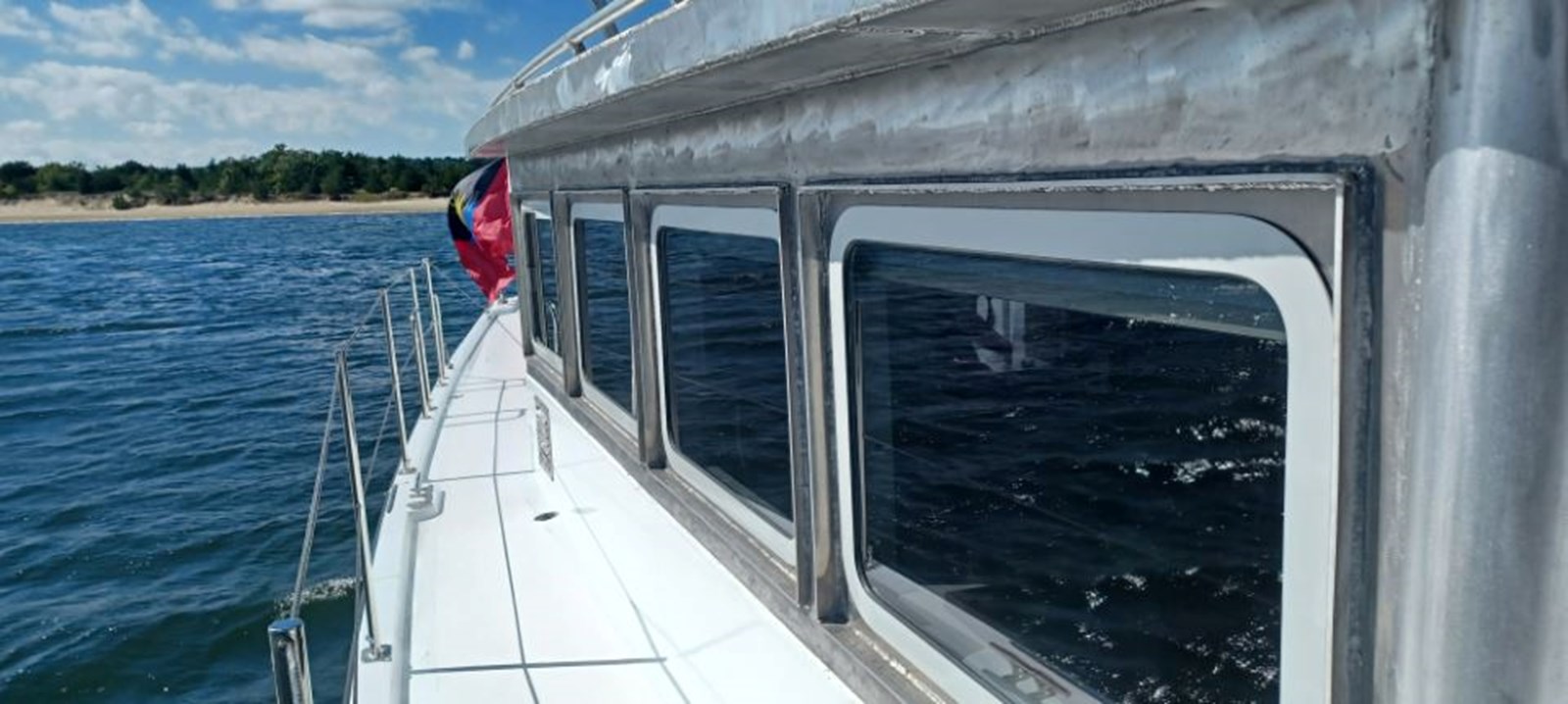

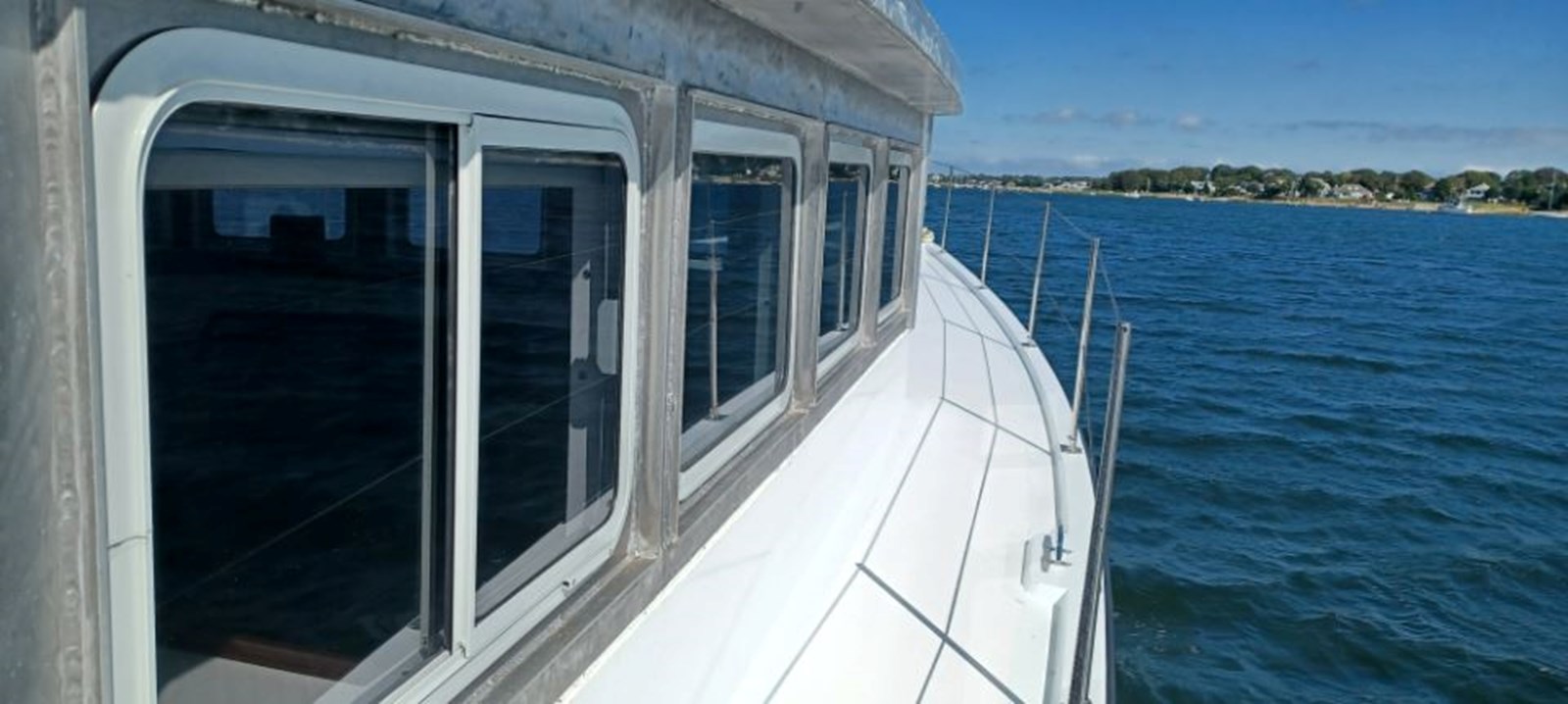

• Double glazed tempered pilothouse windows (two layers nitrogen fill) 3/8 tempered glass.
• 6 x Stainless steel Pompanette deck hatches with Oceanaire privacy/bug screens.
• 1 x Lewmar aft hatch.
• 1 x Large custom fiberglass lazarette hatch.
• All staterooms 6’7 (2 meters), galley 10’ (3 meters) and salon 7’ (2.2 meters).

Description of layout from forwards:

Focastle:

• Very Large focastle houses spare anchor, 8 x (covered) bumpers, mooring lines, thruster batteries, windlass batteries, and charger.

Forward Accommodations:

• 1 x Queen port with en-suite head (Theford toilets) and shower.
• 1 x Double starboard with upper bunk. En-suite head (Theford toilet) and shower.
• All shower and sinks hardware high polished Italian hardware. All heads have multiple storage, cabinets, and mirrors.

Galley/Dinette Mid-Ship:

• Large stainless galley on the starboard side with a 6 to 8 persons dinette opposite.

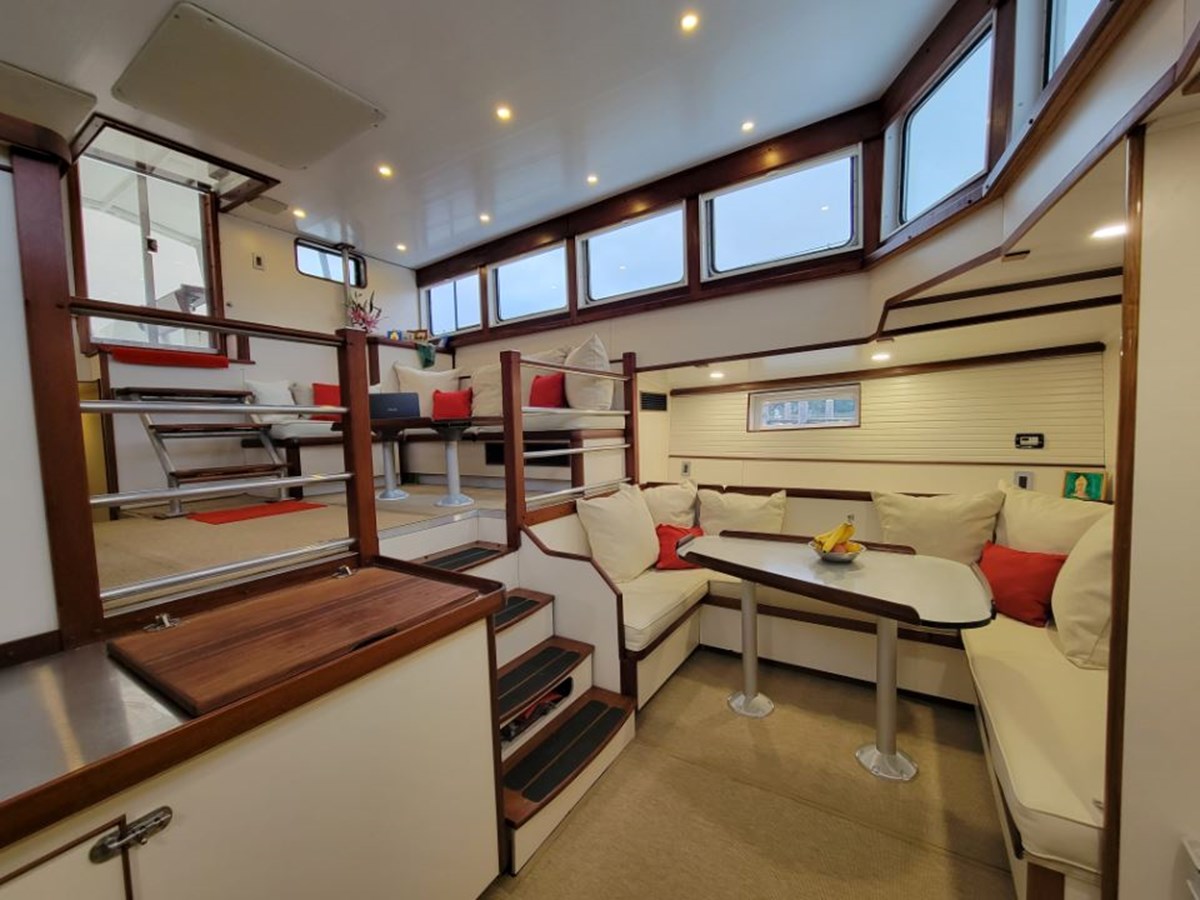

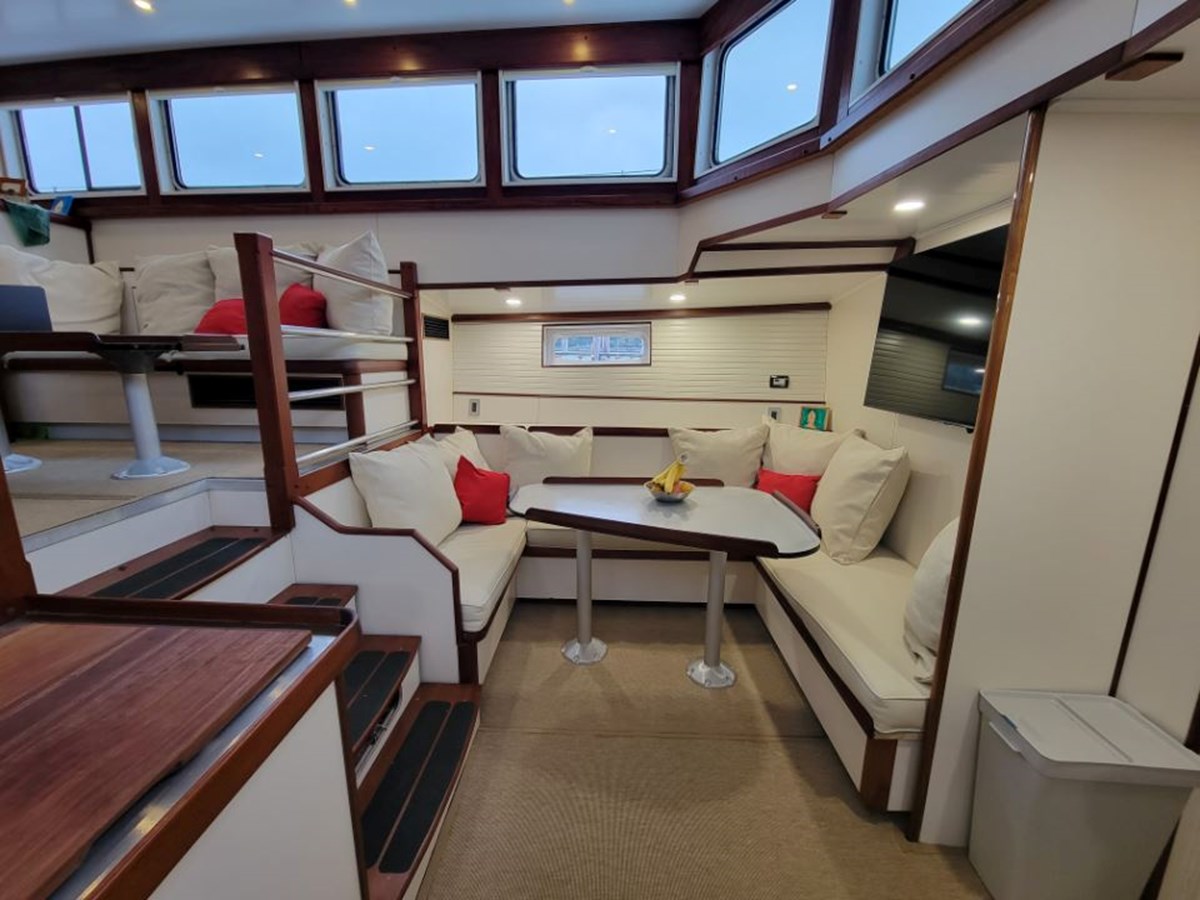

• Opposite of the galley on the port side is a U-shaped dinette with a table (aluminium and mahogany) and seating up to 8.

Pilothouse:

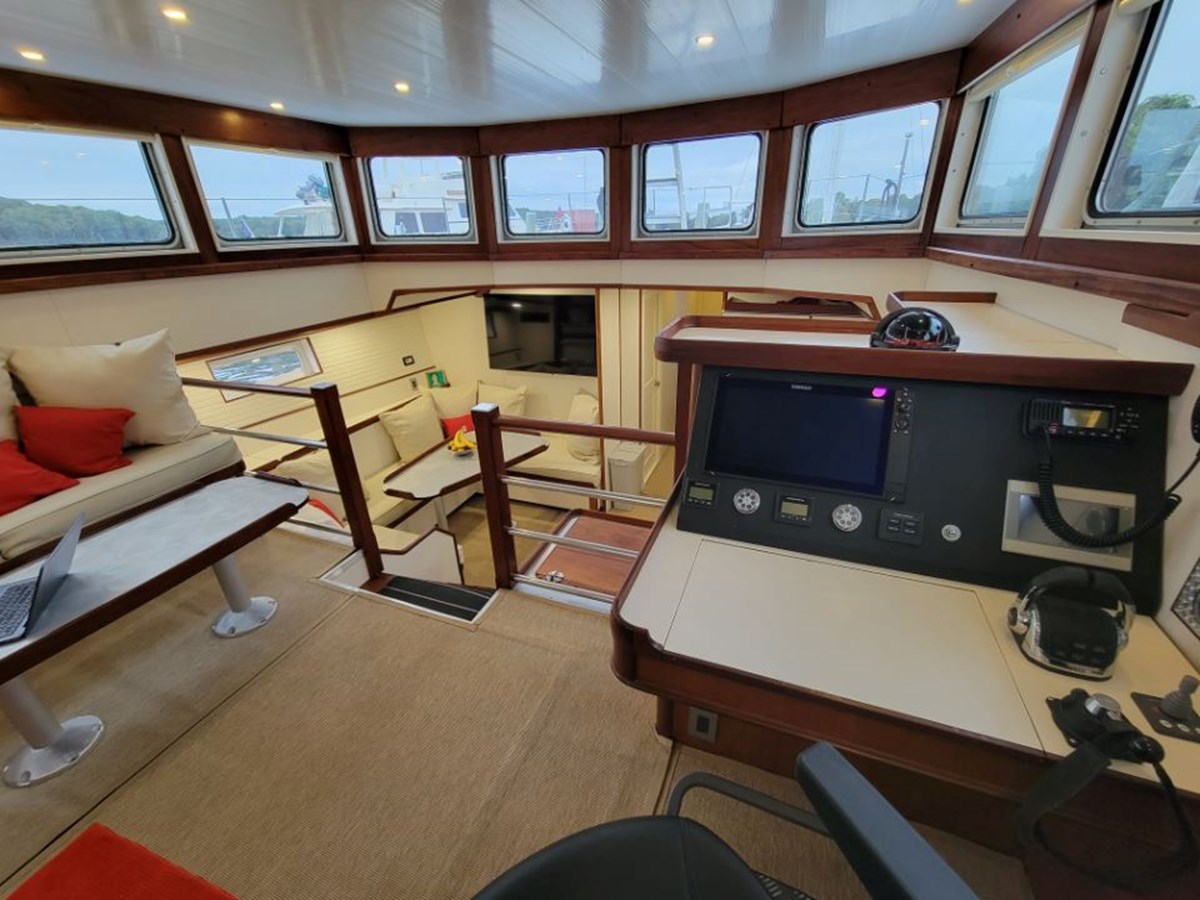

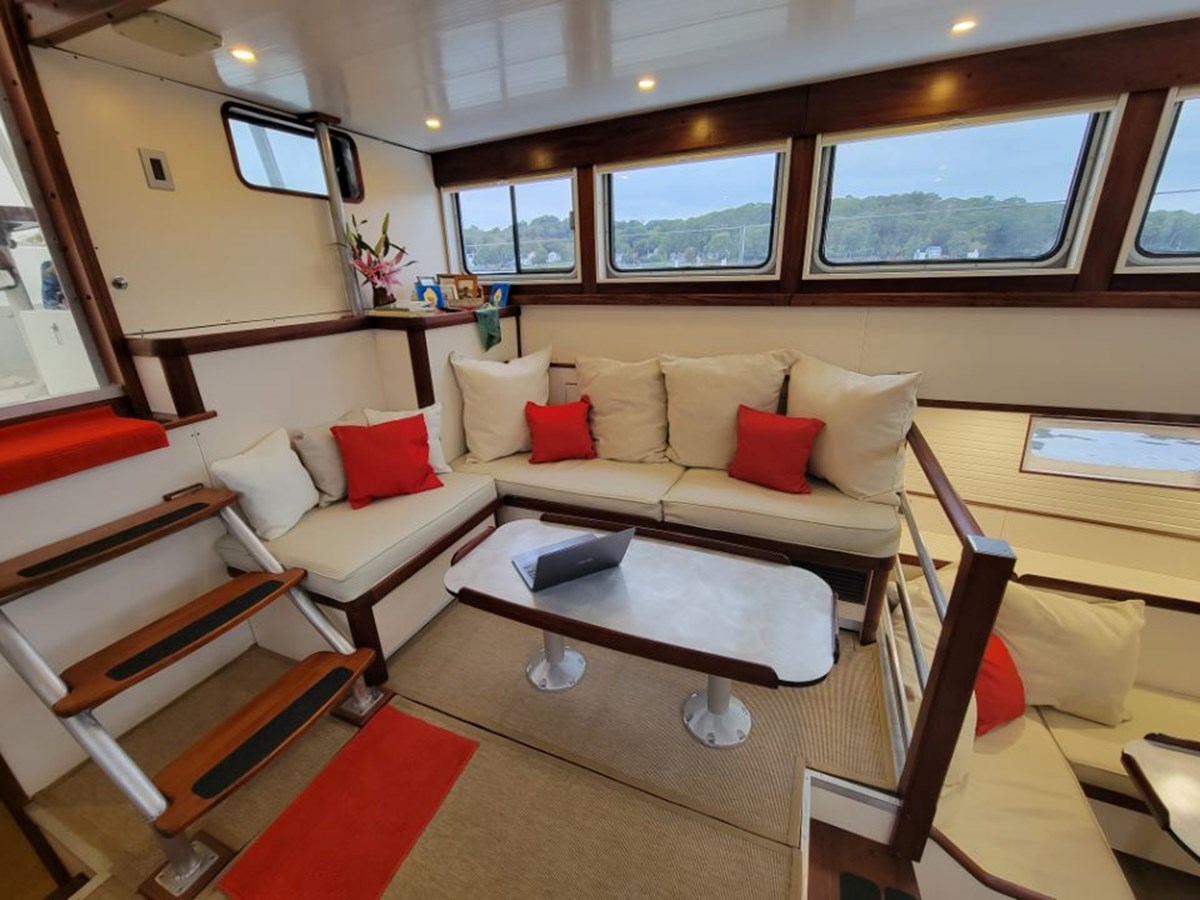

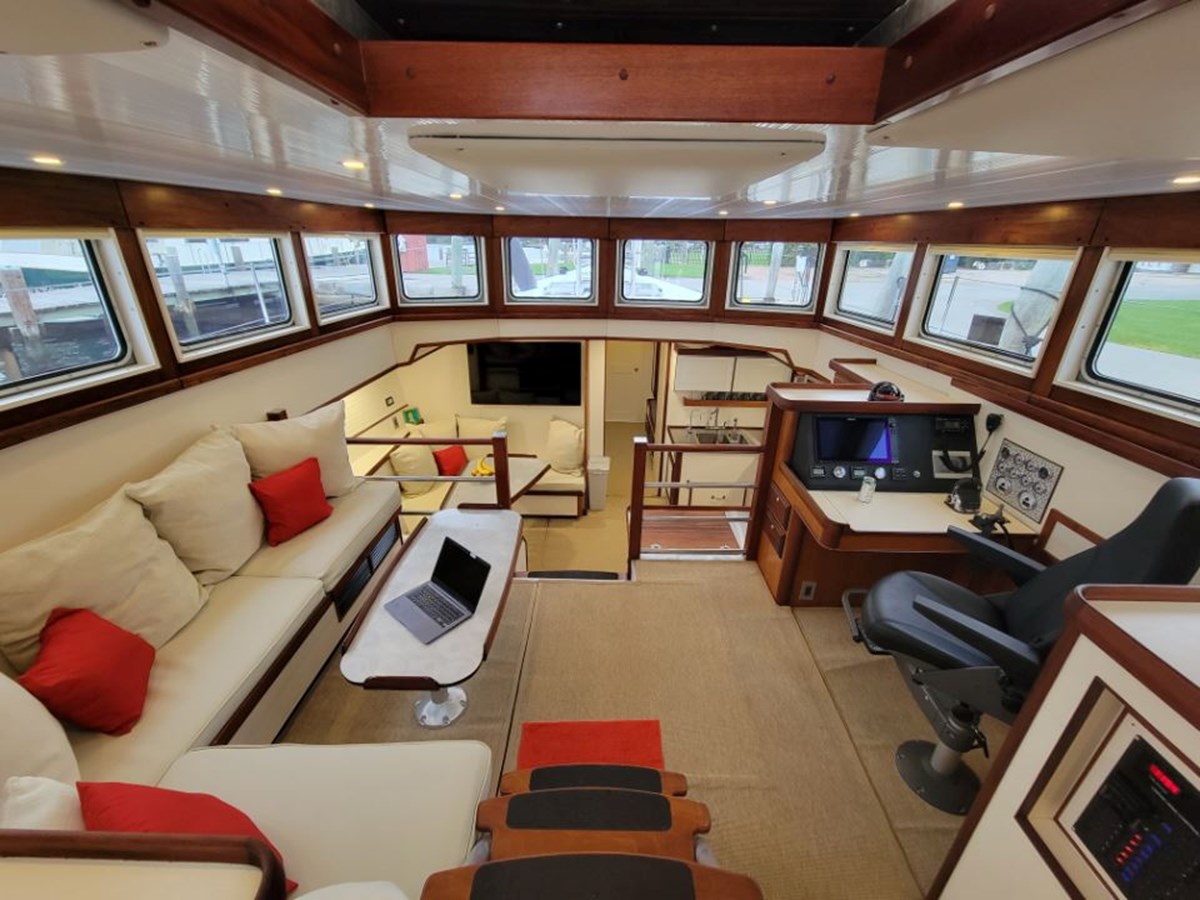

• Raised saloon with an “L” shaped settee to port, and the lower inside helm station to starboard. Seating up to 6. With aluminium/mahogany coffee table.

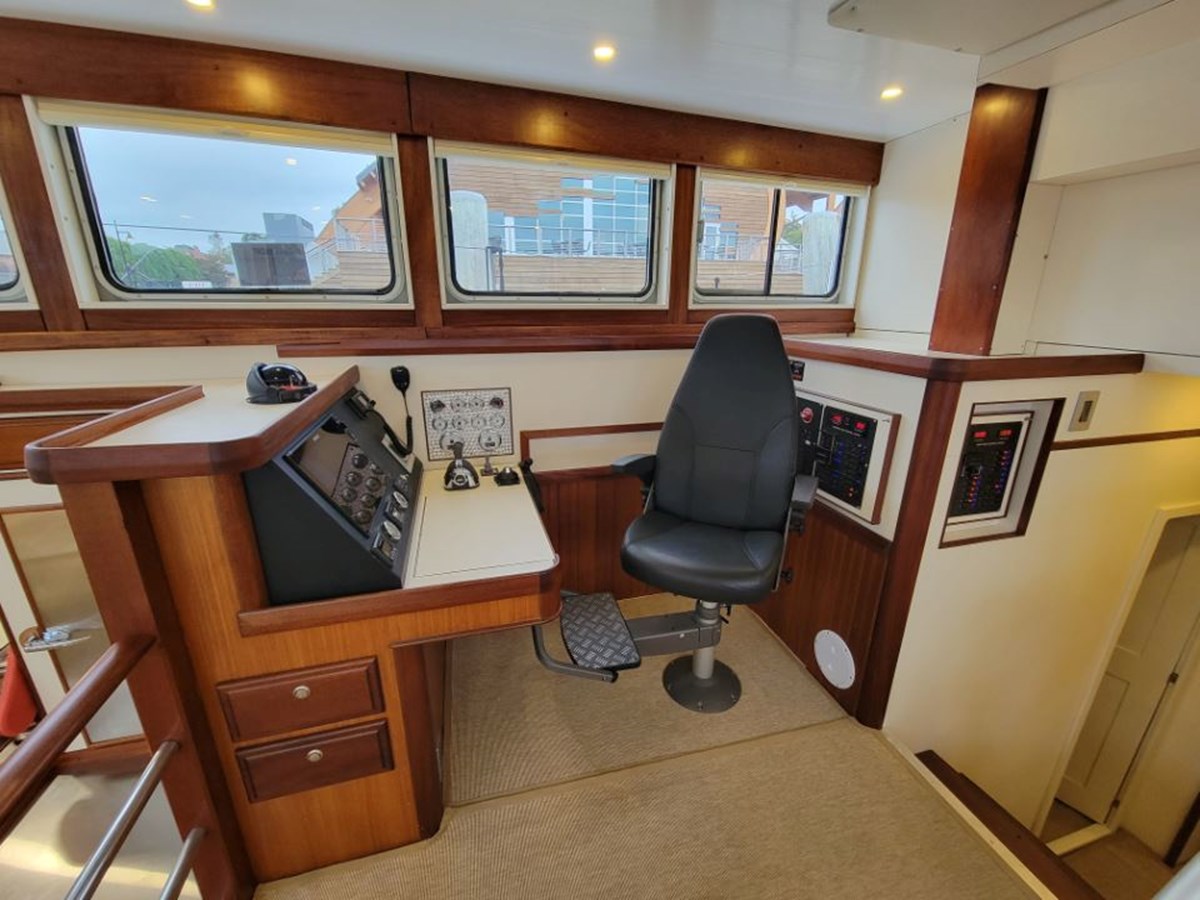

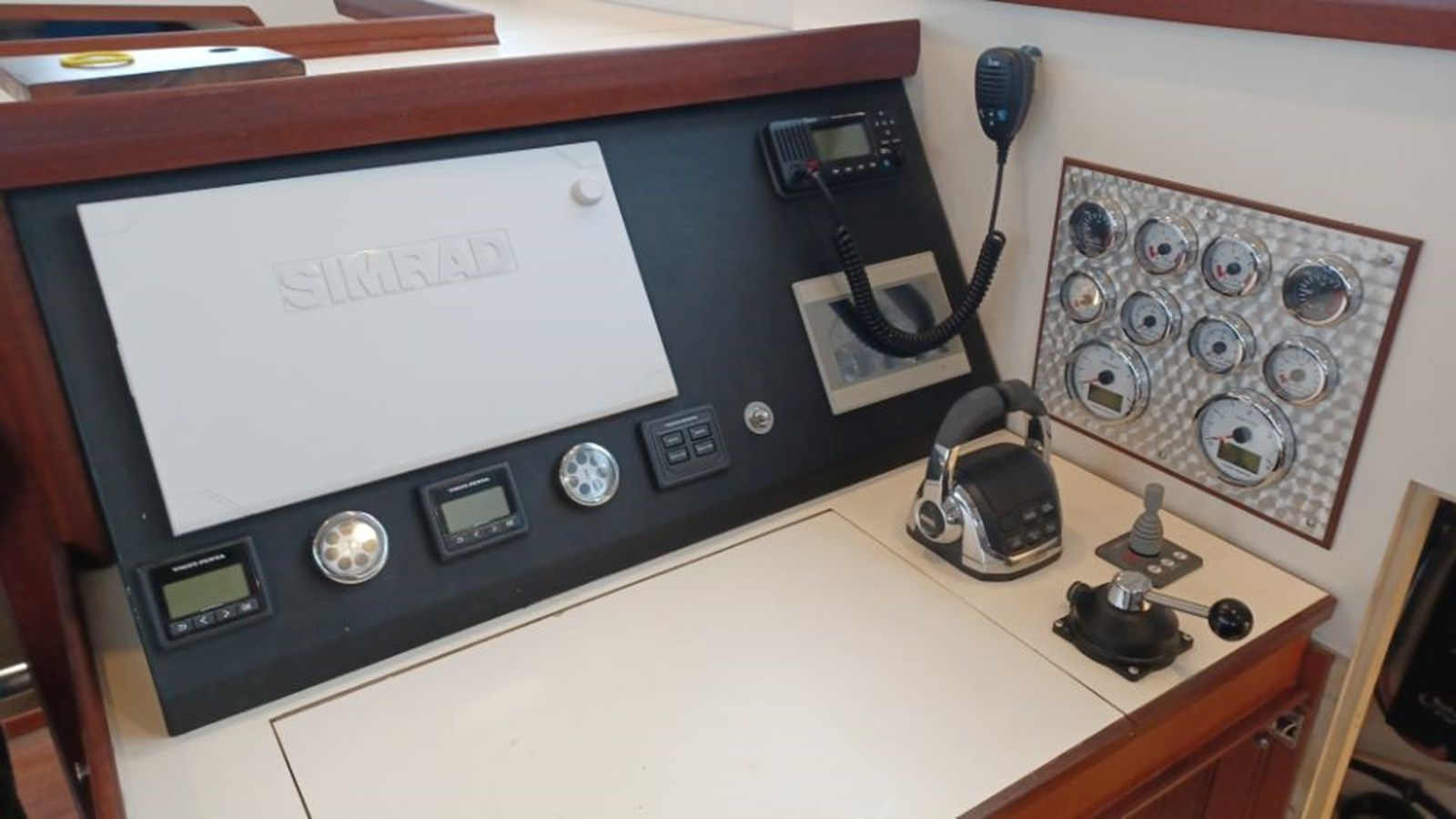

• Pilothouse helm control station with plotter, VHF, joystick controls, Volvo engine controls, and stabilizer controls.
• Starboard Norsap adjustable helm chair.

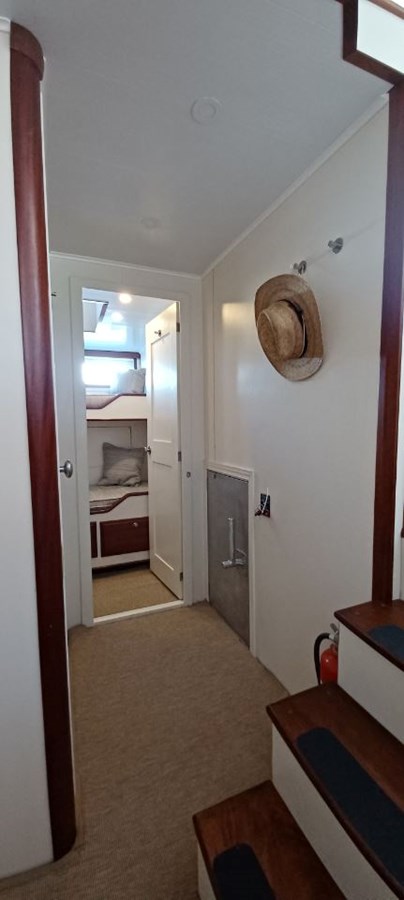

Aft Accommodations:

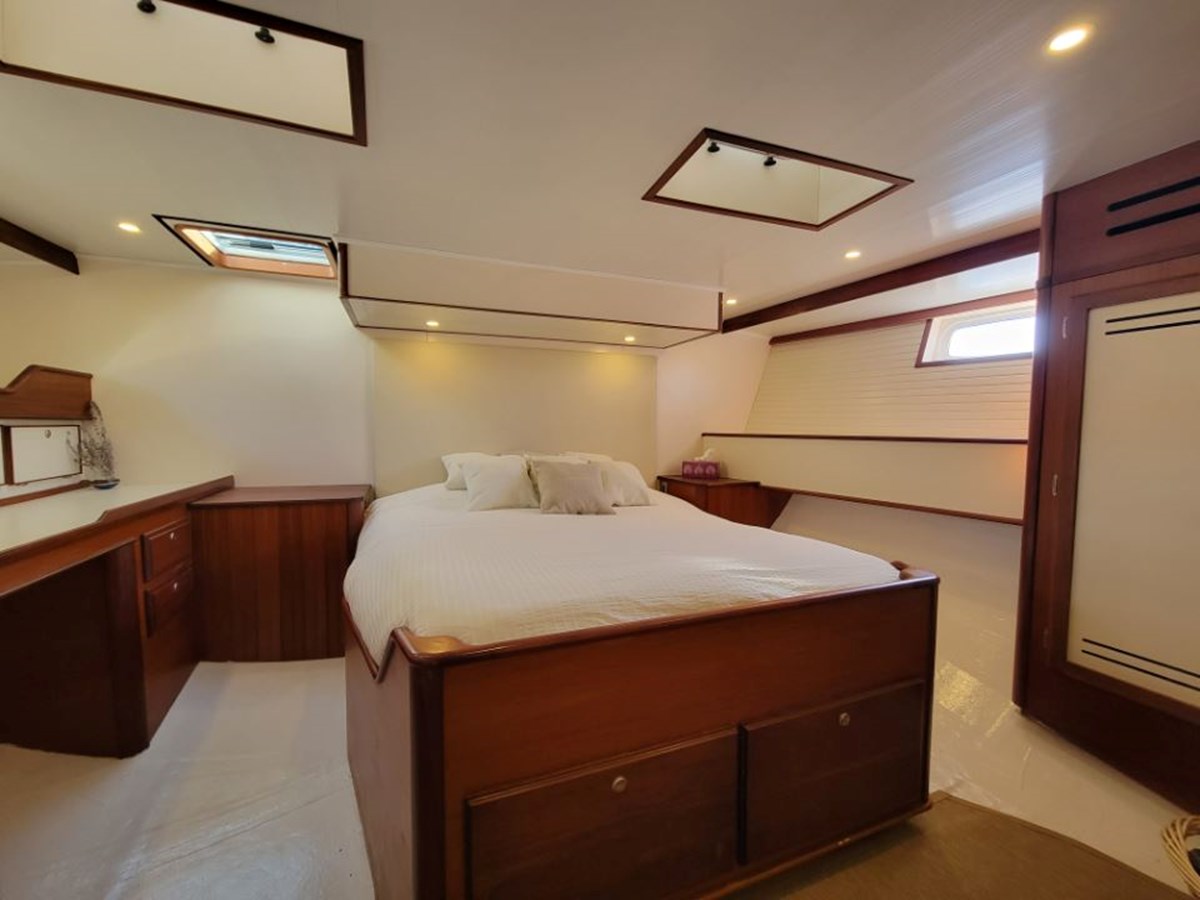

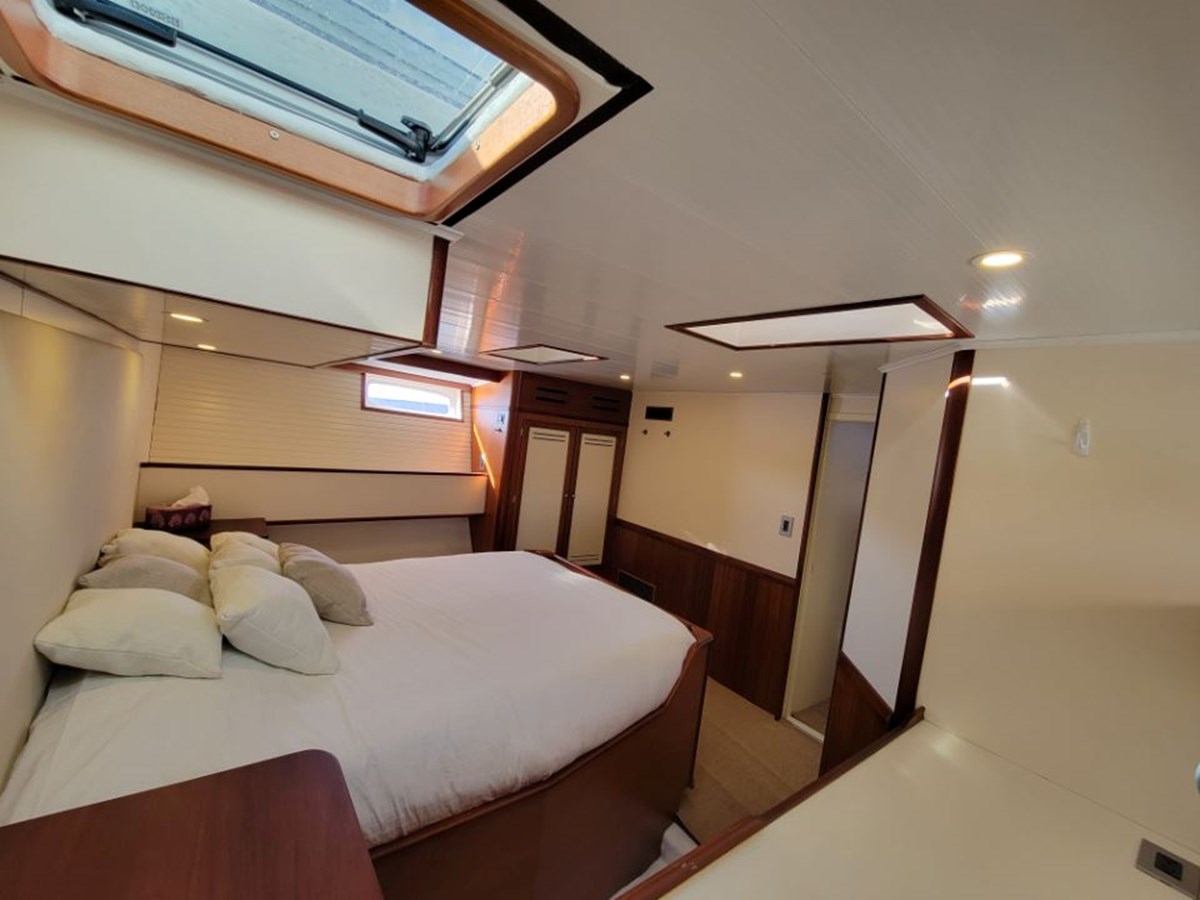

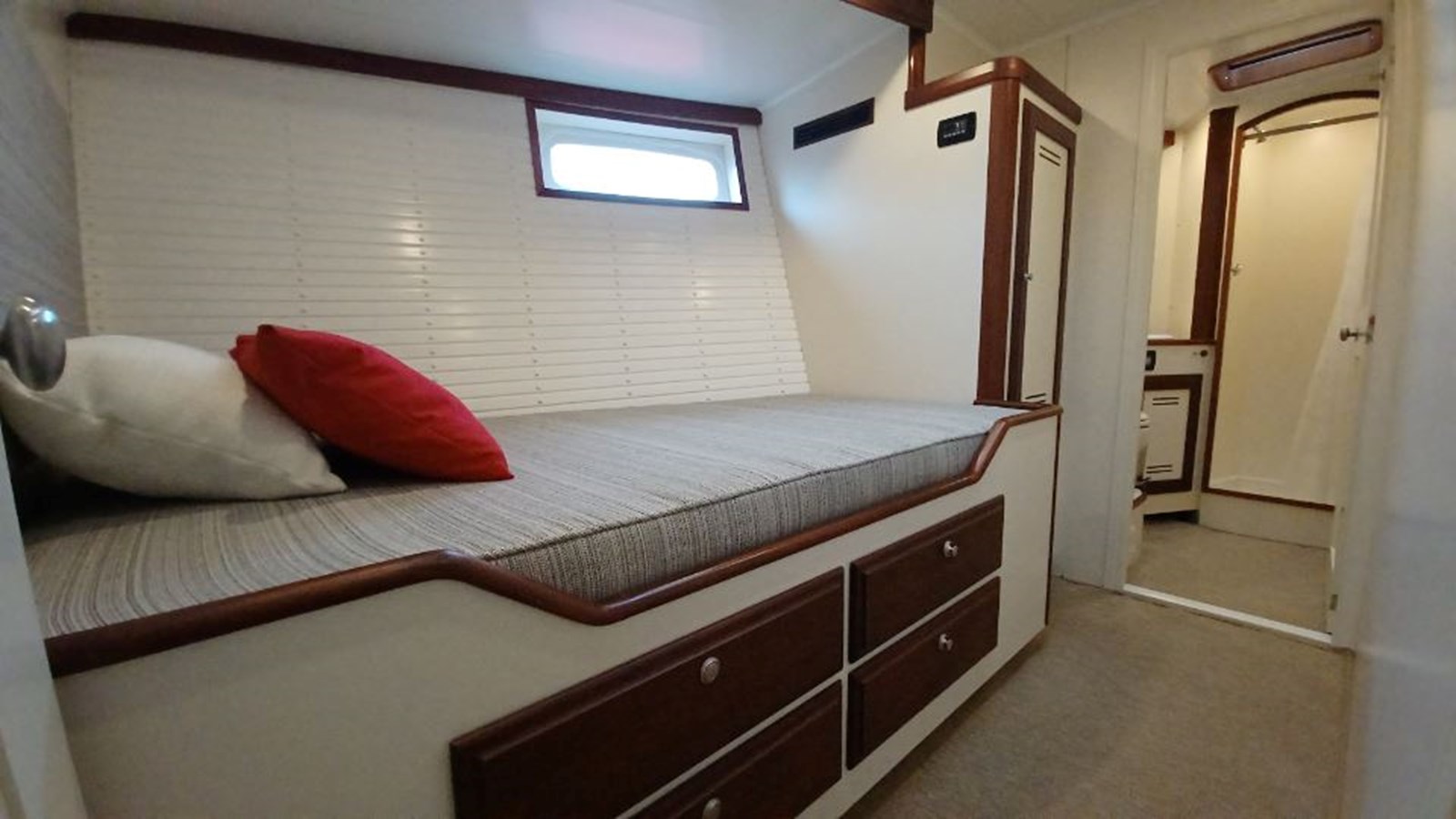

• Large, full width, aft master stateroom with king size berth, Theford electric toilet en-suite head, desk, closets, and storage, with one opening hatch, 2 opening portlights, and 2 non-opening side portlights. 6’ 7” headroom. Closets and drawers for storage.

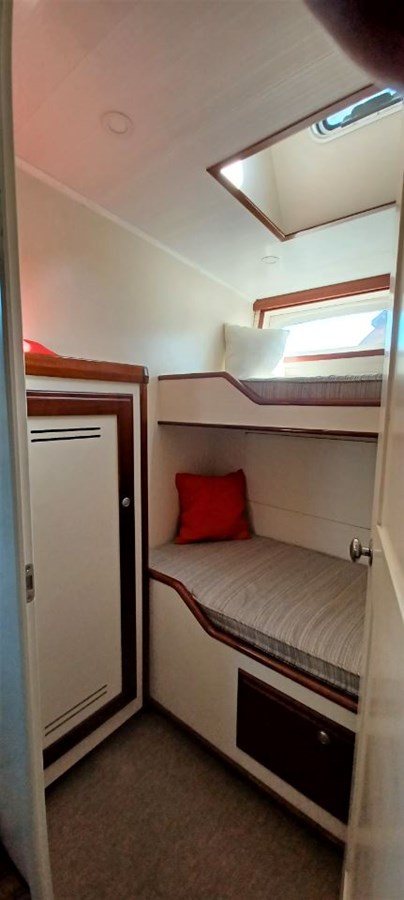

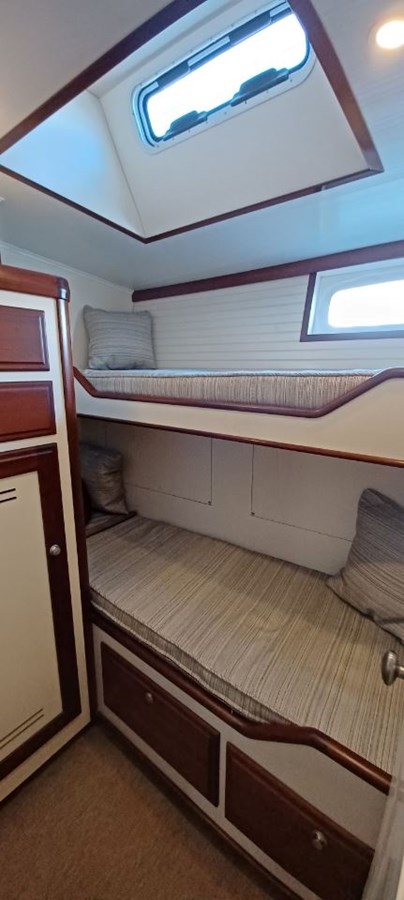

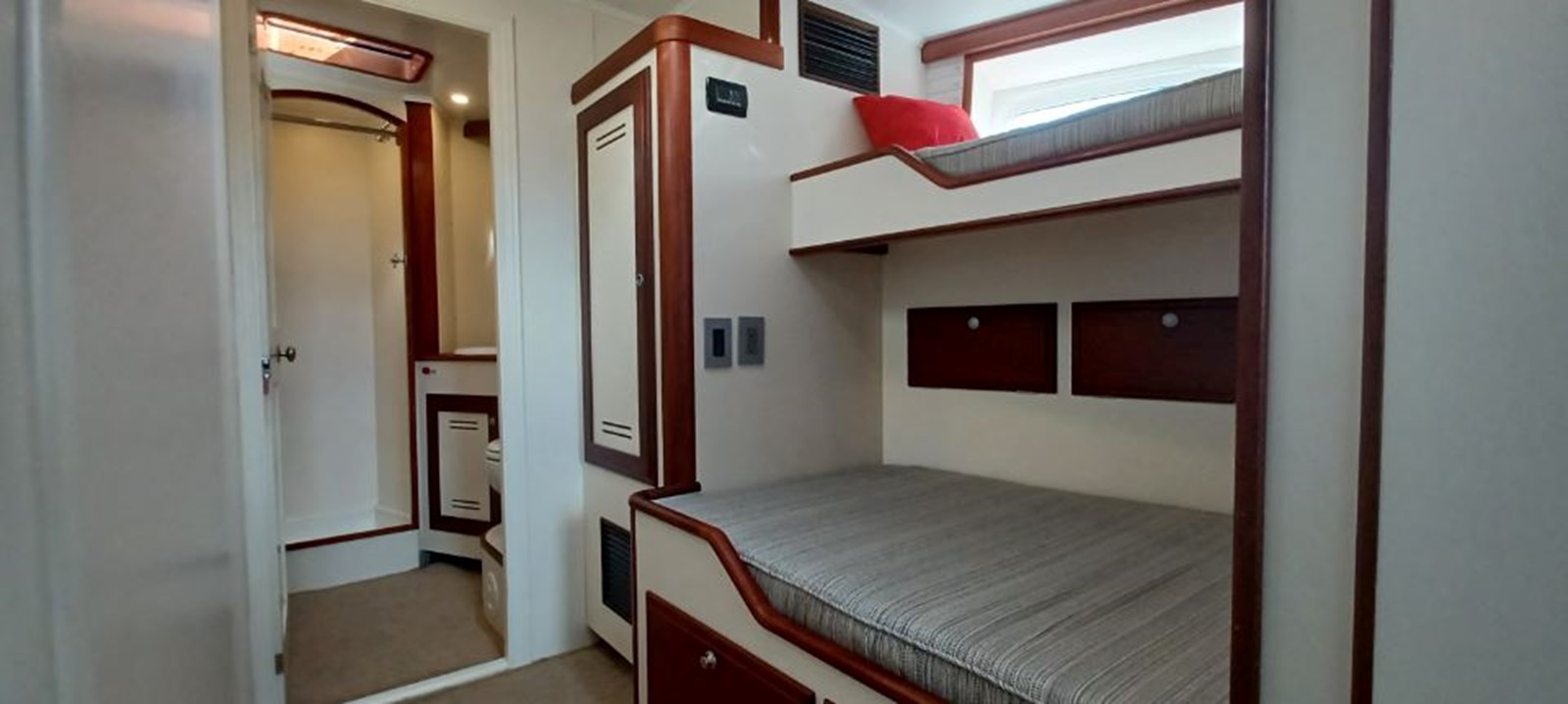

• 2 x Additional staterooms with upper and lower bunks (starboard and port location) with shared heads. Closets and drawers for storage.

Lazarette:

• 3 x Diving tanks.

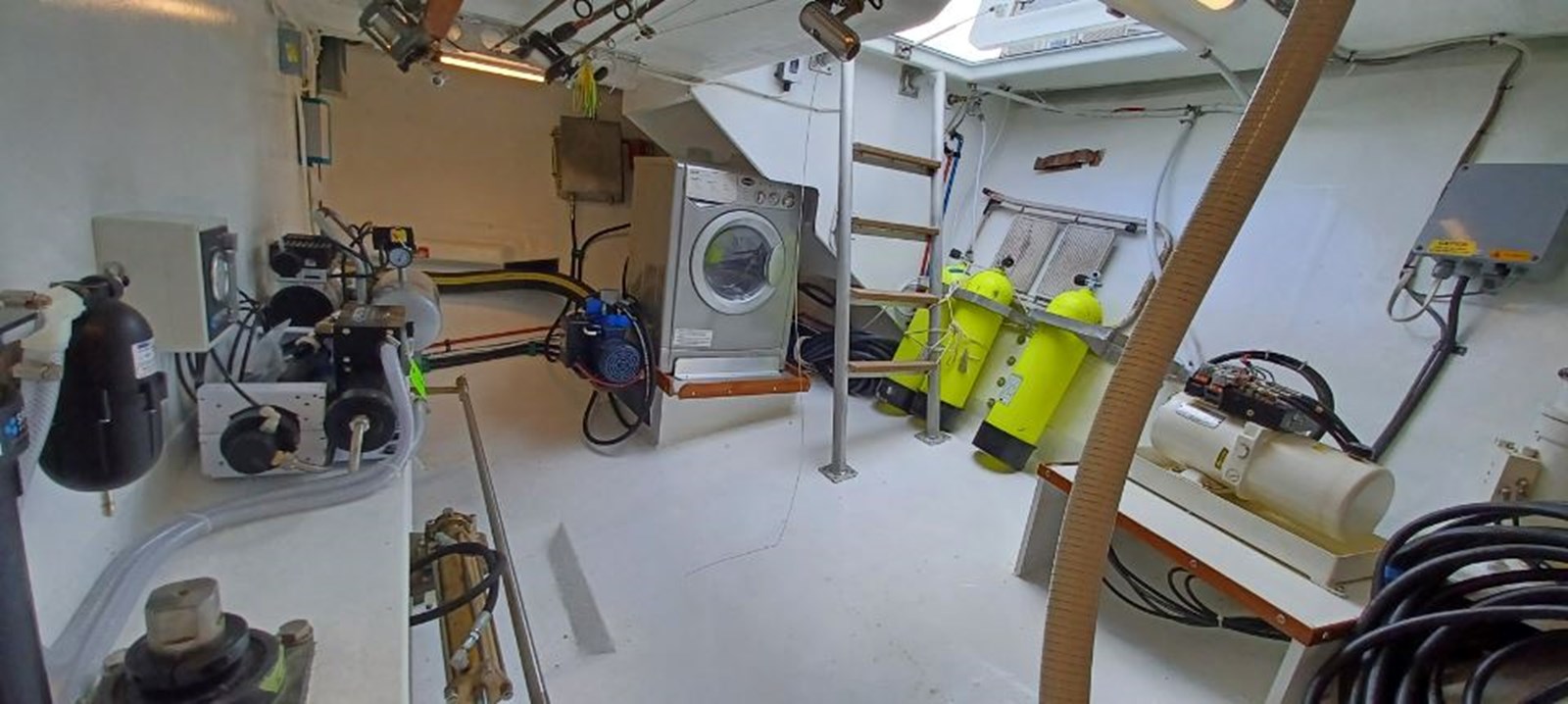

• Very large lazarette that houses the steering gear, steering pump, watermaker, crane hydraulics, and multiple storage areas.
• California Air (hookah compressor) with Hooka hoses and mouthpiece.

General:

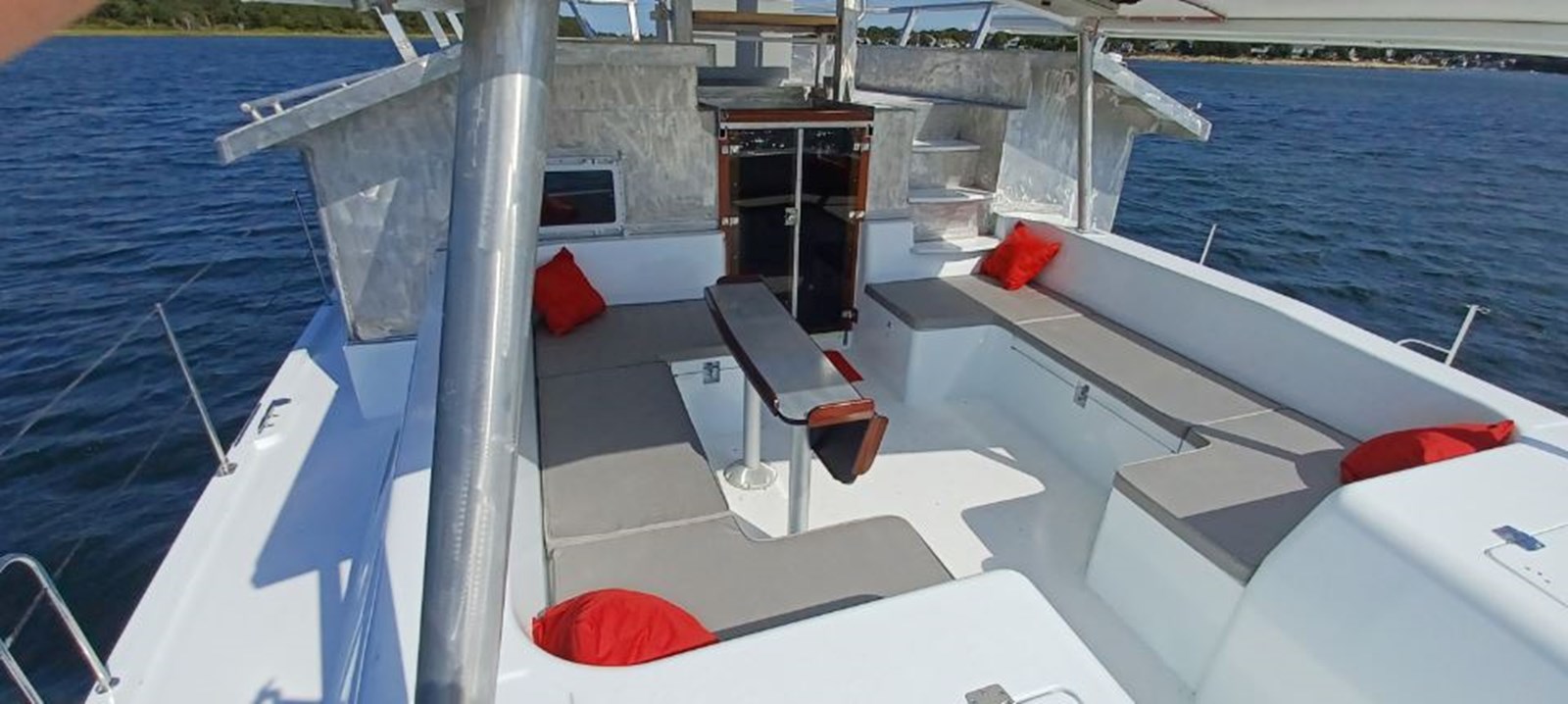

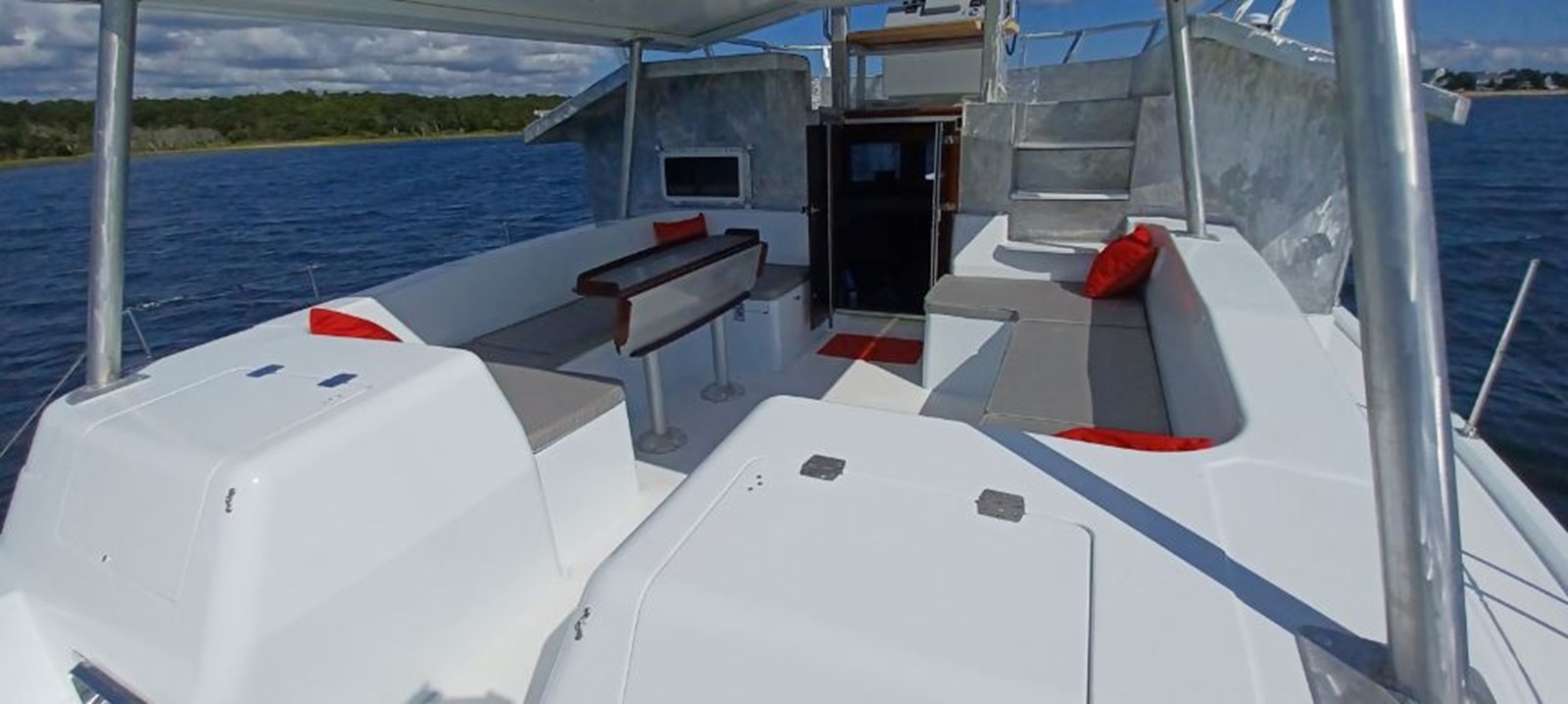

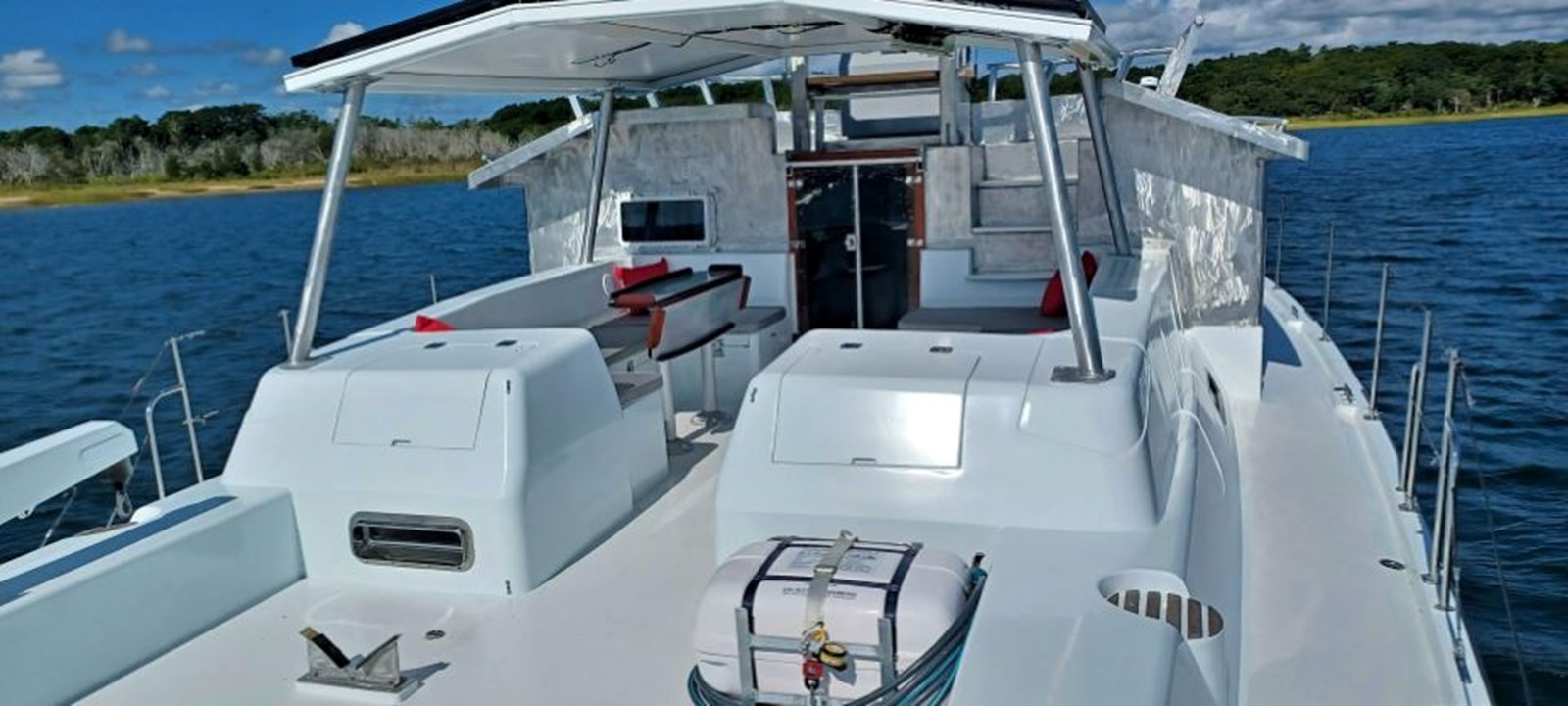

• Outside seating for 12, with folding dining table for 6/8, Sunbrella, closed cell foam cockpit cushions. This is protected from the sun by a 12’ (3.65m) x 12’ (3.65m) hard, aluminium framed awning, which supports the 5 x 320 Watts solar panels.

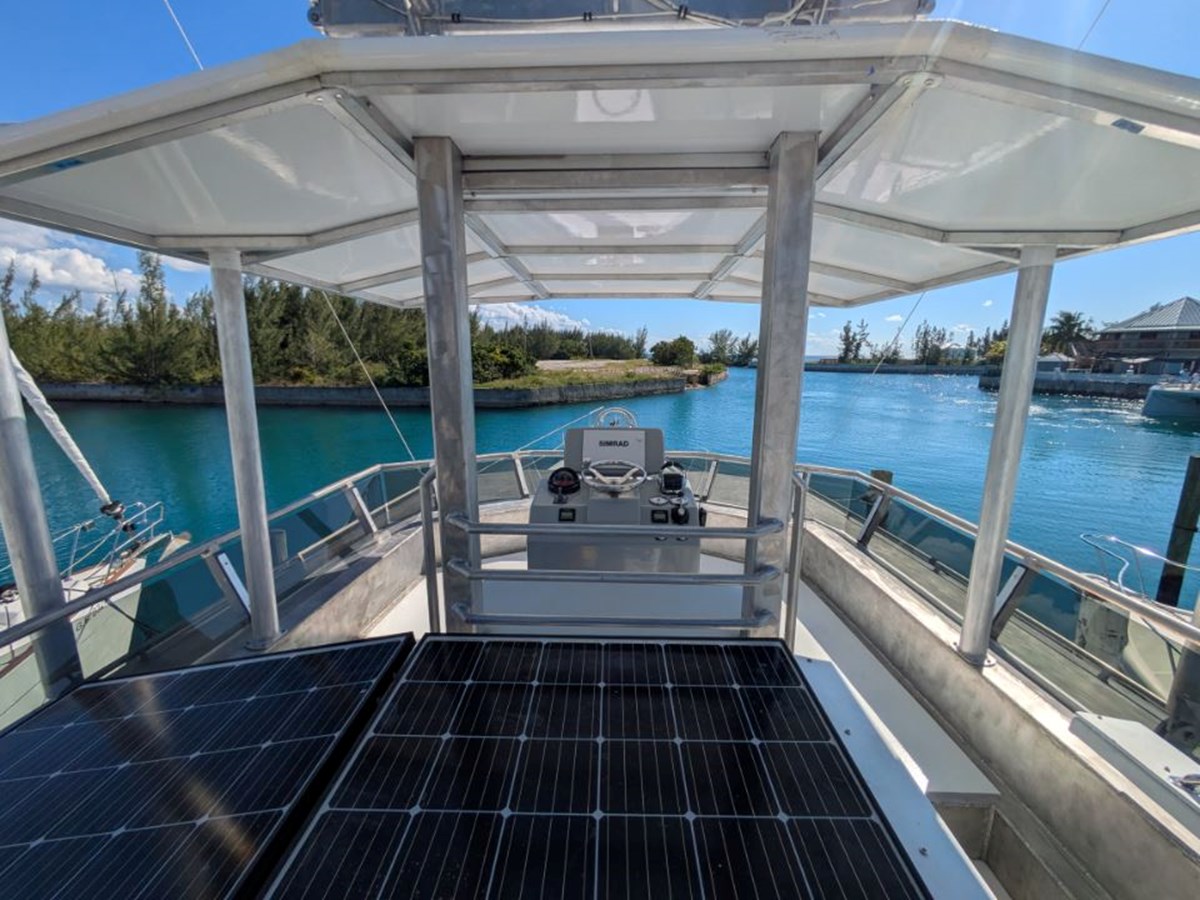

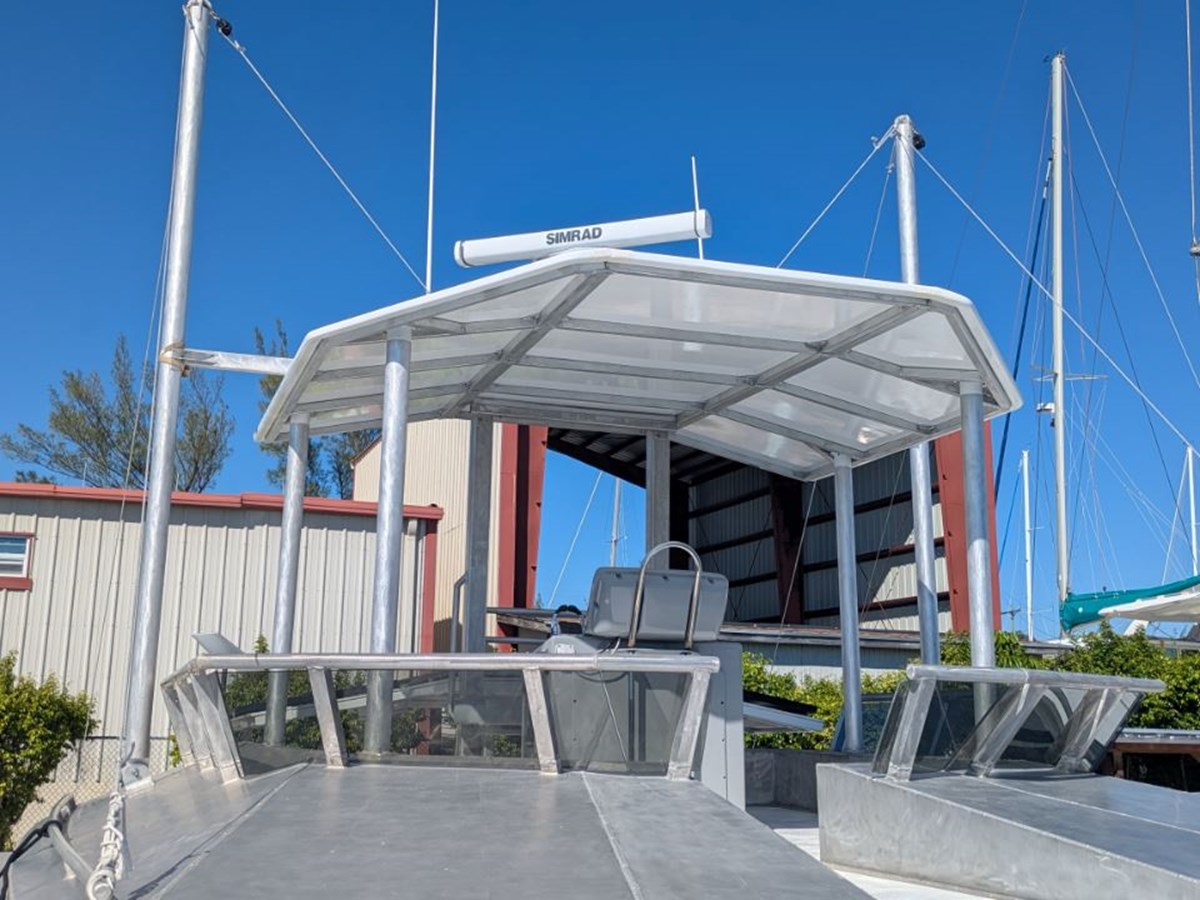

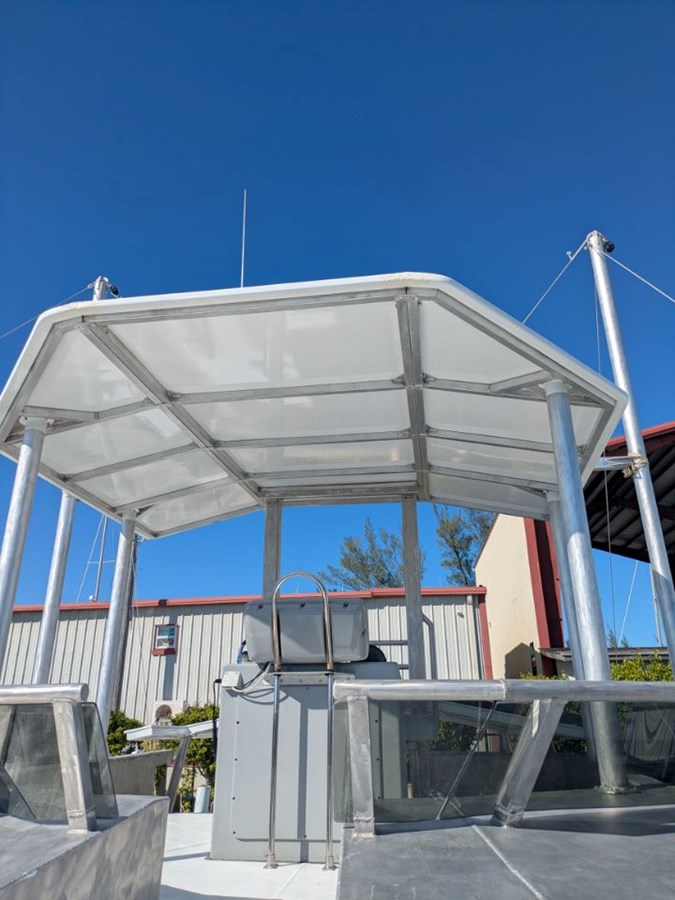

• Spacious flybridge with helm station and protected bimini arrangement installed 2025.

Anchoring & Mooring Equipment:

• Anchor winch: Lewmar 3500 24vdc.
• 175# Lewmar claw anchor.
• 75# Rocna anchor plus 250 feet of 1 inch nylon rode.

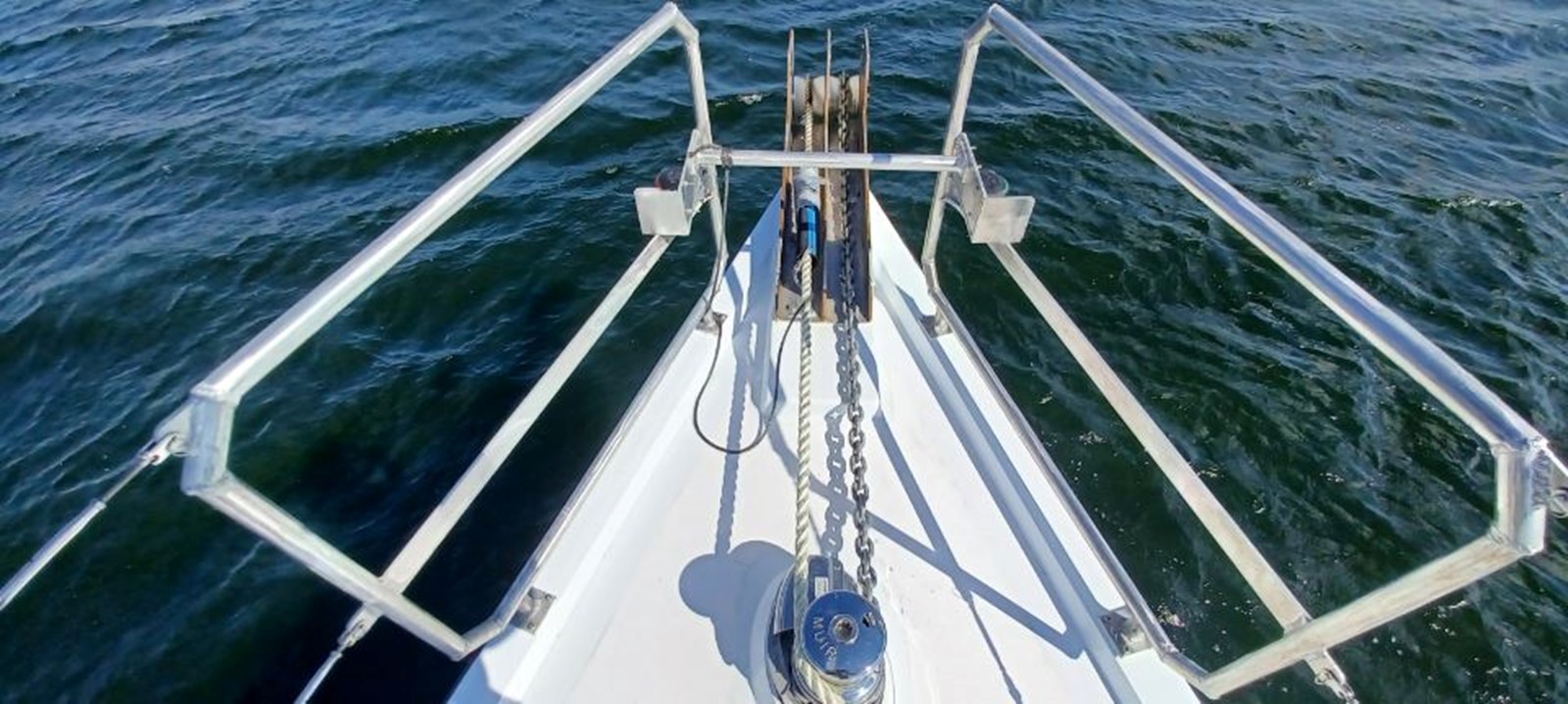

• Stainless bow roller ½ inch plates with dual nylon anchors.
• 350 feet 7/16 G4 chain.
• 4 x Large 14” stainless bollards.
• 4 x 12” Stainless cleats.

Covers, Canvas & Cushions:

• Aft deck seating cushions.
• Tender cover.
• Interior seat covers.
• Flybridge control station cover.
• Flybridge sun awning.
• Aft seating side sun shades.

Tender & Outboard:

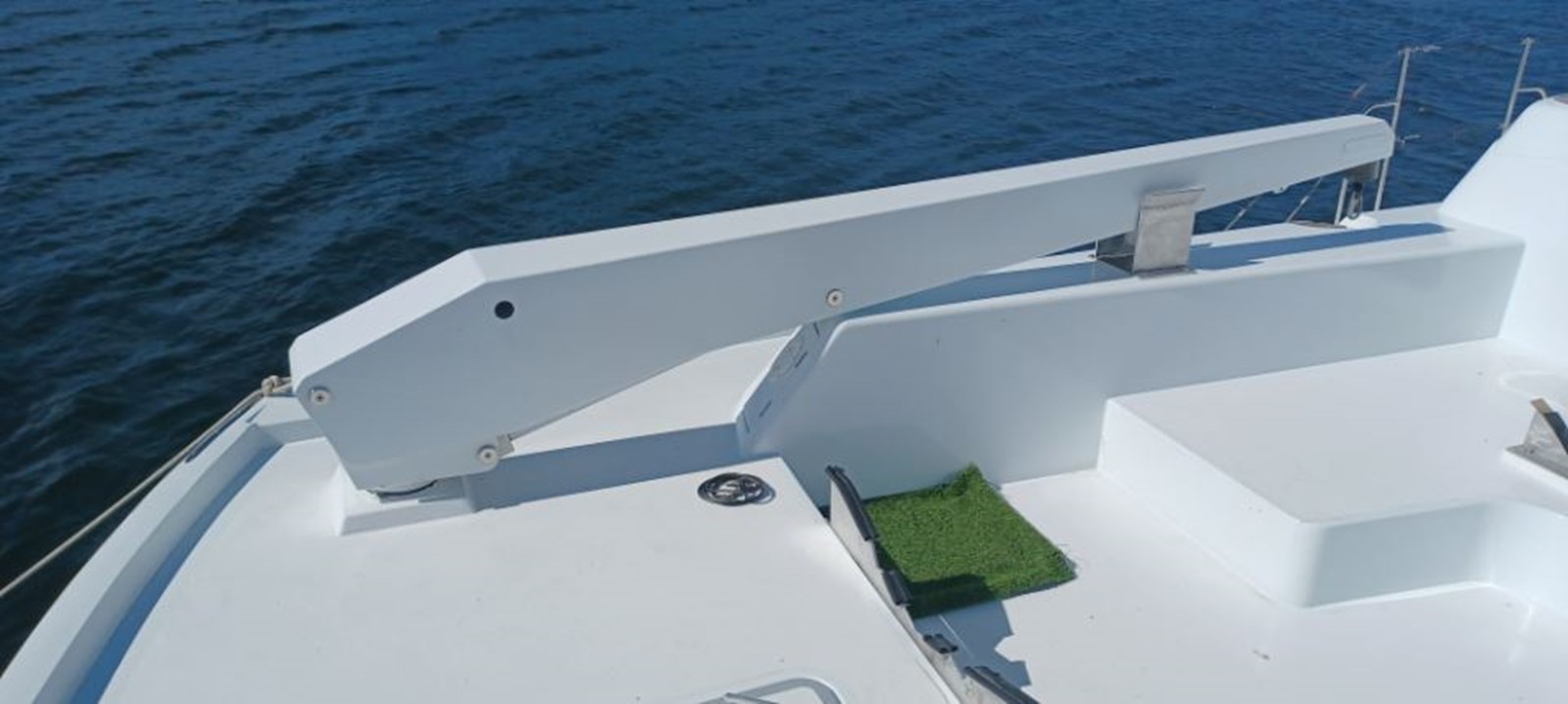

• Nautical Structures HMC 1100-pound capacity crane with 3 function hydraulics, boom up/down, 350-degree rotation, winch up/down, 120vac, cable remote control.
• Custom dinghy chocks.
• 12’ Highfield alloy inflatable rib with heavy plastic/ teak style sole, storage locker, double floor, Dyneema lifting harness, 20hp Yamaha outboard.
