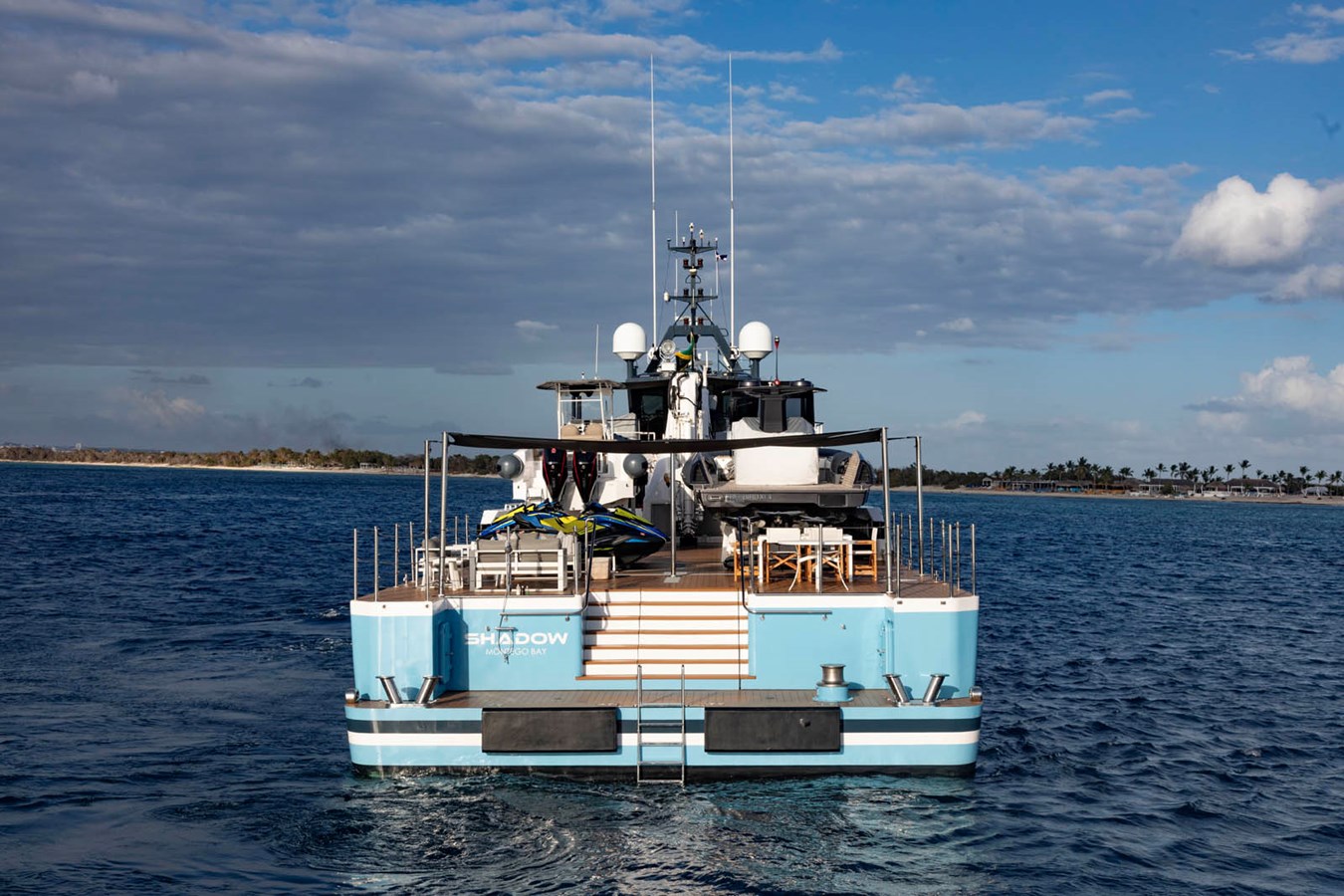

MAIN SPECIFICATIONS
Length Overall: 55.3m (181'5")
Length at Waterline: 55.3m (181'5")
Beam: 9.25m (30'5")
Draft: 3.30m (10'10")
Year Completed: 2017
Model Year: 2017
Refit: 2023

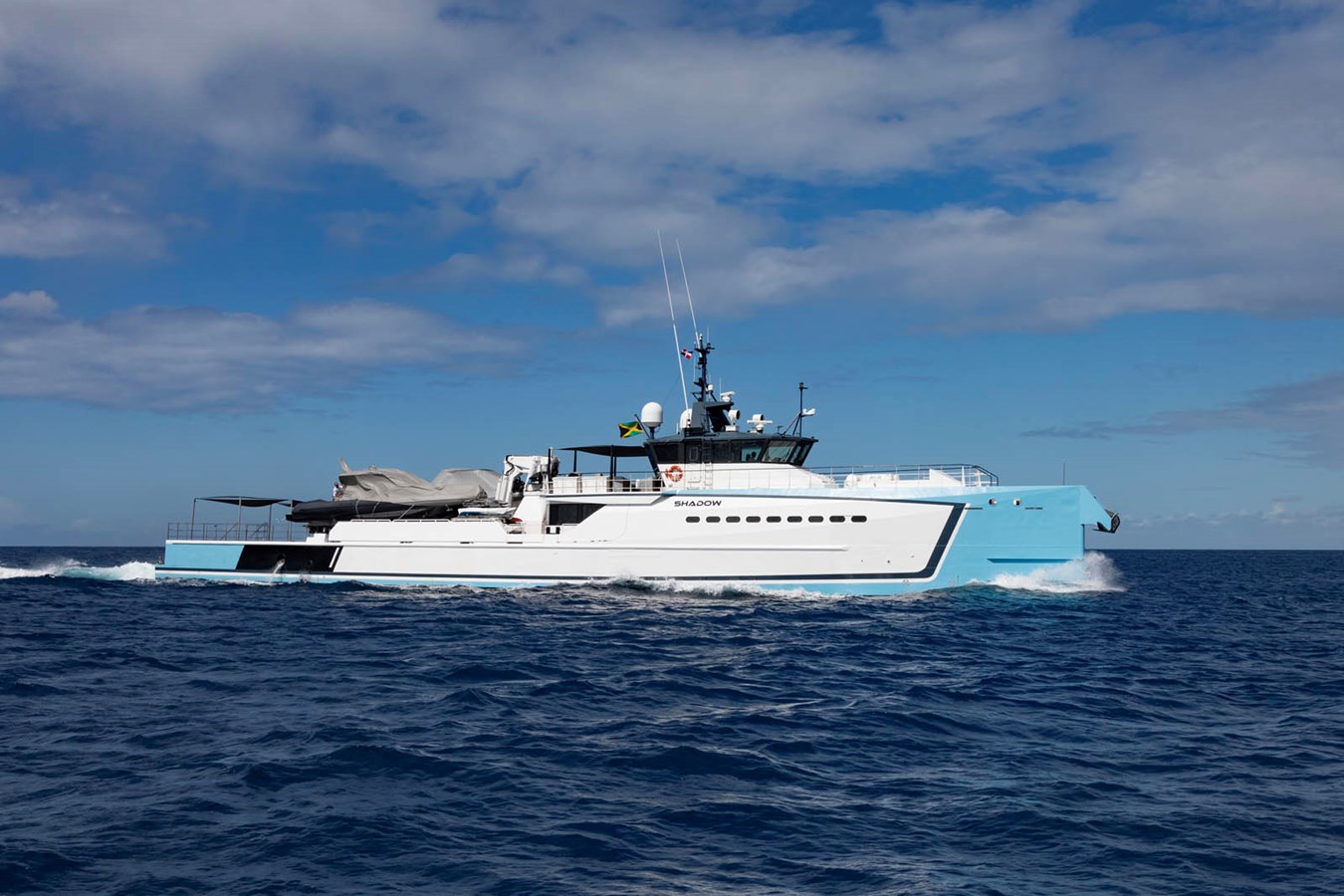

Type: Yacht Support Vessel
Tonnage: 489 GT / 146 NT
Displacement: 346 Tonnes
Hull Config: Displacement with Axe Bow
Guests: 6
Crew: 11
CONSTRUCTION
Builder: Damen
Naval Architect: Damen Yachting
Exterior & Interior Design/Stylist: Damen Yachting
Hull Material: Steel
Superstructure: Aluminum
Deck Material: Bolidt
Classification: Bureau Veritas
SPEED
Maximum: 21 kts
Cruising: 14.5Kts
Economical: 10 kts
Range: 5,000NM
Consumption @ Cruising: 465 lph (123 gph) @1200 RPM @ 14.5kn
CAPACITIES
Fuel: 168,099 L / 44,407 US Gallons
Water: 28,996 L / 7,660 US Gallons
Technical Fresh Water: 31,000 L / 8,179 US Gallons
Black Water: 30,000 L / 7,925 US Gallons
Lube Oil Capacity: Engine Oil – 1,048 L / 277 US Gallons
Hydraulic Oil – 247L / 65 US Gallons
Gear Oil – 247 L / 65 US Gallons
Waste Oil Capacity: 1360 L / 360 US Gallons
Bilge Water Tank: 1360 L / 360 US Gallons
CLASSIFICATION & CERTIFICATIONS
Flag: Jamaica
Classification: Bureau Veritas MACHINERY

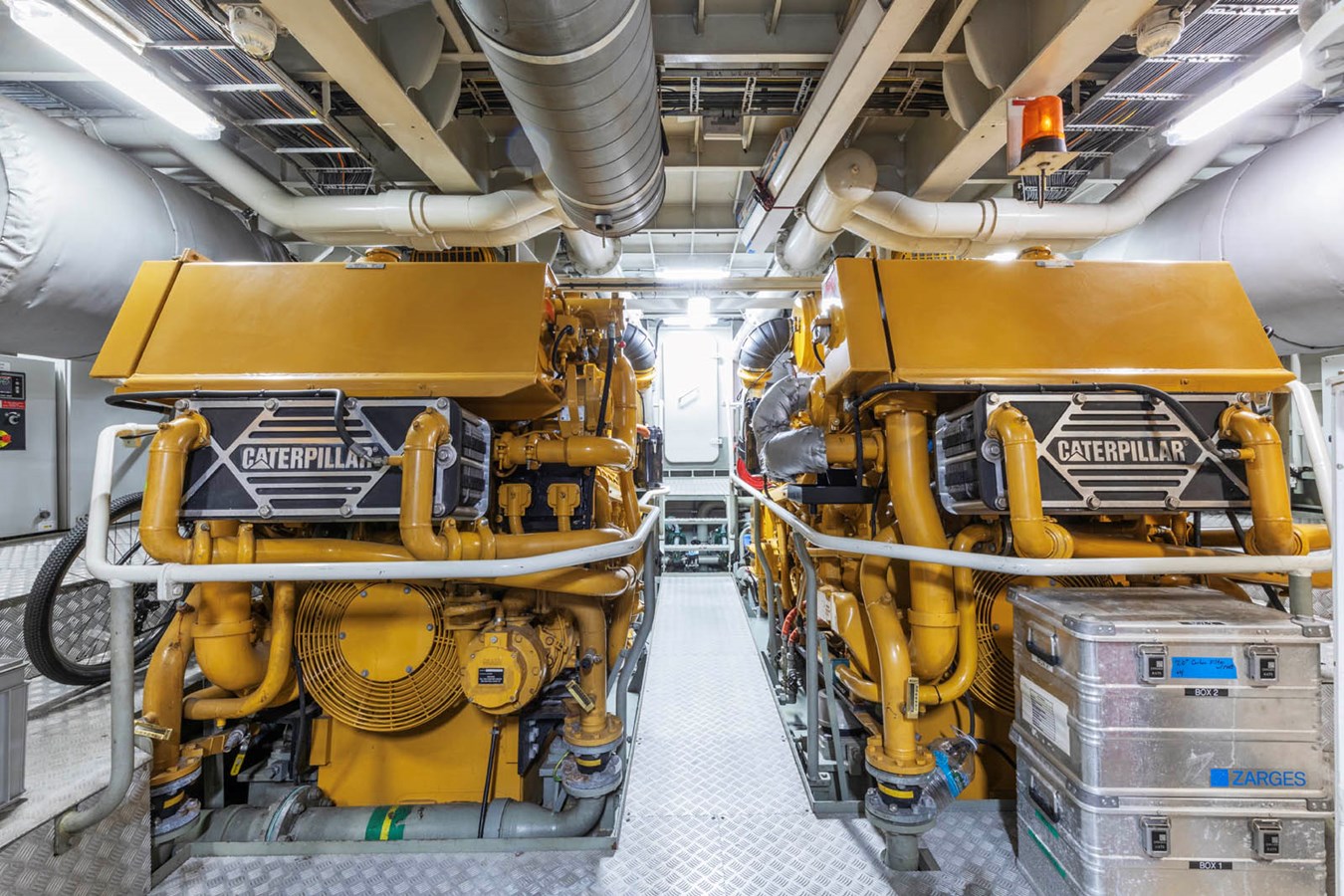

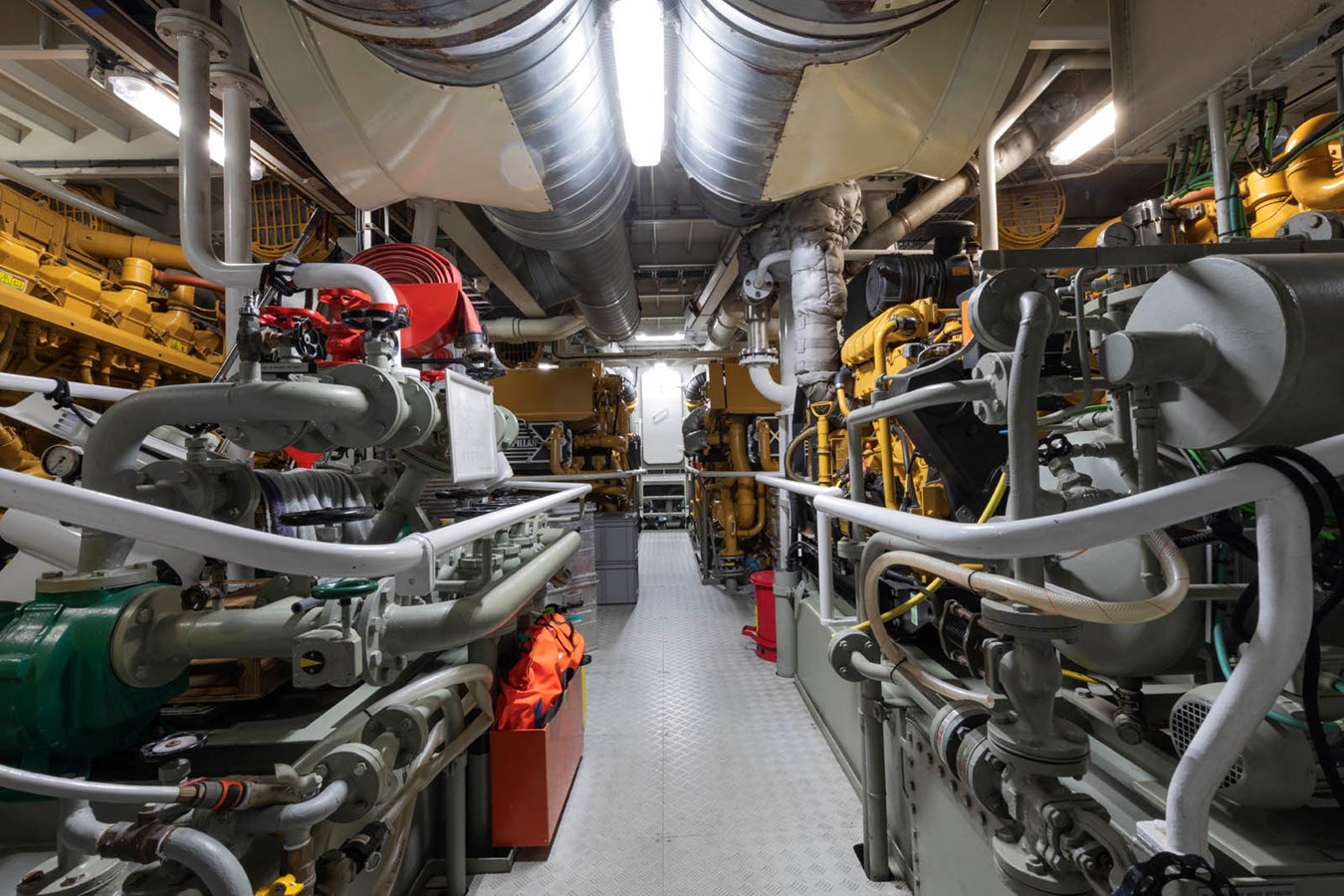

MAIN ENGINES
Engine Type: 4 x Cat 3512c main engines 1118kW@1800rpm
Horsepower: 6000 HP
Engine Serial Numbers: PXC 00221/PXC 00222/PXC 00223/PXC 00224
Main Engine Hours (Port): 5610, 5778
Main Engine Hours (Stbd): 5713, 5794

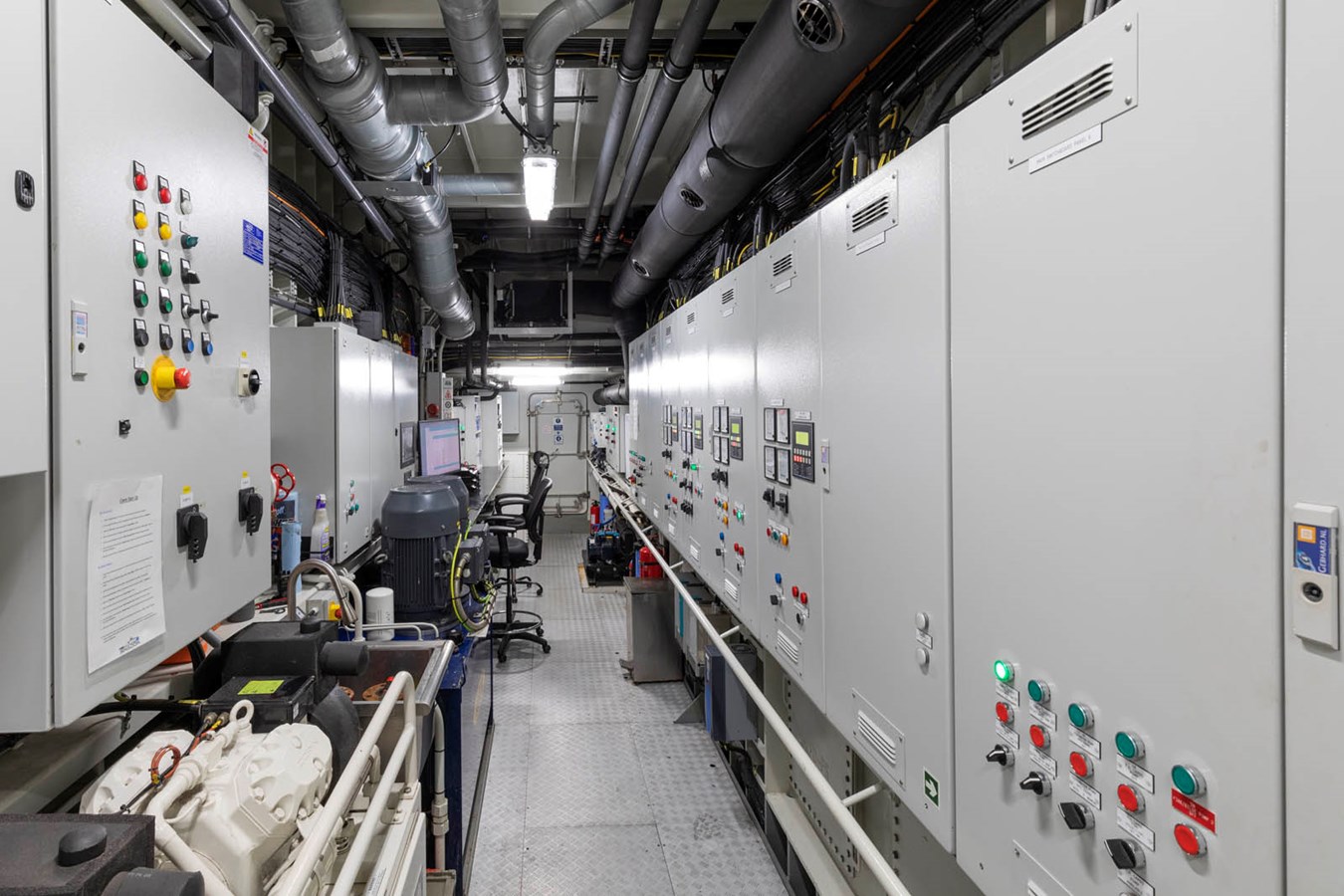

GENERATORS & ELECTRICITY
Output: 300kW
Generators: 3 x Cat C4.4 Generators 100kW
Generator Fuel Consumption: 20 l/H
Port Generator Hours: 11,431
Center Generator Hours: 10,272
Starboard Generator Hours: 9326
Shore power: Eekels/Marpower SPC 415/0150EW Shore power convertor 150 kVA (2 shore leads)
Generator Starting: Electric
BATTERIES
Service/House Batteries: 24VDC/230Ah
Generator Starting: 24VDC/160Ah
Main Engine Starting: 24VDC/240Ah
Emergency/GMDSS: 24VDC/200Ah
PROPULSION & STEERING
Drive: 4 Prop shaft & 5 Blade Fixed Pitch Prop
Gearboxes for Main Engines: Reintjies - ZWVS 730/1 (K21A)
Stabilizer: 2 x Quantum QC-2200 HD Zero Speed
Stabilizer Underway: YES
Stabilizer at Anchor: YES
Steering System: Sperry Marine – Model: 190481-0100D OTHER MACHINERY
Water Makers: Water makers Inc. Model WMSQ-7500 28,390L
Water Softeners: Portable Wet Spot Water Softener
Bow Thruster: 2x Veth 85kW – Model VT80-e
Fuel Separator and Filtration: Westfalia – Model: OTC 3-02-137
Sewage System: Hamann HL-Cont PLUS 025
Fresh Water System: JOWA Silver Sterilizer -Model J30005-00010 / 3 Daalderop, Hot Water Calorifier 5.2Kw / Wyckomar Inc UV Purification / 2 Water Pump and Accumulator
Oily Water Separator: Facet International Bilge Water Separator – Model CPS- 2,5B MK III + EBM14X1 + BilgMon488
Air Compressor: Powerex Air Compressor – Model -SBS10B7S0022401

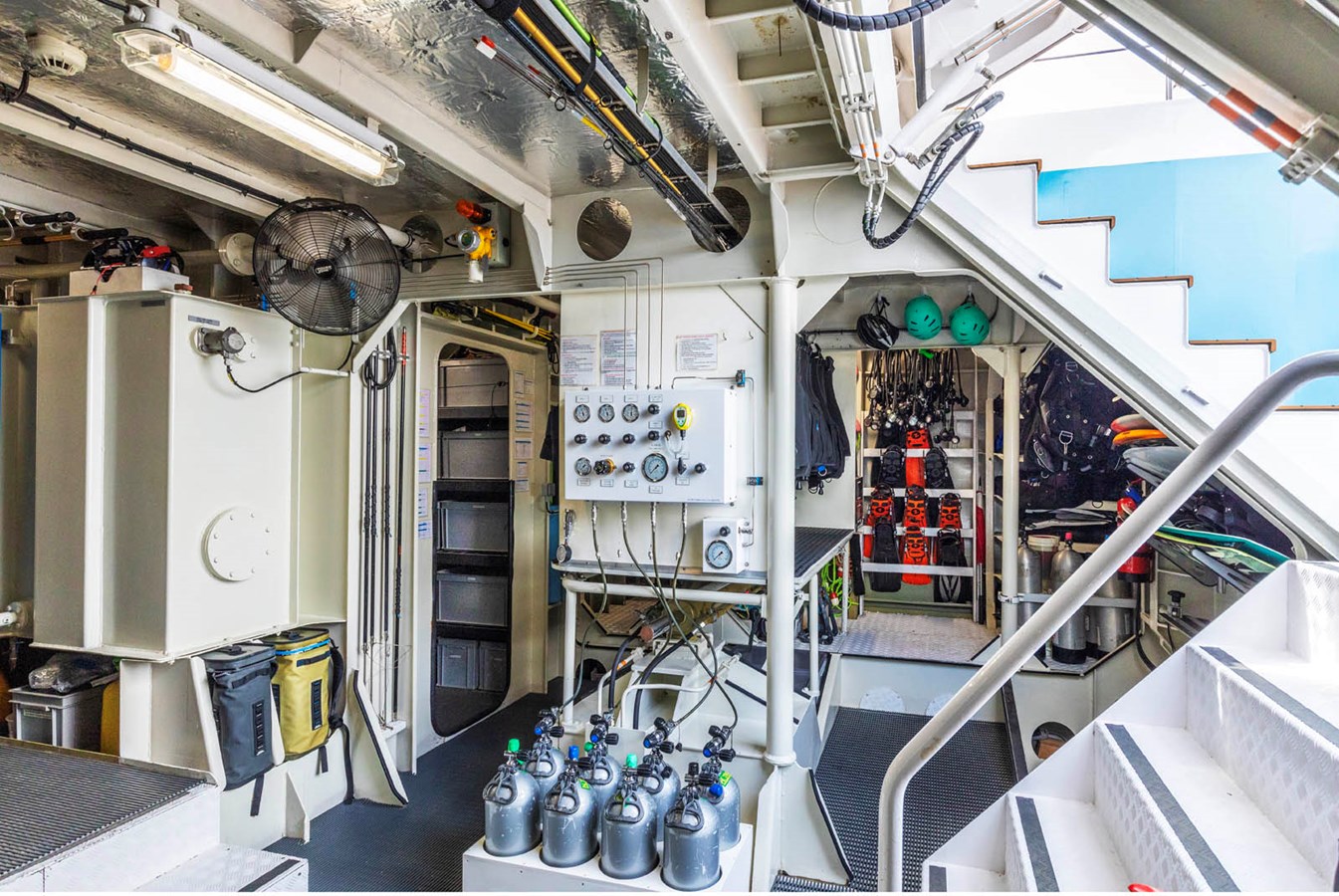

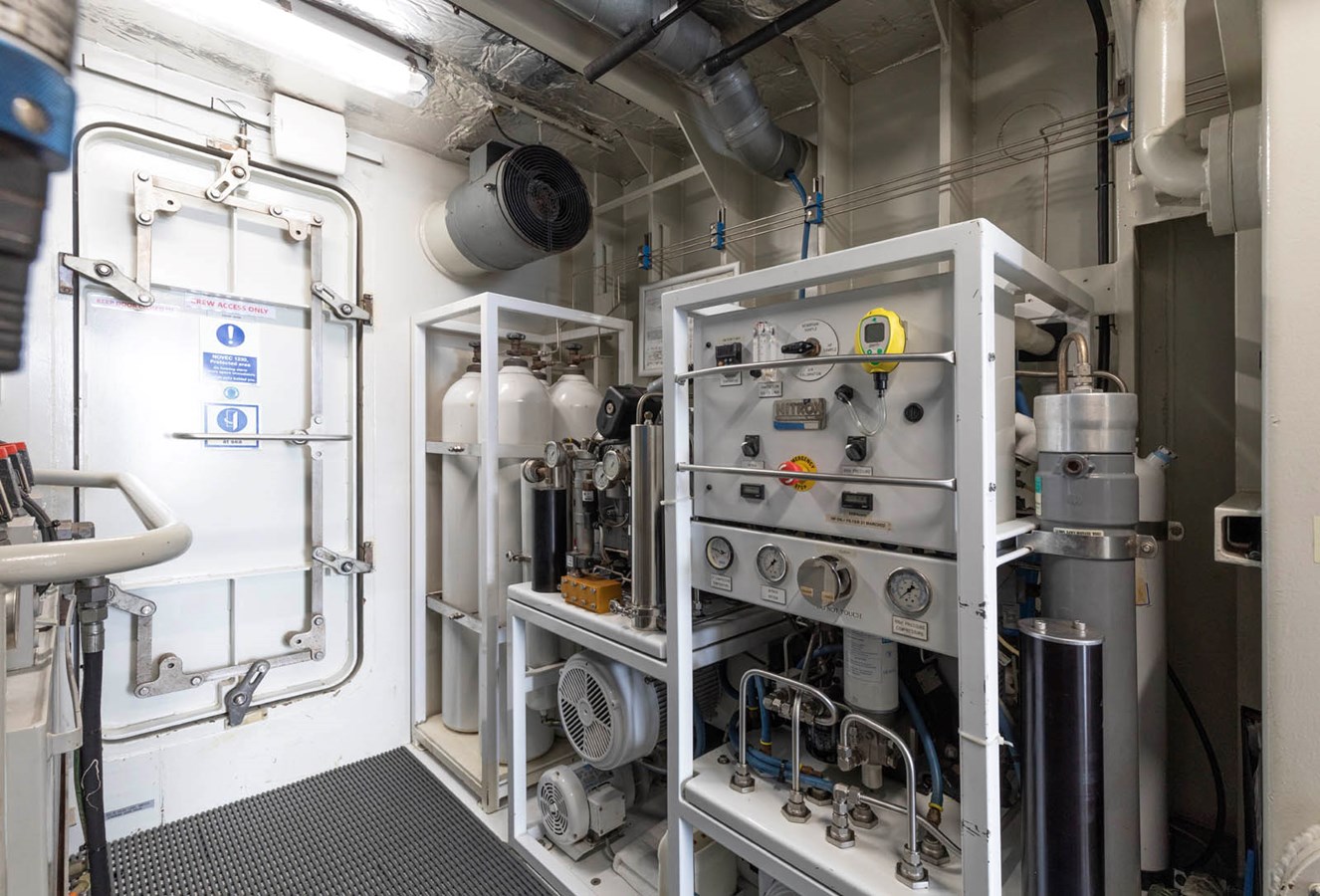

Dive Compressor: Bauer - JRII-E3Y/208
Nitrox Dive System: Nitrox Solutions Inc – NS -750 - WC
Air Conditioning: Heinen and Hopman – HVAC Plant 2 Dorin Compressors, condensers, evaporators- Model 2x H2500CC with 120Kw cooling capacity, 1 Fresh Air Make up Unit – Salor – 2000m3/hour & 41Kw cooling capacity
COMMUNICATION AND NAVIGATIONAL EQUIPMENT

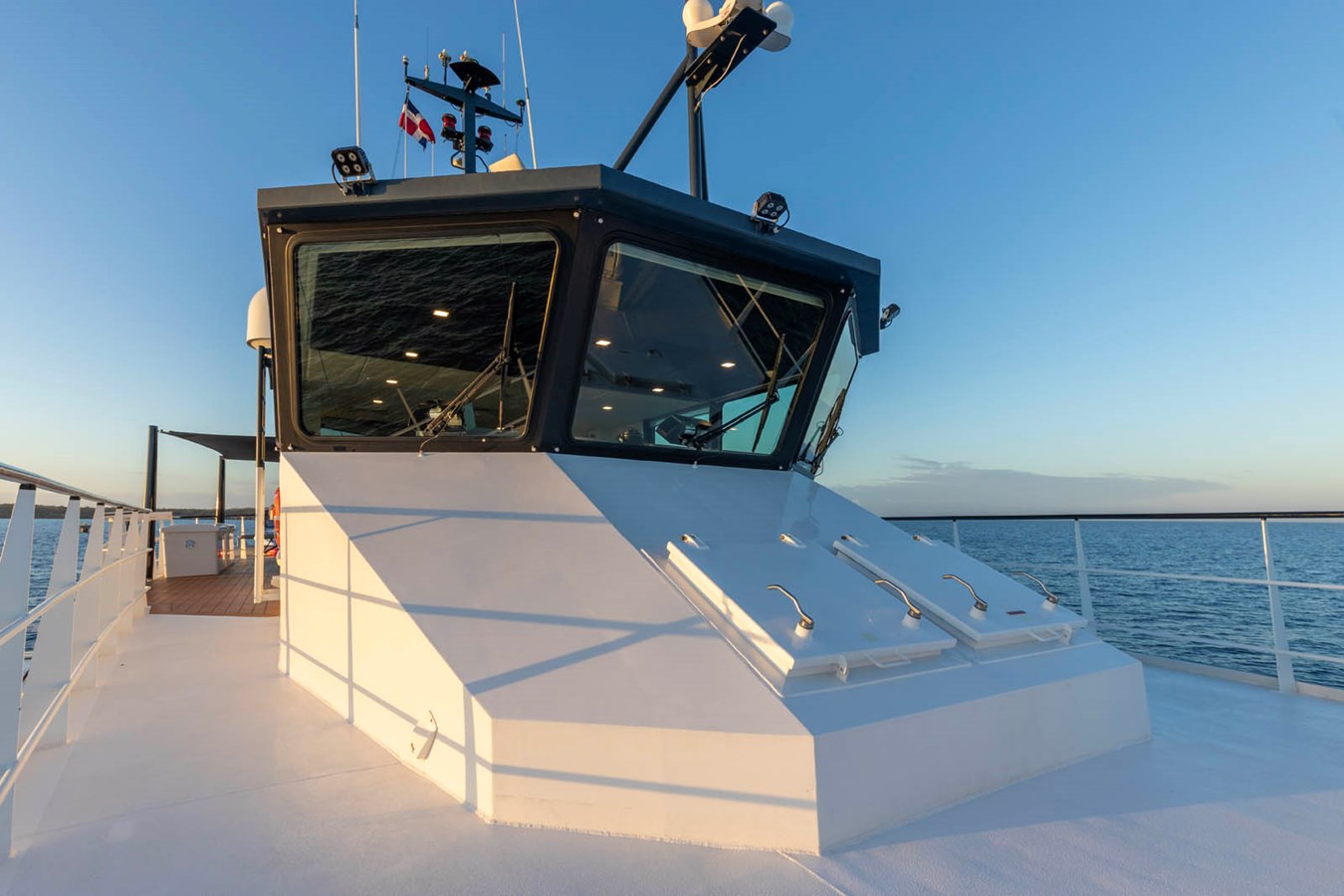

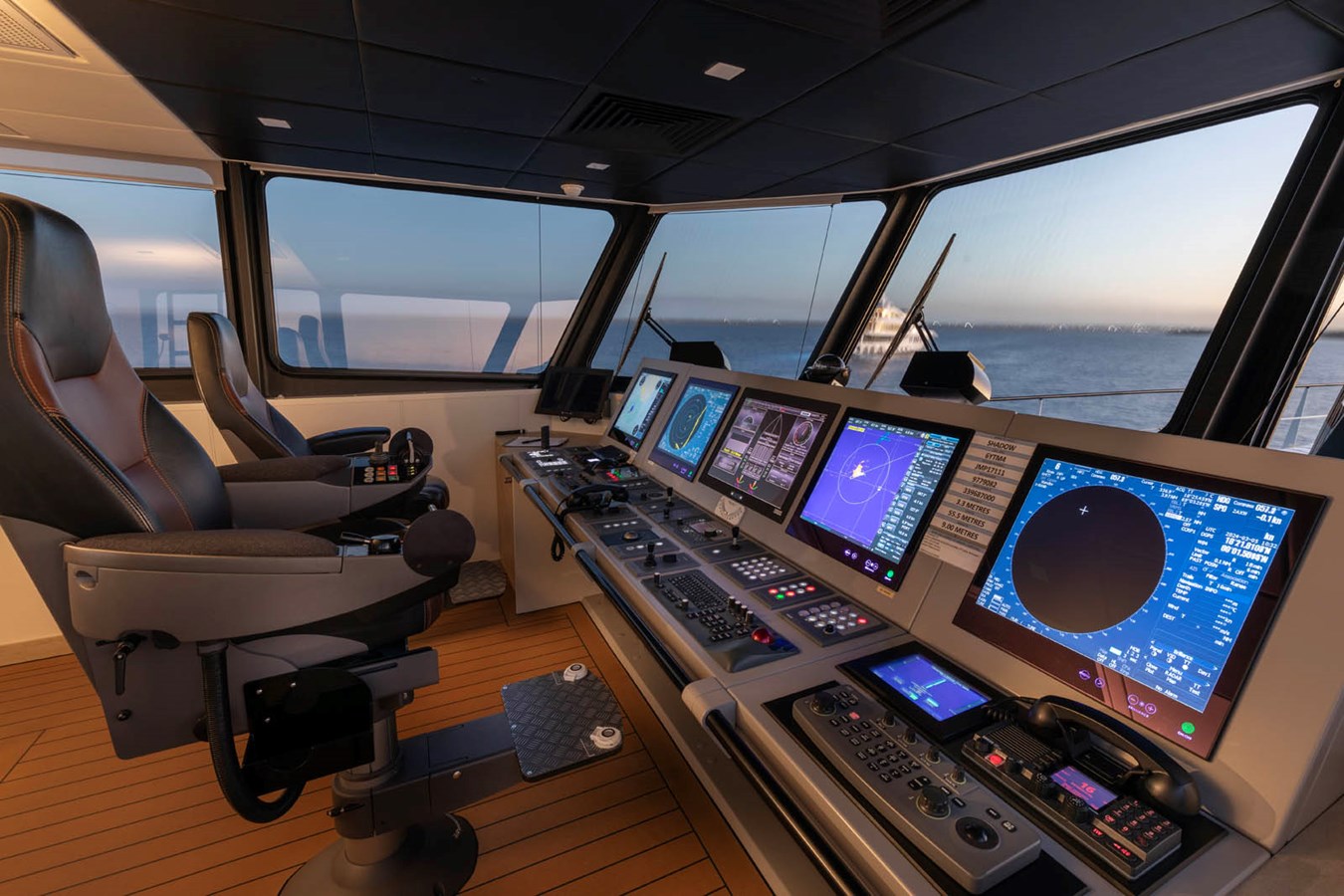

PILOTHOUSE
SAT COM: Cobham Sat Phone.
Telephone System: Spectralink.
VHF: 2 x Sailor 6222 GMDSS
Intercom: Alphacall
Navtex: JRC NCR 333 Navtex receiver and printer.
Inmarsat C: 2 X Sailor 6006 Message Terminal
NAVIGATION SYSTEMS
Radar: 2 X JRC X Band.
Gyrocompass: Anschutz Digital Gyro Standard 22NX
Magnetic Compass: Cassens and Plath Magnetic compass.
Auto Pilot: Alphasea Pilot MFC
GPS: JRC NWZ 4610 GPS
Ships Computer: Lenovo Ultrabook.
Electronic Charts: Transas and Time Zero
Wind/Speed Log: Airmar
ENTERTAINMENT SYSTEMS
VSAT1: Intellian v80G
VSAT2: Intellian v80G
Starlink: Marine and RV
GALLEY & LAUNDRY EQUIPMENT

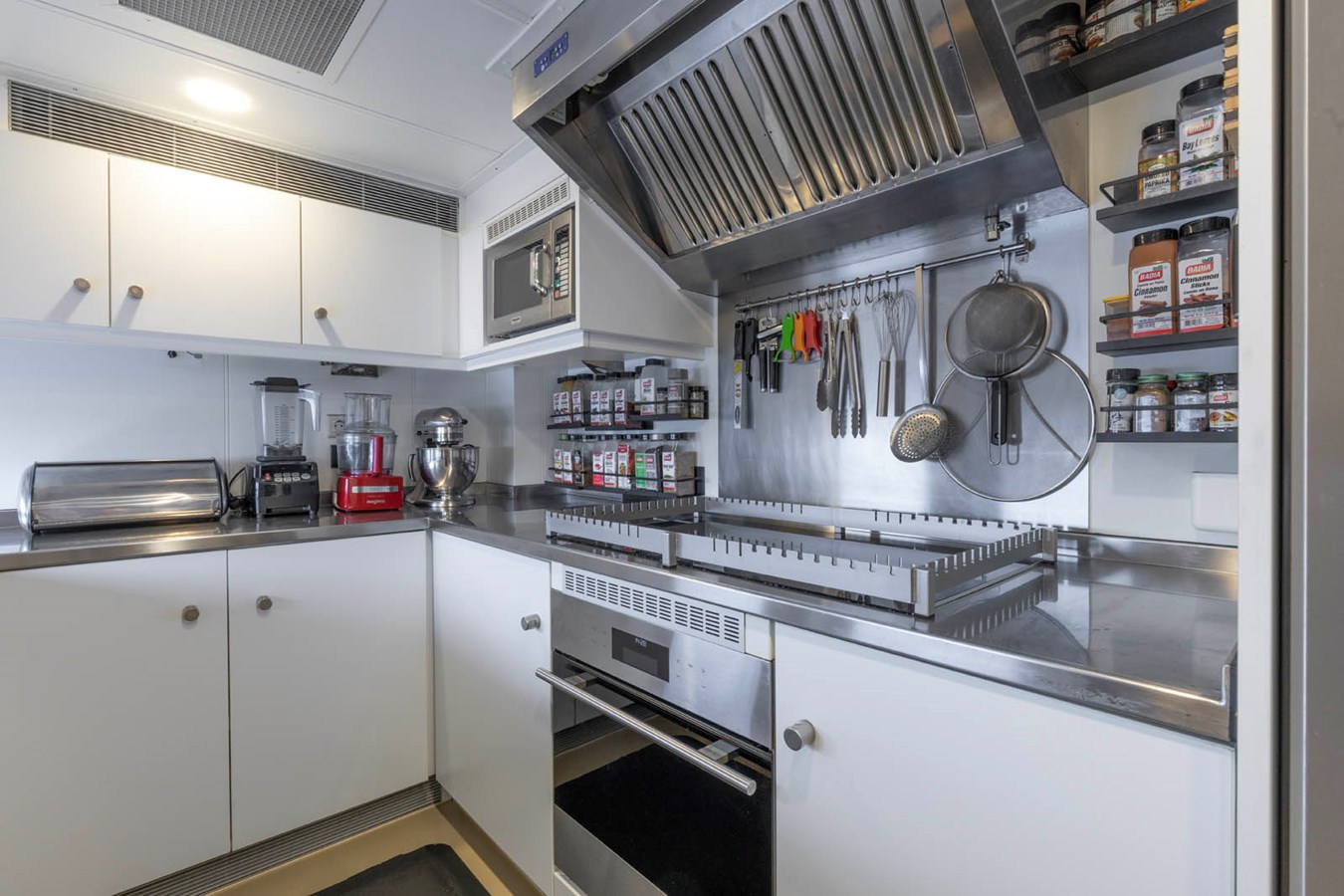

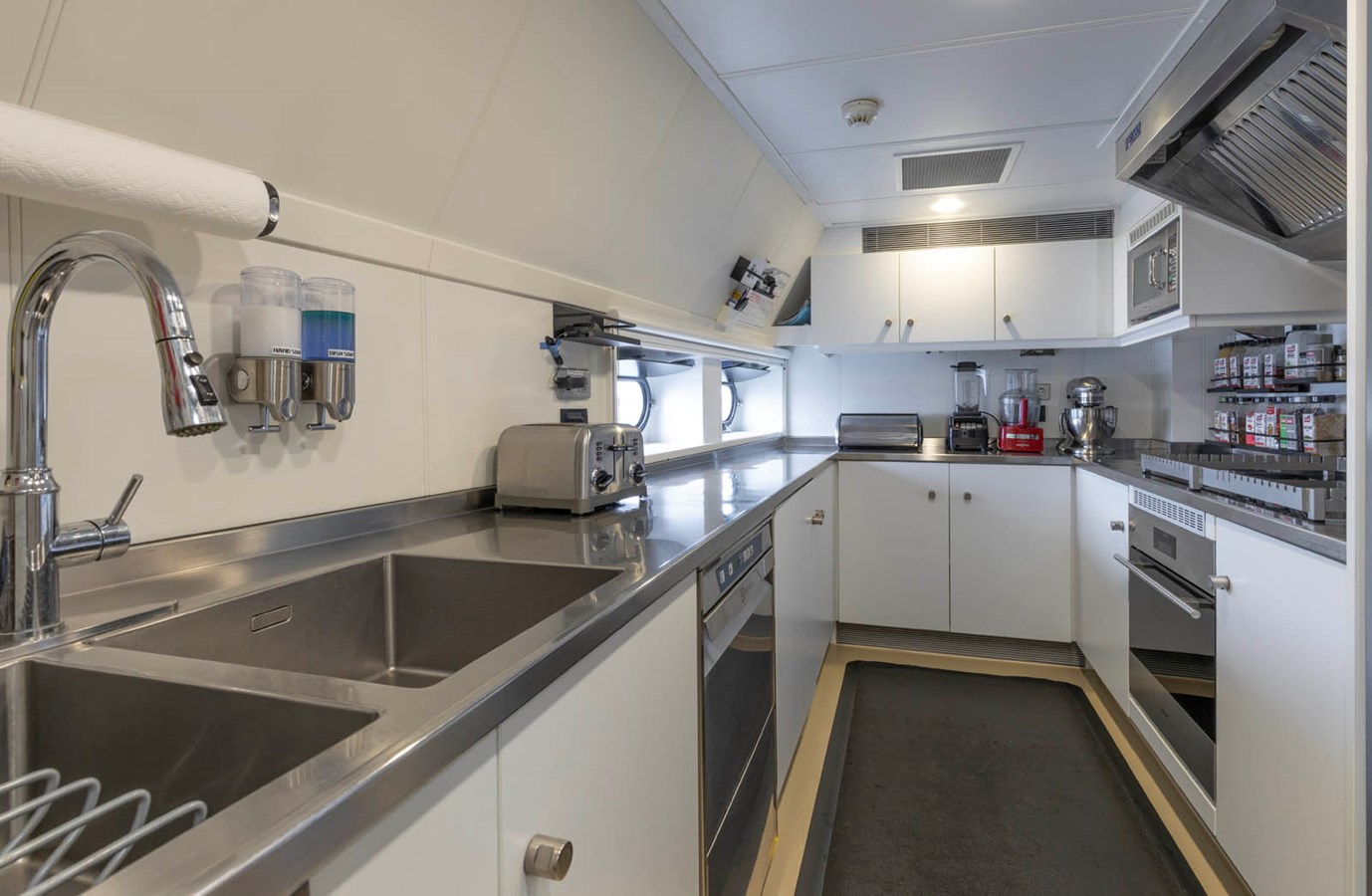

MAIN GALLEY EQUIPMENT
Cooktop Main Galley: Siemens Induction Cooktop – Model: HMIV0IE
Oven: Wolf 24" E series Oven -Model: SO24TE/S/TH
Microwave: Panasonic - Model 1037

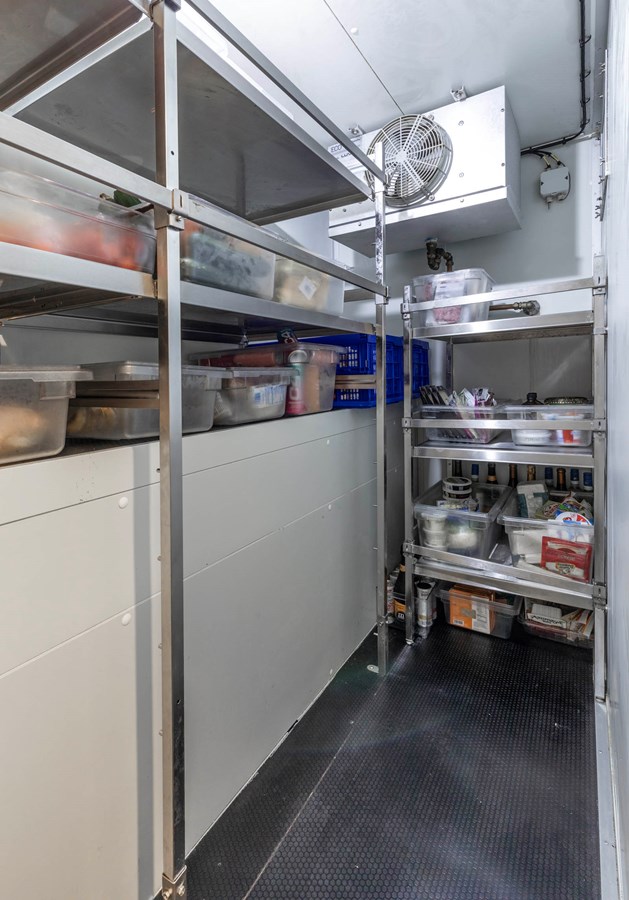

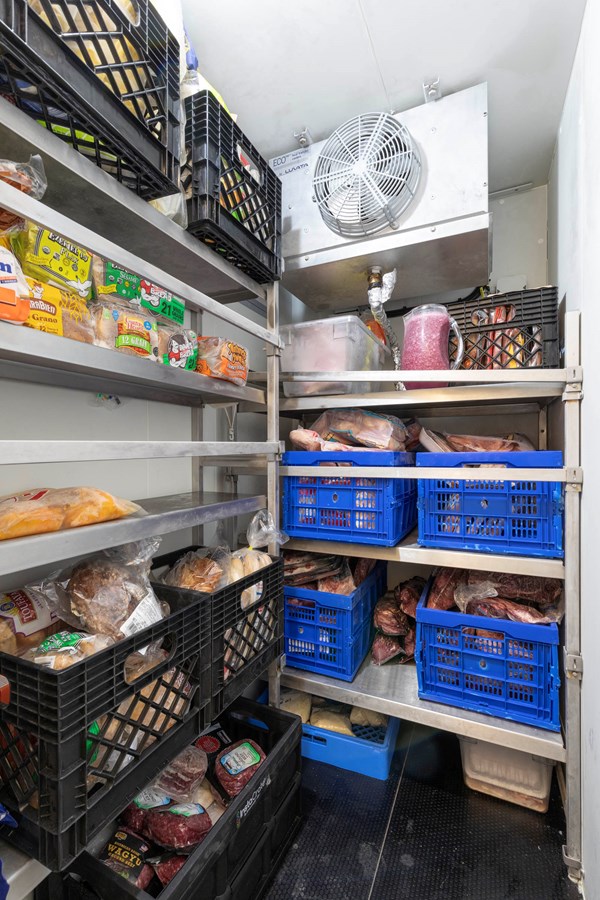

Walk In Refrigerator/ Freezer: Heinen and Hopman- L’Unite Hermetique/Tecumseh
Cool Room / Fridge - 0.8Kw Cooling Capacity
Freezer - 1Kw Cooling Capacity
Galley Refrigerator: Liebherr
Galley Freezer: Liebherr
Dishwasher: Electrolux - Model: 502316 (WT30H240DU)

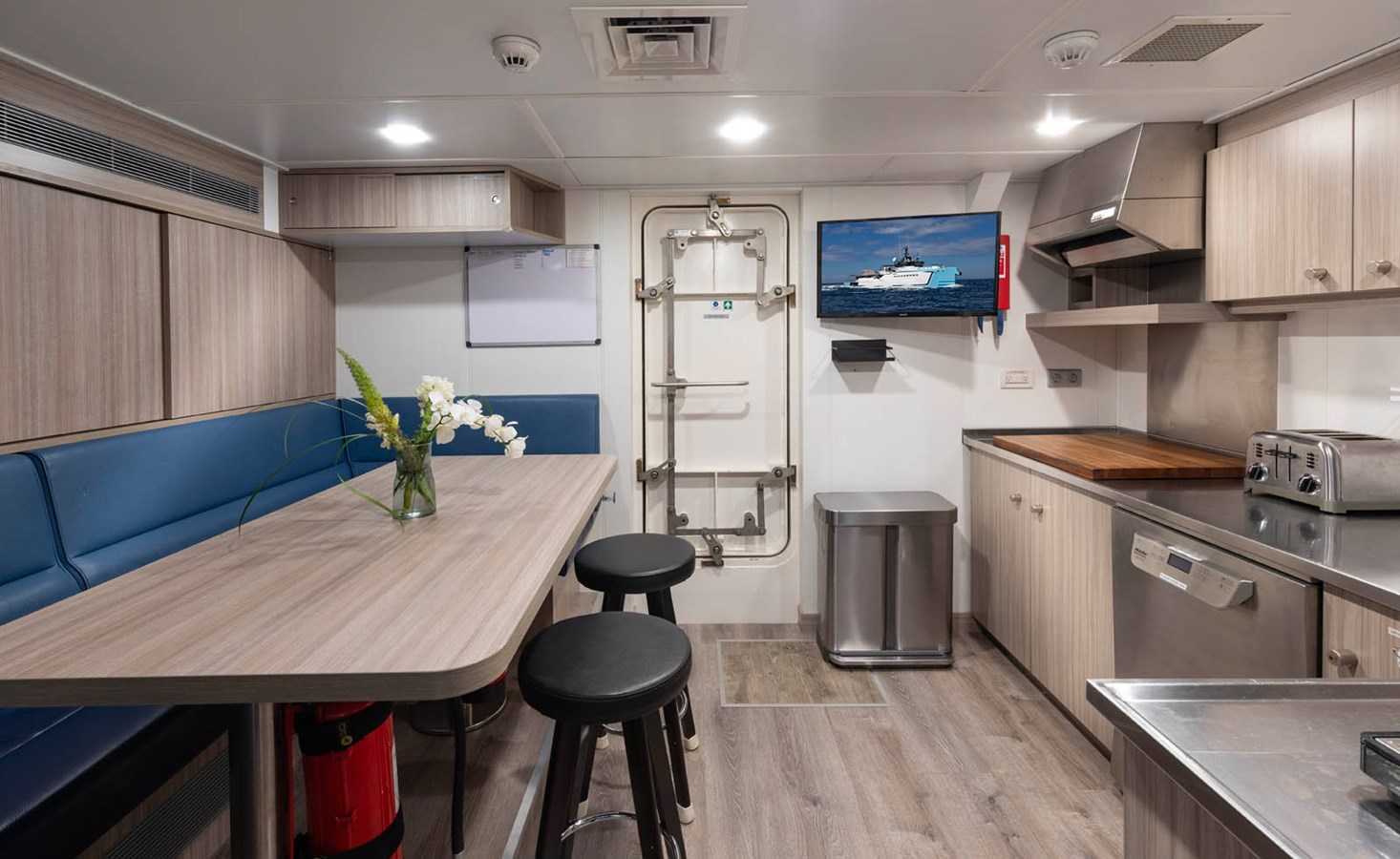

CREW GALLEY/ MESS
Fridge: Liebherr
Dishwasher: Miele Professional offshore.

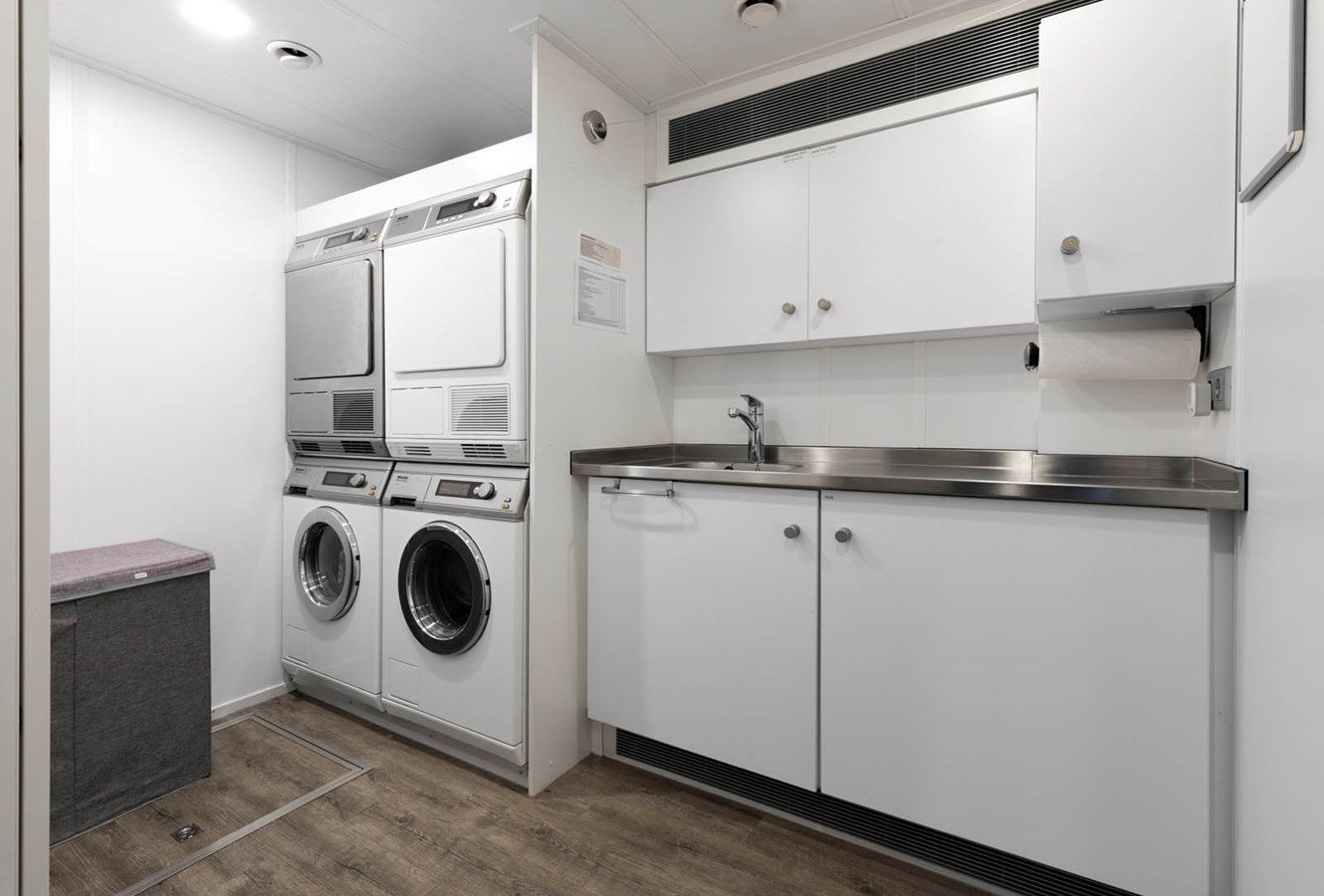

LAUNDRY
Washing Machines: 2 X Miele Professional 6065
Dryers: 2 X Miele Professional PT7135C Vario
DECK EQUIPMENT
Dynamic Positioning: Alphatron Dynamic Positioning.
Anchor Windlass: Kemp Windlass
Aft Warping Capstans: MCE 10Kn (10.6KN Pull, 35KN break)
Anchors: 1 X 320 KG Bruce twin Shank.
Anchor Chain: 6 x 27.5 m , 20.5 mm dia Galvanised chain.

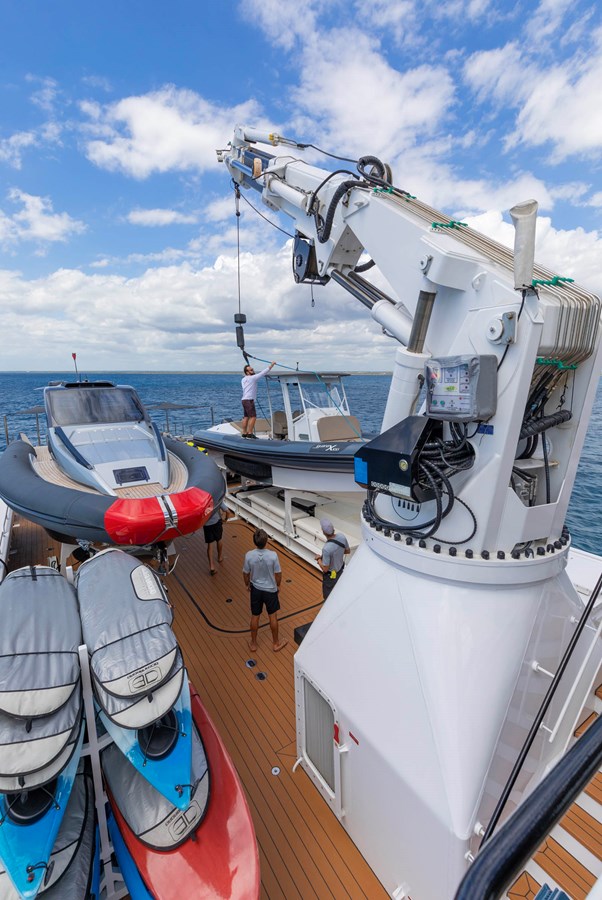

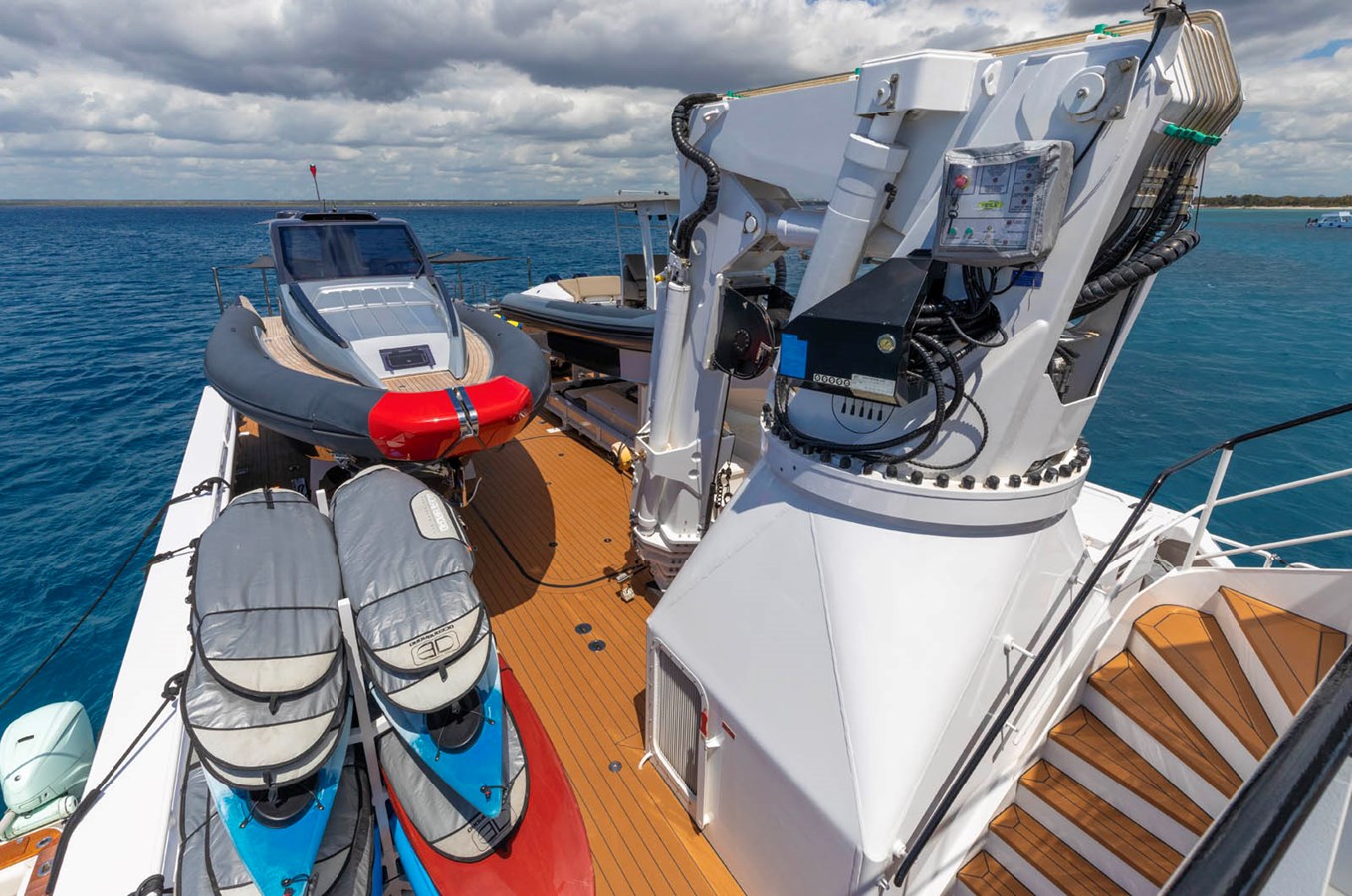

Boat Crane and Davits: Heila HLRM 140-6S knuckle boom crane 12 tons @ 5m / 6 tons @ 11.5m
Fueling System: 2980 Ltr /787 US Gallon Petrol fueling station
Passarelle: Type A30 deg Shala gangway 6mtr, 4 mtr.
Helicopter Deck: Max take-off weight 3.7 tons
FIRE FIGHTING AND SAFETY EQUIPMENT
FIRE FIGHTING EQUIPMENT
Fire Control System: Kidde Fire Protection Novec.
Fire Extinguishers: See Fireplan
Alarms: Praxis Montoring Panel
SAFETY EQUIPMENT

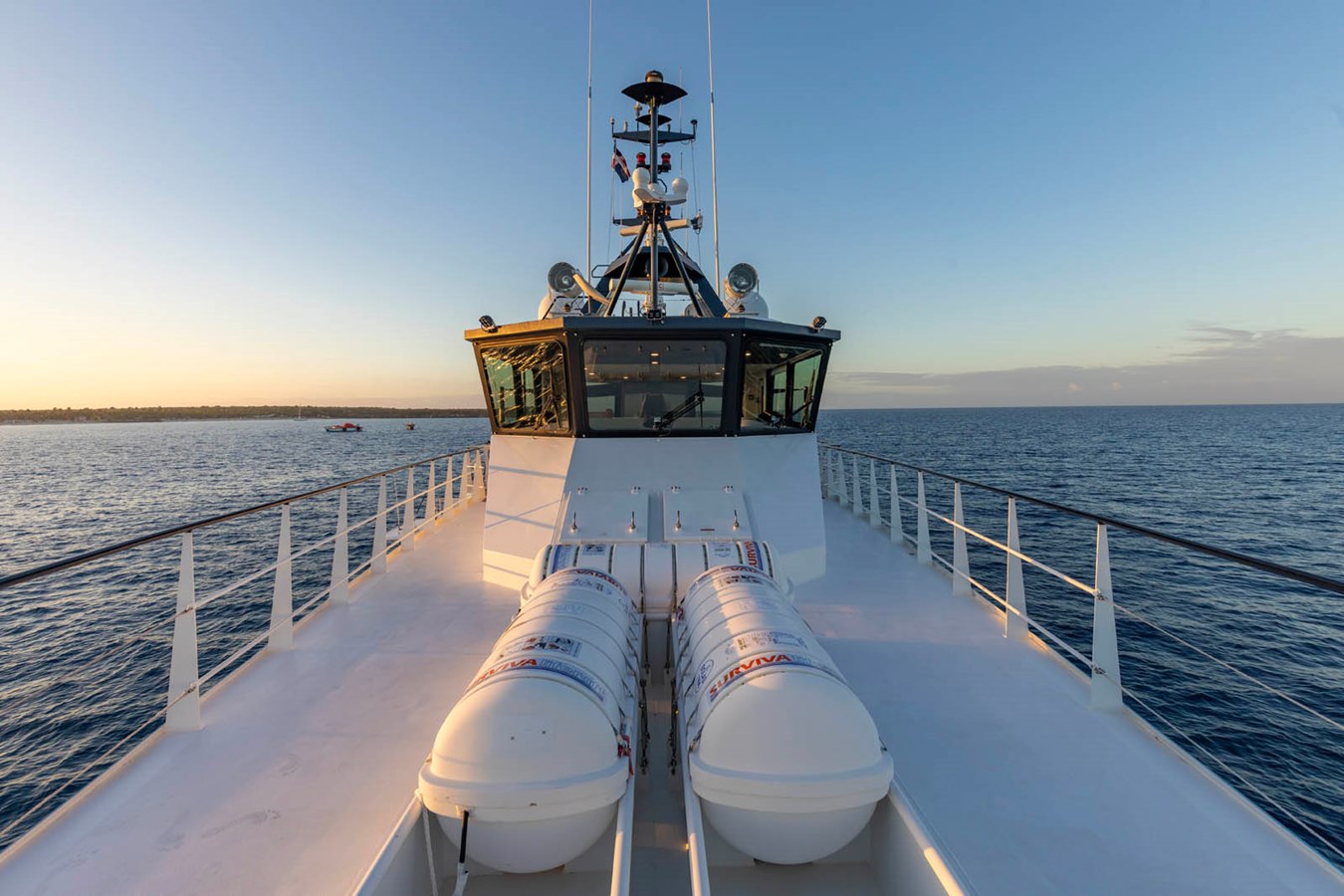

Life Rafts: 3 X Surviva MKIV 25 Persons
Life Rings: 2x Light and smoke, 2 x Light.
EPIRBS: 1 X McMurdo Smartfind 406 G8+AIS.
Flares: As Required.
Medical Equipment: Full MSOS Ocean going Kit.

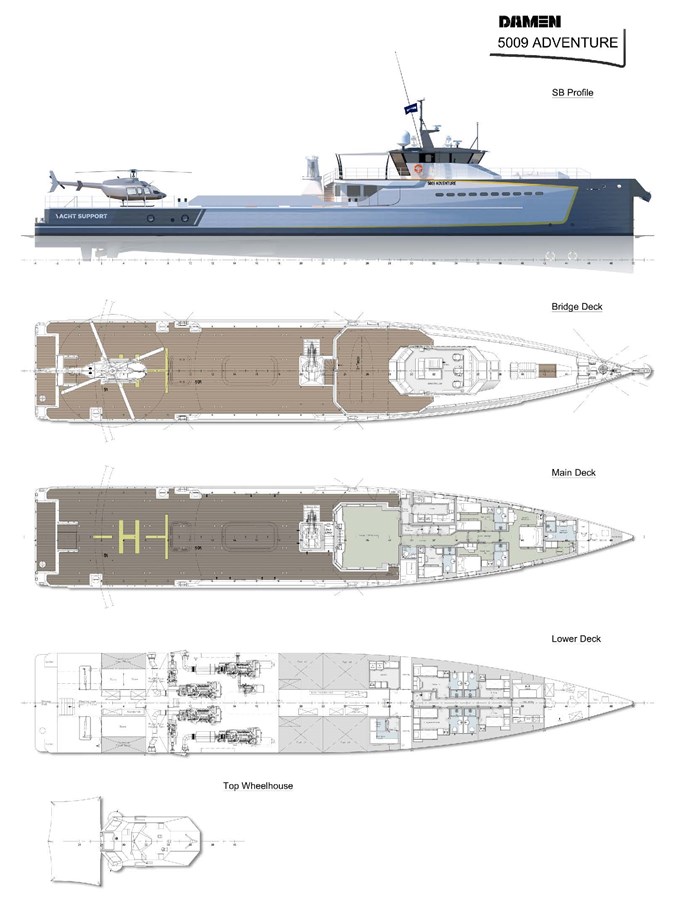

ACCOMMODATION AND LAYOUT

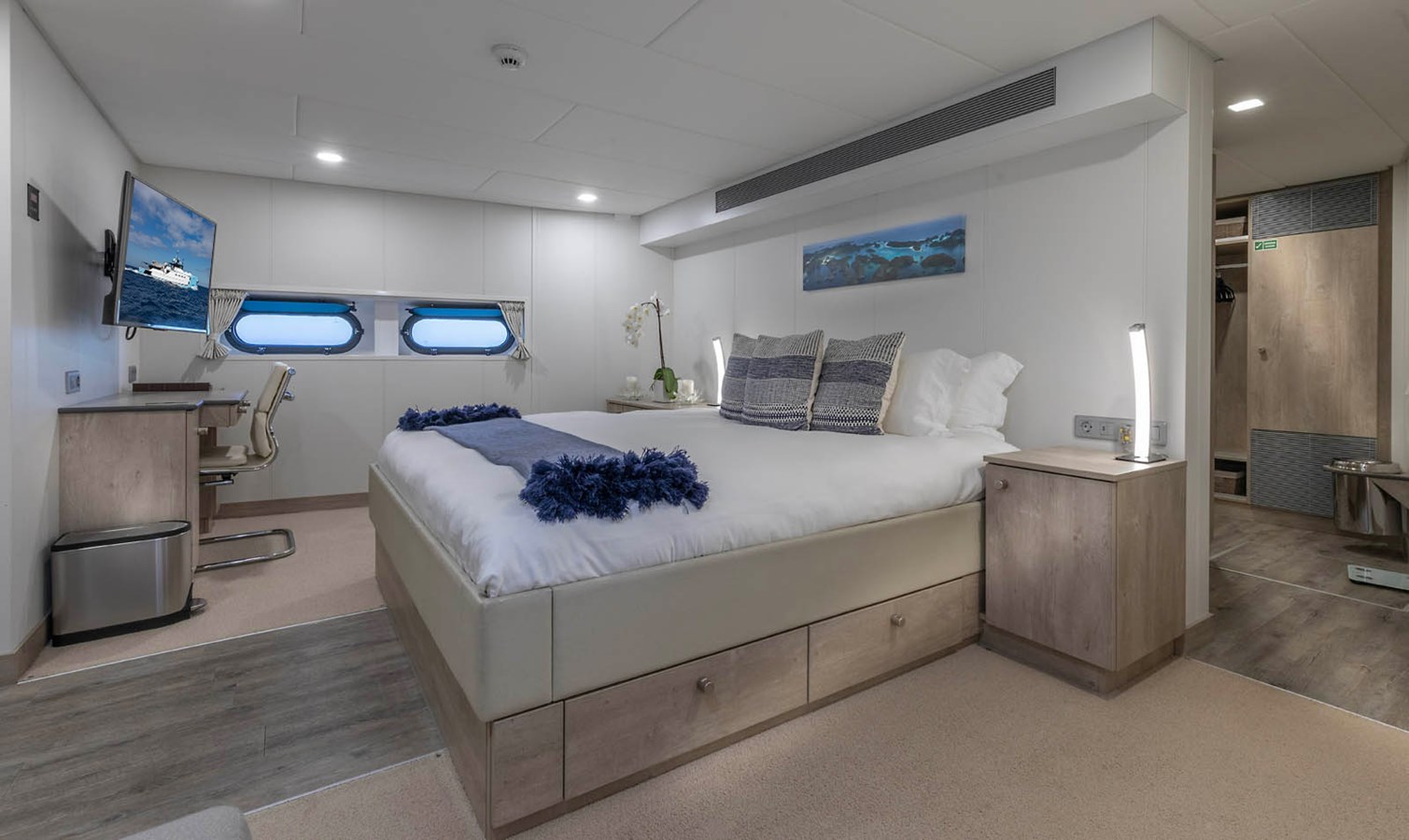

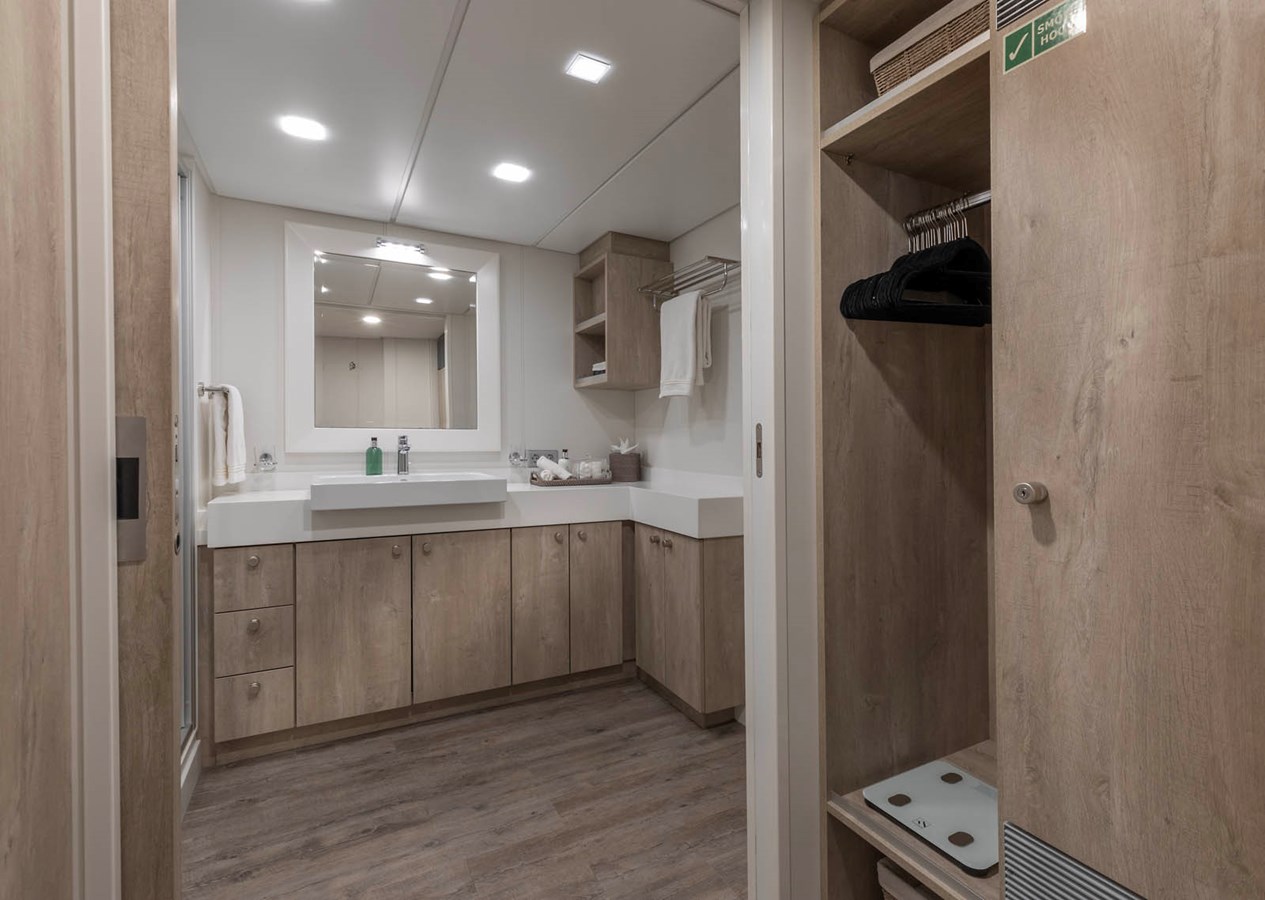

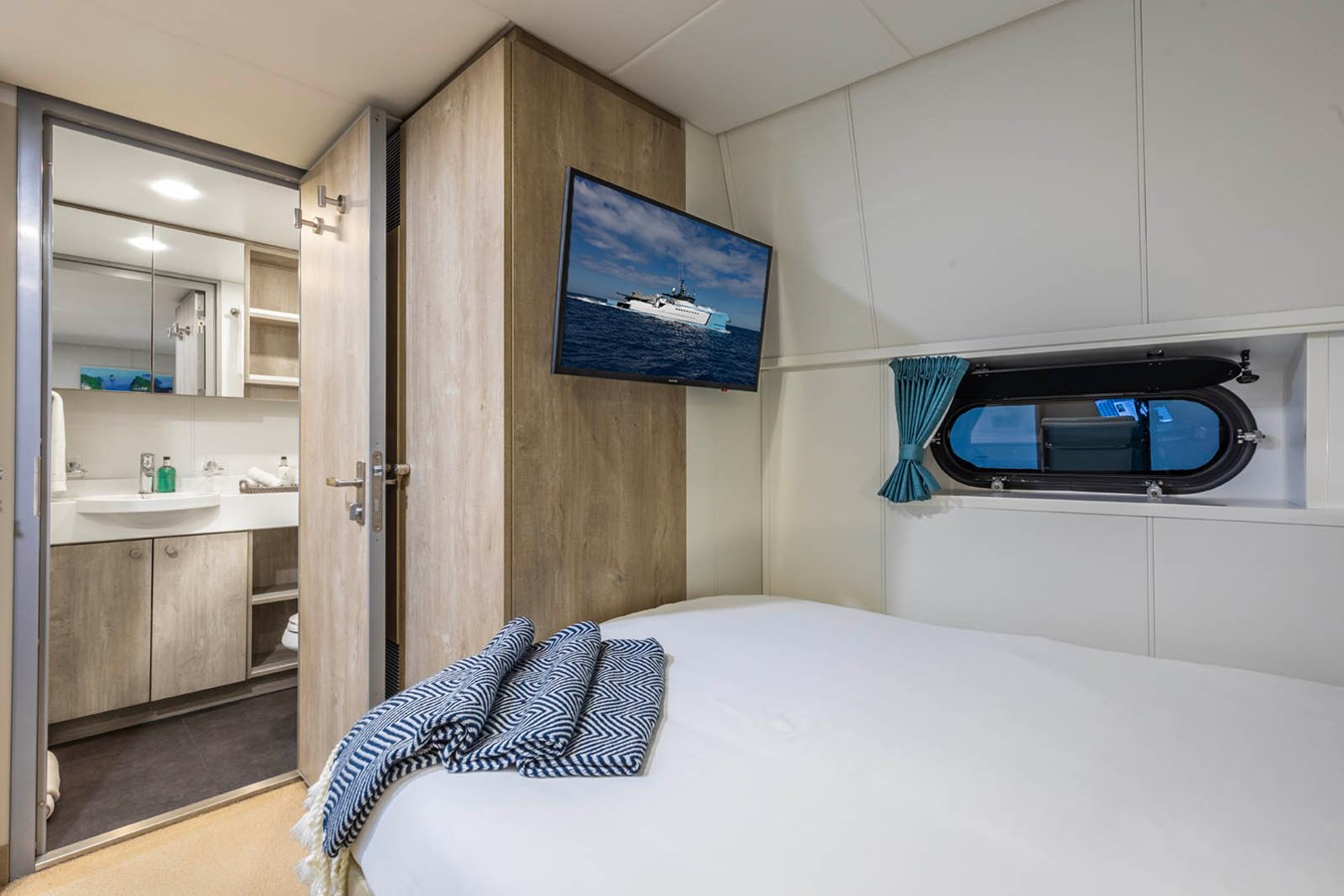

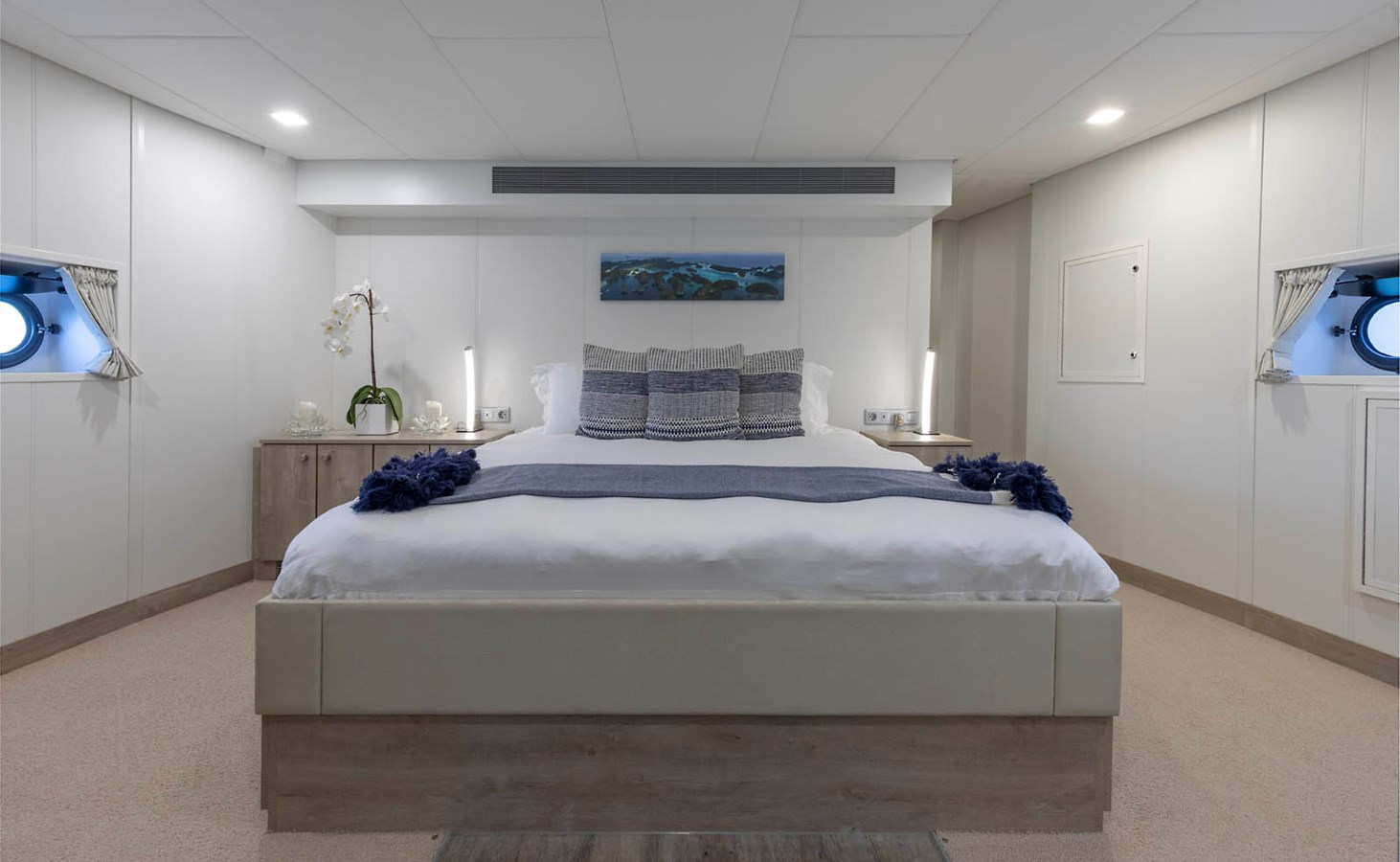

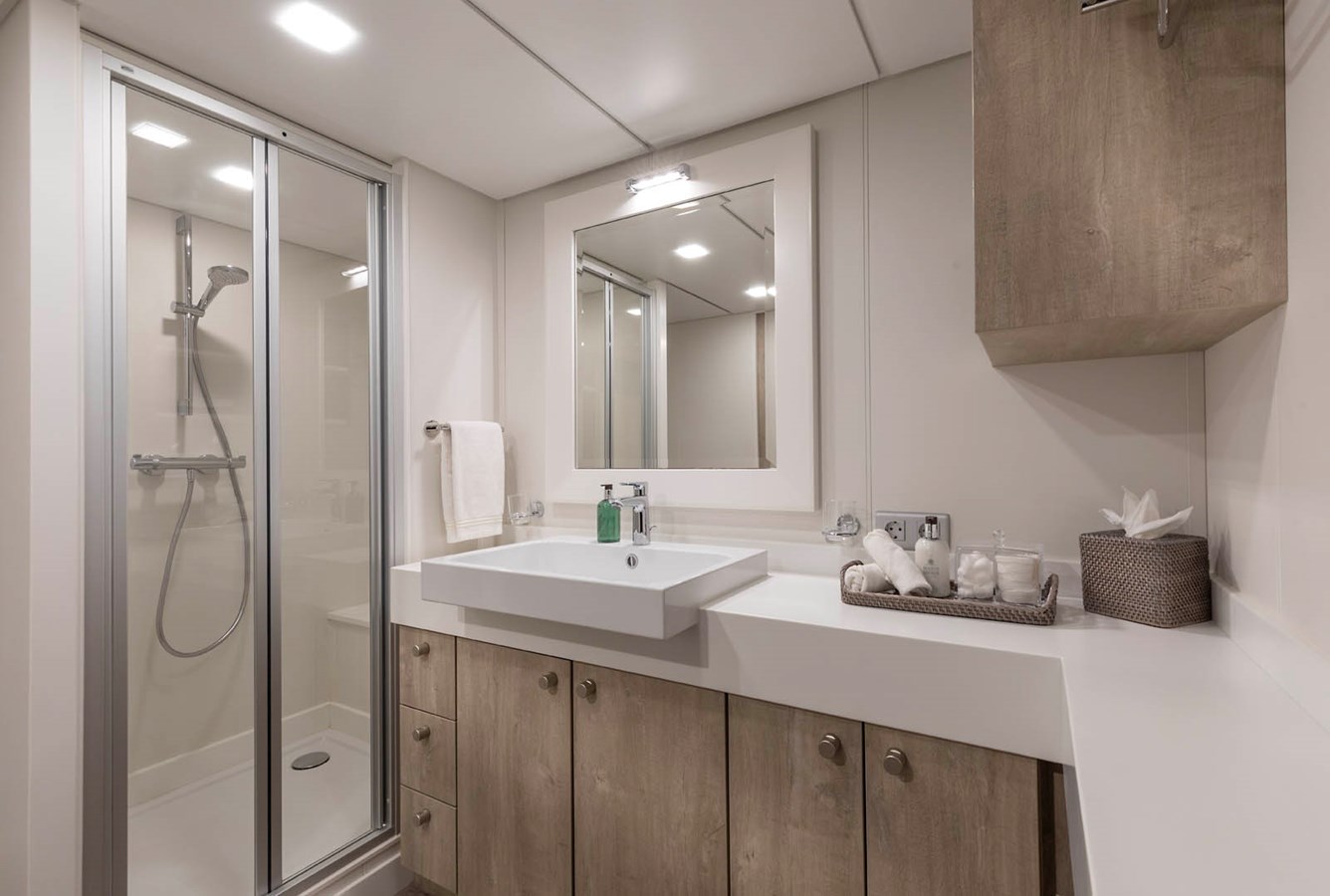

Guest cabins: 3x sleeping 6 guests total

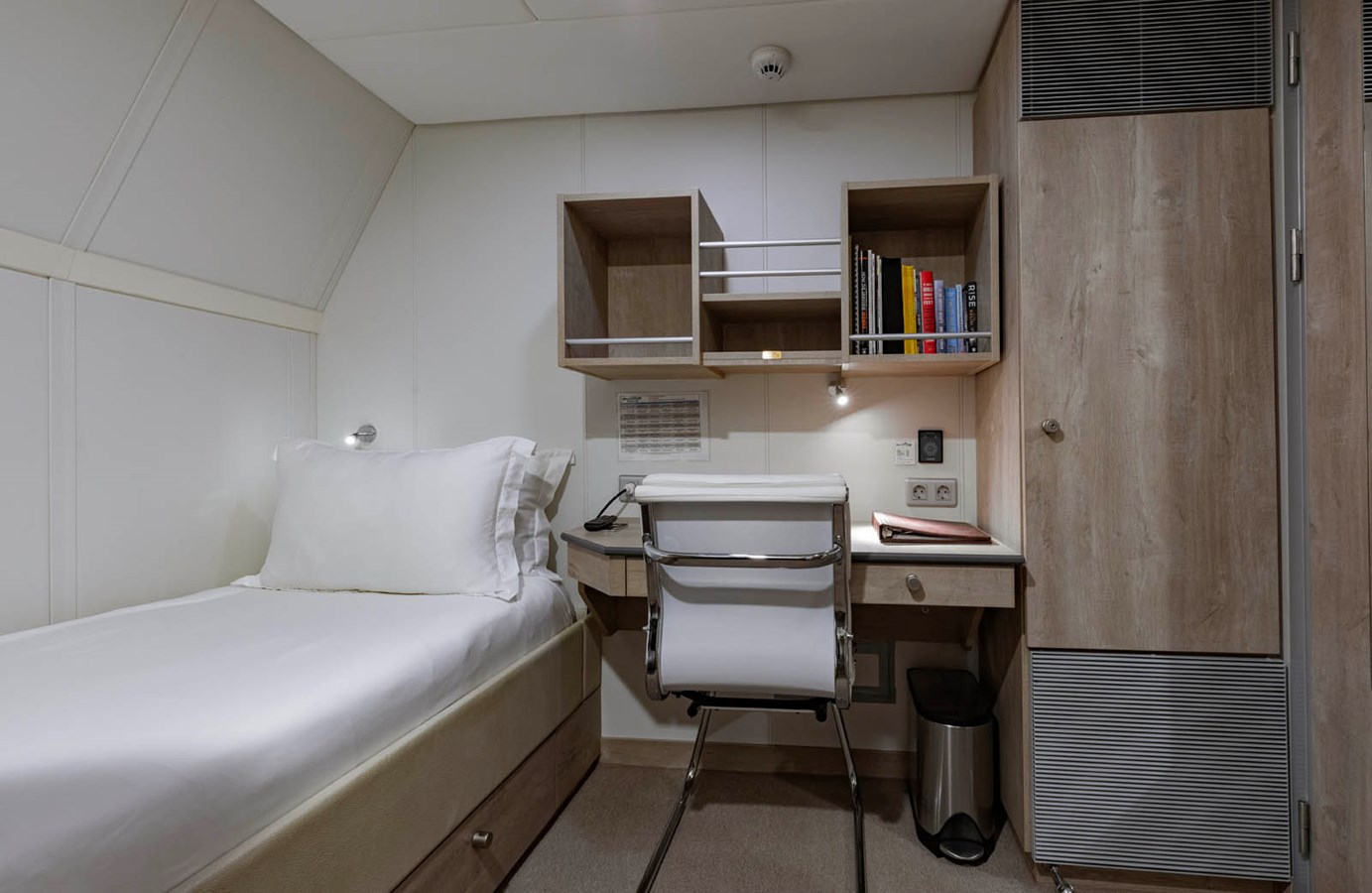

Crew Cabins: 5x including Captain sleeping 11
|
