| MAIN SPECIFICATIONS |
Length Overall: 111’1” ft / 33.85m
Beam: 24’ 10” ft / 7.57m
Draft: 7’ 10” ft / 2.40m
Year Completed: 2019
Type: Full Displacement
HIN: 108/19
Tonnage: 299
Guests: 10
Crew: 6
|
| CONSTRUCTION |
Builder: Cantiere Delle Marche
Naval Architect: Hydro Tech
Exterior & Interior Design/Stylist: Mario Pedol and Massimo Gino of Nauta Yachts
Hull Material: Steel
Deck Material: Teak
|
| SPEED |
Maximum: 13.8 kts
Cruising: 10 kts
Range: Approx. 4,600 NM
Consumption: 46 Liters/Hours per engine
|
| CAPACITIES |
Fuel: 12,416 Gal / 47,000 L
Water: 1,585 Gal / 6,000 L
Grey Water: 732 Gal / 2,774 L
Black Water: 305 Gal / 1,157 L
Lube Oil Capacity: 380 L
Waste Oil Capacity: 380 L
Sludge Tank: 279 Gal / 1,057
|
| CLASSIFICATION & CERTIFICATIONS |
Flag: Cayman Islands
Classification: Lloyds Class Commercial 100A1 SSC Yacht, Mono, G2A, SRY
|
| MACHINERY |
MAIN ENGINES
Engine Type: 2 x Caterpillar C18 Acerta EPA tier 3
Main Engine Hours (Port): 3046
Main Engine Hours (Stbd): 3052
GENERATORS & ELECTRICITY
Generators: 2 x 55kW Kohler, 1 x 20kW Kohler
Generator Fuel Consumption: 12L/hr and 8l/hr
Port Generator Hours: 8010 hrs
Starboard Generator Hours: 7820 hrs
Shore power: ASEA AC50Q-3 75kW maximum output
Emergency: 3rd gen 1715 hrs
PROPULSION & STEERING
Gearboxes for Main Engines: ZF MODEL: ZFW650
Stabilizer: CMC Zero Speed
Stabilizer Underway: Yes
Stabilizer at Anchor: Yes
Steering System: Hydraulic KOBELT system plus a secondary back-up Twin Rudders
Trim Tabs/Stabilizers: CMC electric
OTHER MACHINERY
Water Makers: 1 x Idromar MC3 Duplex, Upgraded from 6 to 8 membranes total production 420 l/h.
Added 1 x Idromar MC3 J, upgraded from 3 to 4 membranes total production 180 l/h, Approximate production rates.
Bow Thruster: BTM 75 EA-75, 75kw
Fuel Separator and Filtration: Alfa Laval MIB 303s 13.33, Separ filters, and Parker racor filters
Sewage System: Hamann 0125 Compact
Air Compressor: Bauer
Air Conditioning: Dometic Condaria WM 72004, 288000 BTU/H Capacity
|
| COMMUNICATION AND NAVIGATIONAL EQUIPMENT |

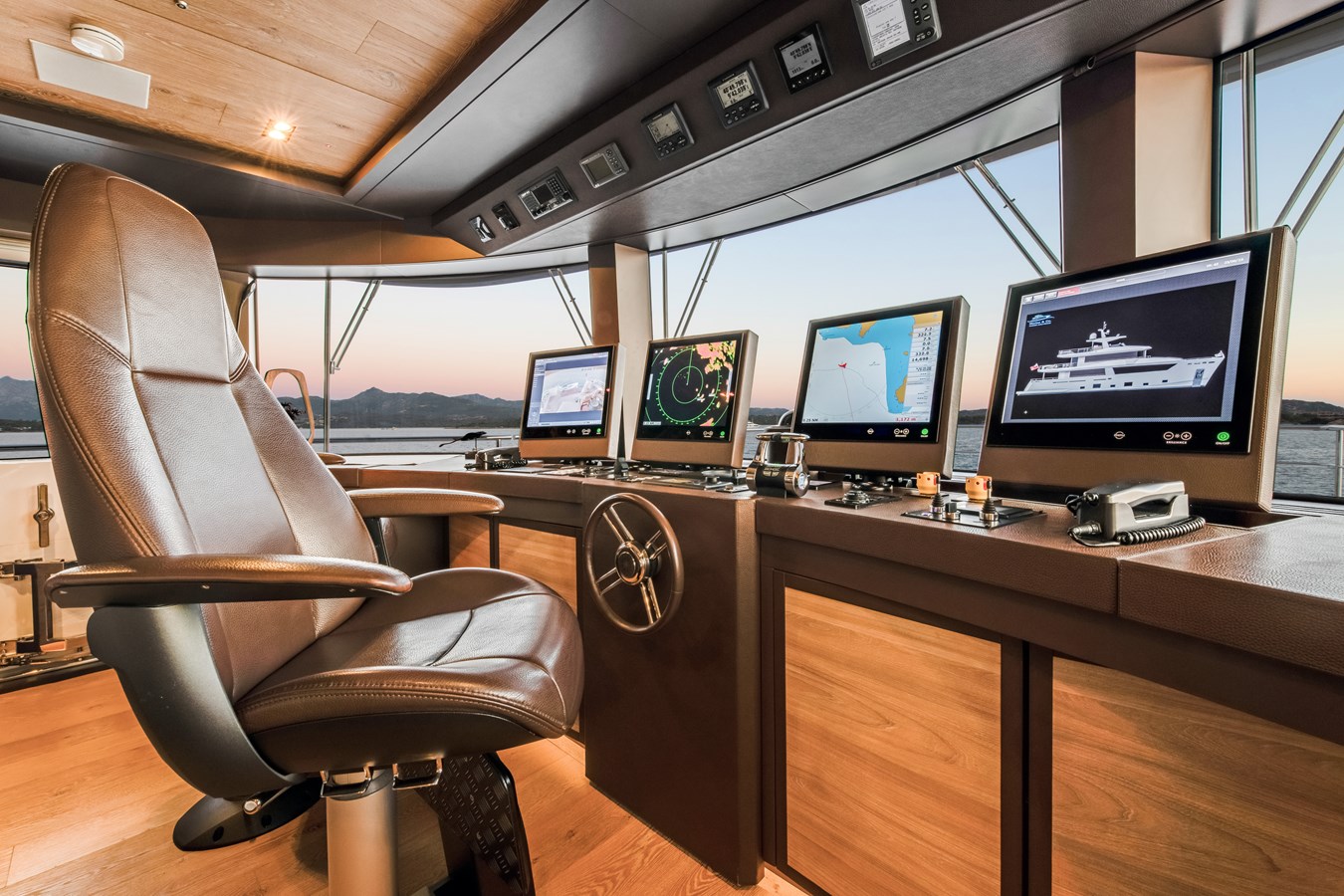

PILOTHOUSE
SAT COM: Starlink
Telephone System:
SSB: FS-2575C
VHF: FM-89000S
Cellular Phone System: MIMO CONNECT 5G Antenna, 6 SIM card capability. This serves for full internet and VOIP needs
Intercom: Panasonic KX-TDA3 ONE
Navtex: Furuno NX-700
NAVIGATION SYSTEMS
Radar: Furuno DRS6A open array, Furuno DRS4A closed radome
Gyrocompass: Simrad AR80
Magnetic Compass: Ritchie powered amp plus
Auto Pilot: Furuno
GPS: Furuno Two GP-33
Wind/Speed Log: Airmar 220 WX weather station
ENTERTAINMENT SYSTEMS
Twin STARLINK marine antennas
Wi-Fi: Upgraded to Mimo Connect bespoke 5G, 6 SIM card antenna, with Kerio control system for security
Audio System: Upgraded to Arylic sound system, to enable offline direct streaming from clients’ personal devices.
Apple TV: In all guest accommodation, main and upper salon, and crew area
Guests able to play music in guest staterooms through Apple TV.
|
| GALLEY & LAUNDRY EQUIPMENT |
MAIN GALLEY EQUIPMENT
Oven: New Miele HORNO H7890BP 90cm wide oven
Microwave: 1 x Miele Microwave
Refrigerator/ Freezer: 4 x Miele fridge freezers
Dishwasher: 2 x Miele professional dishwashers
CREW GALLEY/ MESS
Fridge: 1 x Fridge
Dishwasher: 1 x Dishwasher
LAUNDRY
Washing Machines: 2 x Miele professional washing machines
Dryers: 2 x Miele professional dryers
|
| DECK EQUIPMENT |
Anchor Windlass: 2 x Maxwell model VWC 6000
Aft Warping Capstans: 2 x Maxwell Model VC 4000
Boat Crane and Davits: Opacmare 3078.50, maximum lift capacity 1500Kg
Passarelle: Opacmare 1133.44
Swimming Platform: Opacmare 3383.50 Transformer 700Kg maximum load
Foredeck Manual Crane: FEM folding, Carbon Fibre 3000, SWL 500Kg, towable
|

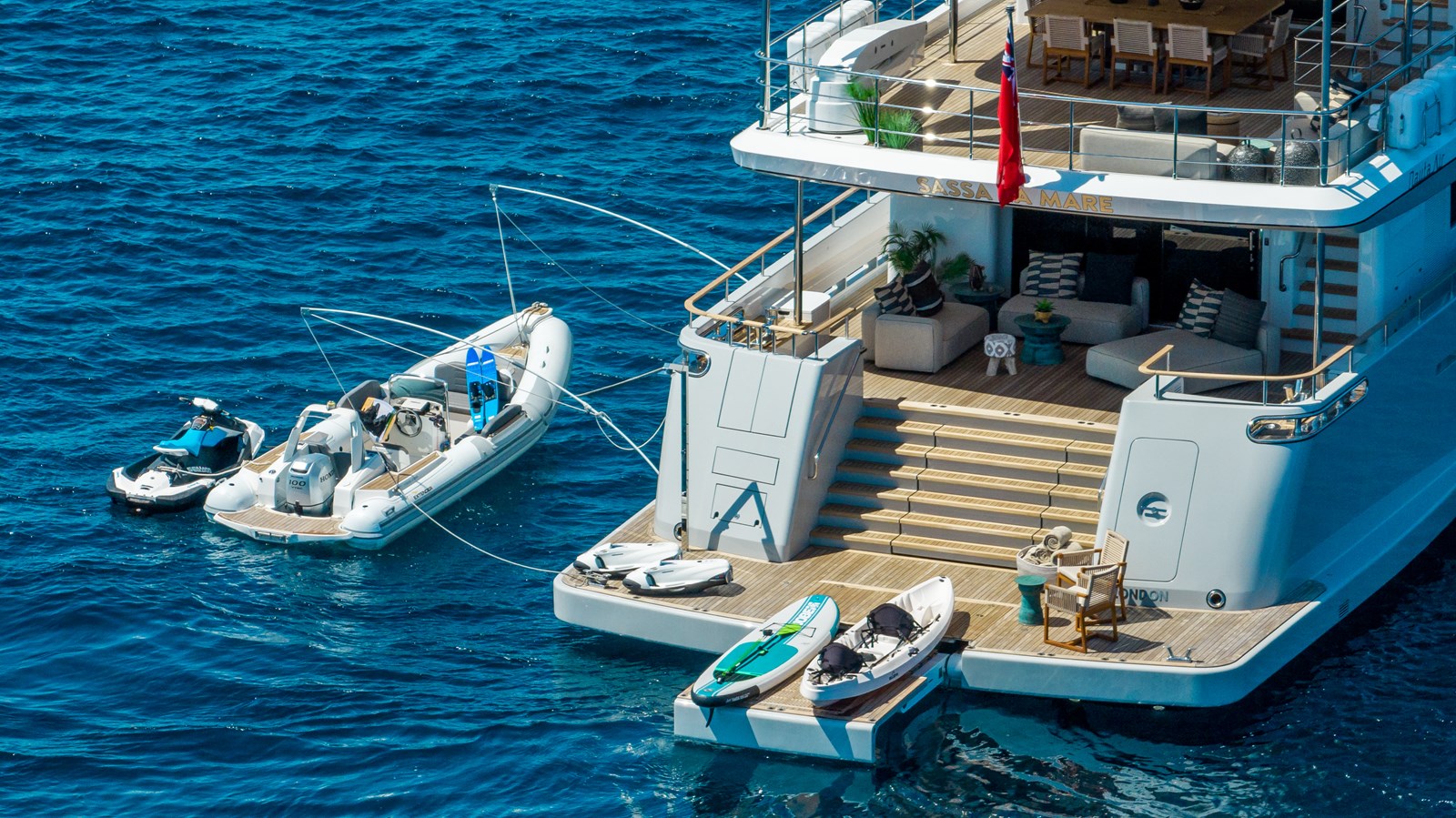

| TENDER & TOYS |
Tender: Extender EXT 645 Tender with a 100 hp Honda outboard
Series 3 Carbon Fliteboard
Sea Doo Spark Jet Ski
2 x F5 SEABOBs
3 x paddleboards
2 x kayaks
4 x Gocycle Ebikes
1 x water skis
1 x mono ski
wake board, with multiple size boots
1 x JOBE towable inflatable
Snorkeling equipment
Note: Subject to change and/or negotiation during the buying process.
|
| GYM EQUIPMENT |
Nordic Life fitness IC7 exercise bike
4 x Yoga mats
Assorted weights
Pilates Resistance band
Pilates ball & stable base
Leather skipping rope
2 x TRX training kits
Free weights set
|
| SECURITY, FIRE FIGHTING AND SAFETY EQUIPMENT |
SECURITY
CCTV System: Yes
Cameras: 4
Monitors: Via network restricted app.
FIRE FIGHTING EQUIPMENT
Fire Control System: Engine room remote fire suppression system. Fire hoses, Bridge deck, Main deck, lazarette and interior day head positions, all 20m, main fire and bilge pump systems in engine room remotely controllable. Plus, emergency diesel powered bilge/fire pump fitted in Lazarette, Firefighting suits and breathing apparatus.
Alarms: Alarm system for exterior doors, on Management system display, Fire detection system in all areas, CCTV RGB Cameras engine room, Main deck, port and starboard companion ways.
SAFETY EQUIPMENT
Life Rafts: 4 X Arimar 10 man DEEP SEA MED/1.12
Life Rings: 4
EPIRBS: 1
Flares: Required flare pack.
Medical Equipment: MSOS CAT A
|
| ACCOMMODATION AND LAYOUT |
1 x Master Cabin on the Main Deck
2 x Guest double VIP Cabins on the lower deck
2 x Guest Twin Cabins on the lower deck with pullman
|
