| ACCOMMODATIONS |
General Description of Interior
- Quality and detailing of the interior will be in accordance with the best yacht practice and high-quality materials will be used.
- The material selection will be carried out by the selected interior designer and RMKMarine, and will be presented to the Owner for approval prior to the construction of the relevant area of the interior.
- Styling of the interior is of a contemporary styling with an overall use of standard veneers, semi-gloss finished with accents in wall panels, combined with natural and fresh colored fabrics.
- Tabletops are executed in marquetry of standard veneers. Bathrooms executed in a selection of standard veneers and marble floors and countertops.
The minimum clear headroom above wooden construction floors to finished ceilings in principal areas is to be:
- Lower deck: 2.05 m
- Main deck: 2.10 m
- Wheelhouse deck: 2.10 m
- Wheelhouse: 2.05 m
- Crew: 2.05 m
Owners Accommodation:
- Number of cabins: 1
- Number of berths: 1 double
- Complement: 2
Guest Accommodations: - Number of cabins: 4
- Number of berths: 3 double + 1 twin
- Complement: 10 (with Pullman)
Crew Accommodations: - Number of cabins: 4
- Number of berths: 1 double + 6 singles
- Complement: 8
|
| GALLEY & DOMESTIC EQUIPMENT |
Galley & Pantry Appliances: Beko / Miele Laundry Appliances: Beko / Miele Crockery, Cutlery, Glassware: Owner Supply Loose Furniture: Owner Supply Curtains & Soft Furnishing: Custom / PC SUM Carpets: PC SUM Dumbwaiter: Duru Metal or eq.
|
| OFFICE EQUIPMENT |
- Printer: 1x Epson or eq.
- Accessory: Keyboard, Mouse, UPS
|
| AUDIO / VISUAL ENTERTAINMENT |
|
| MACHINERY |
- Engines : Caterpillar C18 2x599 bkW @ 2100 RPM
- Gearbox: 2 x ZF with throlling valves or eq.
- Propulsion Syste : BT Marine or eq. 5-blade conventional FPP
- Steering System: Data Hidrolik or eq.
- Rudder Assembly : Two steel rudders with stainless steel 431 shafts
- Exhaust System: Halyard or eq.
|
| GENERATOR & AUXILIARY |
Generators Service Generators: 2 x CAT C4.4 eq. approx. 69 kW, Night Generator: 1 x Northern Lights or eq. approx. 34 kW,
Electrical Equipment Electricity Network: 24V DC, 230V/400V, 50Hz Shore Power Converter : 1 x Atlas or eq. approx. 75kVA, Battery Charger: Victron or eq. Batteries: Sonnenchein & Exide Flooded & AGM or eq. Cables: XLPE based Class certified ICCP&ICAF : Cathelco or eq. Lighting Navigation Light: Glamox Aquasignal, DHR or eq. Flood Light : Hella, Daeyang, E-LED or eq. Technical Area Light: Hella, Daeyang, E-LED or eq. Interior Lighting: BCM, Cantalupi or eq. Underwater Lights: Underwater Light Ltd. or eq.
|
| ANCILLARY EQUIPMENT |
HVAC Chilled Water Piping: PVC Piping Fresh Air & Exhaust Ducting: Flexible Hoses Chilled Water Plant: 1 x Mave, Dometic or eq. approx. 480K BTU Exhaust Fans: 1 x Mave, Gianneschi or eq. Air Supply Fans: 1 x Mave, Gianneschi or eq.
Fresh Water System Fresh Water Capacity : 20,000 L Piping: U-PVC and C-PVC Piping Pumps: Headhunter or eq. Boilers: 2× 300 litres, capacity 13kW Solareks or equ.
Grey Water System Black Water System Piping: U-PVC and C-PVC Piping Pumps: Desmi eq. Toilets: Headhunter, Jets, Tecma or eq. Sewage Treatment : Headhunter, Jets, Hamann or eq.
Bilge & Fire System Piping : CuNiFe Piping Pumps : Desmi or eq.
Seawater System Fuel System Lube & Dirty Oil System Tank Vent System Compressed Air System Hydraulic Systems |
| COMMUNICATION EQUIPMENT |
- VHF: SAILOR or eq.
- MF/HF: SAILOR or eq.
- Navtex: SAILOR or eq.
- Inmarsat: SAILOR or eq.
- Sat Phone: SAILOR or eq.
- PABX: Phonetec IP Phone Set or eq.
|

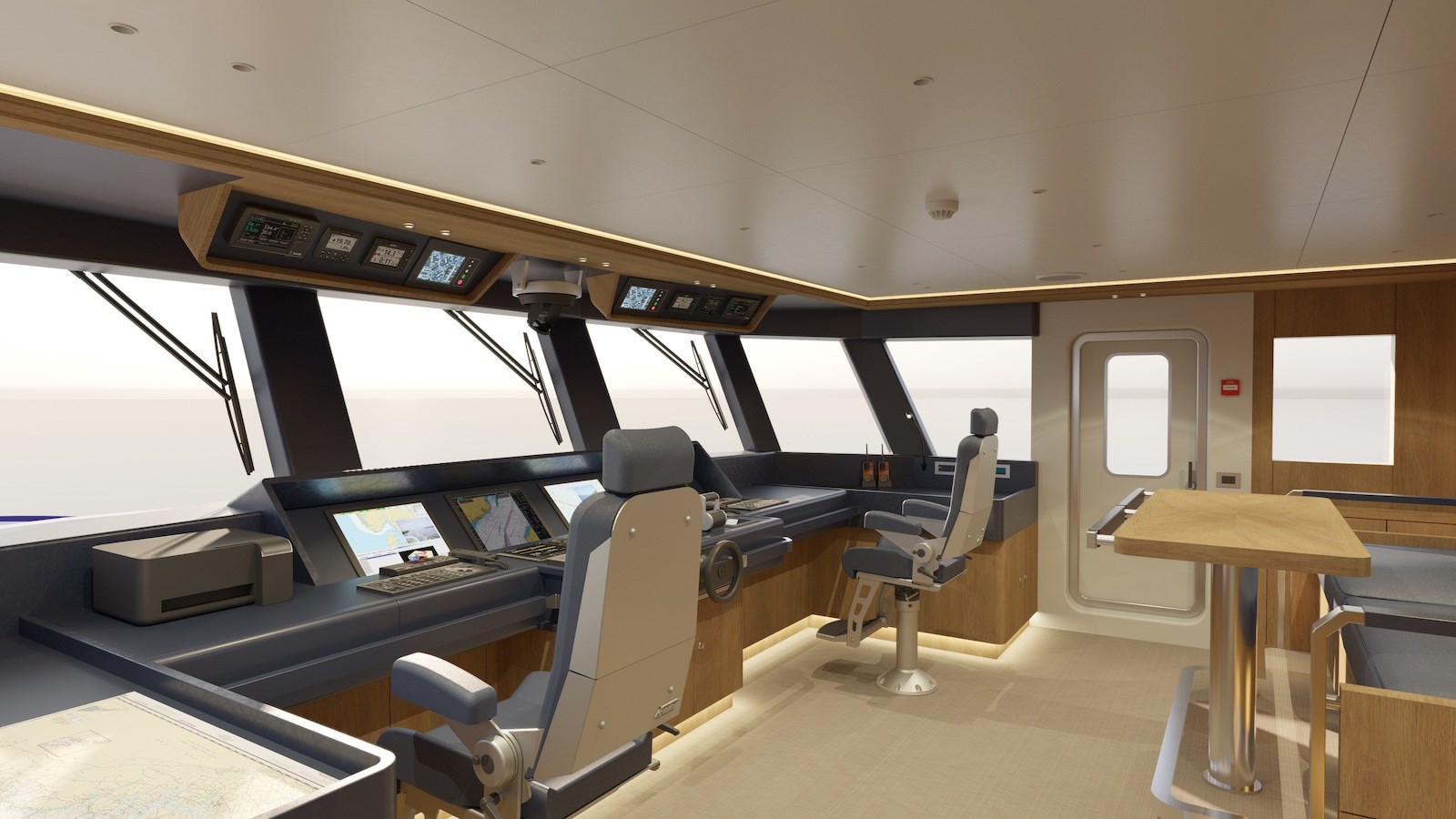

| NAVIGATION EQUIPMENT |
- External Communication : GMDSS A3
- Radar : SPERRY MARINE or eq.
- GPS: SPERRY MARINE or eq.
- AIS: SPERRY MARINE or eq.
- EPIRB&SART: SAILOR or eq.
- Searchlight : FRANCIS, ACR or eq.
- Magnetic Compass: SPERRY MARINE or eq.
- Chartplotter: SPERRY MARINE or eq.
- Weather&Echo&Depth Sounder : SPERRY MARINE or eq.
- Intercom ZENITEL or eq.
- BNWAS: Navitron or eq.
- Horn: Kahlenberg or eq.
|
| SPECIAL EQUIPMENT |
Owner Supply Items - Flag Registration
- Tools and other workshop equipment
- Charts, pilots, almanacs, chart table equipment etc.Leisure equipment, Gym Equipment, Pots, pans and cooking tools, bone chine, crockery and glasswork, cutlery & serving pieces and loose cooking equipment and utensils (guests/owners/crew).
- Table linens, bed linens, blankets and pillows, towels and robes (Guests/Owner’s/Crew
- Loose deck furniture, Loose interior furniture
- Artworks, antiques, table accessories and other decorative display items
- Personal computers and accessory equipment
- Models
- Crew uniforms
- Tenders (including MOB tender), Jet skis & Toys
- Dive Compressor & Diving Equipment
- Canvas & Cover
- Biminis & Awnings
|
| SAFETY & SECURITY EQUIPMENT |
Fire Fighting Systems
- Sprinkler : Survitech low pressure sprinkler system for accommodation, Novec 1230 or equal system in engine room.
- Two seawater firefighting pumps in engine room.
- One seawater firefighting pump in tender garage.
- Portable fire extinguishers in each room.
LSA
- Life Rafts: 4 x 12 person SURVITEC or eq.
- Others: Lalizas, Viking or eq.
Security CCTV :12 x Fix Dome Type and 2 x PTZ Type cameras with Complete system connected to LAN.
Alarm & Monitoring System
- Brand / Model: LYNGSO Automation or eq.
- Display: 2 x 22”, 1x19’’ LED Displays
- Input/Output: 350DI, 15DO, 108 AI, 400 Serial IO
- Deadman Alarm: 1x Main, 4x Remote
|
| TANK CAPACITIES |
- Fuel Capacity: 60000 liter
- Water Capacity: 20000 liters
- Grey Water Capacity: 20000 liters
- Black Water Capacity: 20000 liters
- Water Makers: 2 x Sea Recovery Aqua Matic XL Compact 536Lt/ Hour or Similar
- Sludge Capacity: 1000 lt
- Bilge Capacity: 1000 lt
|
| DECK EQUIPMENT |
Deck Equipment
- Bulwarks & Guard Rails: Polished Stainless Steel Stanchions
- Anchor & Mooring
2 x Anchor Windlass DATA or eq.
2x Capstan Data reversing or eq. - Anchors & Chain
Anchor 2× HHP Pool –N or eq. 315 kg
Anchor chain 2× Studlink or eq. U2 – quality (Subject to EN) - Teak Deck: Burmese 16 mm
- Pool: Edecci or eq.
- Crane: Hydromar or eq.
- Passerelle: Opacmare or eq.
- Side Boarding Ladder: Marquipt manual or eq.
- Swim Platform: Opacmare or eq.
- Weathertight Hinged doors: Bofor or eq.
- Watertight Sliding Doors : Winel or eq.
- Weathertight Sliding Doors: Bofor or eq.
- Window Wipers: Wynn Hepworth or eq.
Glazing
- Windows, port lights etc.: Heat tempered.
Insulation
- Fire Insulation: Rockwool or eq.
- Comfort Insulation: Rockwool or eq.
Paint
- Antifouling: International AF system or eq.
- Yacht Finish Paint: International Paint system (Superyacht Finish) or eq.
- Interior Paint System : International or eq.
|
|
