| Main Specs |

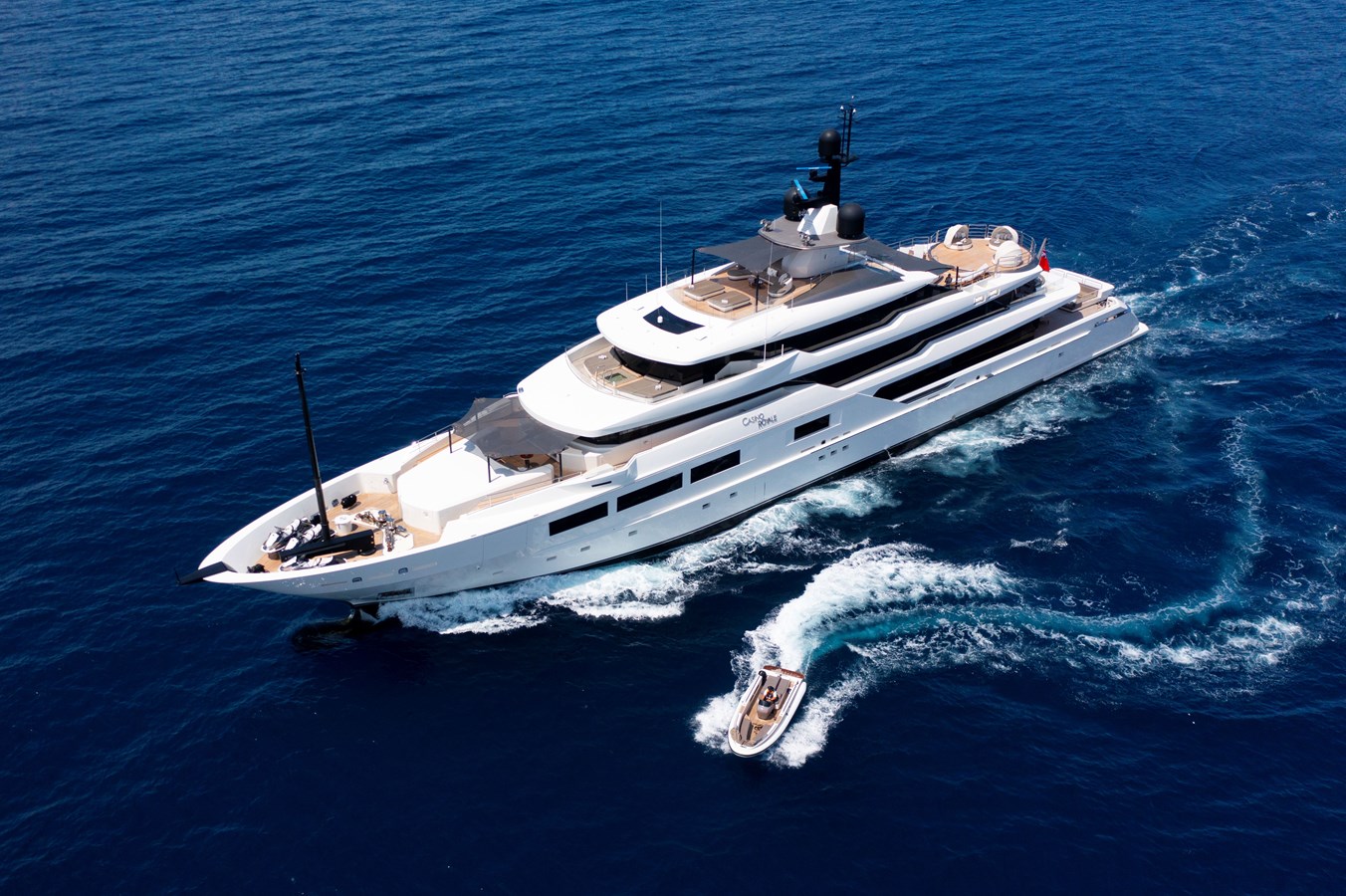

TYPE Twin Screw Diesel Yacht FLAG Cayman Islands DIMENSIONS Length O.A. 72m (236.2ft) Beam 11.6m (38ft) Draft 3.4m(11.2ft) TONNAGE 1,541 GT YEAR BUILT 2018 (refitted 2023) BUILDER Tankoa Yachts, Italy NAVAL ARCHITECT StudioRuggerio INTERIOR DESIGNER Margherita Casprini EXTERIOR DESIGNER Francesco Paszkowski CONSTRUCTION Steel Hull, aluminium superstructure, teak decks CLASSIFICATION Lloyds Register |

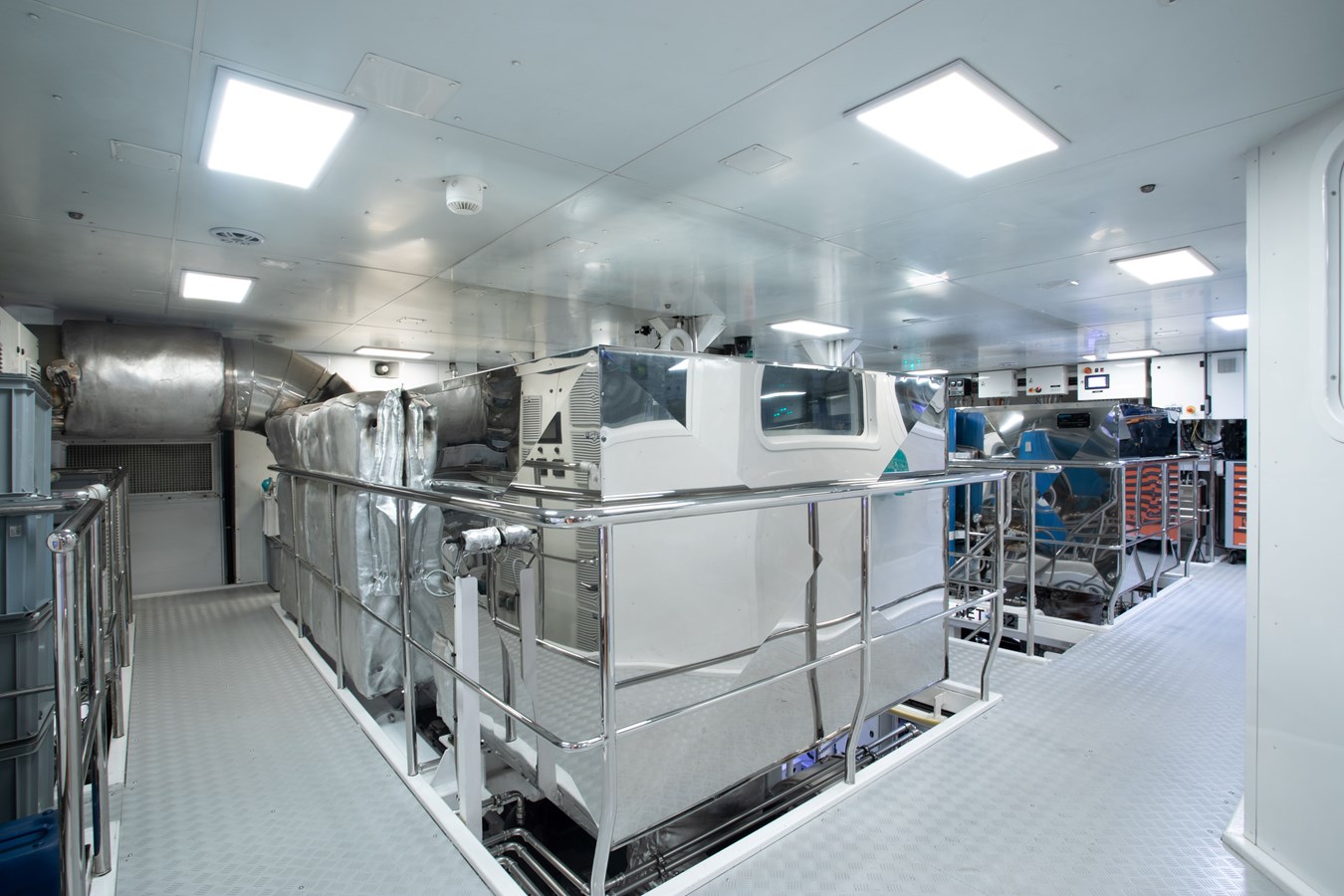

| Machinery |

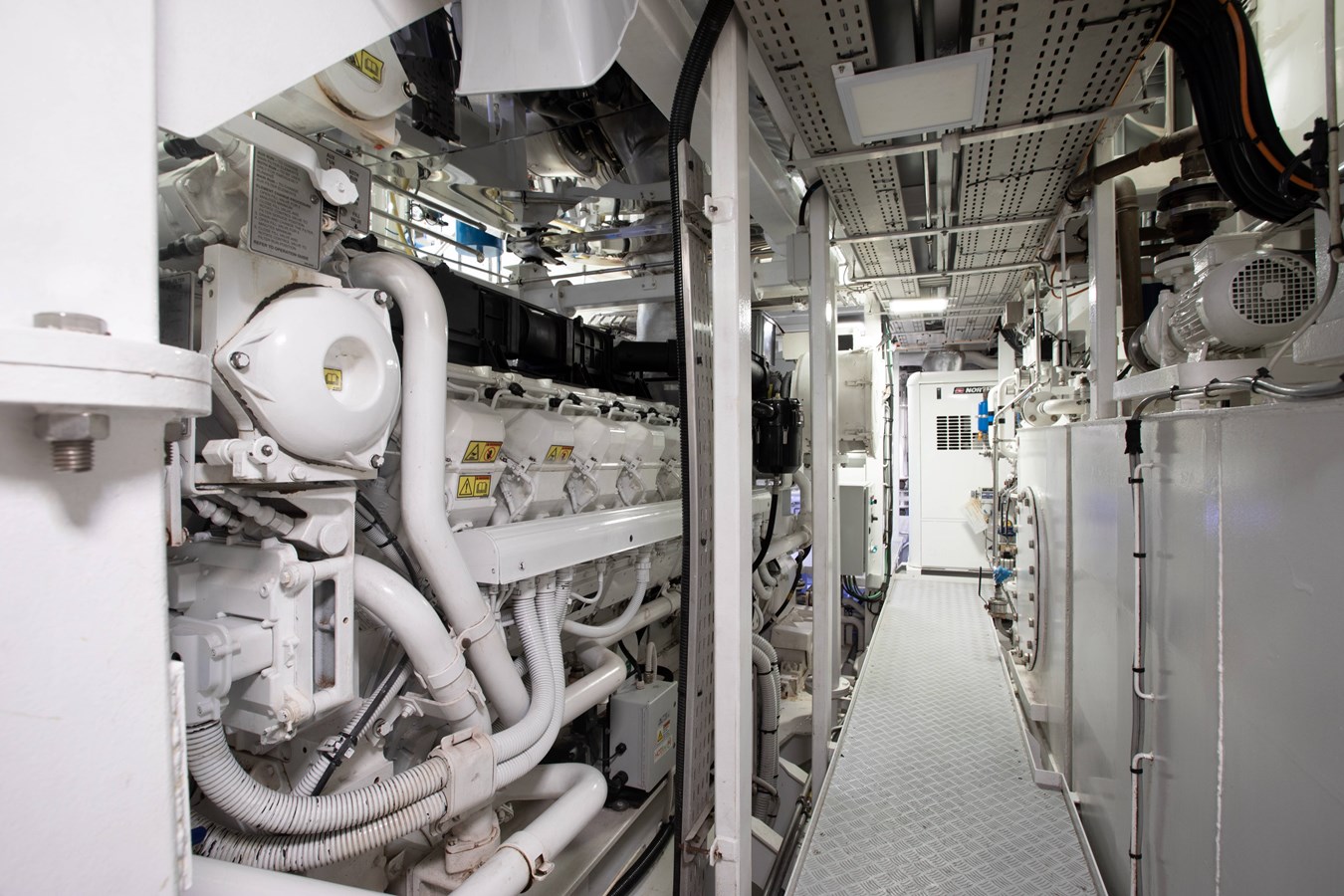

MAIN ENGINES 2x Caterpillar 3516 B DITA-SCAC HD 1,825kW / 2,480HP @ 1,600rpm ENGINE HOURS November 2024 Port: 6387 Stbd: 6383 GEAR BOXES 2x ZF 7541, reduction rate 3.63: 1 SHAFTS BEARING Tufcot T100 Marine: Polyester resin based bushing material, incl. Molybdenum Disulphide powder and PTFE powder, Lubricant water PROPELLERS 2 x 5-bladed, fixed pitch, 1,700mm diameter (Detra) in NI.BR.AL SPEEDS & FUEL Maximum speed 17.5 kts Cruising speed 14 kts Economical speed 10 kts RANGE & CONSUMPTION 10 kts – 9,400nm using 180 l/h with 1 x generator 14 kts – 6,200nm 17.5 kts – 3,500nm |
| Auxiliary Machinery & Electrical System |
MAIN GENERATORS 2 x Northern Lights M1276A - 287,5kVA / 230kW 1 x Northern Lights M1066 - 193,75kVA / 155kW GENERATOR HOURS November 2024: Port: 10190 Stbd: 11777 Fwd: 3418 EMERGENCY GENERATOR 1 x Northern Lights M1066T 80 kW ELECTRICITY 400V / 3-phase / 50 Hz - all power services 230V / Single phase / 50Hz - lighting and small power services 24V DC - emergency lighting, signalling circuits, control equipment, navigation aids
SHORE POWER 2 x 125 kVA @ 400 V/ 50Hz/ 3-phase + Neutral Magnus Marine SP200 / 100-1000 kVA Single/3 phase BATTERIES 22 x Lithium Ion Phosphate, 2 x Lead acid |
| Tank Capacities (approximate) |
FUEL 184,000 litres (48,607 US gallons) WATER 37,600 litres (9,932 US gallons) WATERMAKERS 2 x Idromar Mc- 20 producing 20,000 litres per / day CLEAN LUB OIL 4,500 litres (1,189 US gallons) DIRTY LUB OIL 4,500 litres (1,189 US gallons) GREY WATER 4,200 litres (1,110 US gallons) BLACK WATER 31,600 litres (8,347 US gallons) |
| Ancillary Equipment |
STEERING SYSTEM ROLLS-ROYCE steering gear SR562 FCP (twin-rudder) RUDDER ANGLE INDICATORS 4 x in wheelhouse, 2 x on each bridge wing BOW THRUSTER VT NAIAD Tunnel Thruster system fixed pitch 200 kW @1,500 rpm theoretical thrust 23.3 kN STABILIZERS VT NAIAD, 4 x 3.54 sqm fins, including upgrade to ‘AtRest Adaptive’ (zero speed) mode (upgraded September 2024) FUEL FILTERS SEPAR FUEL OIL SEPERATOR 2 x ALFA LAVAL MIB 304 380V with a capacity of approx. 2,000 l/h each OIL/WATER SEPARATOR DECKMA Type OMD-2005 BILGE PUMP 2 x ACM 652 BT Gianneschi FIRE PUMP 2 x ACM 652 BT Gianneschi x2 BOILERS 6 x Stainless steel electric boilers, with double heater each, total capacity 1,800 litres SEWAGE TREATMENT SELMAR Blue Sea 12000 Plus WC's JETS AIR CONDITIONING FRIGIT VENTILATION GIANESCHI |
| Safety & Security Equipment |
SAFETY 1 x Rescue Boat DSB 3.9 SR / IRB Type 24 (with 25HP Mercury outboard) 4 x 16-person Survitec Zodiac liferafts 10 x lifebuoys (2 x light/smoke, 4 x light, 4 x normal) 25 x SOLAS foam lifejacket (21 x Adult, 4 x Child) 83 x Inflatable lifejacket (73 x Adult, 10 x XL) 44 x Immersion Suit (34 x Adult, 6 x XL, 4 x Child) 10 x EEBD MEDICAL MedAire Category A (24 crew) as per MCA MSN 1905 (M + F) – Annual Subscription 2 x Automated External Defibrillators (AEDs) FIRE FIGHTING 92 x Portable Extinguishers (Powder, Foam, Co2, Wet Chemical, Lithium) 17 x Fire Hydrants + nozzles 2 x Firefighting suits with Dräger SCBA (6 x BA cylinders) BAUER FF/Dive cylinder air compressor Fixed Firefighting Systems: Flexifog water mist system (accommodation) Aerosol system (bunker stations, pump room) Drencher system (tender garage, RB & jet garages) Total Flooding Foam system (EMDG space and Engine Room) Galley Duct CO2 system ALARMS & MONITORING Public Address System with Fire Alarm, General Emergency Alarm Autronica Fire Alarm Panel (Bridge, Crew Mess,ECR) Alarm Monitoring System (FASER/BÖNING) with mimics in ECR, Bridge, Crew Mess Deck and Engine Officer Cabin Alarm panels SECURITY CCTV (Mast, Exterior Decks, Machinery Space), Owner’s Deck privacy system, crew door with programmable magnetic lock, gangway door phone |
| Communication Equipment |
SATCOM 2 x STARLINK Maritime 1 x Sailor Fleet Broadband 500 2 x VSAT (with 8 W BUC minimum) 2 x TVRO seatel 120 HD CELLULAR SYSTEM PEPWAVE 4SIM GMDSS EQUIPMENT 2 x SAILOR Sat-C 2 x SAILOR 6222 VHF DSC Radios (Bridge Radio Room/Crew Mess) 1 x FURUNO FM-8900S VHF Radio (Bridge console) 1 x SAILOR 6301 MF/HF DSC Radio 3 x ENTEL portable emergency VHF Radios 1 x FURNUO NAVTEX NX-700 2 x SARTs 2 x EPIRBs WATCHKEEPING FURUNO BR-500 Bridge Navigation Watchkeeper Alarm System (BNWAS) with panels in Bridge, Crew Mess, Captain and Chief Officer cabins AIRCRAFT EMERGENCY COMMS 1 x ICOM IC- A120E VHF Airband transceiver TELEPHONE Panasonic Automatic system (PABX) GSM voice/fax/data telephones connected to PABX EXCHANGE N/A UHF COMMUNICATIONS Motorola Handheld UHF Radios |
| Navigation Equipment |
MAGNETIC COMPASS 1x SPERRY MARINE Type 2843 (+ spare) GYRO COMPASS 1x SIMRAD GC 80 (new sensitive element Sept ’24) AUTOMATIC PILOT 1x SIMRAD AP70 LOG 1 x FURUNO Doppler speed log DS 80 ECHO SOUNDER 1 x FURUNO FE-800 (Fore 200kHz & Aft 50kHz transducers) RADAR 1x FURUNO S-band FAR 3210 (Chart Radar) 1x FURUNO X-band FAR 3210 (Chart Radar) CHART PLOTTER 2 x FURUNO ECDIS FMD 3200 GPS 2 x FURUNO Navigator GP170 WIND INSTRUMENTS Mast-mounted anemometer and 8 x FURUNO RD33 remote display (wind, depth, speed etc.) in Bridge, wing stations, Captain cabin and crew mess AIS 1x FURUNO FA-170 Class A AIS |
| Deck Equipment |

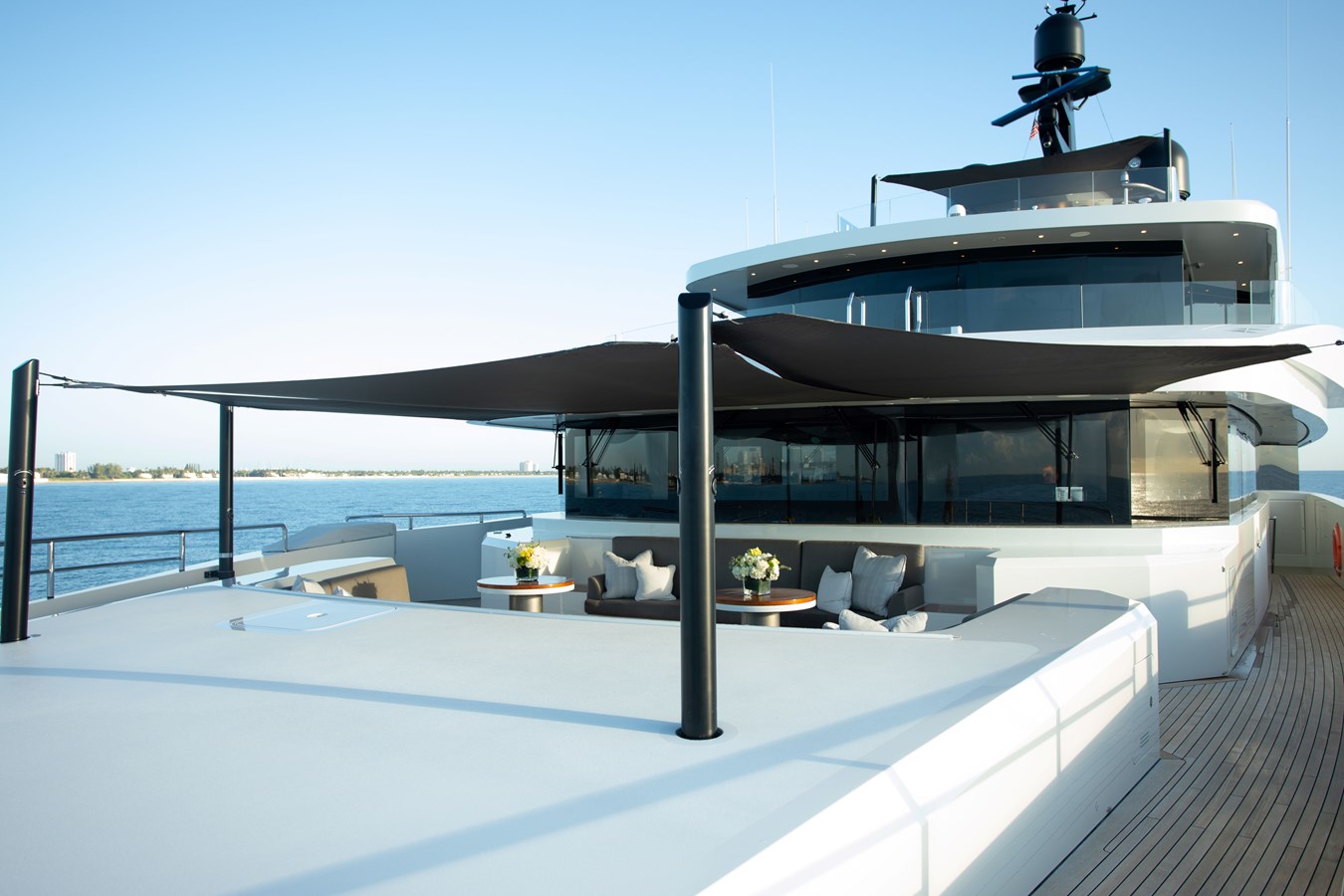

ANCHOR WINDLASS 2 x OPEM SISTEMI 400V AFT WARPING CAPSTANS 2 x OPEM SISTEMI 400V GROUND TACKLE 2 x SEC POOL 855kg HHP Anchors attached to anchor chains of 6 shackles (STBD) and 7 shackles (PORT) length BOAT CRANE & DAVITS 1 x Bow crane (SWL 1500kg) 1 x Jet ski davit (SWL 600kg) 1 x Rescue boat davit (SWL 880kg) 2 x Tender davits (SWL 2700kg) PASSERELLE STERN 1 x 6.00m Aluminium, electro-hydraulic, telescopic with height adjustment STBD SIDE 1 x Aluminium, electro-hydraulic, telescopic with height adjustment SWIMMING PLATFORM Equipped with 2 x Motomar electro-hydraulic swimming ladder SEARCHLIGHTS 2 x COLORLIGHT fully adjustable Searchlights above Bridge AWNING MULTIPLEX Awning System – Sun Deck, Owner’s Deck Aft, Bridge Deck Forward Additional sunshades on Bridge Deck Aft |
| Audio & Visual Equipment |
SUN DECK Yamaha RX-601D, Crestron TP TSW-1060 OWNERS CABIN Drop-down Samsung TV 65” in deckhead, Yamaha RX-601D, Crestron TP TSW-1060, Apple TV OWNER RELAX Drop-down Samsung 55” TV in deckhead, Yamaha RX-601D, Crestron TP TSW-1060, Apple TV SKYLOUNGE Yamaha RX-601D, Crestron TP TSW-1060, Samsung TV 85”, Apple TV BRIDGE DECK AFT Drop-down Samsung TV 65” in deckhead, Yamaha RX-601D, Crestron TP TSW-1060 BEAUTY FARM Yamaha RX-601D, Crestron TP TSW-1060 Samsung 43” TV VIP CABIN Yamaha RX-601D, Crestron TP TSW-1060 Samsung TV 55”, Apple TV GUEST CABINS , Apple TV MAIN Yamaha RX-601D, Crestron TP TSW-1060, Samsung TV 88”, Apple TV MAIN DECK AFT Yamaha RX-601D, Crestron TP TSW-1060 BEACH CLUB & GYM Yamaha RX-601D, Crestron TP TSW-1060, Samsung TV 55”, Gym Samsung TV 43” (hidden behind mirror) CAPTAIN´S CABIN Yamaha RX-601D, Crestron TP TSW-1060, Samsung TV 32” CREW CABINS Samsung TV 32”, FM Radio CREW MESS/CREW RELAX Samsung TV 49” (Crew Mess) and 40” (Crew Relax), Apple TV GALLEY FM Radio LAUNDRY FM Radio |
| Office Equipment |
BRIDGE iMac + additional monitor, 2 x Macbook Pro, SHARP MX-3060v printer CREW OFFICE iMac, HP 700 series printer ECR Lenovo PC monitor + monitor, HP envy printer |
| Domestic Equipment |

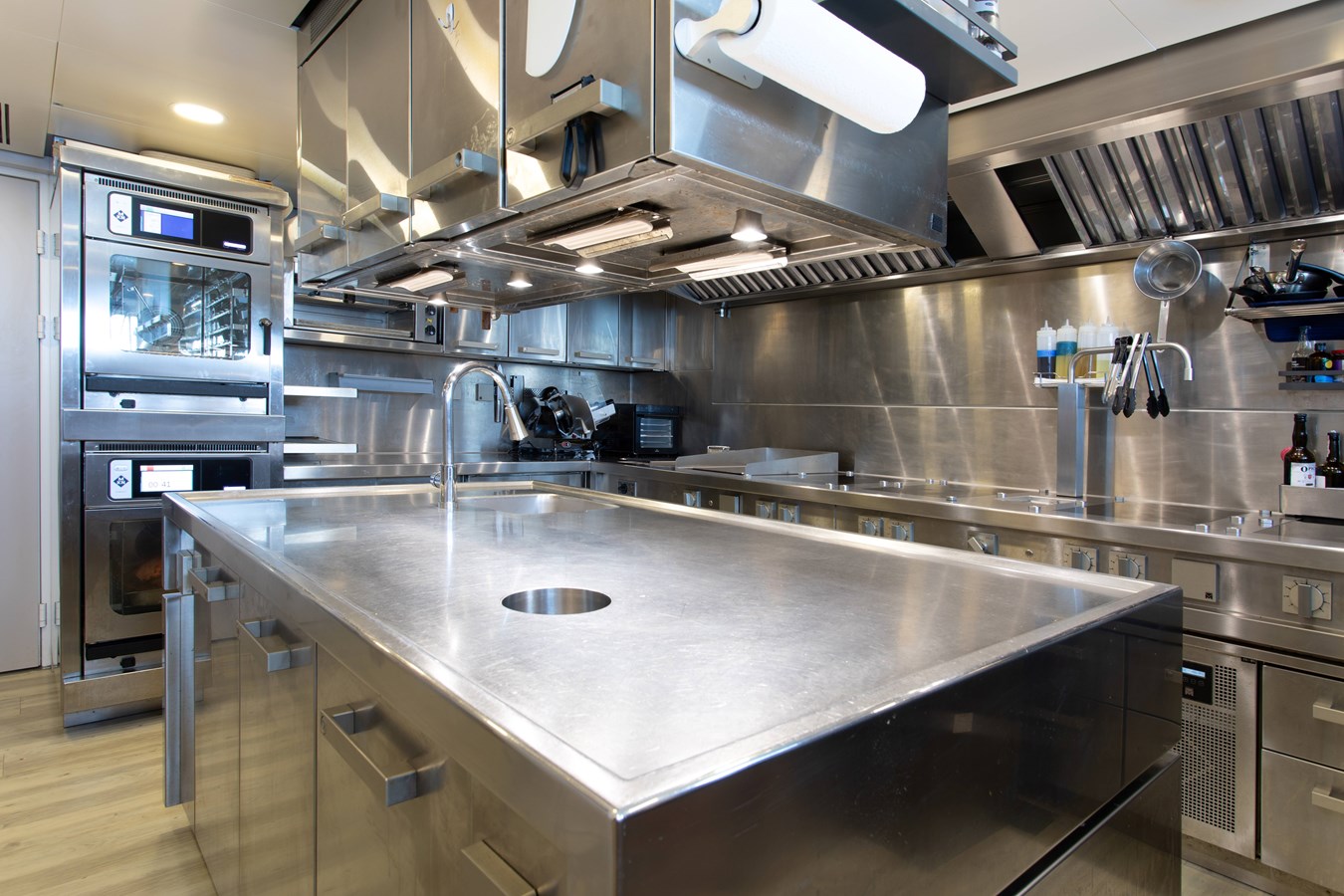

MAIN GALLEY 2 x Meiko Dishwashers 2 x MKN Oven FRIGIT Fridges & Freezers (Walk-in & Galley, Mess) HOSHIZAKI ice maker LAUNDRY 3 x MIELE PWM 908 DP SST Washing machines 3 x MIELE PDR 908 drayer 1 x MIELE Professional PIB100 iron 1x MIELE PM1210EL Roller MAIN DECK PANTRY Coffee Machines, , FRIGIT wine cellar, FRIGIT under cabinet fridge, MIELE microwave, GROHE blue drinking water system/sparkling water MAIN DECK BAR , FRIGIT under bar fridge BRIDGE DECK PANTRY 2 x MEIKO Dishwasher M-iClean UM+, FRIGIT wine cellar, Coffee Machines, FRIGIT under cabinet fridge, MIELE microwave, GROHE blue drinking water system/sparkling water BRIDGE DECK SKYLOUNGE HOSHIZAKI ice maker, FRIGIT under bar fridge CREW MESS 1x MIELE PG 8056 Dishwasher 2 x FRIGIT Fridge 1 x GROHE blue drinking water system/sparkling water SUNDECK N/A |
| Other Equipment |

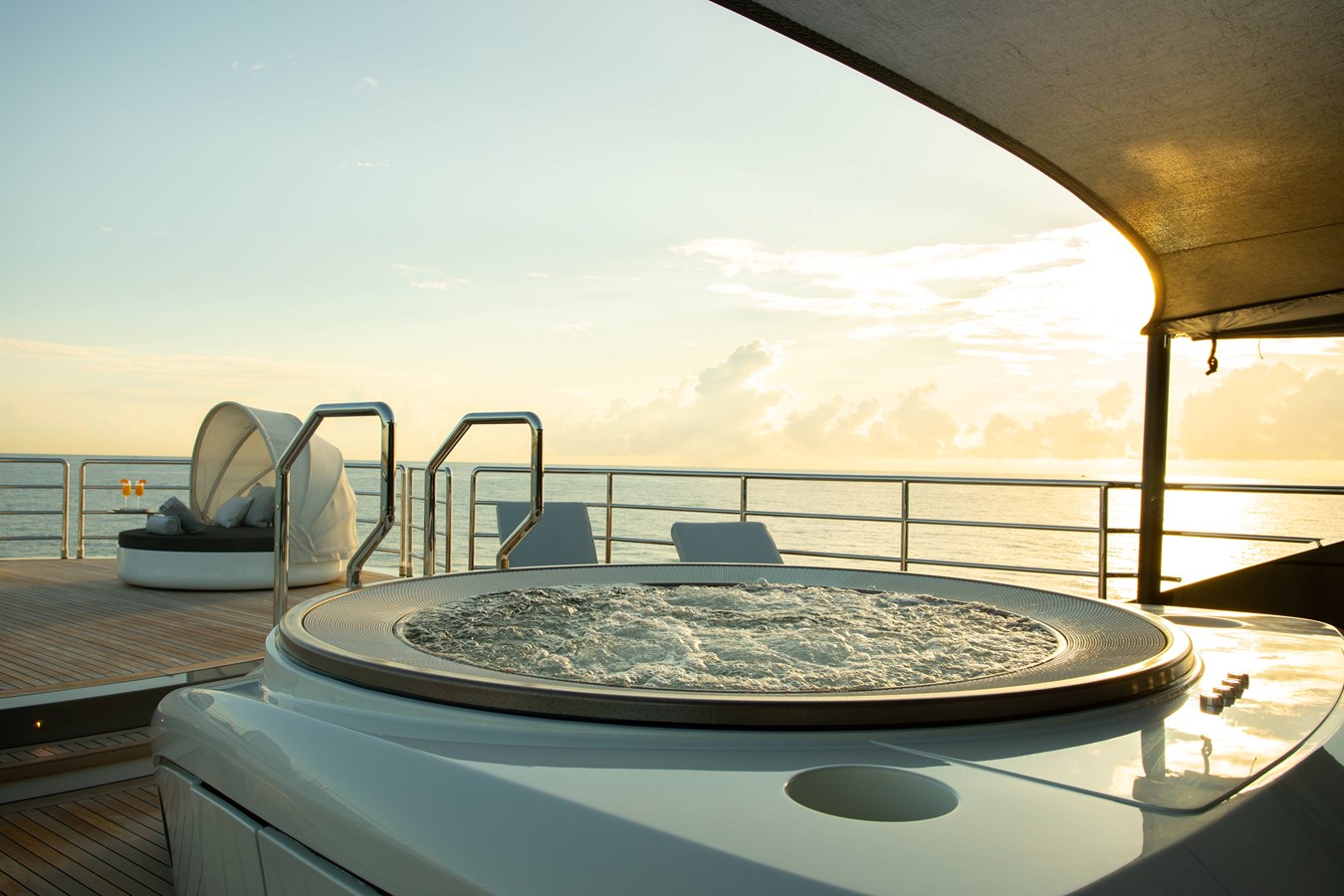

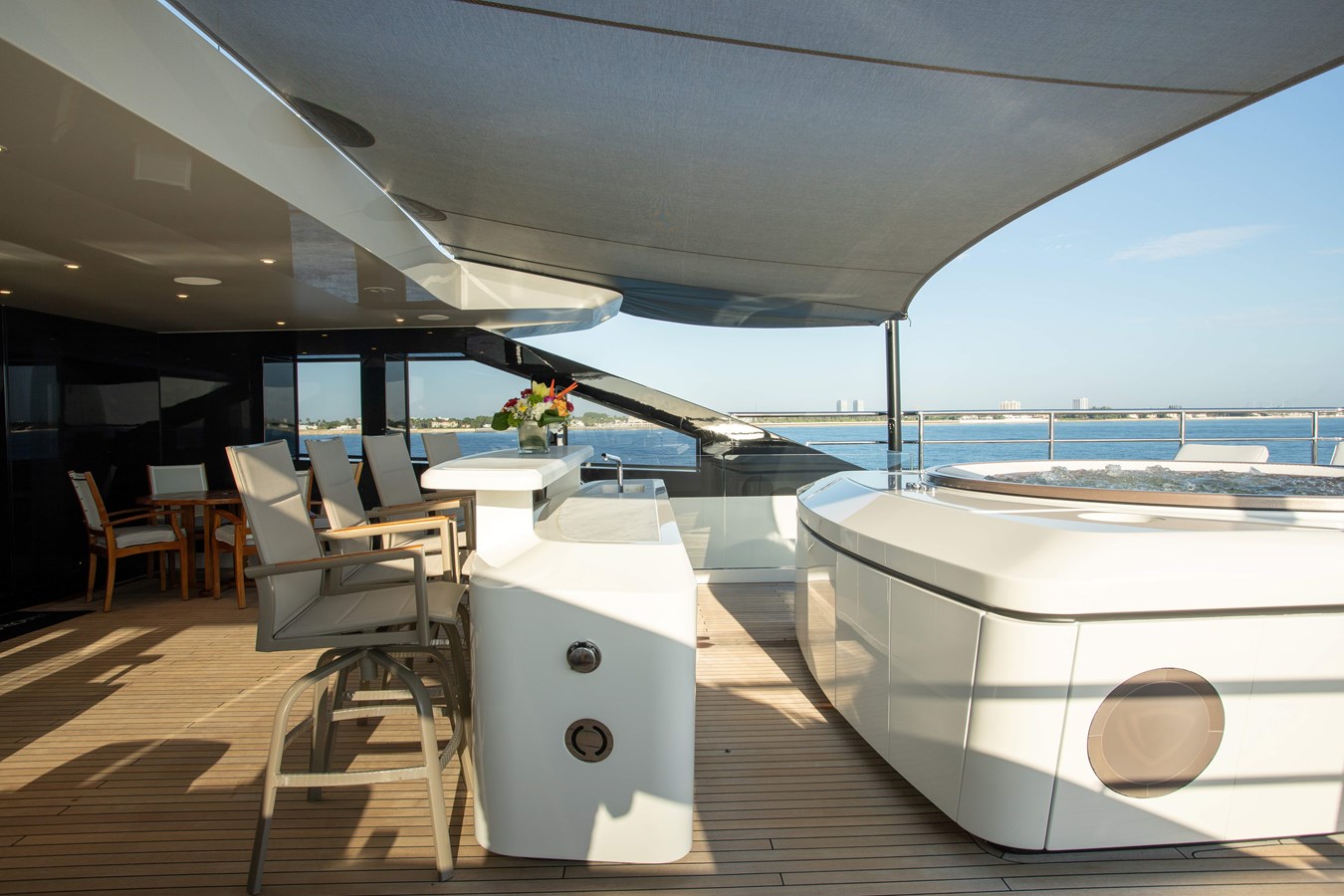

JACUZZI DIP POOL 1x 4.70m pool on the Main Deck Aft 1x Jacuzzi on Owner's Deck Aft 1x Pool (1.7m x1.7m) on Owner's Deck Forward EXTERIOR SHOWERS Sundeck shower (in mast structure) Transom shower SHIP'S SAFES Safes in all cabins (Owner, Guests, Captain & Crew) and Bridge ELEVATOR 1 x A.I.E.C Elevator (Main – Upper – Owner’s deck) GYM EQUIPMENT Adjustable Bench Technogym Treadmill Technogym Kinesis Personal Inspire Multi gym Bowflex Dumbbells |
| Tenders & Watersports Equipment |
TENDERS 2x Dariel Custom 7.50m WATERSPORTS EQUIPMENT 3 x Wave Runner Yamaha VX Cruiser HO 1 x Round Trampoline 1x 6-Seats Towable Banana 1x Floating pool with jelly fish net 3 x 8 metres 2x Stand-Up Paddle 3x Kayaks 1x Donut Kwik 1x Inflatable sofa 2x Water Ski & Wake Board Mask, Flippers & Snorkels |
| Accommodations |

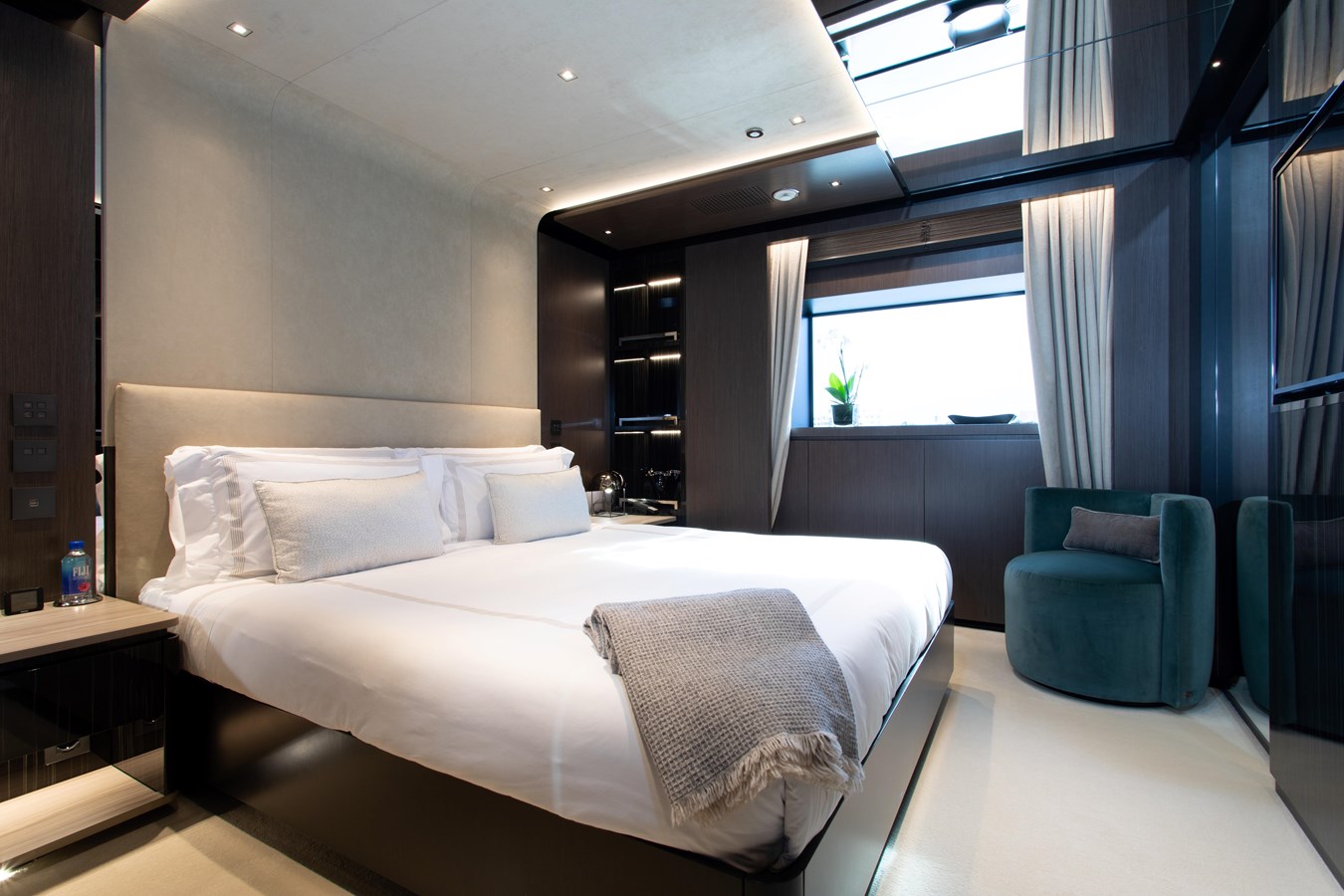

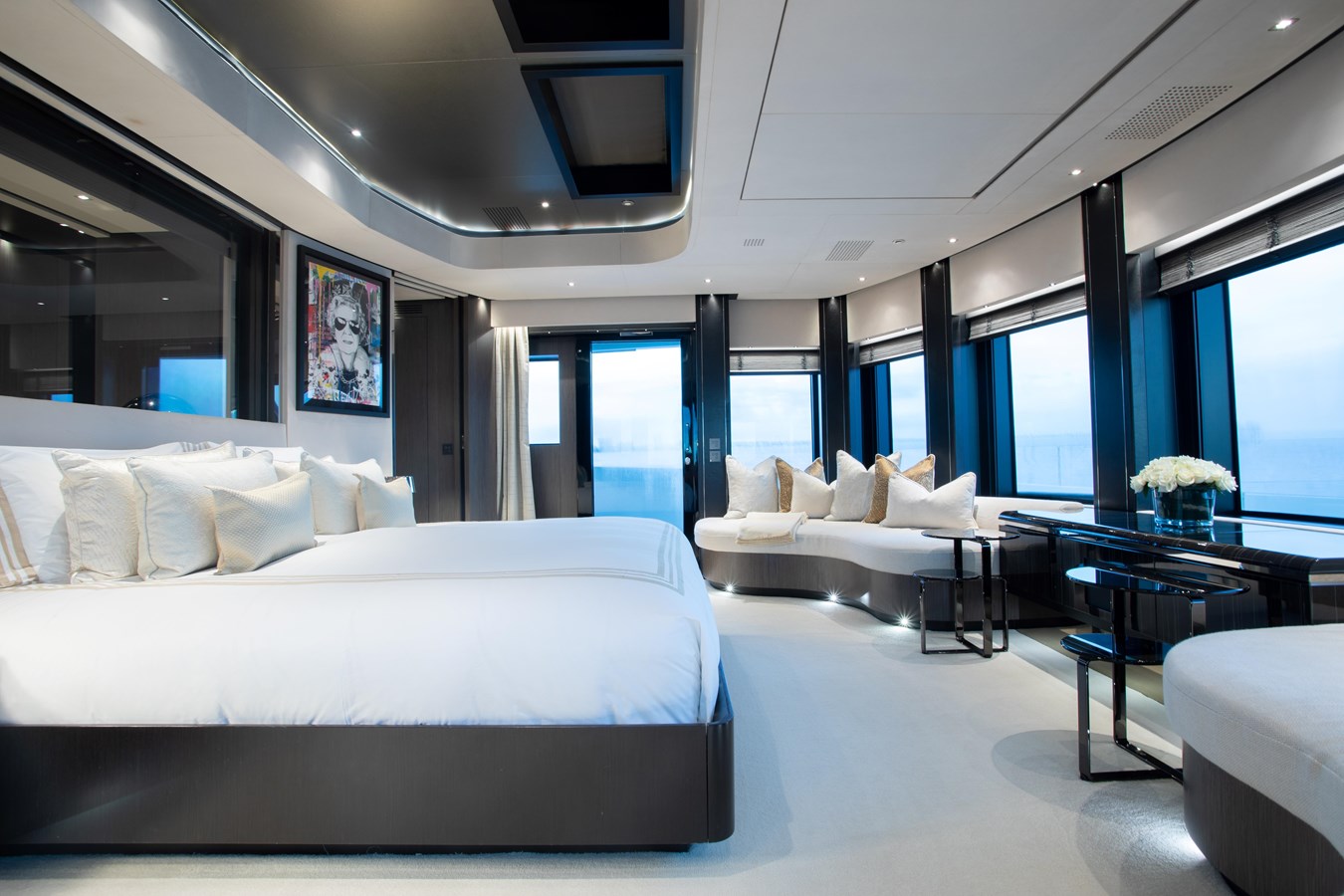

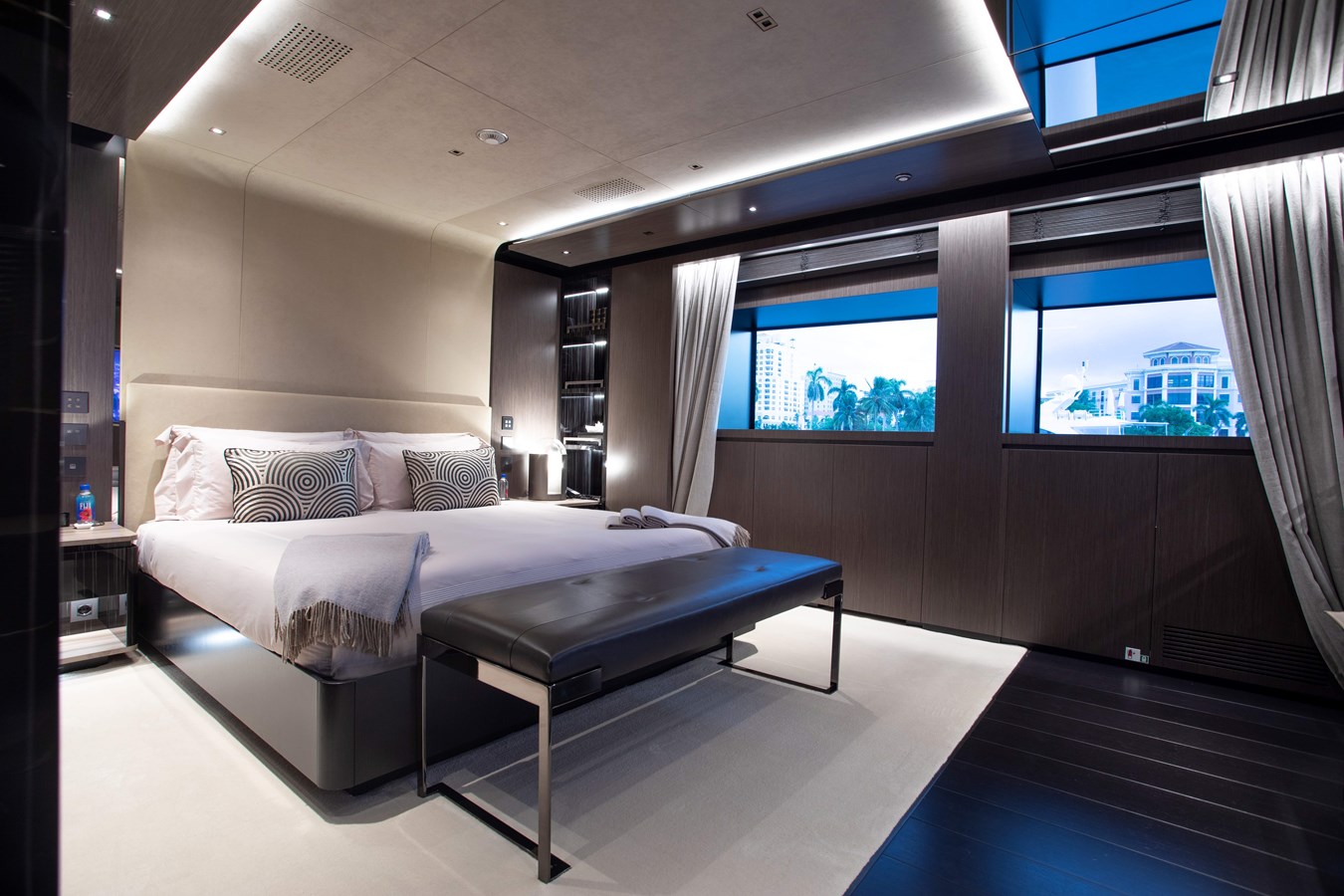

Accommodation for 12 guests in six cabins OWNER 1 x Master cabin on Owner’s deck with independent office and salon, king size bed with panoramic views, private terrace with a Jacuzzi and lounge beds GUESTS 1 x VIP cabin on main deck 2 x Double cabins on main deck 2 x Convertible twin cabins on main deck 1 x Massage room with dayhead (possibility for additional cabin subject to flag approval) CREW 19 crew in 11 cabins 1 x Captain’s cabin (double) 1 x First Officer’s Cabin (single) 1 x Chief Engineer’s Cabin (double) 7 x Crew 2-bunk cabin (twin) 1 x Crew single cabin (single) 1 x Hospital/staff cabin (single) |
|
